MONOGRAM ZIP364NBVII 36 Inch Integrated French-Door Refrigerator

STANDARD INSTALLATION KIT CAPABILITIES

You can replace a 35-1/2″ or 36″ wide single-installed product with a 36″ french door bottom freezer product all with no cabinet or electrical modifications, Standard Install Kit ZKW36V

BOTTOM FREEZER WITH FLUSH INSTALLATION
Concealed hinge offers a look of seamless perfection that installs flush with surrounding cabinetry

TEMPERATURE-SETTING CONVERTIBLE DRAWER
The convertible drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items

STATEMENT AND MINIMALIST COLLECTION REFRIGERATOR HANDLES (SOLD SEPARATELY)
Designed to enhance choice and customization, Statement and Minimalist Collection refrigerators do not come with handles, these must be chosen separately and ordered through a Monogram representative

PANEL-READY EXTERIOR WITH SIX-WAY ADJUSTABILITY
Statement and Minimalist Collection refrigerators accept stainless steel panels, which can be ordered separately from Monogram or your cabinet maker

LED LIGHTING INSIDE REFRIGERATOR
Ramp-up LED interior lighting provides exceptional illumination throughout the fresh food compartment, accentuating the sophisticated interior and allowing you to easily see food in the refrigerator

WIFI CONNECTED REFRIGERATOR
The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app

ACCURATE, ELECTRONIC TOUCH CONTROLS
Upfront, electronic touch controls make it easy to adjust climate settings to create ideal food storage conditions

REFRIGERATOR WITH SOFT-CLOSE DRAWERS|
The innovative sliding mechanism helps the drawers close gently and completely

HUMIDITY-CONTROLLED VEGETABLE AND FRUIT DRAWER
Enjoy additional storage flexibility settings that helps to preserve food freshness

FACTORY INSTALLED ICE MAKER
The water filtration system in the factory installed ice maker supplies you with clean, fresh-tasting water and ice

SABBATH MODE REFRIGERATOR
This refrigerator with Sabbath mode is designed to disable functions in accordance with Sabbath-observing practices

SPECIFICATIONS

• Overall Width: 35 3/4″ (90.8)
• Overall Height: 83 7/8″ (213 cm)
• Overall Depth: 24 3/4″ (62.9 cm)
• Door Clearance at 90°: see TOP VIEW **Dim A
• Drawer Clearance: 24 1/4″ (61.6 cm)

STANDARD INSTALLATION

• Cutout Width: 35 1/2″ (90.1 cm)
• Cutout Height: 84″ (213.4 cm)
• Cutout Depth: 24″ (60.9 cm)
• Net Weight (approx): 550 lbs (250 kg)

ATTENTION ELECTRICIAN

A 115 volt 60Hz., 15 or 20 amp power supply is required. An individual properly grounded branch circuit or circuit breaker is recommended. For multiple unit installation, each unit requires separate individually properly grounded circuit or breaker and separate properly grounded 3-prong electrical receptacle recessed.

WARNING
When installing appliance, you must use and follow the product installation instructions. These can be found with unit or on web at monogram.com

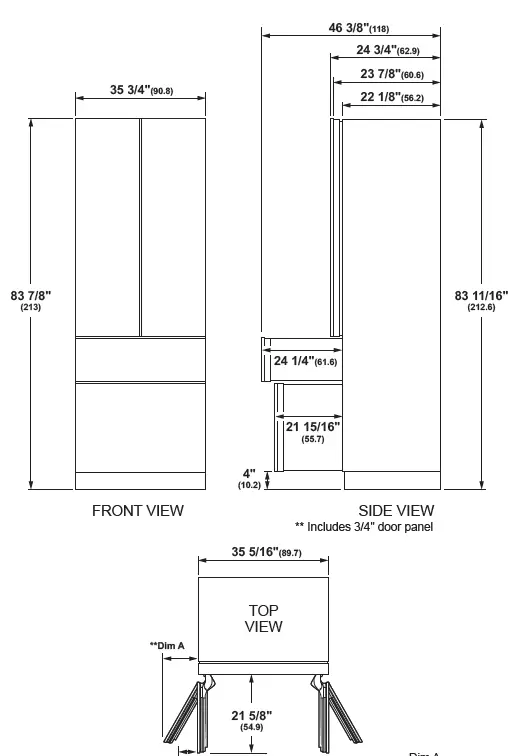

OVERALL DIMENSIONS

SINGLE INSTALLATION

FLUSH 3/4″ THICK PANEL DIMENSIONS SINGLE INSTALLATION

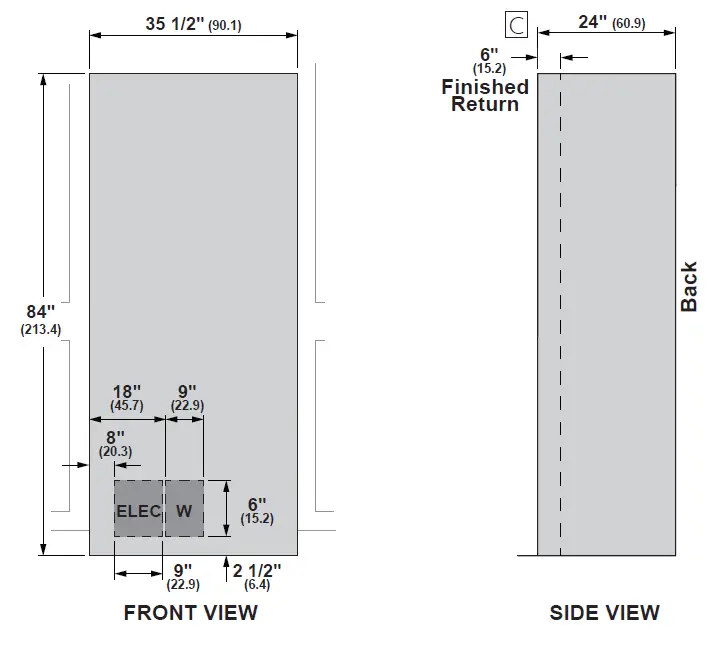

STANDARD INSTALLATION

HELPFUL TIPS

minimum 6″ (15.2) finished return matching cabinet exterior recommended on interior on all sides and top at front of opening

• Trimmed refrigerators are designed to be customized with decorative panels. Field-installed 3/4″ custom door panels are required.
• Maximum total panel weight:
  • Fresh Food Door – 20.7 lbs
  • Convertible Drawer – 7.5 lbs
  • Freezer Drawer – 17.1 lbs

Note: For panels constructed with rails and stiles (5-panel), the rails and stiles must be a minimum of 2″ wide.

• For Custom Panels: Use templates provided with units to pre-drill holes for mounting panel brackets (provided with unit). Adjustment screws and instructions also provided with units.
• Custom Panels require a custom handle from cabinet maker or the ZKPN – Handle Mounting Kit, is required when using Statement and Minimalist handles (sold separately).
• ZKW36V single install retrofit/standard installation
• Stainless steel handle and panel options:
  • ZK4SN360VSS: French Door Stainless Steel door panel kit
  • ZKSB4H4CVSS: Minimalist handle kit
  • ZKSB4H4PVSS: Statement handle kit

WARNING:
When installing an appliance, you must use and follow the product installation instructions. These can be found with unit or on web at monogram.com. This document is intended for cabinet and panel construction only.

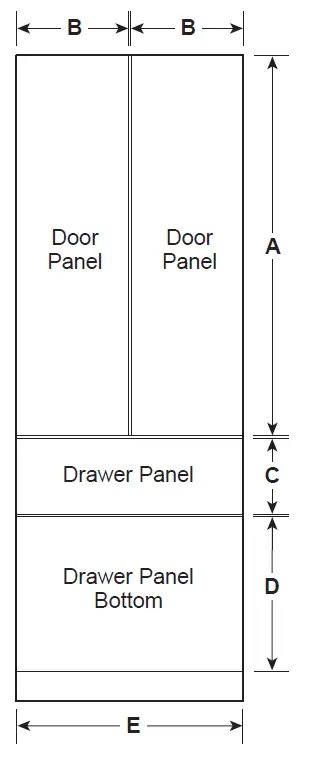

PANEL DIMENSIONS

• A: 49 3/8″
• B: 17 13/16″
• C:  9 11/16″
• D:  20 5/8″
• E:  34 3/4″
