Monogram Zip364ipvii 36 Inch Premium Fully Integrated French-door Bottom Freezer User Manual

MONOGRAM 36″ PREMIUM FULLY INTEGRATED
FRENCH-DOOR BOTTOM FREEZER
ZIP364IPVII

BOTTOM FREEZER WITH FLUSH INSTALLATION

Concealed hinge offers a look of seamless perfection that installs flush with surrounding cabinetry
6-TEMPERATURE SETTING CONVERTIBLE DRAWER
The convertible drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items
STATEMENT AND MINIMALIST COLLECTION
REFRIGERATOR HANDLES (SOLD SEPARATELY)
Designed to enhance choice and customization, Statement and Minimalist Collection refrigerators do not come with handles, these must be chosen separately and ordered through a Monogram representative
PANEL-READY EXTERIOR WITH SIX-WAY ADJUSTABILITY
Statement and Minimalist Collection refrigerators accept stainless steel panels, which can be ordered separately from Monogram or your cabinet maker
LED LIGHTING INSIDE REFRIGERATOR
Ramp-up LED interior lighting provides exceptional illumination throughout the fresh food compartment, accentuating the sophisticated interior and allowing you to easily see food in the refrigerator
REFRIGERATOR WITH INTERNAL WATER DISPENSER
The water dispenser on the inside of the refrigerator leaves the outside looking clean and uncluttered
REFRIGERATOR AIR FILTRATION ODOR REDUCING SYSTEM
The refrigerator deodorizer air filtration system helps keep your refrigerator fresh by scrubbing the air of food odors and gases
WIFI CONNECTED REFRIGERATOR
The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app
REFRIGERATOR WITH RAMP-UP LED INTERIOR SHELVES
LED-lighted refrigerator shelves provide exceptional illumination throughout the refrigerator compartment, accentuating the sophisticated interior and making contents easy to see
REFRIGERATOR WITH ADJUSTABLE DOOR BINS
Finely crafted, adjustable aluminum door bins with glass accents offer easy access to beverages and quick-grab items
ACCURATE, ELECTRONIC TOUCH CONTROLS
Upfront, electronic touch controls make it easy to adjust climate settings to create ideal food storage conditions
REFRIGERATOR WITH SOFT-CLOSE
The innovative sliding mechanism helps the drawers close gently and completely
HUMIDITY-CONTROLLED VEGETABLE DRAWERS AND FRUIT DRAWER
Enjoy additional storage flexibility that helps to preserve food freshness
FACTORY INSTALLED ICE MAKER
The water filtration system in the factory installed ice maker supplies you with clean, fresh-tasting water and ice
SABBATH MODE REFRIGERATOR
This refrigerator with Sabbath mode is designed to disable functions in accordance with Sabbath-observing practices

SPECIFICATIONS

ATTENTION ELECTRICIAN:
A 115 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit breaker is recommended. For multiple unit installation, each unit requires separate individually properly grounded circuit or breaker and separate properly grounded 3-prong electrical receptacle recessed.
WARNING:
When installing appliance, you must use and follow the product installation instructions. These can be found with unit or on web at monogram.com.

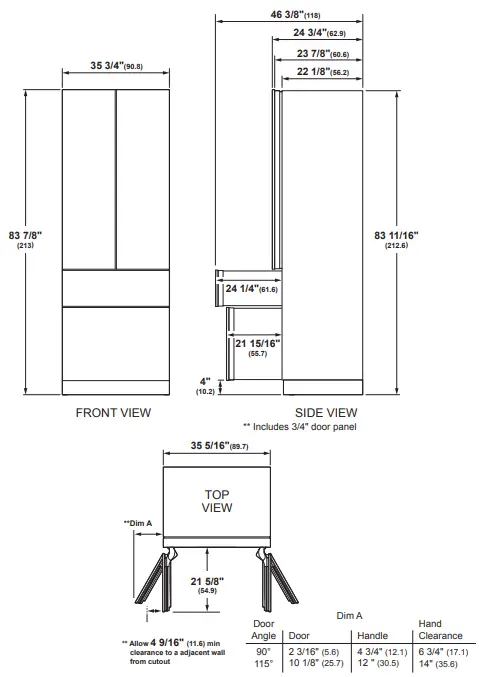

OVERALL DIMENSIONS

** Dimensions based on handle height of 2 9/16″ (6.5)
** Measurement indicates Statement Handle type
Dimensions in parentheses are in centimeters unless otherwise noted. Actual product dimensions may vary due to manufacturing tolerances.

SINGLE INSTALLATION

FLUSH 3/4″ THICK PANEL DIMENSIONS SINGLE INSTALLATION

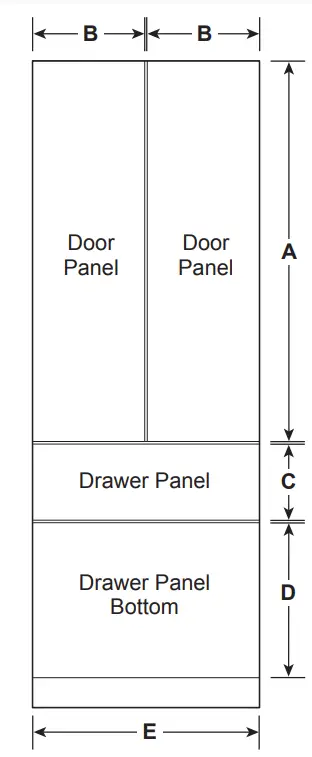

PANEL DIMENSIONS

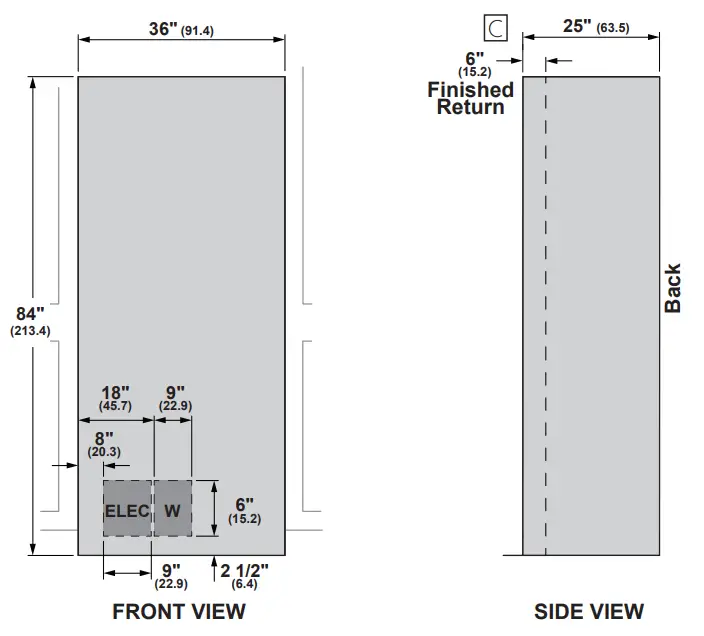

INTEGRATED INSTALLATION

HELPFUL TIPS
A minimum 6″ (15.2) finished return matching cabinet exterior recommended on interior on all sides and top at front of opening

• Trimmed refrigerators are designed to be customized with decorative panels. Field-installed 3/4″ custom door panels are required.
• Maximum total panel weight: Fresh Food Door- 20.7 lbs Convertible Drawer – 7.5 lbs Freezer Drawer – 17.1 lbs
  Note: For panels constructed with rails and stiles (5-panel), the rails and stiles must be a minimum of 2″ wide.
• For Custom Panels: Use templates provided with units to pre-drill holes for mounting panel brackets (provided with unit). Adjustment screws and instructions also provided with units.
  • Custom Panels require a custom handle from cabinet maker or the ZKPN – Handle Mounting Kit, is required when using Statement and Minimalist handles (sold separately).
• Stainless steel handle and panel options:
  ZK4SN360VSS: French Door Stainless Steel door panel kit
  ZKSB4H4CVSS: Minimalist handle kit
  ZKSB4H4PVSS: Statement handle kit

WARNING:
When installing appliance, you must use and follow the product installation instructions. These can be found with unit or on web at monogram.com.
This document is intended for cabinet and panel construction only.

For questions about your
appliance, please call 1-800-626-2000.
Product Specification Revised 8/22
