Thermador T36FT820NS 36 Inch Stainless Steel Freestanding French Door Bottom Freezer
Also Available In:
T36FT810NS – Masterpiece® Series Handles
FEATURES & BENEFITS
- Best in class lighting: see everything with a fully illuminated back panel and adjustable theater lighting
- Dual evaporators / dual compressors
- Internal ice and water provides easy access with a clean exterior
- ThermaFresh system, humidity and temperature controlled drawers
- Stainless steel ThermaFresh mats included with drawers for easy cleaning
TEMPERATURE RANGES
| TEMPERATURE RANGES | |
| Refrigerator | 36°F (2°C) to 46°F (8°C) |
| SuperCool | 36°F (2°C) for Approximately 6 Hours |
| Energy Saving (Economy) Mode | Refrigerator: 45°F (7°C) Freezer: 3°F (-16°C) |
| Freezer | -11°F (-24°C) to 7°F (-14°C) |
| SuperFreeze® | -22°F (-30°C) for Approximately 52 Hours |
| GENERAL PROPERTIES | |
| Home Connect™ (Wi-Fi Enabled) | Yes |
| Full 72″ Height and True Counter-Depth for Built-In Appearance | Yes |
| Carbon Air Filter | Yes |
| Ethylene Filter | Yes |
| Lighting | LED Recessed Side Light Bars & Fully Illuminated Back Panel |
| Dual Compressors / Evaporators | Yes |
| Refrigerator Shelves | 5 |
| Adjustable Shelves – Refrigerator | 4 |
| Shelf Material | Glass w/Metal Profile |
| ThermaFresh Temperature & Humidity Managed Drawers | 2 |
| ThermaFresh Mats | 2 |
| Standard Door Bins – Refrigerator | 4 |
| Gallon Door Bins – Refrigerator | 2 |
| Defrost Process – Freezer | Automatic |
| Freezer Drawers | 3 |
| Internal Water Dispenser | Yes |
| Water Filter | Yes |
| Ice Maker with Diamond Ice System | Yes |
| Door Open Alarms | Yes |
| SuperCool | Yes |
| SuperFreeze® | Yes |
| Special Modes | Sabbath, Economy, Vacation |
| CAPACITY | |
| Total Capacity (cu. ft.) | 20.8 cu. ft. |
| Refrigerator / Freezer Capacity (cu. ft.) | 14.8 / 6.0 cu. ft. |
| TECHNICAL DETAILS | |
| Current (A) / Volts (V) / Frequency (Hz) | 15 A / 115 V / 60 Hz |
| Power Cord Length (in.) | 91 |
| Plug Type | 120V-3 Prong |
| DIMENSIONS & WEIGHT | |
| Appliance Dimensions (H x W x D) (in.) | 72″* x 35 5/8″ x 31 7/16″ |
| Appliance Dimensions without Hinges and Doors (H x W x D) (in.) | 71 1/2″ x 35 5/8″ x 24″** |
| Appliance Dimensions with Hinges and Doors, No Handles (H x W x D) (in.) | 72″* x 35 5/8″ x 28 3/4″ |
| Required Cutout Size (H x W x D) (in.) | 72″ x 36″ x 25″ |
| Net / Gross Weight (lbs.) | 332 / 368 lbs. |
| EFFICIENCY | |
| ENERGY STAR® Certified | Yes |
| Annual Energy Consumption | 570 kWh / yr |
*When leveling legs are fully extended, add 55/88″ to overall height, total 72 55/88″.
** The cutout depth of 25″ includes the required 1″ airflow. The electrical covers on the back of unit do not require additional depth.
WARRANTY
| WARRANTY | |
| Limited, Entire Appliance, Parts and Labor on Any Part of the Refrigerator that Fails Because of a Manufacturing Defect | 2 Year |
| Limited Warranty for Sealed Refrigeration System*; Parts and Labor | 3rd to 6th Year |
| Limited Warranty for Sealed Refrigeration System*; Parts Only | 7th to 12th Year |
| Limited Warranty for Stainless Steel Rust-Through | Lifetime |

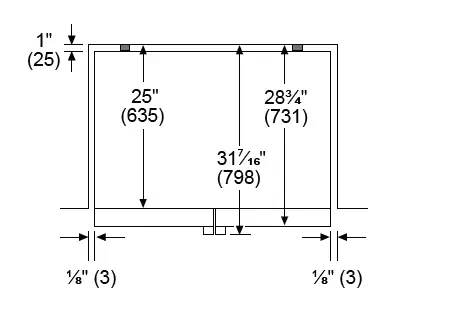

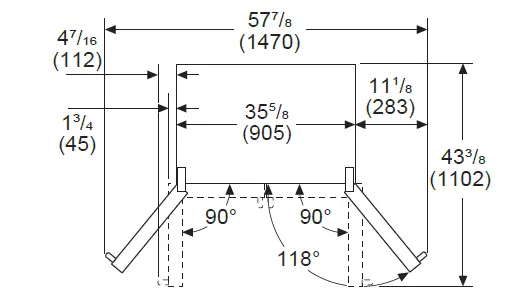

TOP VIEW CLEARANCE
Measurements in inches (mm)
Drawers can be pulled out with door open to 90°
Drawers can be taken out with door completely opened

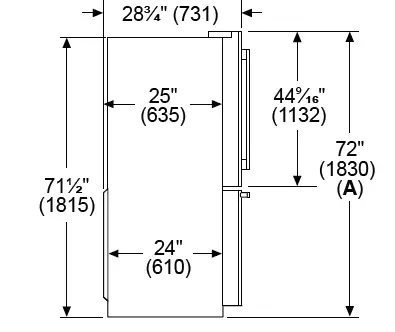

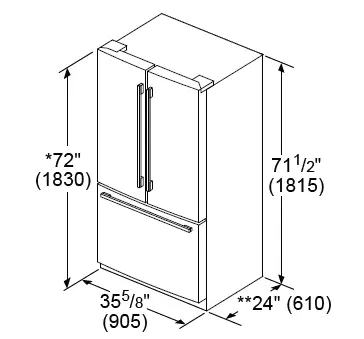

PRODUCT DIMENSIONS
**Add 1″ (25) for fixed spacers on back
Add 5* /8″ (17) with front leveling feet fully extended
measurements in inches (mm)
Add 5/8″ (17) with front leveling feet fully extended
measurements in inches (mm)
ACCESSORIES (OPTIONAL)
- REPLFLTR55
Replacement Water Filter - 17005228
Ethylene Filter Starter Kit - 17005225
Ethylene Filter Refill - 10012733
90 Degree Door Stopper
These warranties give you specific legal rights and you may have other rights that vary from state to state. Limited warranty from date of purchase. For complete warranty details, refer to your Use & Care manual, or ask your dealer.
Specifications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation engineer for your specific ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador indicating the model number. Specifications are correct at time of printing. Thermador reserves the right to change product specifications or design without notice. Some models are certified for use in Canada. Thermador is not responsible for products that are transported from the U.S. for use in Canada.
