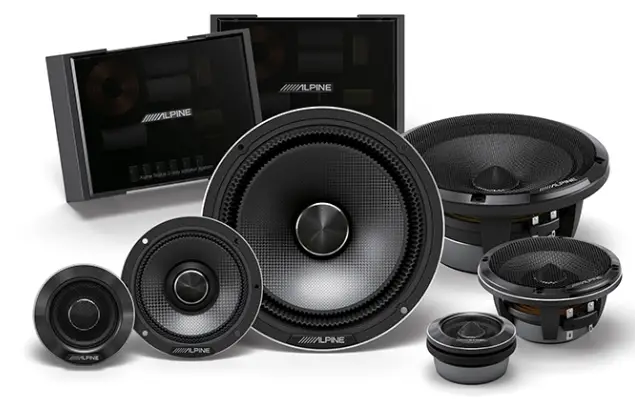

ALPINE HDZ-653 Component System
CONTENTS

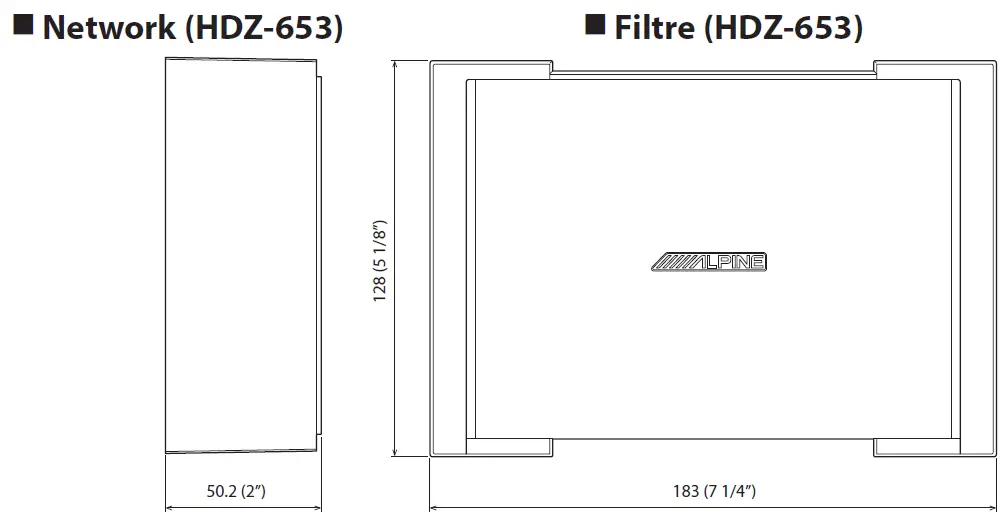

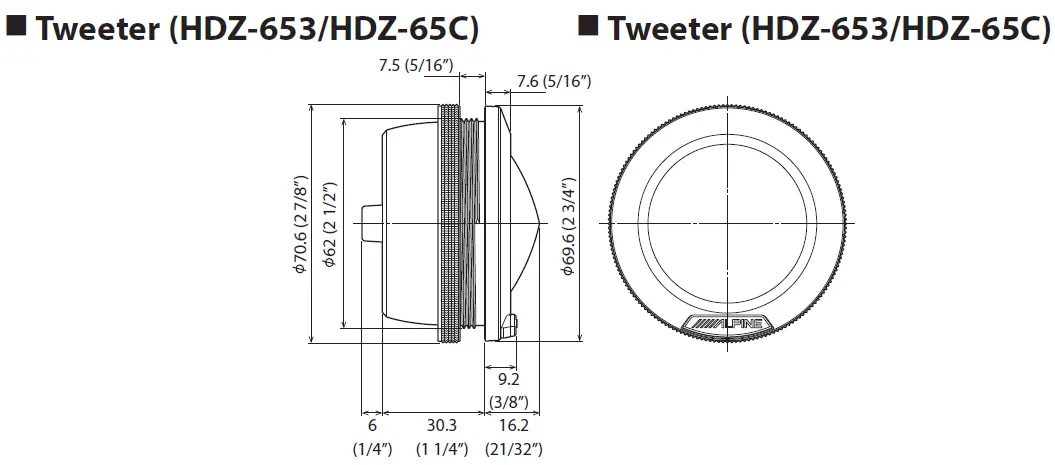

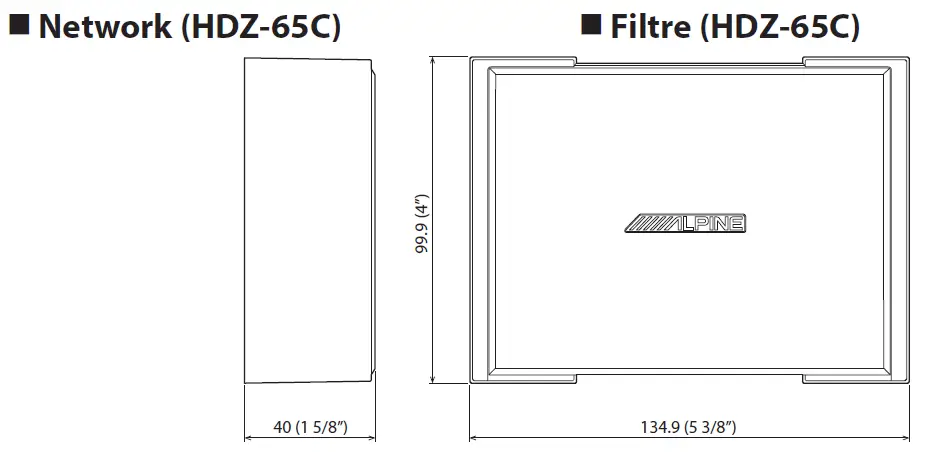

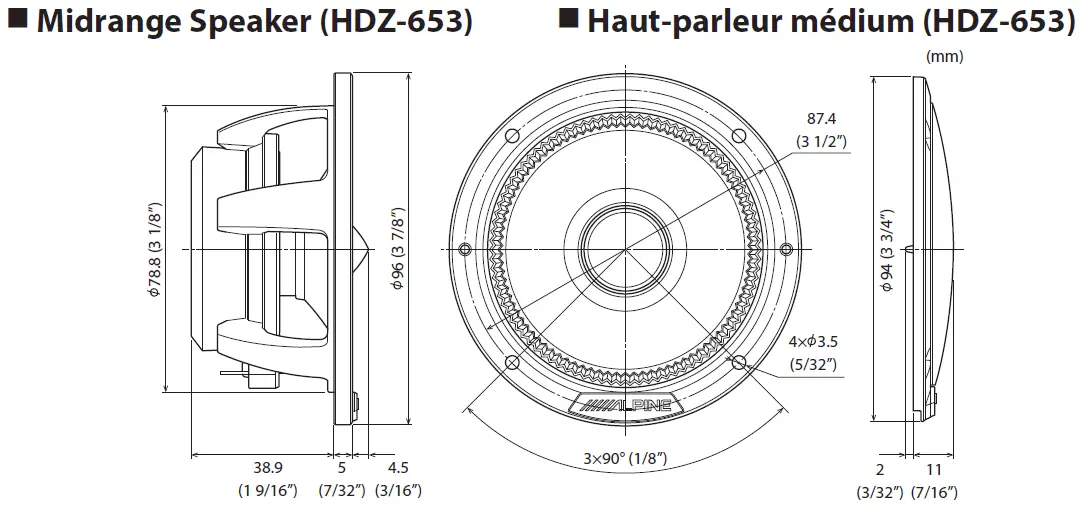

EXTERNAL DIMENSIONS

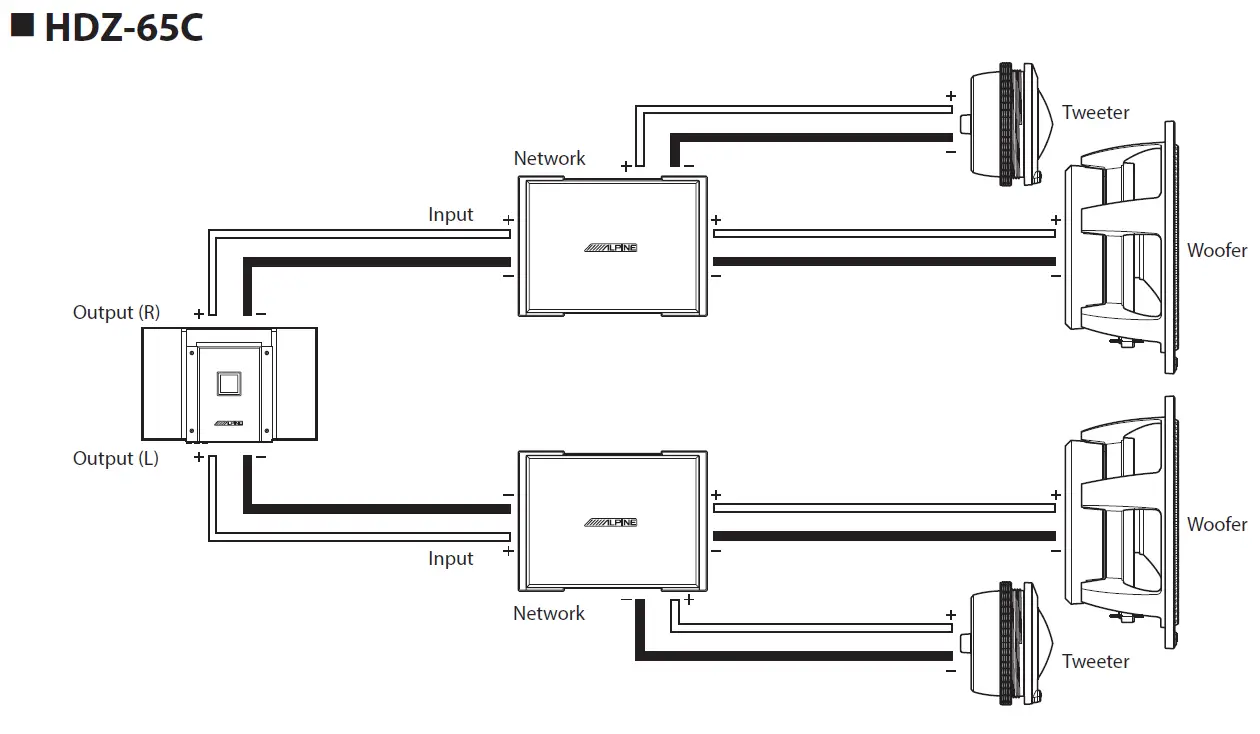

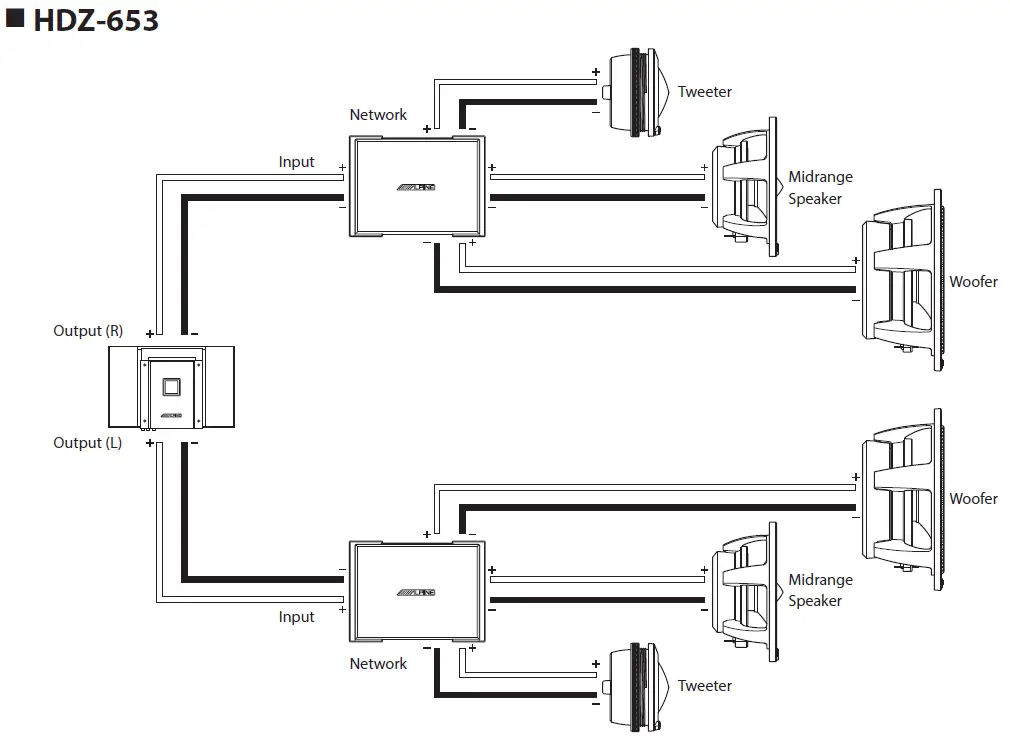

WIRING CONNECTION

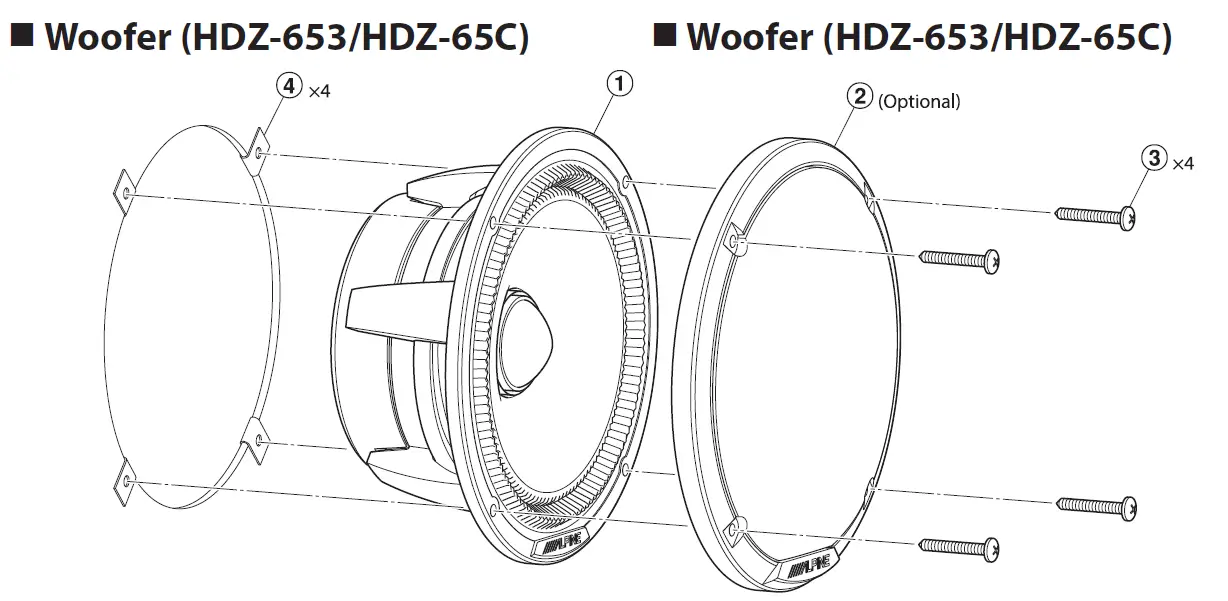

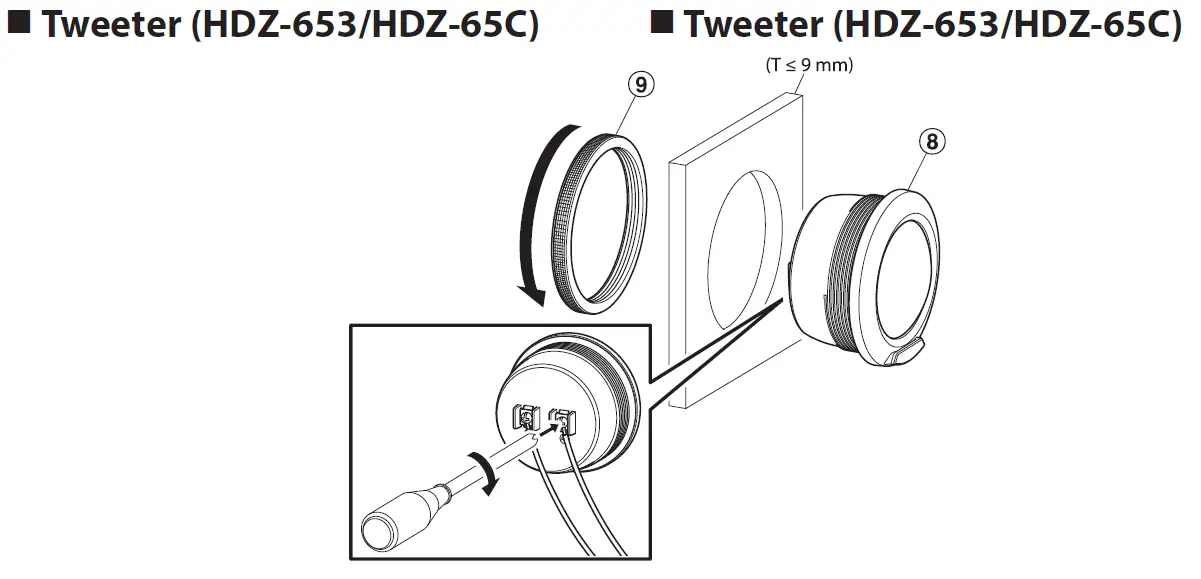

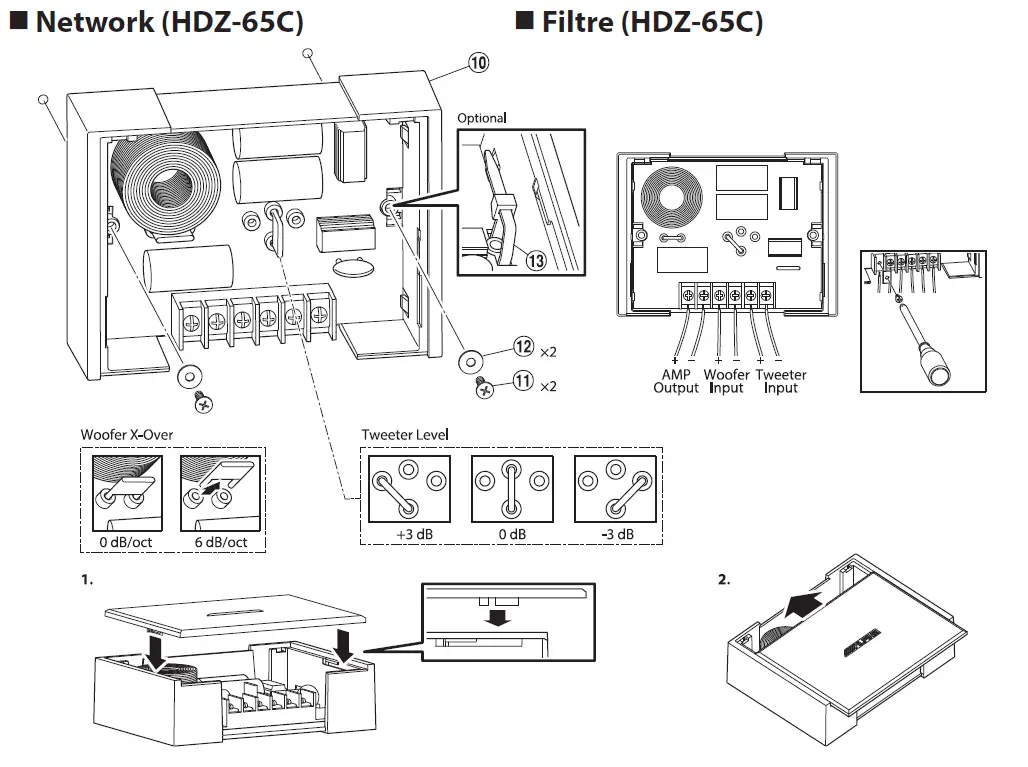

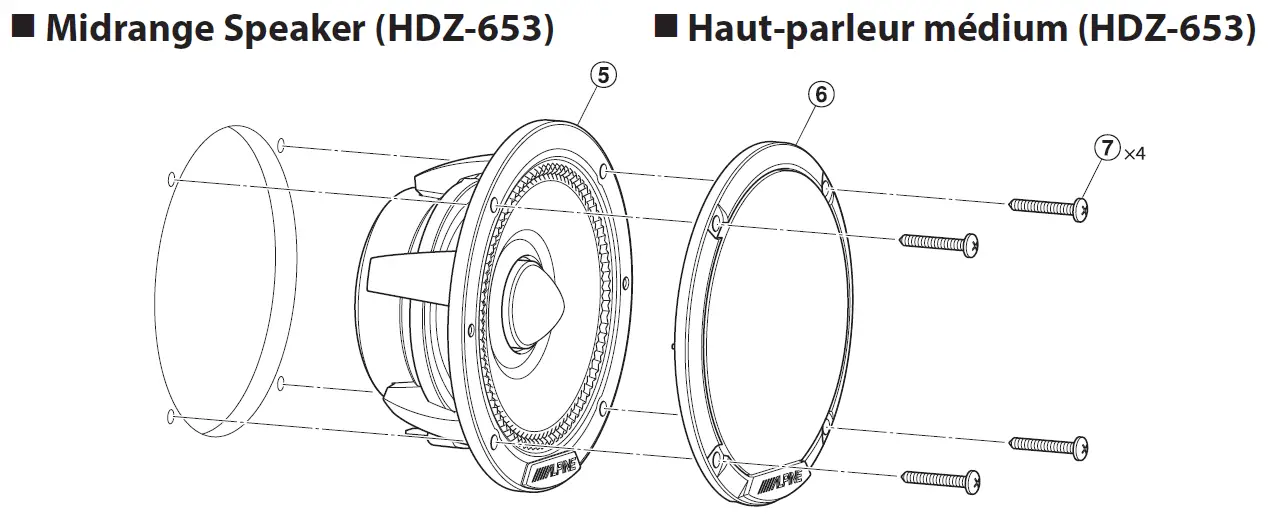

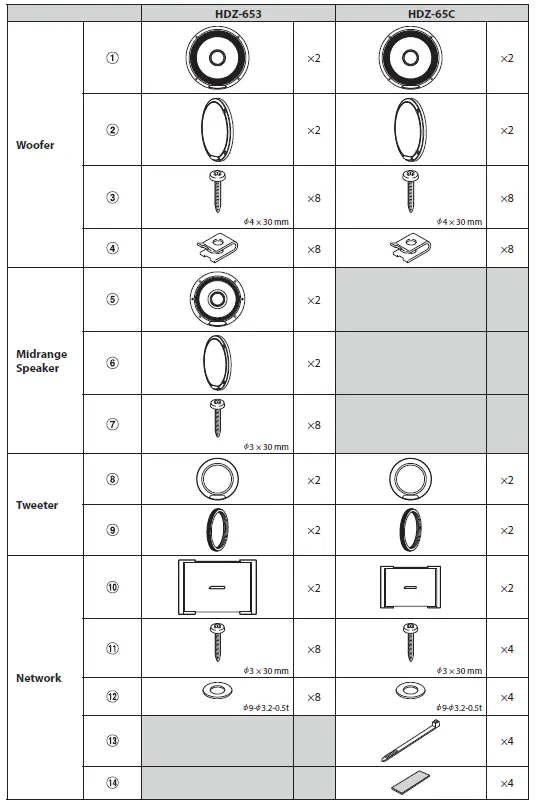

INSTALLATION
SPECIFICATIONS
| HDZ-653 | HDZ-65C | ||
| Units Type | Woofer | 6-1/2”(16.5 cm) Carbon Cone | 6-1/2”(16.5 cm) Carbon Cone |
| Midrange Speaker | 3-1/2”(8.9 cm) Carbon Cone | ||
| Tweeter | 1-1/4”(3.2 cm) Carbon Cone | 1-1/4”(3.2 cm) Carbon Cone | |
| Maximum Peak Power | 300 Watts in system | 300 Watts in system | |
| Maximum RMS Power | 100 Watts in system | 100 Watts in system | |
| Impedance | 4 ohms | 4 ohms | |
| Sensitivity | 88 dB SPL (2.83 V @ 1 m) | 88 dB SPL (2.83 V @ 1 m) | |
| Frequency Response | 55 Hz to 40 kHz | 55 Hz to 40 kHz | |
| Mounting Deps/Drop-in Mounting | Woofer | 2-3/4” (6.7 cm) | 2-3/4” (6.7 cm) |
| Midrange Speaker | 1-9/16” (3.9 cm) | ||
| Cutout Diameter | Woofer | 5-5/8” (14.2 cm) | 5-5/8” (14.2 cm) |
| Midrange Speaker | 3-1/8” (7.9 cm) | ||
| Recommended Amplification | Up to 100 watts RMS. per channel | Up to 100 watts RMS. per channel | |
Design and specifications are subject to change without notice.
- RMS Power / Peak power specified on this product is the value in 3way (HDZ-653) / 2way (HDZ-65C) system connected to passive network included in this package.
Using each speaker connected directly to amplifier without using designated network will void your warranty. - This product contains a high-performance tweeter.
If there is a tweeter already installed in your car, you must disconnect its terminal.
If you leave the original tweeter connected and connect this product in parallel, fault may occur in this product.
