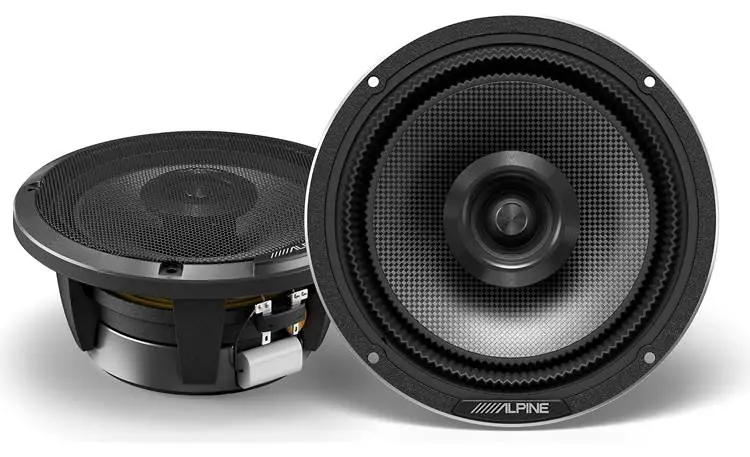

ALPINE HDZ-65 Speakers

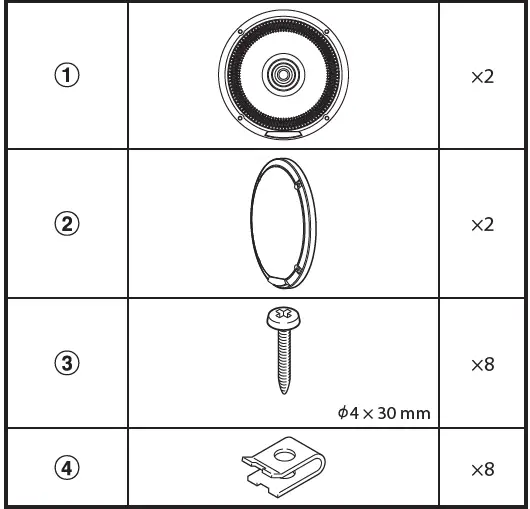

CONTENTS

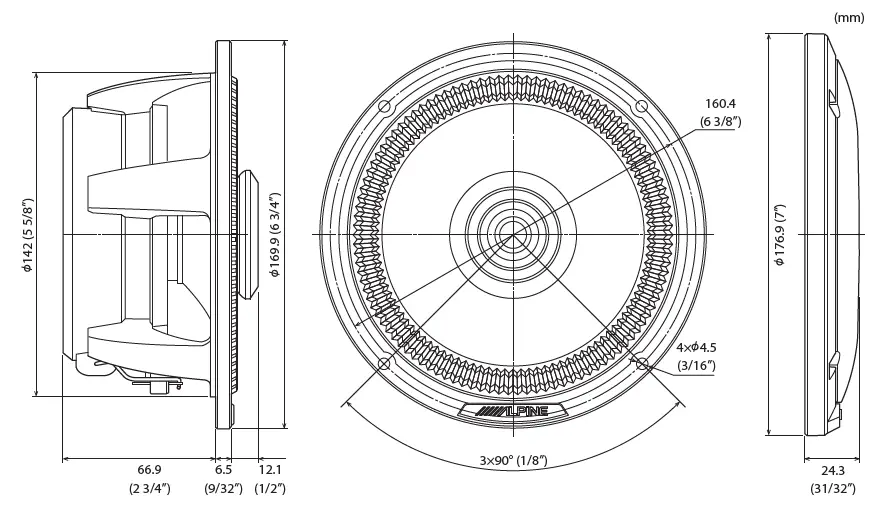

EXTERNAL DIMENSIONS

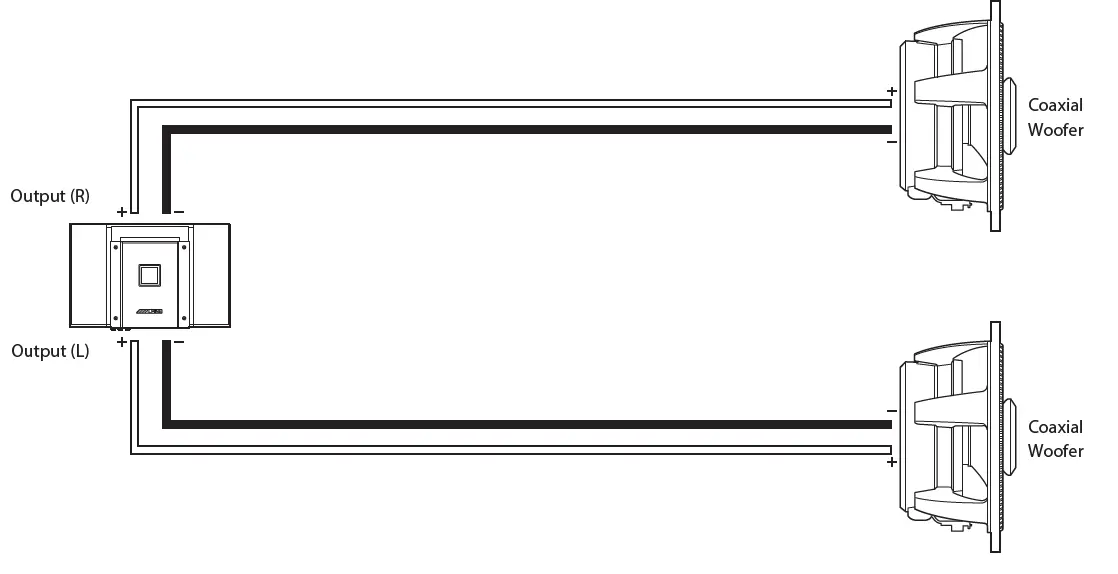

WIRING CONNECTION

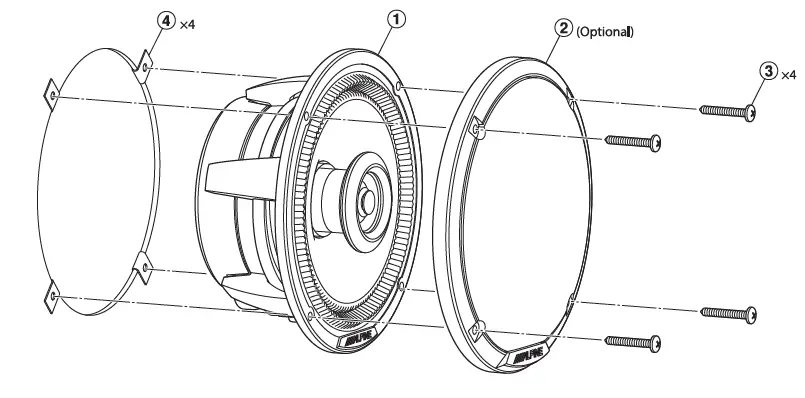

INSTALLATION
SPECIFICATIONS
| Units Type | Woofer | 6-1/2”(16.5 cm) Carbon Cone |
| Tweeter | 1”(2.5 cm) Carbon Cone | |
| Maximum Peak Power | 300 Watts in system | |
| Maximum RMS Power | 100 Watts in system | |
| Impedance | 4 ohms | |
| Sensitivity | 88 dB SPL (2.83 V @ 1 m) | |
| Frequency Response | 55 Hz to 40 kHz | |
| Mounting Deps/ Drop-in Mounting | Woofer | 2-3/4” (6.7 cm) |
| Cutout Diameter | Woofer | 5-5/8” (14.2 cm) |
| Recommended Amplification | Up to 100 watts RMS. per channel | |
- Design and specifications are subject to change without notice.
[Warning]
- RMS Power / Peak power specified on this product is the value in Coaxial 2way (HDZ-65) system. Removing attached network will void your warranty.
- This product contains a high-performance tweeter.
If there is a tweeter already installed in your car, you must disconnect its terminal.
If you leave the original tweeter connected and connect this product in parallel, fault may occur in this product.
