ALPINE HDZ-653S 6.5” 2-Way Slim-fit Component Speaker Set
CONTENTS

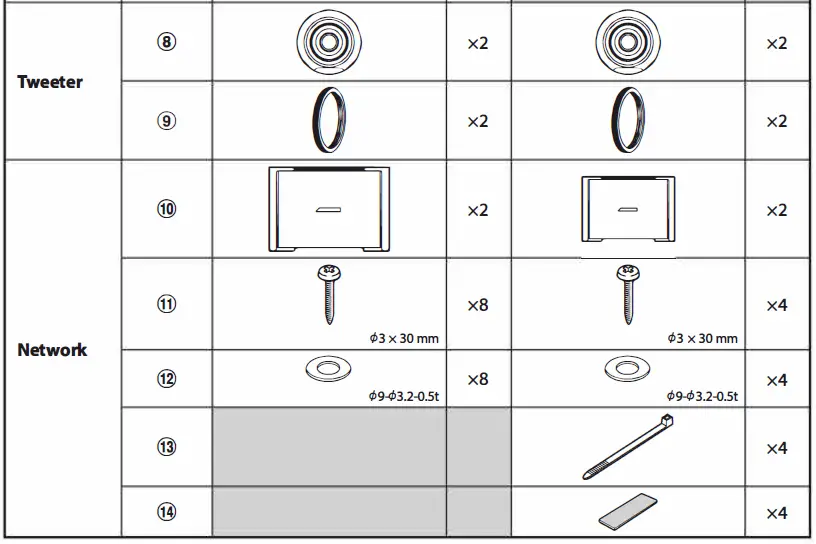

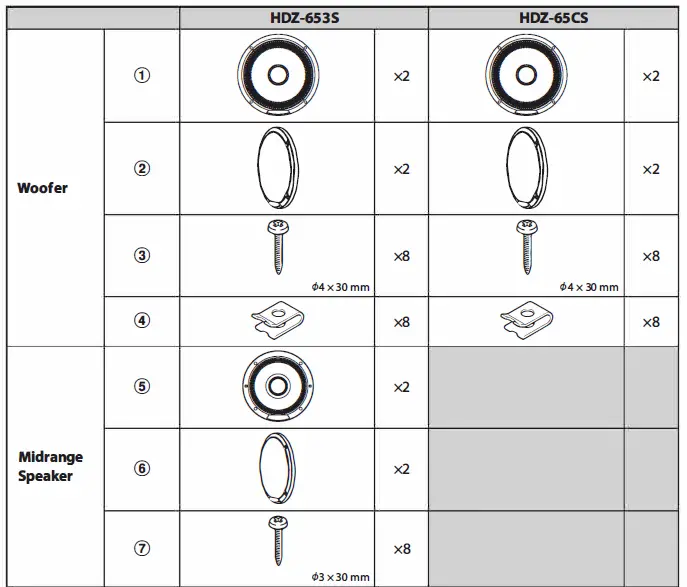

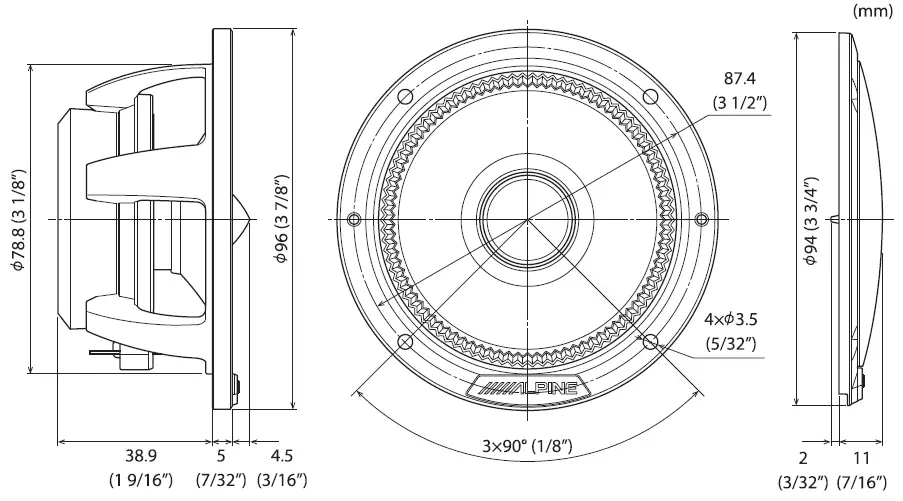

EXTERNAL DIMENSIONS

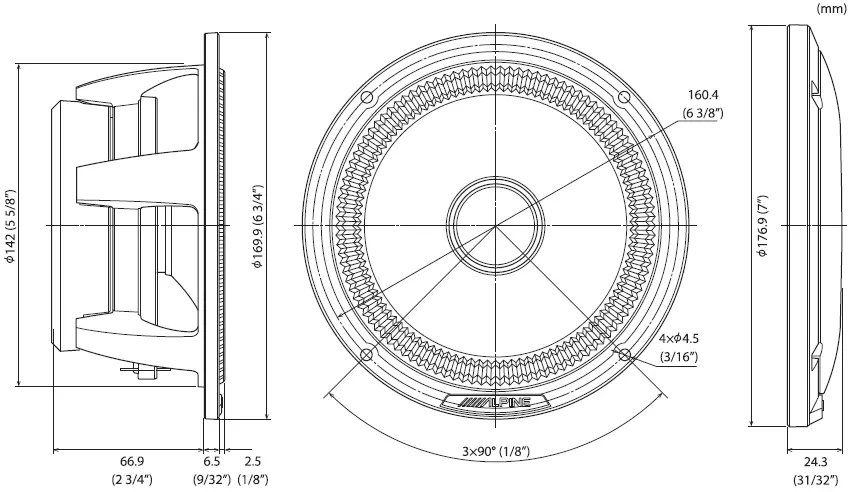

- Woofer (HDZ-653S/HDZ-65CS)
- Woofer (HDZ-653S/HDZ-65CS)
- Midrange Speaker (HDZ-653S)
- Haunt – parlor medium (HDZ-653S)

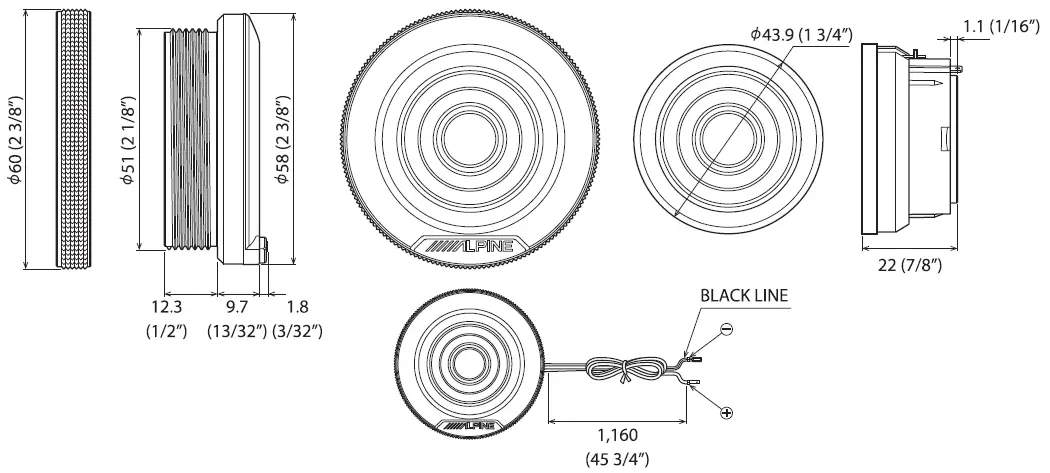

- Tweeter (HDZ-653S/HDZ-65CS)
- Tweeter (HDZ-653S/HDZ-65CS)

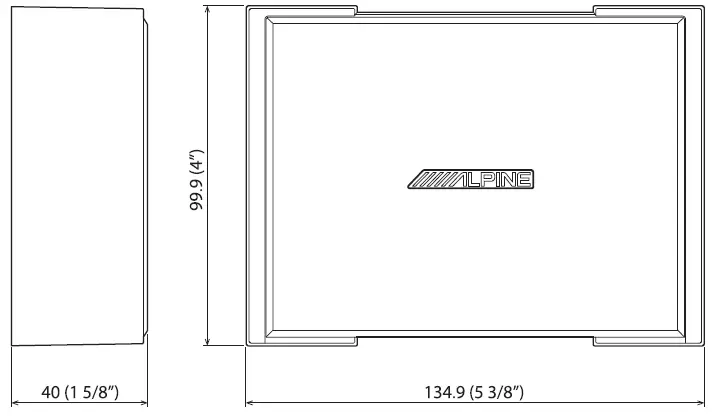

- Network (HDZ-653S)
- Filter (HDZ-653S)
- Network (HDZ-65CS)
- Filter (HDZ-65CS)

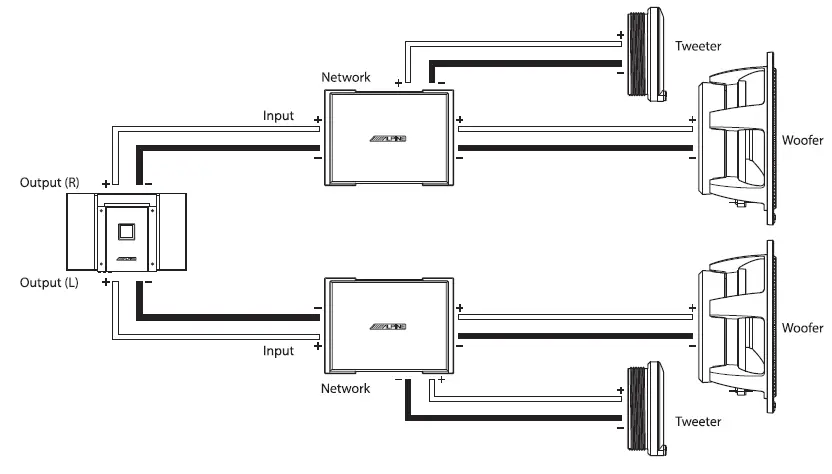

WIRING CONNECTION

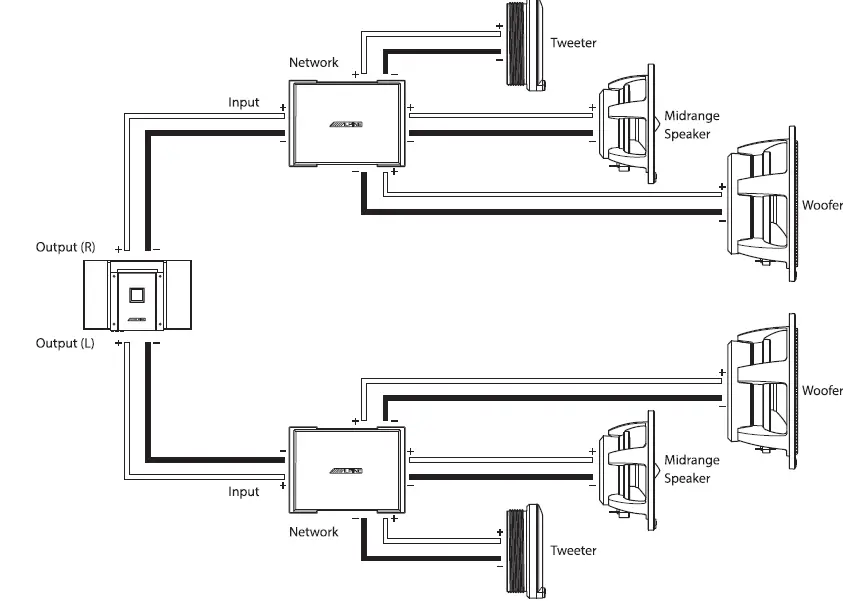

- HDZ-653S
- HDZ-6SCS

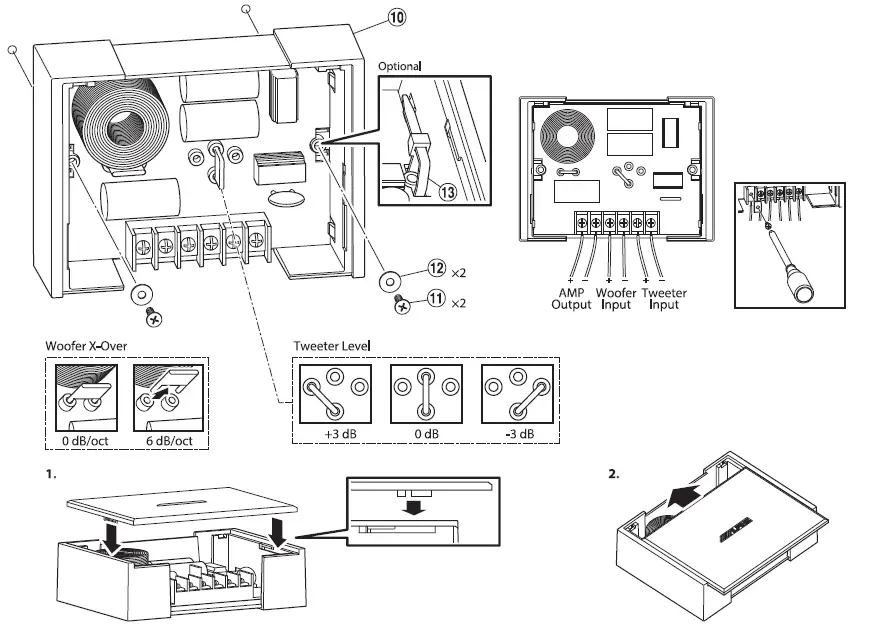

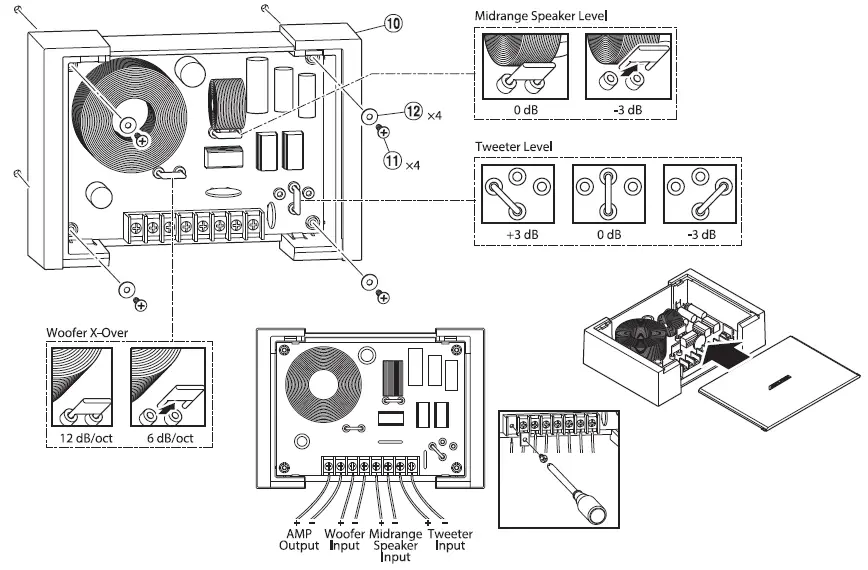

- Network (HDZ-653S)
- Filter (HDZ-653S)
- Network (HDZ-6SCS)
- Filter (HDZ-6SCS)
INSTALLATION

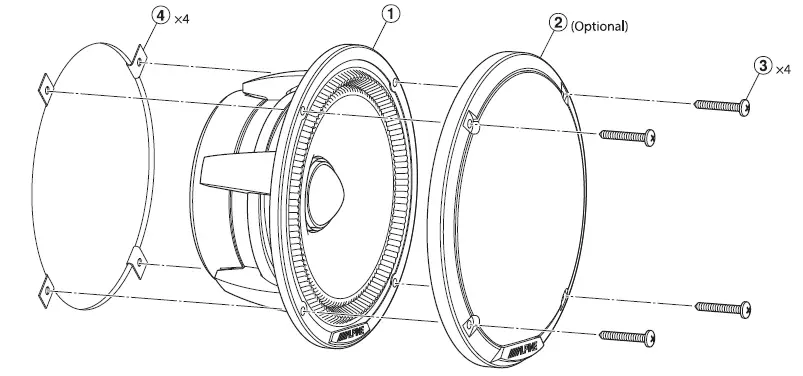

- Woofer (HDZ-653S/HDZ-65CS)
- Woofer (HDZ-653S/HDZ-65CS)

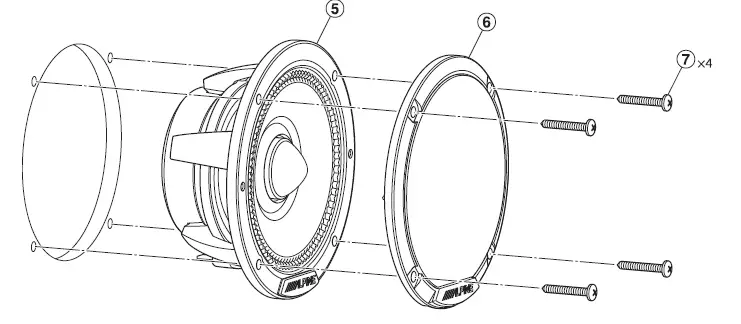

- Midrange Speaker (HDZ-653S)
- Haunt- parlor medium (HDZ-653S)

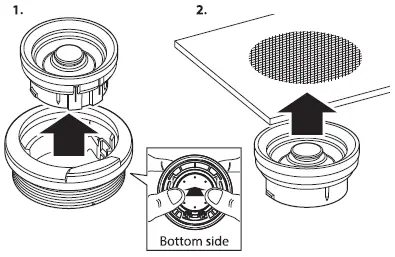

- Tweeter (HDZ-653S/HDZ-65CS)
Swivel flush mount
Montage rotative affeered mint

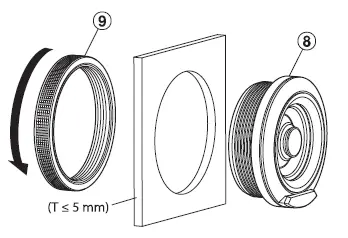

- Tweeter (HDZ-653S/HDZ-65CS)
Stealth (may require gluing)
Montage cache (un collage puttered necessaire)
SPECIFICATIONS
| HDZ-653S | HDZ-65CS | ||
| Units Type | Woofer | 6-1/2″(16.5 cm) Carbon Cone | 6-1/2″(16.S cm) Carbon Cone |
| Midrange Speaker | 3-1/2″(8.9 cm) Carbon Cone | ||
| Tweeter | 1″”(2.5 cm) Carbon Cone | 1″(2.5 cm) Carbon Cone | |
| Maximum Peak Power | 300 Watts in system | 300 Watts in system | |
| Maximum RMS Power | 100Watts in system | 100 Watts in system | |
| Impedance | 4ohms | 4ohms | |
| Sensitivity | 88 dB SPL (2.83 V @ 1 m) | 88 dB SPL (2.83 V @ 1 m) | |
| Frequency Response | 55 Hz to 40 kHz | 55 Hz to 40 kHz | |
| Mounting Deps/D ropin Mounting | Woofer | 2-3/4″ (6.7 cm) | 2-3/4″ (6.7 cm) |
| Midrange Speaker | 1-9/16″(3.9 cm) | ||
| Cutout Diameter | Woofer 5-5/8″ (14.2 cm) | 5-5/8″ (14.2 cm) | |
| Midrange Speaker 1 3-1/8″ (7.9 cm) | |||
| Recommended Amplification I Up to 100 watt s RMS. per channel | Up to 100 watts RMS . perchance l | ||
Design and specifications are subject to change without notice.
[Warning]
- RMS Power/ Peak power specified on this product is the value in 3way (HDZ-653S) / 2way (HDZ-65CS) system connected to passive network included in this package.
Using each speaker connected directly to amplifier without using designated network will void your warranty. - This product contains a high-performance tweeter.
If there is a tweeter already installed in your car, you must disconnect its terminal.
If you leave the original tweeter connected and connect this product in parallel, fault may occur in this product.
