J-TECH DIGITAL JTD-350 HDMI-ARC HDMI 2.0 Audio Extractor Converter
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Introduction
The HDMI 1 BGbps Audio Extractor can extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10 bit HDR (High Dynamic Range) pass through and HDMI high resolution digital audio fotmat pass through LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, DTS-HD Master audio and audio sampling rate up to 192 KHz.” HDCP2.2, ARC, and ECE bypass are supported.
Features
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- Optical audio supports LPCM 2CH, DTS2/5.1CH DoIby Digital 2/5.1 CH,
- Supports HDMI High Bit Rate(HBR) audio pass through
- Audio sample rates up to 192kHz
- 10 bit HDR (High Dynamic Range) pass through
- Supports ARC and CEC bypass
Package Contents
- 1 x HDMI 18Gbps Audio Extractor
- 1 x5V/1APowerAdaptor
- 1 x User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolutions | up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 10B0P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth HDMI Audio Formats (Pan-through) | 10-bit, 12-bit LPCM 2/5.1f1.1CH, Dolby Digital, DTS5.1, DolbyDigital+, Dolby TrueHD, DTS-HD Master Audio, DolbyAtmos, DTS:X |
| Optical Audio Formats | LPCM2CH, LPCM 5.1, DolbyDigilal 2/5.1CH, DTS2/5.1CH |
| L/RAudio Formats | Analog Stereo 2CH |
| ESD Protection | Human body model – ±BkV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | ||
| Inputs | 1x HDMI Type A [19-pin female] | |
| Outputs | 1x HDMI TypeA[19-pin female] 1x L/RAudio Out [3.5mm Stereo Mini-jack] 1x Optical Out [S/PDIF] | |
| Mechanical | ||
| Housing | Metal Enclosure | |
| Color | Black | |
| Dimensions | 73.5mm [W] x 60.7mm [D] x 17mm [HJ | |
| Weight | 130g | |
| Power Supply | Input: AC100 – 240V 50/60Hz Output: DC 5V/1A( US/EU standards, CE/FCC/UL certified) | |
| Power Consumption | 1W(Max) | |
| Operation Temperature | 32 – 104°F I o – 40°c | |
| Storage temperature | -4 – 140°F 1-20 – 60°C | |
| Relative Humidity | 20 – 90 % RH (no condensat ion) | |
Operation Controls and Functions

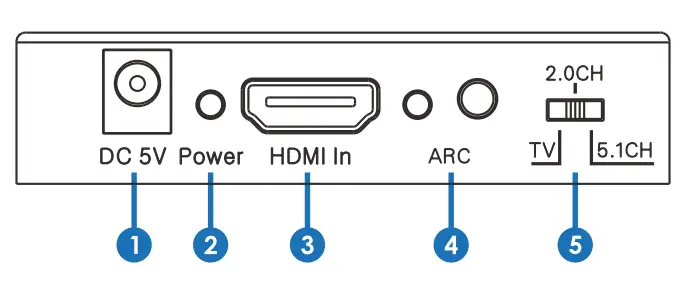

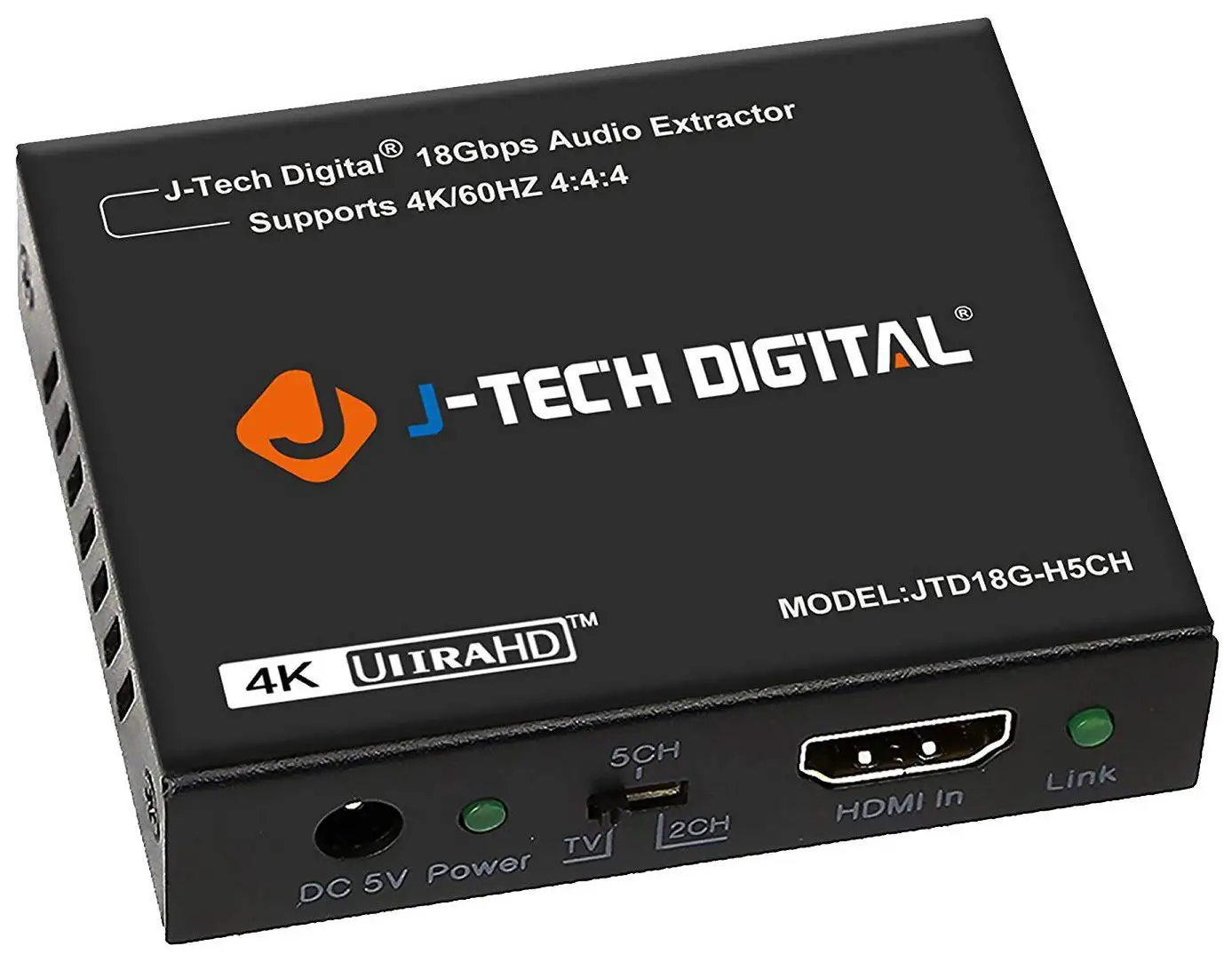

Front Panel
- 0 DC 5V: Connect 5V/1A adaptor to AC wall outlet for power supply.
- Power LEO: System power indicator.
- HDMI In: Connect this to HDMI source devices such as Blu-ray or PS4 player
- ARC: ARC Function On/Off Key
- TV/ 2.0CH / 5.1CH: This allows users to select audio format according to TV 2.0CH or 5.1CH.

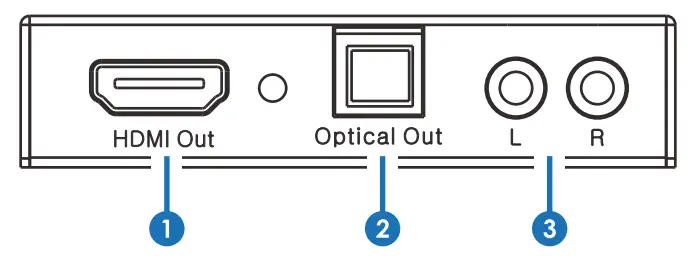

Rear Panel
- HDMI Out: Connect to HDMI display devices such as TV/ Projector.
- Optical Out: Connect to audio amplifier optical audio input port.
- L/R Out: Connect to audio amplifier or TV L/R audio input port.

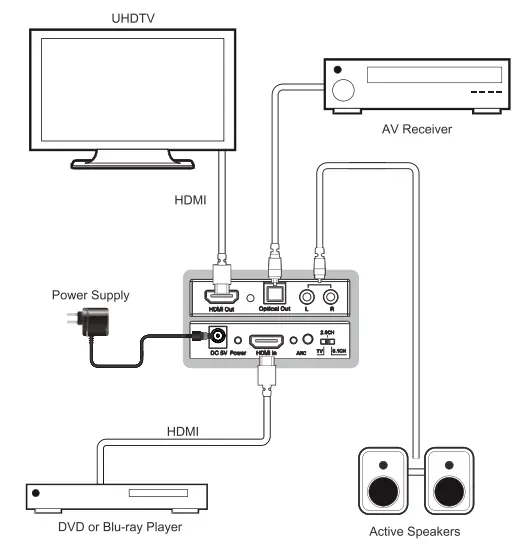

Connection Diagram
