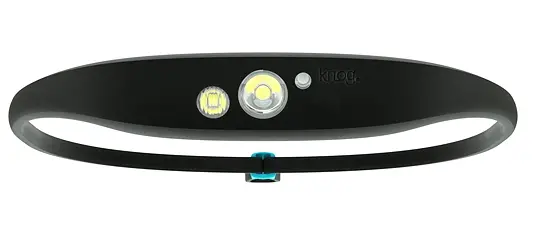

Knog Quokka 150 Headlamp
Knog Quokka 150 Headlamp
QUOKKA 150
QUICK START GUIDE
GET STARTED
Quokka comes locked

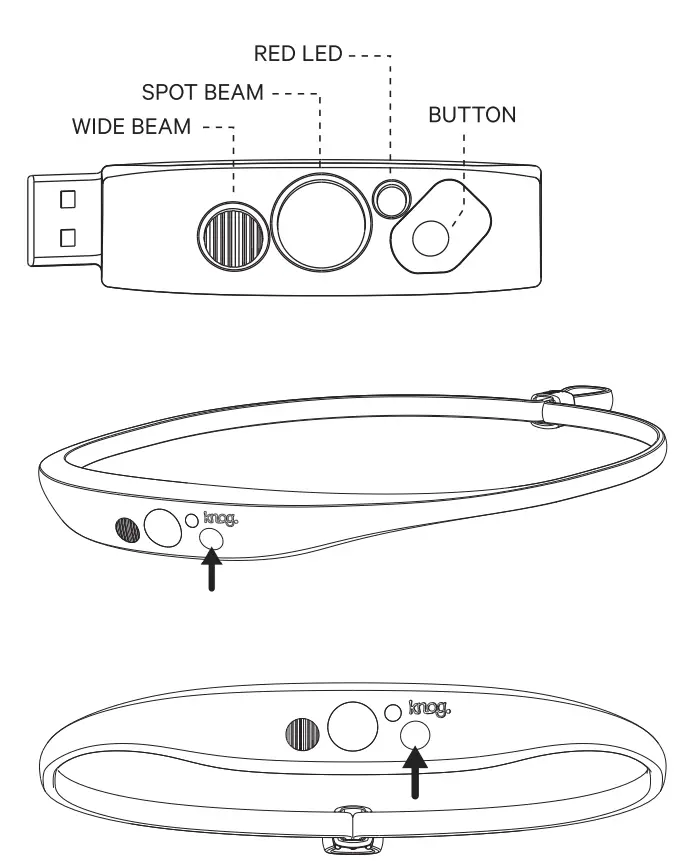

To unlock hold the button for 5 seconds, light will unlock and turn on at the last used mode.
OPERATION
Turn On / Off: Long press of the button.

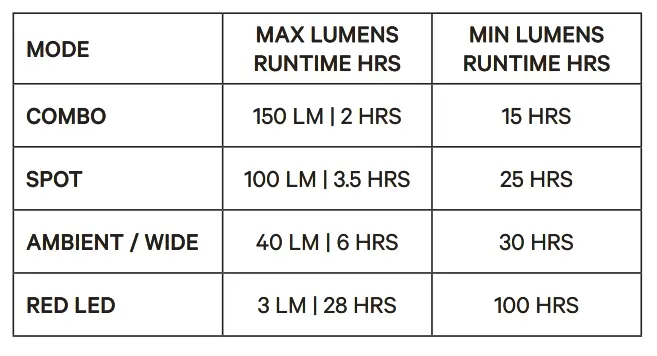

Modes: To change between the 4 light modes, use a quick double press of the button. The modes are: Combo (Spot with Wide) / Spot Only/Wide Only / Red only.
Brightness & Flash Setting: To adjust the brightness or flash of a mode, use a single press of the button.
The brightness settings are: High / Medium /Low / Medium Flash.
CHARGING

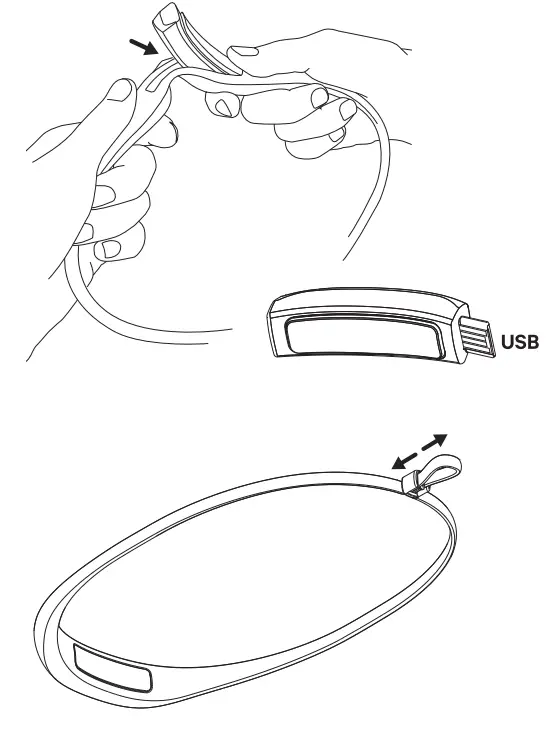

- Fully charge the Quokka before first use.
- To charge, take the light out of the silicone strap.
- Then charge in any USB charge port.
- Charge time: 3.5 hr.
HEADSTRAP
Secure the band with adjustable strap toggle.
Once you’ve found your size you can set and forget.
BATTERY INDICATOR
- When the light is turned on/off the Red LED will flash twice to indicate battery is Low.
- When charging, the Red LED is on. Once fully charged, the Red charging LED turns off.
TO LOCK:
If the light is off: After 1second of holding button, the light will turn on, if button is held for an additional 4 seconds the Spot LED will flash 3 times to indicate the light is locked.
If the light is on: After 1 second of holding button, the light will turn off, if button is held for an additional 4 seconds the Spot LED will flash 3 times to indicate the light is locked.
TO UNLOCK:
Hold button for 5 seconds, light will unlock and turn on the last used mode.
CARE & MAINTENANCE
To clean: wipe with damp, lint-free cloth, don’t use harsh chemicals, air dry, don’t sun dry.
WARRANTY
The light is guaranteed for 2 years against manufacturing defects only. The battery is guaranteed for 6 months against manufacturing defects ony. See the website for more details.
