BANDICOOT & BANDICOOT RUN
QUICK START GUIDE
GET STARTED

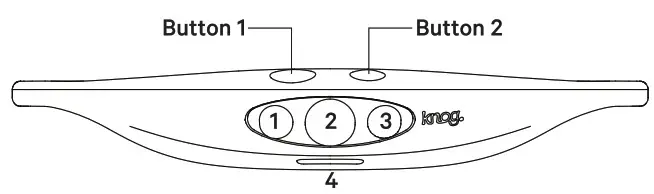

Band Scoot comes locked
To unlock hold both buttons for 3 seconds
WHEN LIGHT IS ON
| OPERATION | BUTTON 1 | BUTTON 2 |
| Short Press | Change Mode | Change Brightness |
| Double Press | Boost Mode | Halo Mode* |
| Press & Hold both buttons | Turn Off | |
‘Halo Mode only available with Bandicoot Run

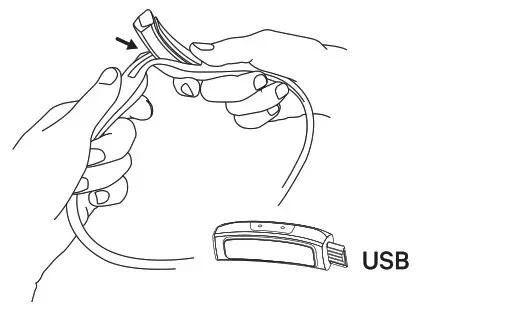

CHARGING
Fully charge the Bandicoot before the first use.
Pop-out the inner pod to access the USE. Then charge in any USB charge port. Charge time: 4 Hr.
Pop-out left side of the light first (to avoid damaging the USB on the rigth side).

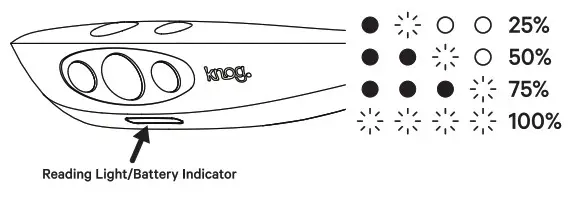

CHECKING BATTERY LEVEL
The reading lights show the battery level. When the Bandicoot is turned off, quick press any button.
Lights will flash while charging showing the battery level. When fully charged, 4 LEDs will flash for 2 mins then turn off.
MODES
A short press of button 1 to scroll through modes. The light will slowly dim to extend runtime, if you wish to go back to the full output of your chosen model, press button 1 once. Modes: Combo, Spot, Ambient, Red LED & Reading.
| MODE | OUTPUT (LUMEN) | MAX LUMEN RUNTIME HOURS | MIN LUMEN RUNTIME HOURS |
| COMBO | 250 | 8 | 28 |
| SPOT | 200 | 12 | 36 |
| AMBIENT | 50 | 22 | 70 |
| RED LED | 4 | 25 | 72 |
| READING | 6 | 32 | 105 |
BRIGHTNESS
A short press of button 2 to scroll through the brightness settings.
Brightness: Max, High, Medium & Low.
- Red
- Spot
- Wide
- Reading
OPERATION
Turn On: Long press of Button 1
Turn Off: Long press of Button 1
WHEN LIGHT IS OFF
| OPERATION | BUTTON 1 | BUTTON 2 |
| Short Press | Battery Charge Status | Battery Charge Status |
| Long Press | Turn light on/off | – |
| Press & Hold both buttons | Lock/Unlock Light | |

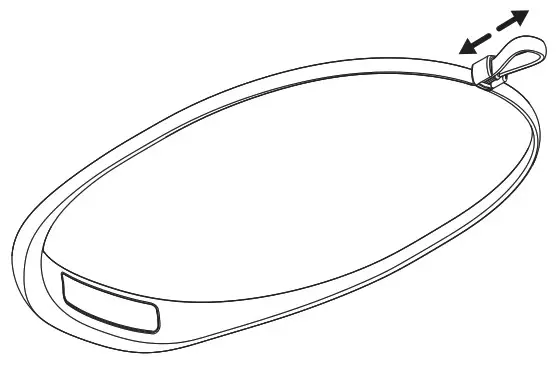

ADJUSTABLE HEAD STRAP
The silicon strap adjusts with a toggle. Once you’ve found your size you can set and forget or adjust on the fly.

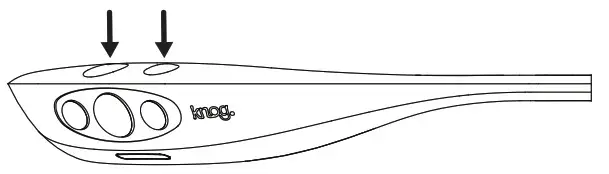

LOCK
If you accidentally press any button when the Bandicoot is locked the red light will flash twice.
To Lock/Unlock: Hold both buttons for 3 seconds. The white light will flash twice to show that the Bandicoot is unlocked. The red light will flash twice to show that the Bandicoot is locked.
BOOST MODE
Double click button 1 to activate boost mode, the bandicoot will power up to maximum.
LOW BATTERY
When the battery is low the light output will drop.
MODEL MAKER
The Bandicoot is compatible with the ModeMaker app to allow customization of the light modes. Open ModeMaker, plug the USB into your computer, drag and drop the modes you want, and select upload.
CARE & MAINTENANCE
To clean: wipe with a cloth, don’t use harsh chemicals. Air-dry, don’t sun-dry.
WARRANTY
The light is guaranteed for 2 years against manufacturing defects only.
See the website for more details KNOG.COM
