JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds LOGO

JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds

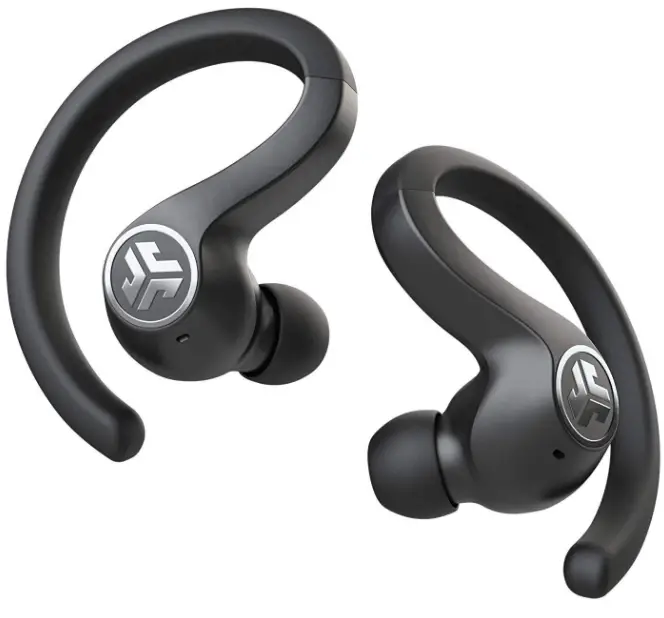

JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds PRO

YOUR WARRANTY
All warranty claims are subject to JLab authorization and at our sole discretion. Retain your proof of purchase to ensure warranty coverage.
CONTACT US
Reach out to us at [email protected] or visit jlab.com/contact

BLUETOOTH PAIRING

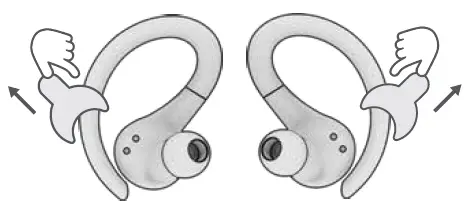

  1. Take earbuds out of case and remove stickers. Place back in case and close door.JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds 1
  2. Red light on case indicates charge  Remove earbuds from case.JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds 2

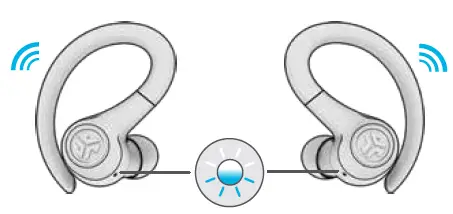

  3. One earbud will blink blue/white indicating  ready to pair to your device.JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds 3
  4. Select “JLab GO Air Sport” in your device’s Bluetooth settings to connect. Voice prompt “Bluetooth connected” followed by blinking white lights will indicate you are connected.JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds 4

ADDING NEW / ADDITIONAL BLUETOOTH DEVICES:
Turn OFF Bluetooth from any previously connected device. Turn ON Bluetooth from new device. Take earbuds out of the case. Earbuds will automatically enter Bluetooth Pairing. Select “JLab GO Air Sport” in device settings to connect.

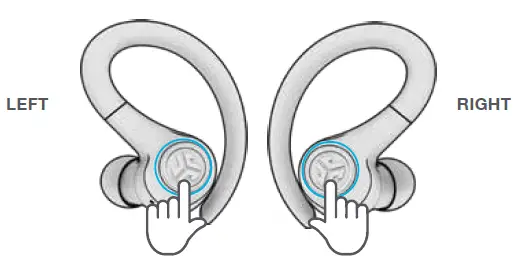

BUTTON FUNCTIONS

JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds 5

  • VOLUME DOWN: Single tap
  • SIRI (iOS) or “OK GOOGLE” (ANDROID):
  • Double tap
  • VOLUME UP: Single tap
  • PLAY / PAUSE: Double tap
  • TRACK FORWARD: Press & hold 1+ sec
  • ANSWER CALL: Single tap
  • HANGUP: Double tap
  • REJECT INCOMING CALLS: Press & hold 1+ sec
  • EQ CHANGE: Triple tap

VOICE PROMPTS

  1. “JLab ON”: Power ON
  2. “Ready to Pair”: GO Air Sport is ready to pair to Bluetooth device
  3. “Bluetooth Connected”: Earbud is connected to device “Battery Full”: 100-75%
  4. “Battery Medium”: 75-25%
  5. “Low Battery”: Less than 25%(When power decreases to 10%, “Low Battery” will play one time)
  6. “Goodbye”: Power OFF

CUSTOM EQ3 SOUND MODES

Tap either the right or left earbud 3 times for different EQ settings (GO Air Sport will cycle 3 EQ settings).

JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds 6

  • JLab SIGNATURE JLab C3™ signature sound with amplified bass and vocals
  • BALANCED Even sound with no additional enhancements
  • BASS BOOST Amplified bass and sub-bass

CHARGING EARBUDS

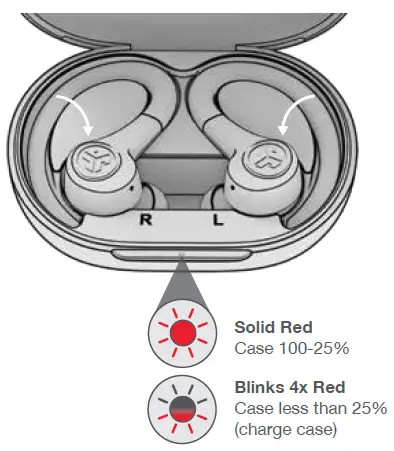

  1. Earbuds will power off when placed in the case and start charging.JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds 7

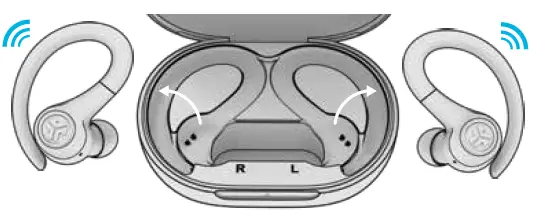

  2. Earbuds will auto power on and connect to your device when removed.JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds 8

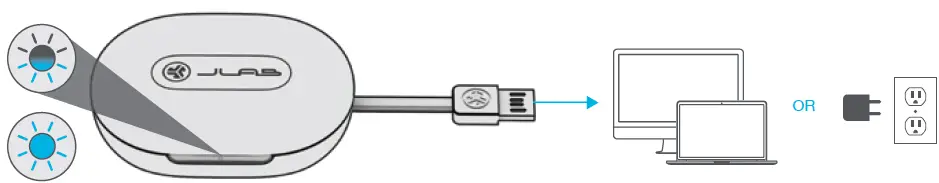

CHARGING CASE

Connect the GO Air Sport into a computer or USB 5V 1A (or less) output device.

JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds 9

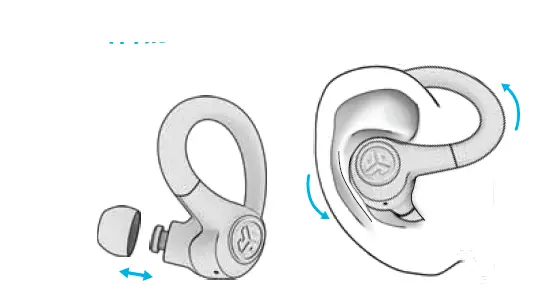

FITTING

JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds 10

  • Try all ear tips for best fit and proper seal.
  • Place hook behind ear. Rotate and adjust for best fit.

QUICK TIPS

  •  The left or right earbud can be used independently for music and phone calls. Simply choose one and take out of the case to connect.
  •  Only ONE Bluetooth device can be connected at a time. Turn off Bluetooth on unwanted devices and turn on Bluetooth on chosen device to connect.

WARNING
Fully dry off the earbuds before putting in the charging case to avoid any damage to the case. The earbuds are sweat/water resistant but the case is not.

JLAB EBJBUDSAIRSPRTRBLK82 Go Air Sport True Wireless Earbuds 11

TROUBLESHOOTING

Connection failure or earbuds disconnected from each other (Manual Reset)

  1.  Keep the earbuds in the charging case and forget “JLab GO Air Sport” from your Bluetooth device settings.
  2.  Quick tap 7x on one earbud in charging case. Earbud blinks blue 4 times.
  3.  Quick tap 7x on other earbud in charging case. Earbud blinks blue 4 times.
  4.  Take both earbuds out of the charging case. One earbud will be solid white and other will blink blue/white indicating ready to pair to your device.

Instructional videos at: JLAB.COM/MANUALS

CAUTIONS

  •  Avoid extreme heat, cold, and humidity.
  •  Avoid dropping or crushing the earbuds.
  •  Wax may build up in the earbud tips, lowering the sound quality. Carefully remove the wax with a cotton swab or other small tool to improve the sound quality.
  •  If you experience discomfort or pain, try lowering the volume or discontinuing use temporarily.
  •  If you experience regular discomfort while using this product, discontinue use and consult your physician.
  •  We recommend you treat your earbuds as you would a nice pair of sunglasses and keep them in safe location when not in use.
