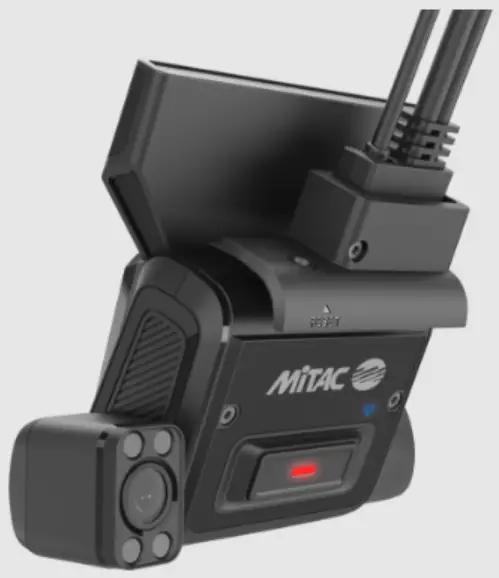

MiTAC K145C Intelligent Video Telematics Solution Owner’s Manual
Power Up Your Fleet with Real-time Visibility
K145C｜K245C
K145C/K245C is an all-in-one fleet connected camera solution which helps fleet managers evolve their solutions to forward-thinking video telematics. Built in a powerful Qualcomm® processor and Android™ platform, it not only provides outstanding processing performance, but also flexibility with a suite of APIs & SDK for system and cloud integration. High-speed 4G LTE allows remote live view to ensure operators have full control over their fleets. K145C/K245C also equips dual full HD cameras for continuous road-facing and in-cabin* recording, providing video evidence when unexpected event occurs. Its tamper-resistant and industrial-grade design makes the K145C/K245C a trusted solution to optimize your fleet efficiency and to improve driver safety.
Always connected
- Built-in 4G LTE Cat.6 & dual-band WIFI
- Over-the-Air firmware & setting updates
- Bluetooth® 4.2 BLE, NFC / HF RFID
Reliable and flexible platform
- Qualcomm® Octa-core & Android™ 9.0
- Open APIs & SDK for seamless integration with fleet management solutions
Track your fleets in real-time
- Comprehensive satellite tracking
- Automotive dead reckoning (ADR) for precise positioning even in adverse conditions (optional)
- 3-axis G-sensor and Gyro support
Get the full picture of your vehicles
- ECU integration to acquire vehicle and engine telematics data **
- All video footage are safely stored both on the SD card and Cloud
- Enhanced ADAS and DMS function
Multiple Certificaitons
- Carrier certification by Verizon and AT&T
- Amazon Web Service Certified
* Inward IR camera available in K245C SKU only
** Interface only

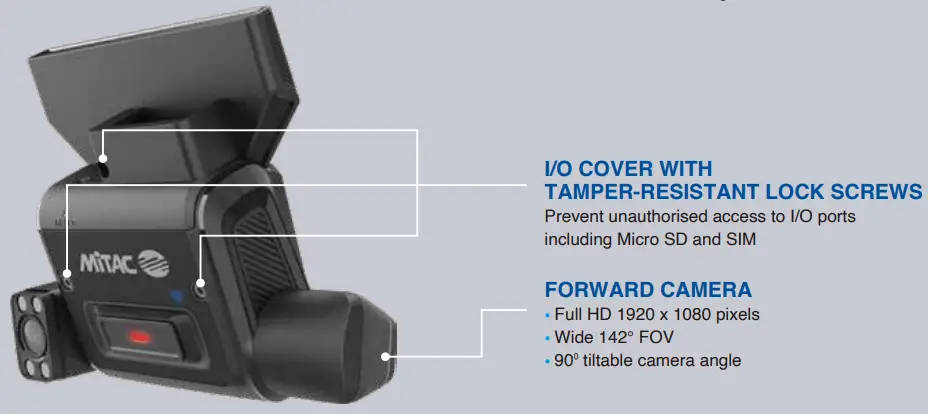

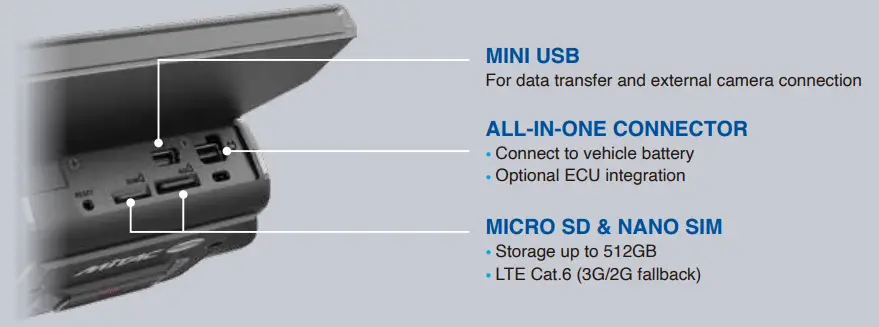

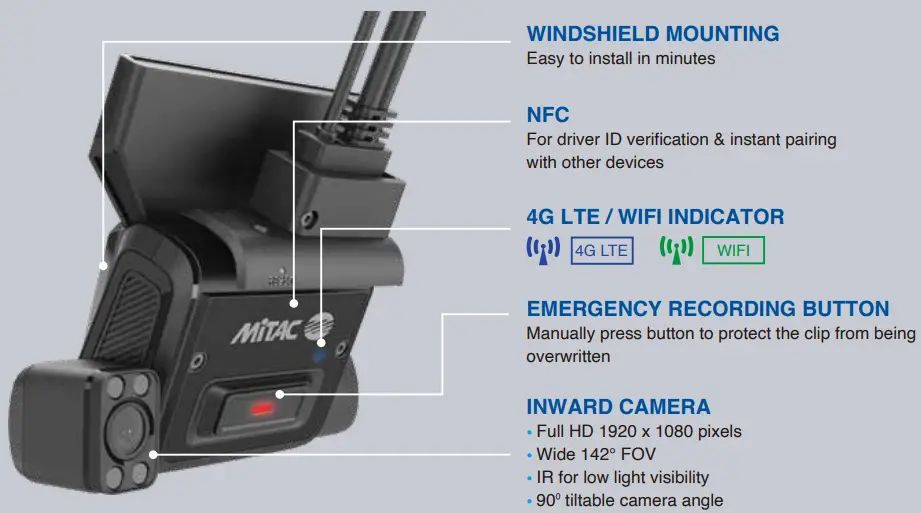

DETAILED VIEW

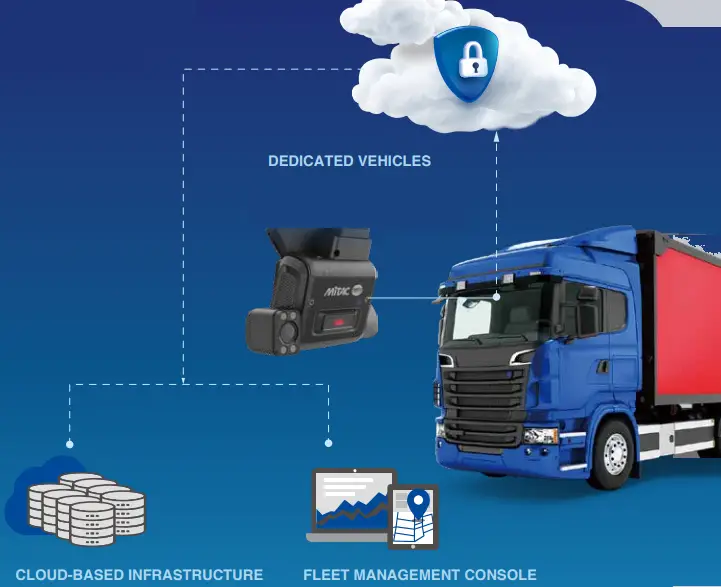

OPERATIONAL SCENARIO
- Video recordings with SD card
- ADAS & DMS (AI)
- Dual-cam synchronized recordin
- Sensor / Telematics data
- Event videos
- Image
- Dashboard
- Geo-Fencing
- Event notification
- Track history
- Live view
ACCESSORIES
ENTRY CABLE
Standard accessory
PN: 422N69300002

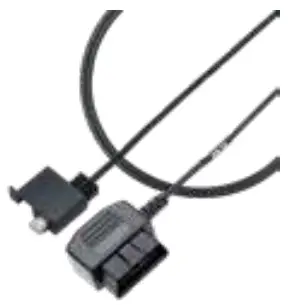

OBD POWER CABLE

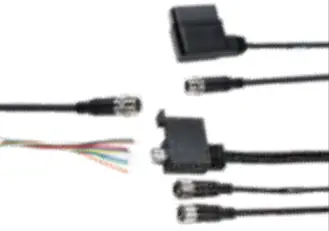

PREMIUM CABLE
Y Cable with OBD II dongle and GPIO connector
Sold separately
PN: 5416N6930011
CABLE CAP
Cable cap to tidy up cabling to and from the device.
Sold separately
PN: 340N69300003
EXTERNAL CAMERA
Optional camera connected via Mini USB
- A50 rear camera
- i15/ i25 DMS/ in-cabin camera
- USB waterproof camera
Sold separately
SPECIFICATION
K145C
K245C
| Platform | Qualcomm® Snapdragon™ SDM450 Octa core, 1.8GHz | ||
| OS | Android™ 9.0 | ||
| Memory | 2GB RAM / 16GB internal storage | ||
| Expansion | MicroSD slot (up to 512GB support) | ||
| Wireless Interface | IEEE 802.11 a/b/g/n/ac (2.4GHz & 5GHz) | ||
| Bluetooth® 4.2 BLE | |||
| GPS, QZSS, GLONASS, Galileo (supports ADR**) | |||
| LTE Cat.6 (3G/2G fallback*) | |||
| North America | |||
| LTE FDD Band 2/4/5/7/12/13/14/17/25/26/66/71; LTE TDD Band 41; WCDMA Band 2/4/5 | |||
| NFC | NFC: MiFare®, FeliCa | RFID (HF): ISO14443A&B, ISO15693 | ||
| Sensors | 3-axis Accelerometer, 3-axis Gyro, Thermal Sensor | ||
| Camera | Forward: FOV: D: 142°/ H: 116°/ V: 60° (±5%) Full HD 1920 x 1080 @ 30fps (configurable) | Forward: FOV: D: 142° / H: 116°/ V: 60° (±5%) Full HD 1920 x 1080 @ 30fps (configurable) | |
| – | Inward (IR): FOV: D: 142° / H: 116°/ V: 60° (±5%) Full HD 1920 x 1080 @ 30fps (configurable) | ||
| Physical Interface | MicroSD slot (up to 256GB capacity) | ||
| NanoSIM slot (SIM 1) and eSIM** (SIM 2) | |||
| Mini USB x1 (supports external cam, USB type) | |||
| Built-in mic x2 | |||
| Built-in speaker x1 | |||
| All-in-one Connector | 12~32V power input, IGN power on signal input (H active, 7~32V) | ||
| GPIO x4: 1 out / 3 in (polling mode) | |||
| ECU connection**: SAE J1962 / SAE J1939 | |||
| Vehicle signal: speed pulse, reverse signal input | |||
| RS232 (Tx/Rx | |||
| Buttons | Emergency recording button for driver to manually trigger 60s recording | ||
| LED Indicators | Recording, WiFi/LTE active | ||
| Battery | 10F SuperCAP (approx. 18s backup power supply for video clips saving) | ||
| Power Consumption | Full run mode: 5W (12V/ 420 mA) | ||
| Boot Up Time | Cold boot: 45s; Resume from parking mode and start recording: 2s | ||
| Parking Mode | With impact detection | ||
| Environment | IP41 | ||
| 20° to +60°C (-4° to +140°F) operating temperature | |||
| -30° to +85°C (-22° to +185°F) storage temperature | |||
| Certification* | CE, CB, FCC/IC, RCM, BQB, PTCRB, AT&T, Verizon, FirstNet, WEEE, ROHS, AWS (Amazon Web Services) | ||
| Warranty | 12 months (extended warranty available) | ||
| Weight | 193g | 213g | |
| Dimensions | 98 x 106 x 39.2mm | 122.8 x 106 x 44.2mm | |
| Accessories** | Main cable (Type I), main cable (Type II), ECU cable, signal cable, external camera (with connection cable), cable cap, windshield mounting kit, SD card, Hex key, Tie down square, Tie wrap, Alcohol wipe | ||
