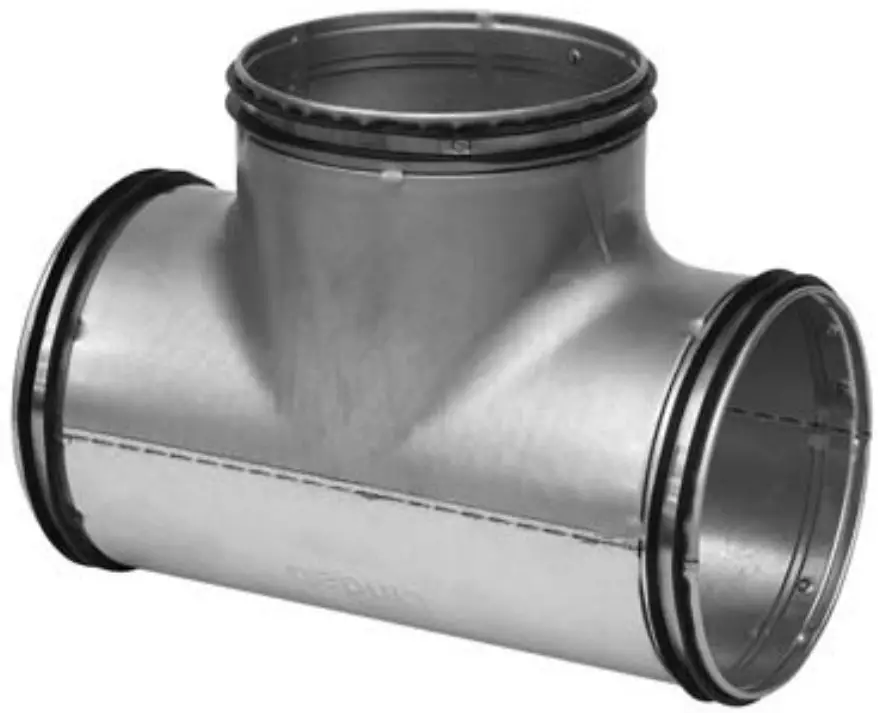

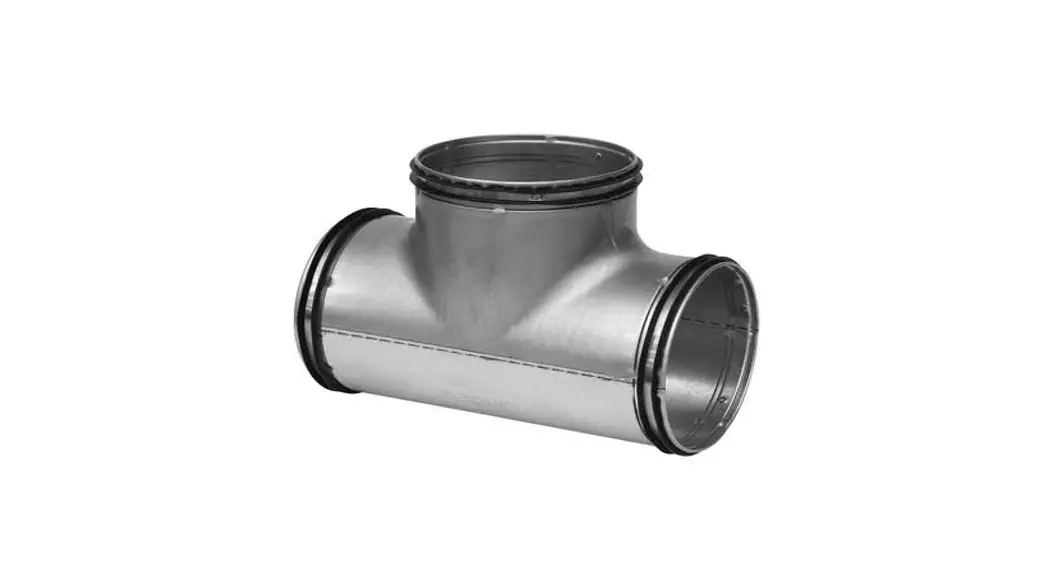

T-piece short for casting
TCKPU
Description
Short branch and short installation lengths.

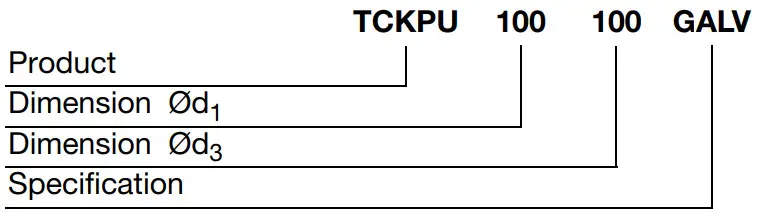

Ordering example

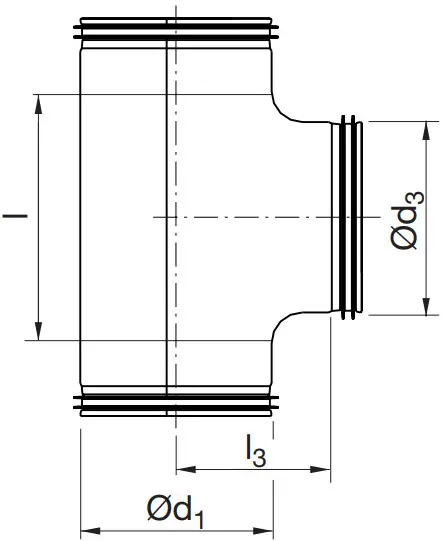

Dimensions
| Ød1 nom | Ød3 nom | l [mm] | l3 [mm] | m [kg] |
| 100 | 100 | 123 | 65 | 0,31 |
| 125 | 125 | 157 | 83 | 0,43 |
| 160 | 160 | 203 | 105 | 0,62 |
Lindab reserves the right to make changes without prior notice
2022-02-09
