OWNER’S MANUAL
V4HL.V2

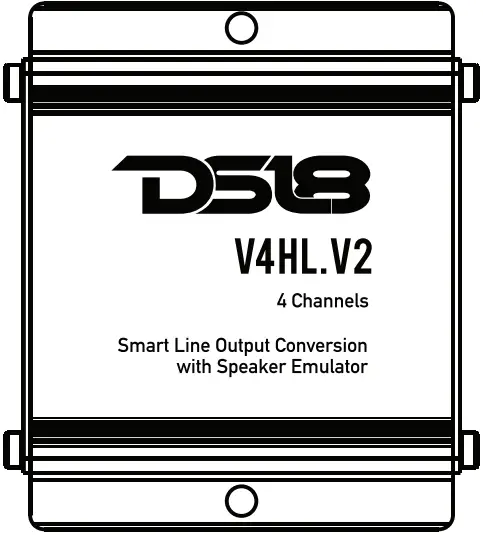

4 CHANNELS SMART LINE OUTPUT CONVERSION WITH SPEAKER EMULATOR
V4HL.V2
FEATURES
- 4 Ch High-level speaker input to Low-level RCA Output
- Cable harness connector for easy installation
- Surface mounting component technology
- Lowest impedance and best power filter
- Fr4 Double sides PC board
- Remote trigger output with signal sensing
- Power LED Indicator to Show Working Status
- Speaker emulator to enable signal Output from some OEM amplifiers with speaker sensor

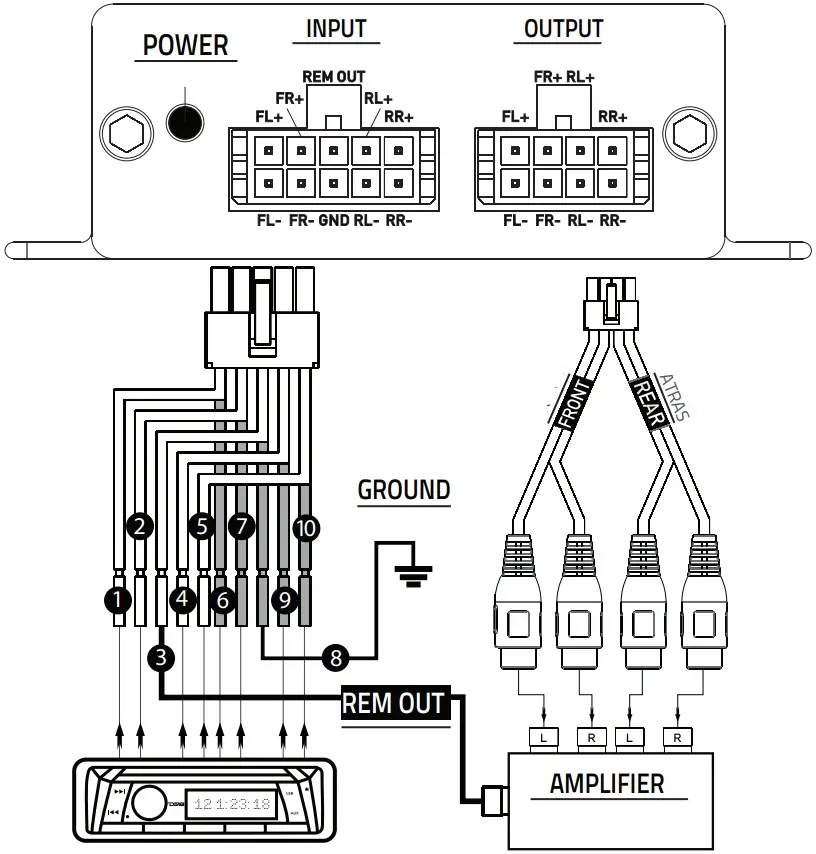

WIRING
WIRING
- FL+, White: Front Left speaker input (+).
- FR+, Gray: Front Right Speaker input (+).
- REM, Blue: Amplifier Remote Out (+).
- RL+, Green: Rear Left Speaker input (+).
- RR+, Violet: Rear Right Speaker input (+).
- FL-, White / Black: Front Left Speaker input (-).
- FR-, Gray / Black: Front Right Speaker input (-).
- GND, Black: Ground Chassis Negative (-).
- RL-, Green / Black: Rear Left Speaker input (-).
- RR+, Violet / Black: Rear Right Speaker input (-).
SPECIFICATIONS
- Input ……………………………………………………… Up to 55W
- Output ……………………………………………………. Up to 8V
- Remote Output Voltage ………………………….. 12 V
- Frequency Response ……………………………….. 10Hz-30KHz
- Input Impedance …………………………………….. 20 K OHM
- Standby Current ……………………………………… 200mA
- Dimensions L / W / H / ……………………….. 2.93″ x 2.44″ x 0.91″, 74.6 mm x 62mm x 23.1mm
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice. Images may or may not included optional equipment.
WARNING:
Cancer and Reproductive Harm. www.P65Warning.ca.gov
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
