Quick Start Guide
LPA-2.2 | 2 Channel Line-Output Converter
LPA-2.4 | 4 Channel Line-Output Converter
The L.O.C.PRO ADVANCED™ can be used to add amplifiers to an audio system that does not have RCA outputs or when replacing an OEM radio and retaining the factory amplified system. Variable Gain Controls with Clipping Indicators, Selectable Ground Isolation and Load Select features ensure a pure, noise-free signal for any type of audio system.
This Quick Start Guide will get you going, but if you need additional help or information, please visit our website or contact Technical Support.
Features & Wiring Information
Example Installation
Speaker level input from radio to RCA level output for an aftermarket amplifier is the most commonly used configuration for the L.O.C.PRO ADVANCED. This will create RCA-level outputs from a radio that only has speaker-level outputs.

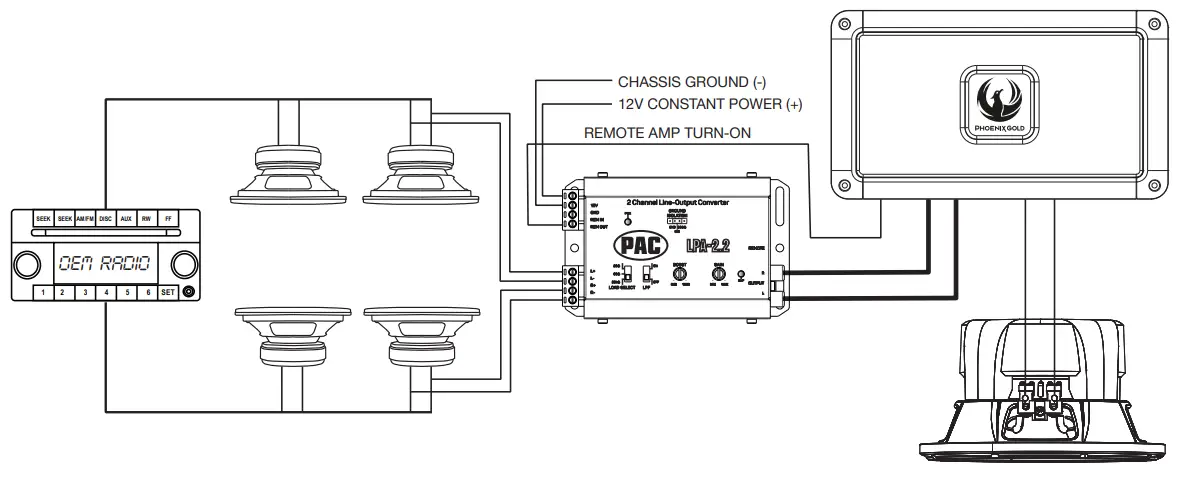

In the example below, the Positive(+) and Negative(-) wires of two speakers are “tapped” and connected to the SPEAKER SIGNAL INPUTS of the LPA. The speakers will continue to play as normal. The REM OUT has connected to the amplifier’s turn-on. When the radio is turned on the LPA will automatically turn on the amplifier. Lastly, the RCA SIGNAL OUTPUTS from the LPA are connected to the aftermarket amplifiers’ inputs.
For more installation examples, tech tips and updates, visit the L.O.C.PRO ADVANCED product pages on PAC-Audio.com
https://catalog.pac-audio.com/catalog/lpa/
Specifications
| Model Number | LPA-2.2 | LPA-2.4 |
| Channels | 2 IN — 2 OUT | 2 IN — 4 OUT |
| Operating Voltage | 9V—16V | 9V-16V |
| Max Input Level (20kHΩ Load Setting) | 40V / 400W @ 4 Ohms | 40V / 400W @ 4 Ohms |
| Auto Turn On | DC Offset / Remote | DC Offset / Remote |
| Output Voltage MAX @ 13.8V | 9.5V RMS | 9.5V RMS |
| Turn On Trigger (DC-Offset) | 3V—7V | 3V—7V |
| Load Input Impedance | 20Ω, 60Ω, 20KΩ | 20Ω, 60Ω, 20KΩ |
| Output Impedance | <120Ω | <120Ω |
| Variable Gain Adjustment | -28dB—+1dB | -28dB—+1dB |
| Signal To Noise | >110dBA @ 6.4V Output | >110dBA @ 6.4V Output |
| THD+N | < 0.01% | < 0.01% |
| Input Sensitivity | 0.5V—40V | 0.5V—40V |
| Frequency Response | 10Hz—20kHz | 10Hz—20kHz |
| Current Draw (Max) | 40mA | 40mA |
| Low Pass Filter | <250Hz | <250Hz |
| Bass Boost | 0dB to +12dB | 0dB to +12dB |
| Clip Indicator | YES | YES |
| Remote Level Control | OPTIONAL (PN: LPA-REM) | OPTIONAL (PN: LPA-REM) |
| Chassis Type | Stamped Steel | Stamped Steel |
| Terminal Gauge | 18AWG / Quick Connect | 18AWG / Quick Connect |
Technical Support |
Phone: 727-592-5991 |
Email: [email protected] |
Chat: PAC-Audio.com |
IM-LPA2X REV. 040821
