DAVIS LIGHTING MC079D RC Z High Bay Sensor for Warehouse User Manual
Version: A1
Features
- 12V DC input, for DC systems or LED power supplies with 12V DC auxiliary power output
- 0-10V dimming port, 3 or 2 step dimming function
- Newly patent design sensor antenna with two detection mode: high sensitivity detection and interference immunity detection. (suitable for installation environments with many metal reflective surfaces)
- 15m maximum installation height, suitable for most warehouses
- Match Zhaga Book 18 base, plug in design
- Dim+/Dim- to set occupancy light level
- Daylight priority function
- 75,000hr rated lifetime
- 5 years warranty

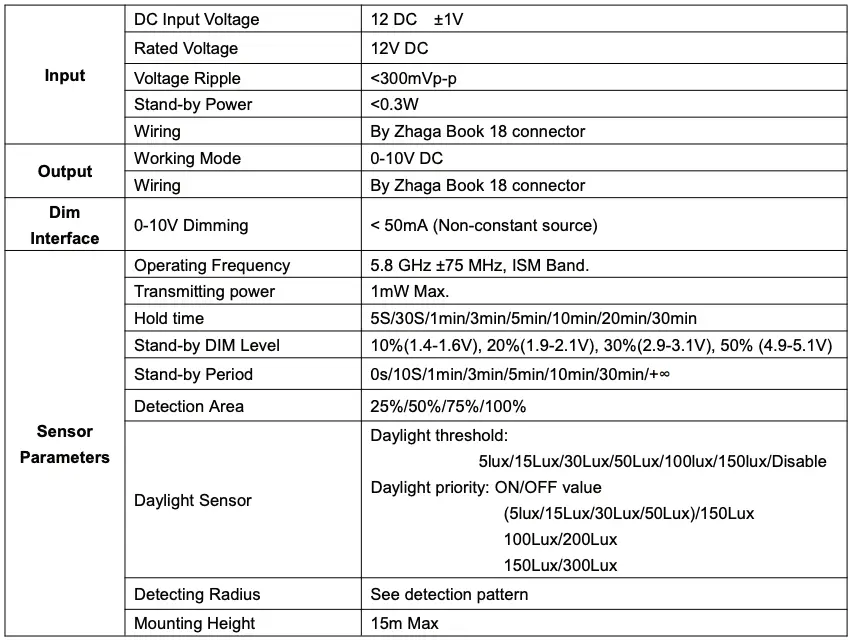

Parameter
Function

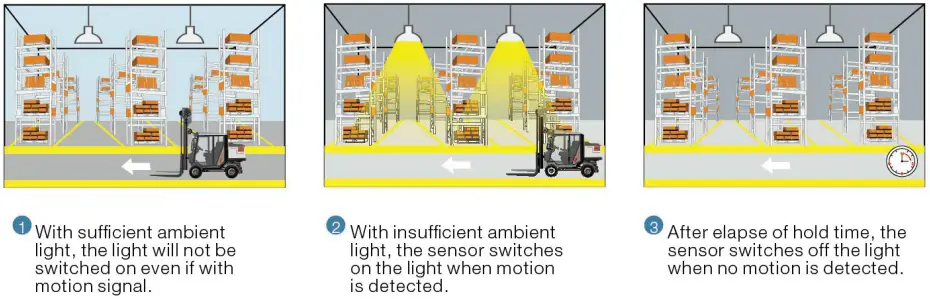

- On/OFF Function (stand-by period be set to “0”s)

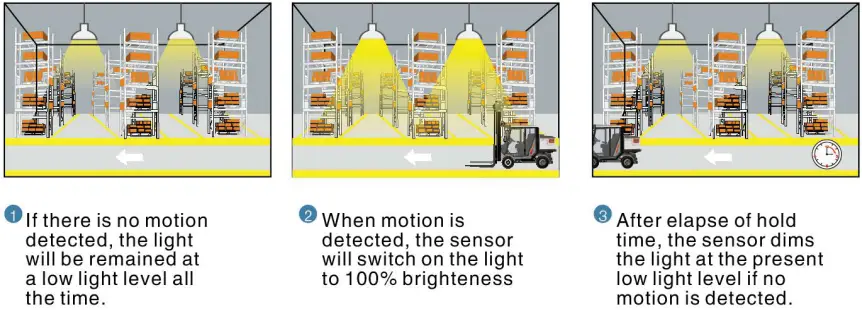

- 2-step dimming function (stand-by period be set to “+∞”)
- 3-step dimming function (stand-by period be set to “10S/1min/3min/5min/10min/30min”)
- Daylight priority（stand-by period set to +∞）

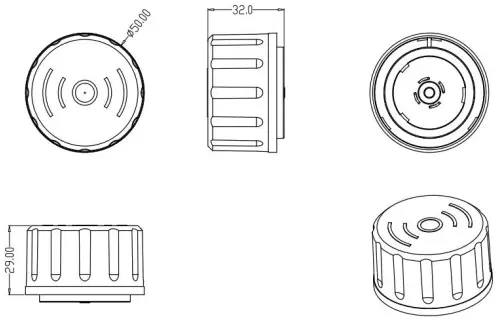

Dimension (mm)

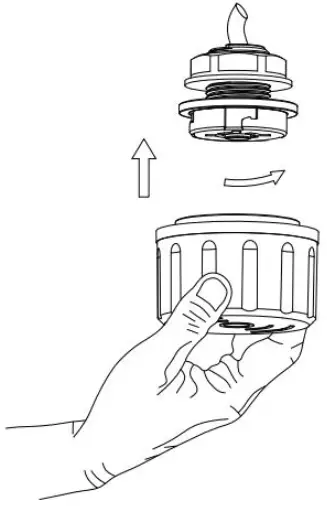

Installation（Match Zhaga Book 18 connector）
Radiation Pattern (Typical data)

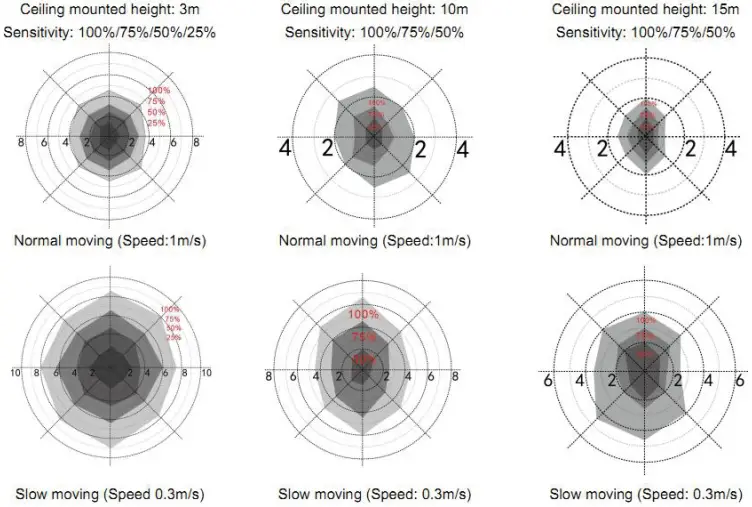

Ceiling mounting
*Only 100%/75%/50% detection sensitivity is workable when installed at 15m mounting height. 25% sensitivity is not able to detect motion signal.

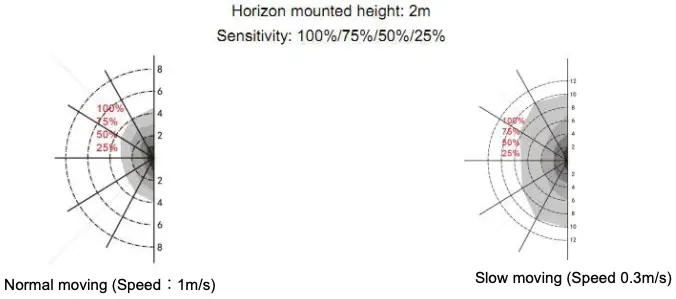

Wall mounting
