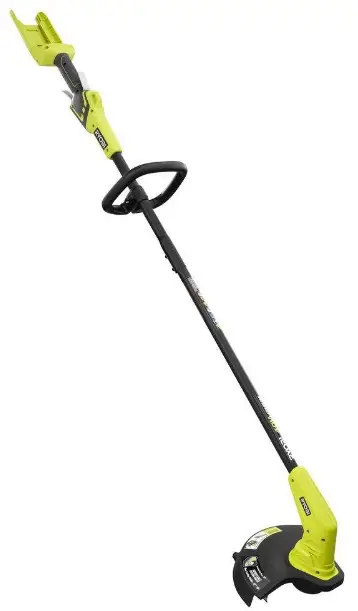

RYOBI RY40204 40 Volt String Trimmer
REPAIR SHEET
| BRAND | |
| RYOBI | |
| MODEL NO. | MFG. NO. |
| RY40204 | 107283012 |
| RY40204VNM | 107283112 |

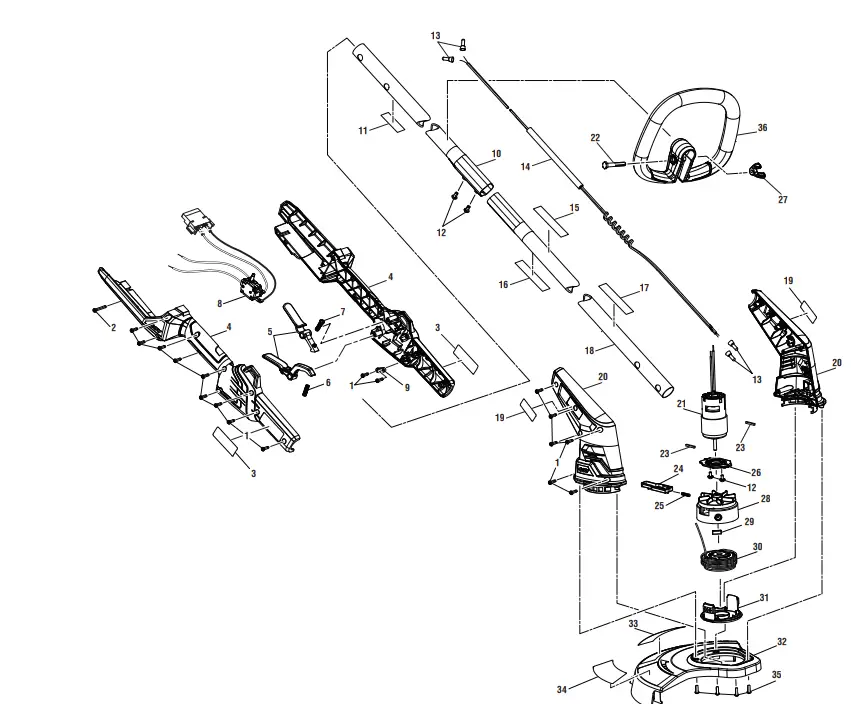

PARTS LIST
| KEY NO. | PART NO. | DESCRIPTION | QTY. | KEY NO. | PART NO. | DESCRIPTION | QTY. | |
| 1 | 661817001 | Screw (M4 x 14 mm, T15 Torx Pan Hd.) | 17 | 19 | 940705330 | Logo Label (Motor Housing) | 2 | |
| 2 | 660208104 | Screw (M4 x 30 mm, T15 Torx Pan Hd.) | 1 | 20 | 316305001 | Motor Housing Assy. (Inc. Key No. 19) | 1 | |
| 3 | 940304497 | Logo Label (Rear Handle) | 2 | 21 | 742675001 | Motor | 1 | |
| 4 | 204003001 | Rear Handle Assembly (Inc. Key No. 3) | 1 | 22 | 660643009 | Bolt (1/4-20 x 45 mm, Hex Hd.) | 1 | |
| 5 | 204007001 | Trigger Assembly | 1 | 23 | 562079002 | Rubber Plate | 2 | |
| 6 | 679973001 | Compression Spring | 1 | 24 | 310920001 | Slider Assembly | 1 | |
| 7 | 679973002 | Compression Spring | 1 | 25 | 679034001 | Compression Spring | 1 | |
| 8 | 204008001 | Switch and Contact Plate Assembly | 1 | 26 | 522926002 | Mounting Plate | 1 | |
| 9 | 523001001 | Cord Clamp | 1 | 27 | 518949001 | Wing Nut (1/4-20) | 1 | |
| 10 | 316304001 | Upper Tube Assy. (RY40204, Inc. Key No. 11) | 1 | 28 | 524851002 | Spool Base | 1 | |
| 205329001 | Upper Tube Assy. (RY40204VNM, Inc. Key No. 11) | 1 | 29 | 639154001 | Balance Plate | 1 | ||
| 11 | 941588615 | Data Label (RY40204) | 1 | 30 | 310917003 | Spool w/Line | 1 | |
| 941851393 | Data Label (RY40204VNM) | 1 | 31 | 522994001 | Spool Cover | 1 | ||
| 12 | 660502002 | Screw w/Washer (M5 x 8 mm, Pan Hd.) | 4 | 32 | 204001001 | Guard Assembly (Inc. Key Nos. 33-35) | 1 | |
| 13 | 790009004 | Wire Connector | 4 | 33 | 941606001 | Cutting Width Label | 1 | |
| 14 | 291631001 | Spring Wire | 1 | 34 | 941263210 | Auto-Feed Label | 1 | |
| 15 | 941657185 | Icon Warning Label | 1 | 35 | 660208055 | Screw (M4 x 12 mm, Pan Hd.) | 4 | |
| 16 | 940006271 | Warning Label (Fr/Sp) | 1 | 36 | 526764002 | Front Handle | 1 | |
| 17 | 940705329 | Logo Label (Drive Shaft) | 1 | Not Shown: | ||||
| 18 | 204006001 | Lower Tube Assembly (Inc. Key Nos. 15-17) | 1 | 991000846 | Operator’s Manual |

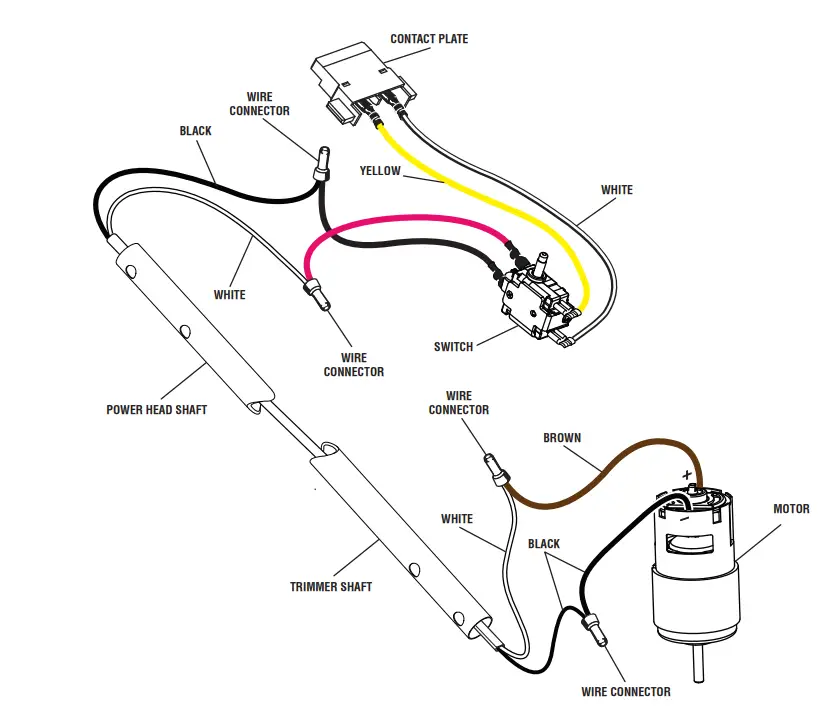

WIRING DIAGRAM
- TTI OUTDOOR POWER EQUIPMENT, INC.
- P.O. Box 1288, Anderson, SC 29622 1-800-525-2579
- www.ryobitools.com
- 3-9-22 (Rev:04)
- The model number and manufacturing location will be found on a label attached to the product.
- Always mention this information in all communications regarding this product and when ordering parts.
