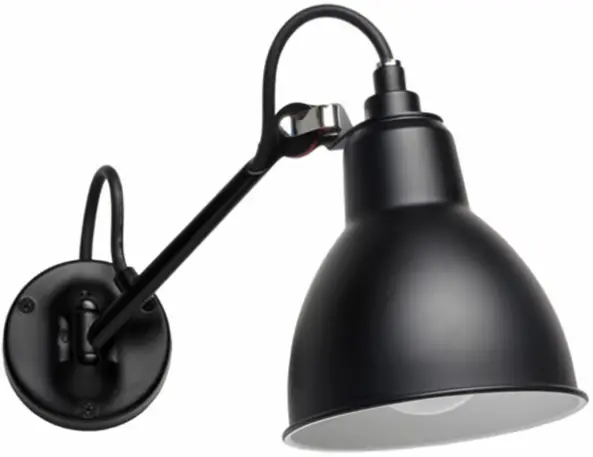

Lampe Gras N° 104 Gras Wall Lamp
Instructions
Lampe Gras N° 104 Gras Wall Lamp

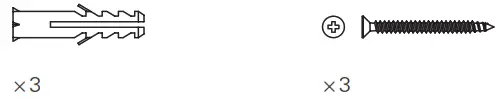

IN THE BOX

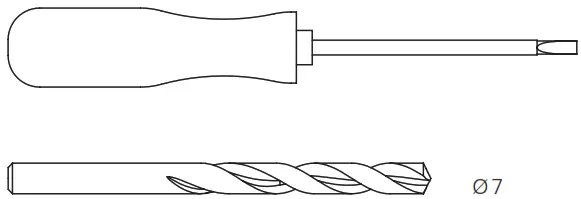

REQUIRED TOOLS
WARNING
The safety of this fixture is only guaranteed if the instructions have been observed.
- Always disconnect power before working on fixture.
- Fixture must not be installed in any position other than that shown in instructions.
- Assembly and maintenance of fixture must be performed carefully so as not to damage components.
- Replacement bulbs must be of same type and wattage as specified in instructions.
- Metal surfaces, glass or other parts of fixture may be cleaned with a soft damp cloth and mild detergent.
- DCW ÉDITIONS will replace merchandise with manufacturing defects only if it is returned to the retailer from which it was purchased.
- If you are unsure about your wiring, please consult a qualified electrician.
The damaged cables should be changed by manufacturer or distributor or qualified electrician.

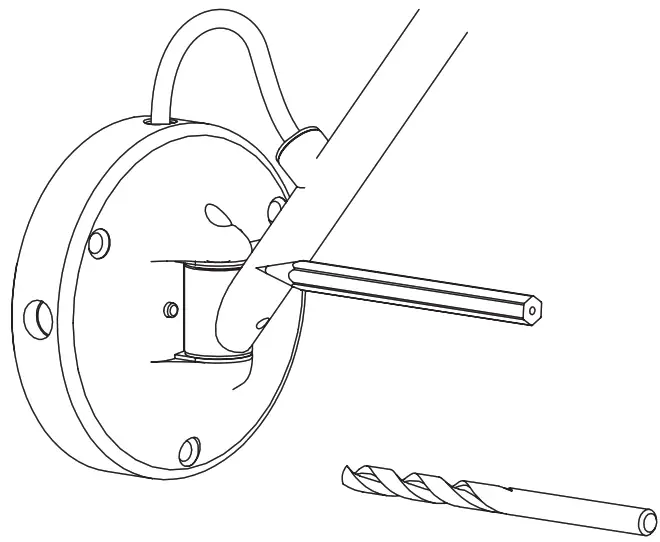

STEP 1
Mark then make holes in the wall with a Ø 7 diameter

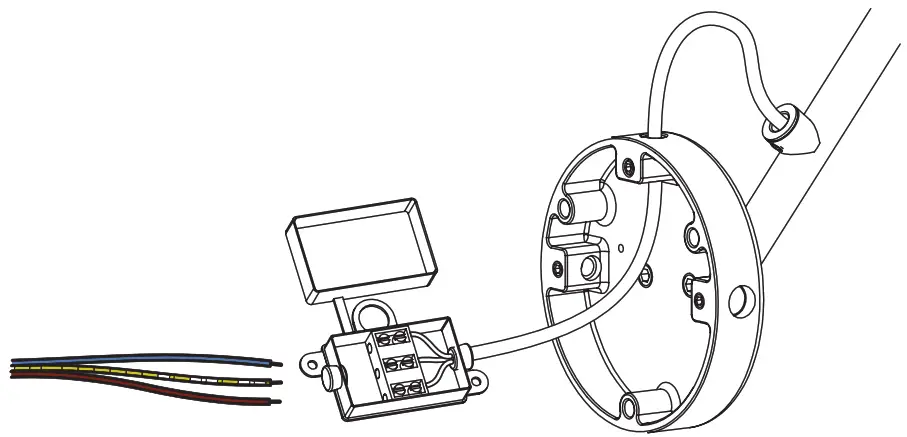

STEP 2
Connect electric wires

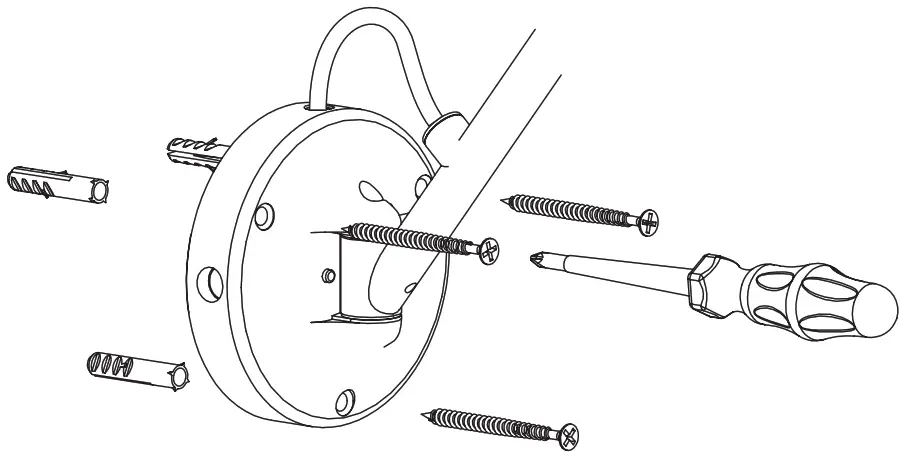

STEP 3
Fix the lamp to the wall

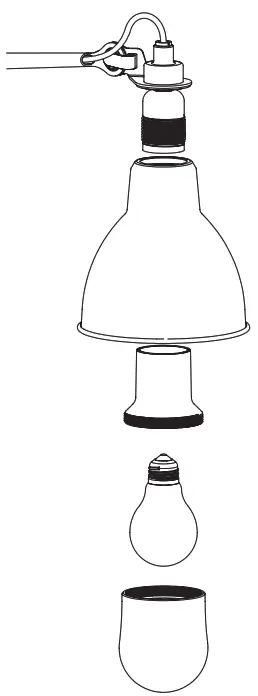

STEP 4
Install the reflector, glassware holder, bulb and then the glass. Note that the silicone gaskets must be correctly positioned to ensure waterproofs.
DCW éditions - Paris
