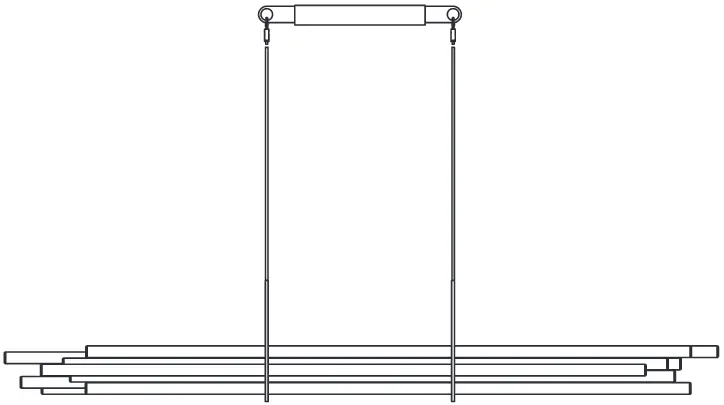

DCW editions NL12 Pendant Horizontal Lamp Instruction Manual
dcwe.fr
INSTRUCTION & USE SHEET
IN THE BOX

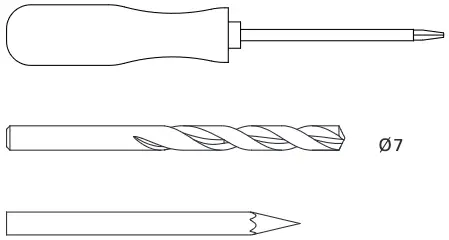

REQUIRED TOOLS
WARNING
The safety of this fixture is only guaranteed if the instructions have been observed. — Always disconnect power before working on fixture. — Fixture must not be installed in any position other than that shown in instructions. — Assembly and maintenance of fixture must be performed carefully so as not to damage components. — Replacement bulbs must be of same type and wattage as specified in instructions. — Metal surfaces, glass or other parts of fixture may be cleaned with a soft damp cloth and mild detergent.— DCW ÉDITIONS will replace merchandise with manufacturing defects only if it is returned to the retailer from which it was purchased. — If you are unsure about your wiring, please consult a qualified electrician. The damaged cables should be changed by manufacturer or distributor or qualified electrician.
STEP 1

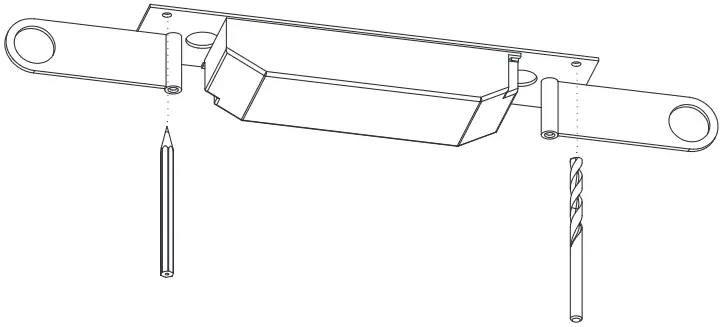

Mark then make holes in the ceiling with a Ø 7 diameter.
STEP 2

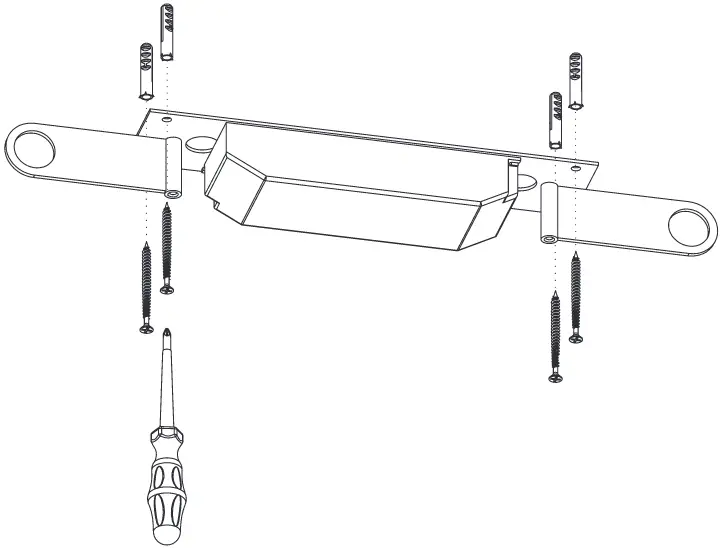

Fix the ceiling mount with the driver.
STEP 3

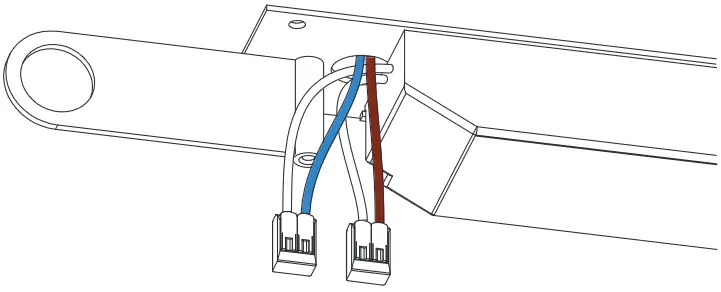

Connect electric wires.
STEP 4

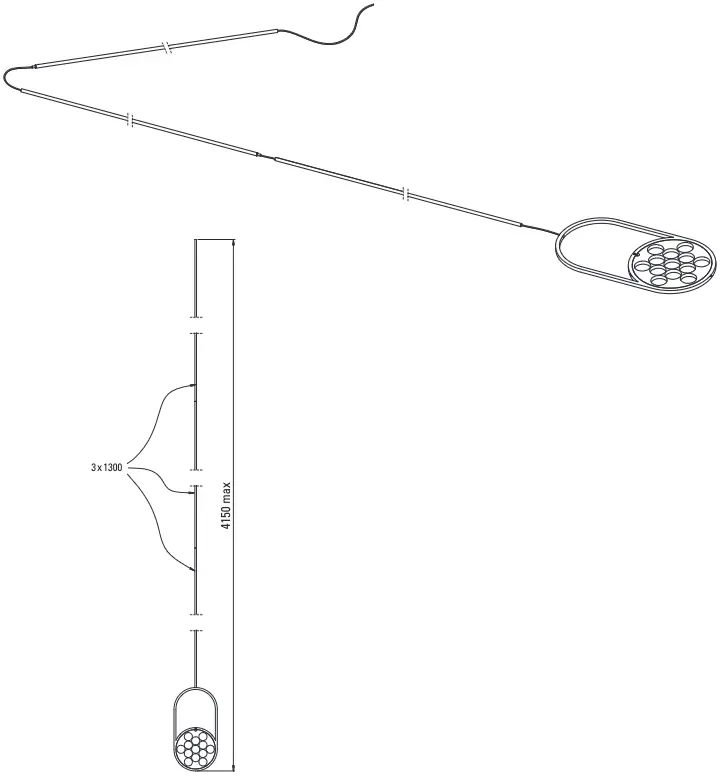

Prepare the lines and calibrate their final lengths. Pass the steel cable through the cover tubes (2 x 3 tubes available). Cut the last tube if necessary for a custom height.
STEP 5

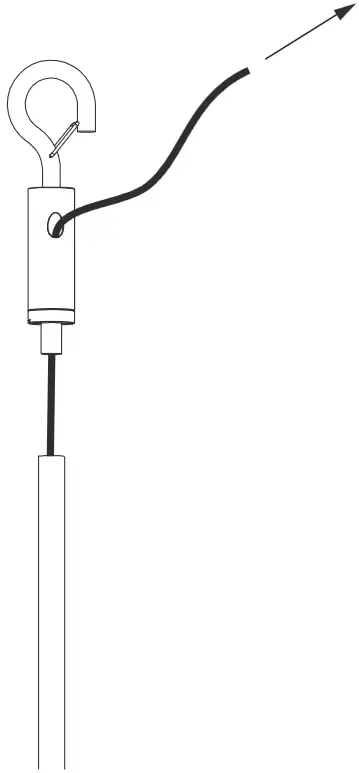

Pass the steel cable through the piston hook and slide it up to the cover tube. The piston allows the clamping to be released for adjustment.
STEP 6

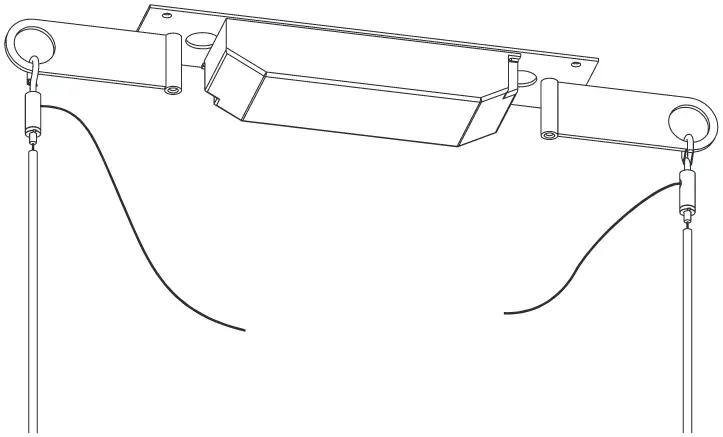

Hang lines to the ceiling mount.
STEP 7

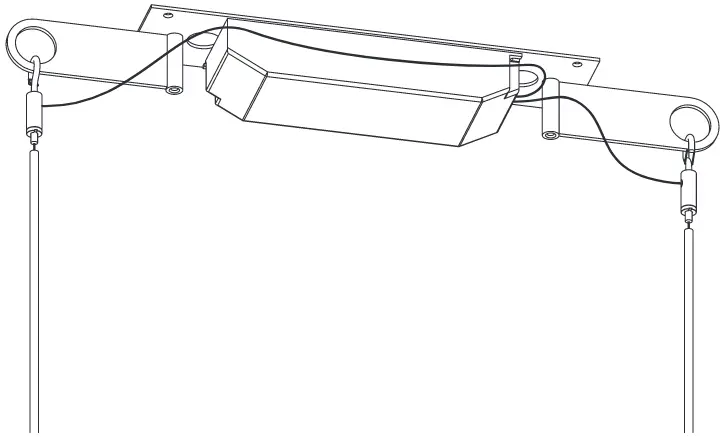

Connect the hanger cables to the driver respecting the polarity.
STEP 8

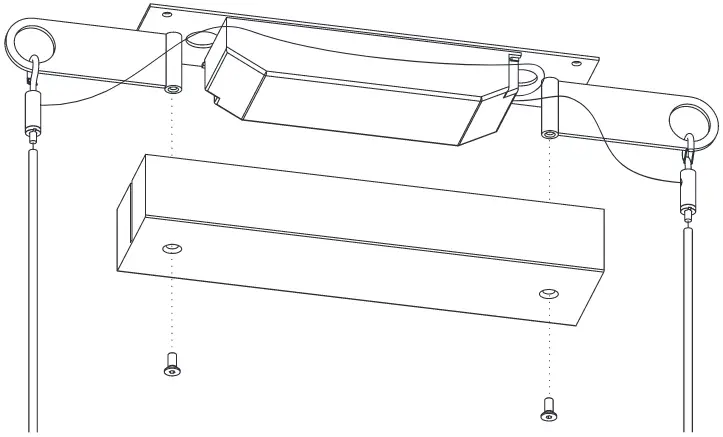

Fix the cover on ceiling mount.
STEP 9

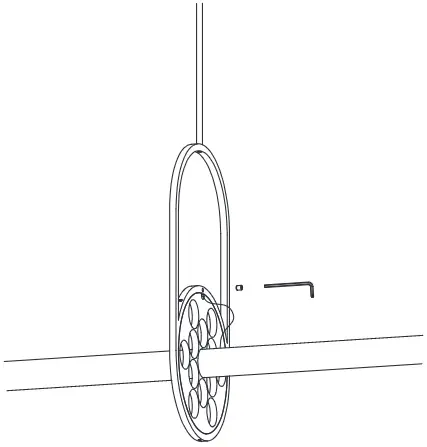

Slide the light source through the brackets and connect it to the hangers respecting the polarity.
STEP 10
Check that the lamp is level so that the glass tubes do not slip.
STEP 11

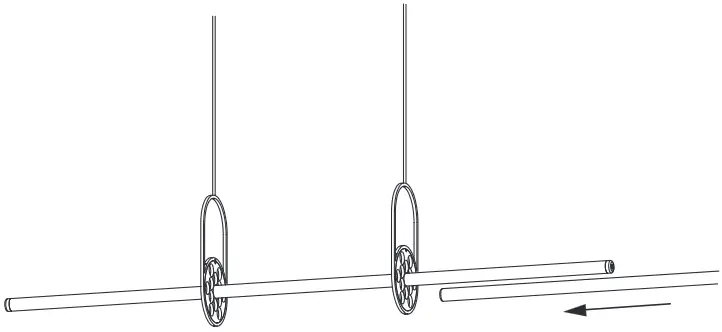

Carefully slide the glass tubes through the brackets. Make sure that the glass tubes are supported by the two supports.

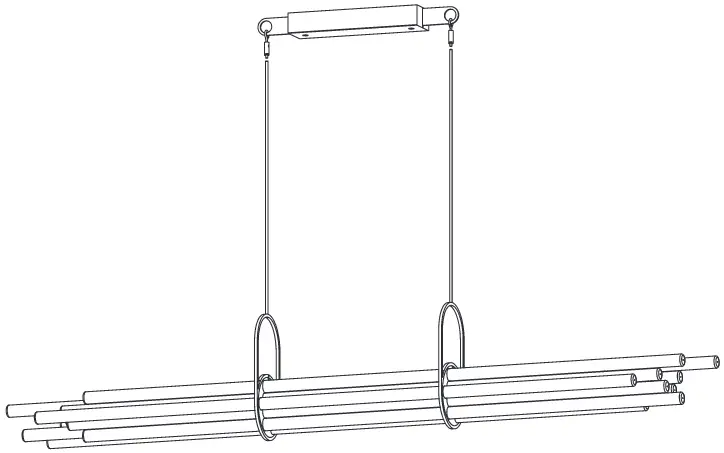

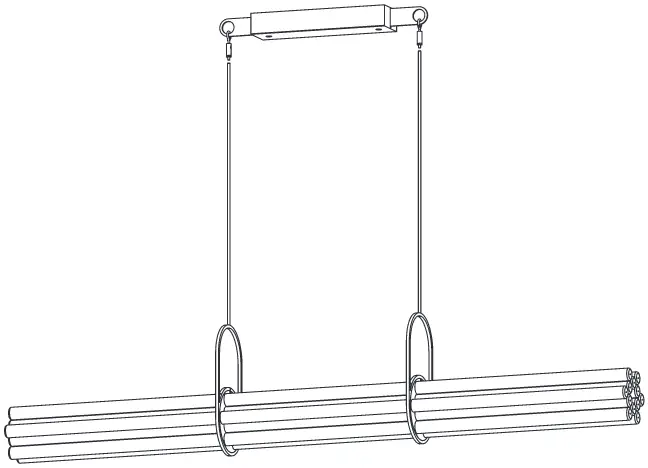

SUGGESTED TUBE LAYOUT
DCWE.FR
DCW éditions - Paris
