Nova Life Beito Wall Lamp Instruction Manual

Nova Life Beito Wall Lamp Instruction Manual

NOVA LIFE-logo

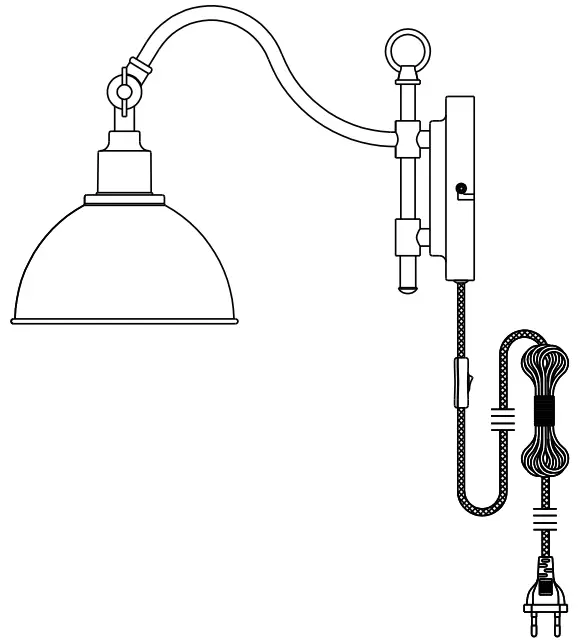

NOVA LIFE BEITO Wall Lamp

NOVA LIFE BEITO Wall Lamp-fig1

CAUTION:

  • Only use bulbs as directed on the label on the lamp.
  • Turn off the lamp before replacing the bulb and wait until the bulb has cooled. Take special care to touch the lamp when the lamp is lit. It can be hot.

Pre-Installation

PLANNING THE INSTALLATION
Read all instructions before assembly and installation. Before starting installation of the fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse at the fuse box. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.

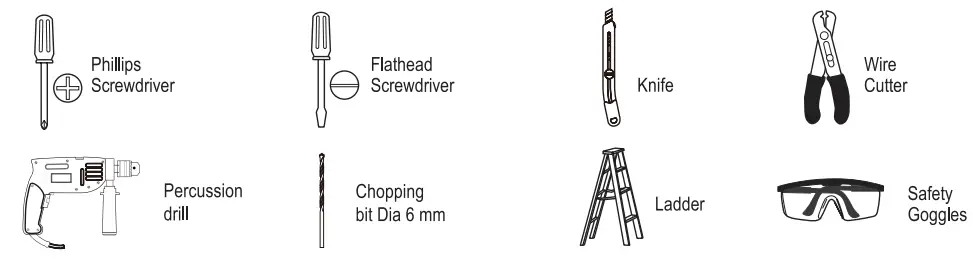

TOOLS REQUIRED

NOVA LIFE BEITO Wall Lamp-fig2

Installation

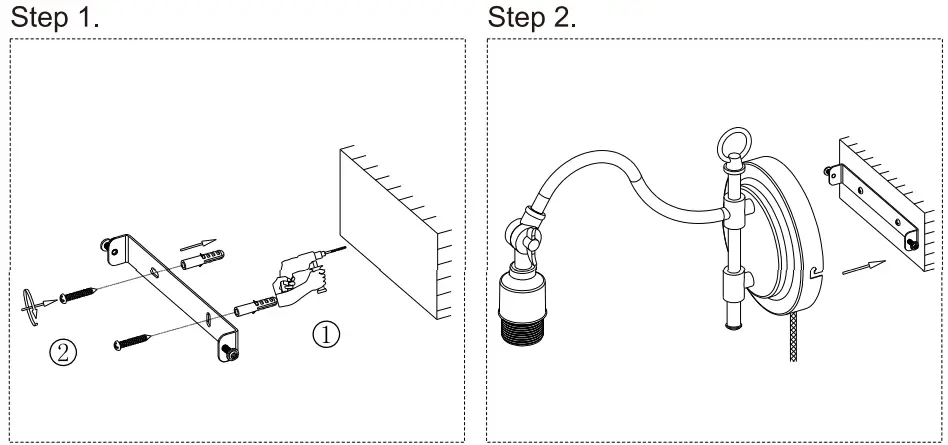

NOVA LIFE BEITO Wall Lamp-fig3NOVA LIFE BEITO Wall Lamp-fig4

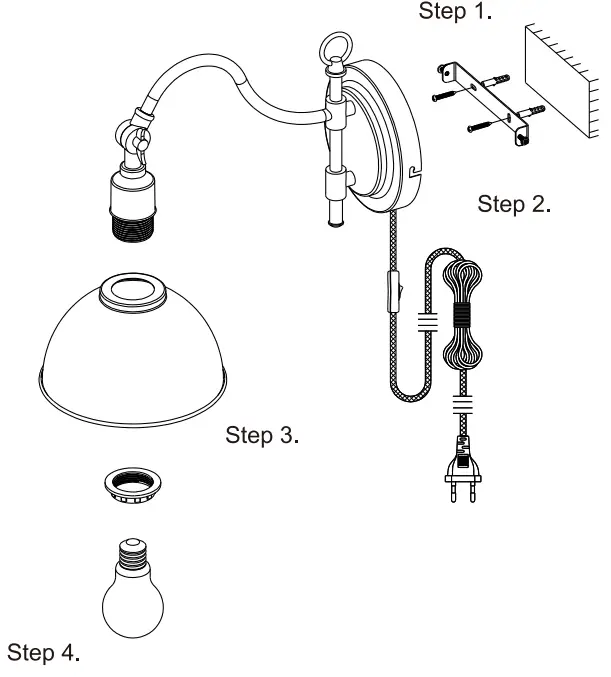

NOVA LIFE BEITO Wall Lamp-fig5

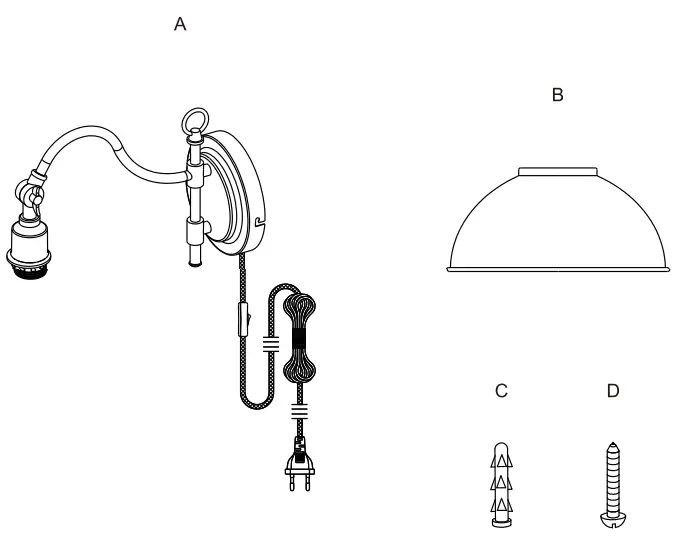

Package contents (parts are not to scale)

NOVA LIFE BEITO Wall Lamp-fig6

Part

A

Descriotion

The fixture with wire

Quantitv

1

BShade1
CWall expansion particle2
DSelf-Tapping screw2

Light source

230V E27 1 x 40W (not include) Recommend LED bulb

Care and Cleaning

EXTERIOR MAINTENANCE

  1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe the surface of the fixture.
  2. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft cloth to dust or wipe carefully.

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
