INTERIOR WALL LAMP
Art-Nr. 42661-001-71
Instruction Manual
www.lampehuset.no
BRANCH Interior Wall Lamp
CAUTION:
Warning:
- Only use bulbs as directed on the label on the lamp.
- Turn off the lamp before replacing the bulb and wait until the bulb has cooled. Take special care to touch the lamp when the lamp is lit. It can be hot.
Pre-Installation
PLANNING THE INSTALLATION
Read all instructions before assembly and installation. Before starting the Installation of the fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse at the fuse box. To avoid damaging this product. assemble it on a soft, non-abrasive surface such as carpet or cardboard.

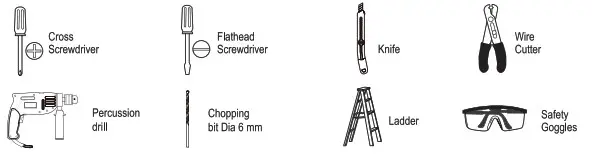

TOOLS REQUIRED

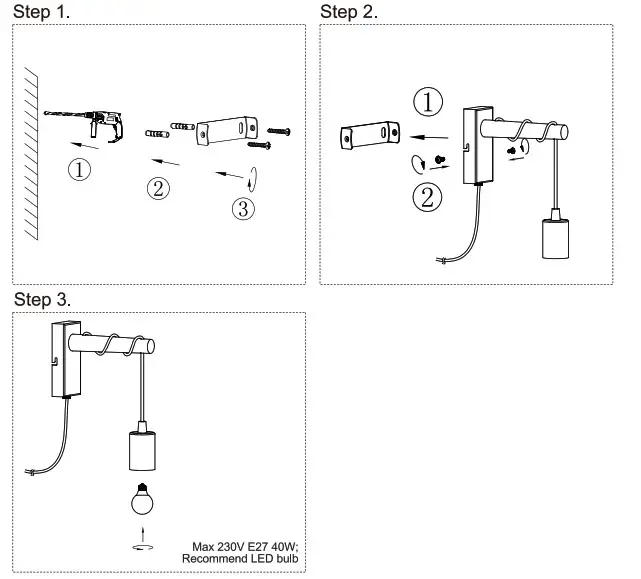

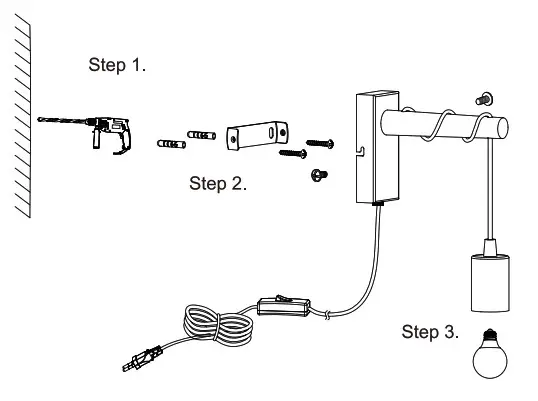

Installation
Installation (continued)
Operation
- Turn on the power at the circuit breaker or fuse box.
- Turn the light switch on to activate the fixture.

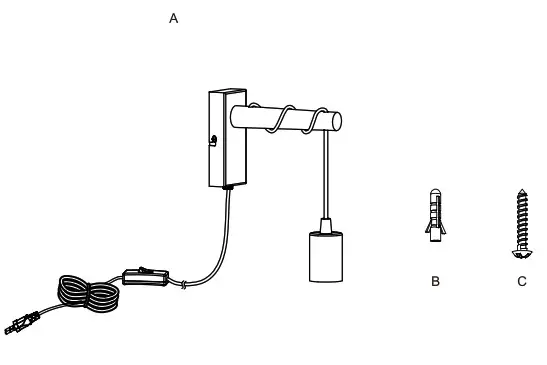

Package contents (parts are not to scale):
| Part | Description | Quantity |
| A | Fixture body | 1 |
| B | Wall expansion particle | 2 |
| C | Self-Tapping screw | 2 |
Light source
230V E27 x 40W Max (not include)
Recommend LED bulb
Care and Cleaning
EXTERIOR MAINTENANCE
- To dean the outside of the fixture, use a dry or slightly dampened dean cloth (use clean water. never a solvent) to wipe the surface of the lecture.
- Do not use any cleaners with chemicals. solvents or harsh abrasives. Use only dry soft cloth to dust or wipe carefully.
