Nova Life Sander Interior Wall Lamp Instruction Manual

Nova Life Sander Interior Wall Lamp Instruction Manual

nova logo

LIFE
INSTRUCTIONS MANUAL
for SANDER
INTERIOR WALL LAMP
Art-Nr. 42620-032-71, 42620-032-00NOVA LIFE Sander Interior Wall Lampwww.lampehuset.no

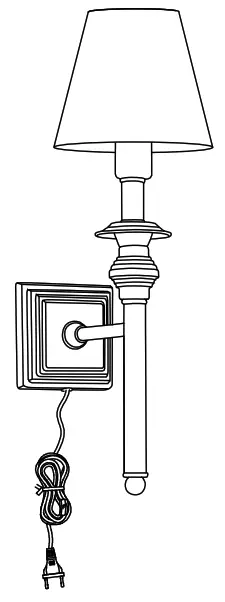

Sander Interior Wall Lamp

CAUTION:
NO:……………
Advarsel: ……………..
Warning: -Only use bulbs as directed on the label on the lamp.
-Tum off the lamp before replacing the bulb and wait until the bulb has cooled. Take special care to touch the lamp when the lamp is lit. It can be hot.

Pre-Installation

PLANNING THE INSTALLATION
Read all instructions before assembly and installation. Before starting the installation of the fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse at the fuse box. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.

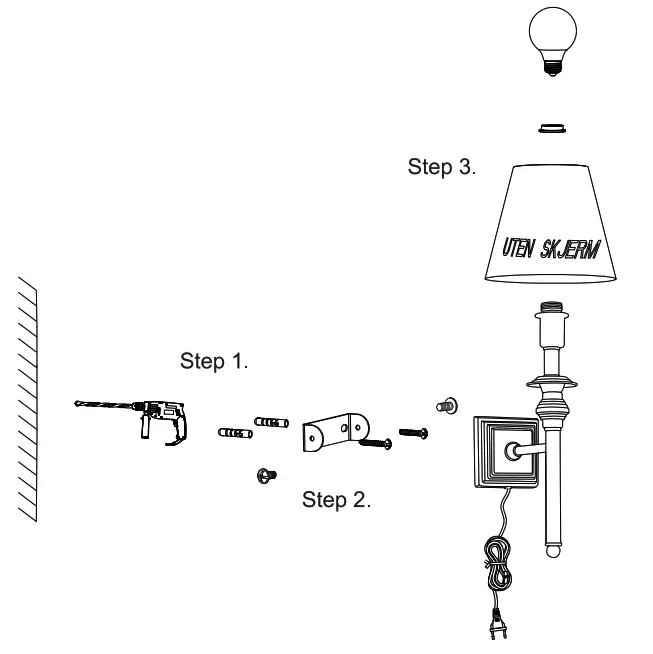

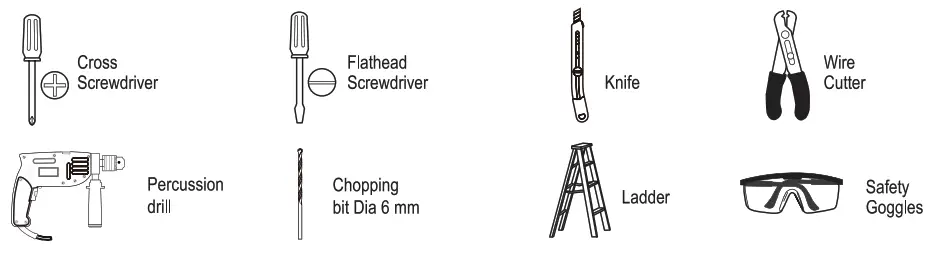

TOOLS REQUIREDNOVA LIFE Sander Interior Wall Lamp - figureInstallation

NOVA LIFE Sander Interior Wall Lamp - figure 1NOVA LIFE Sander Interior Wall Lamp - figure 2

Operation

  • Turn on power at the circuit breaker or fuse box.
  • Turn the light switch on to activate the fixture.

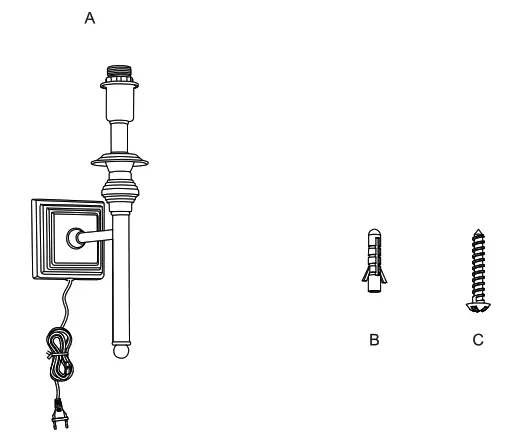

package contents

(parts are not to scale)NOVA LIFE Sander Interior Wall Lamp - figure 3

PartDescriptionQuantity
AFixture body1
BWall expansion particle2
CSelf-Tapping screw2

Light source

230V E14 1 x 40W Ball (not include) Recommend LED bulb

Care and Cleaning

EXTERIOR MAINTENANCE

  1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe the surface of the fixture.
  2. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only dry soft cloth to dust or wipe carefully.

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
