V-tac Uk Vt-7544 Table Lamp Instruction Manual

V-TAC UK VT-7544 Table Lamp

Product Information: Instruction Manual Table Lamp

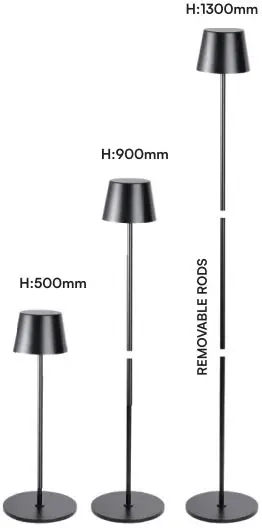

The VT-7544 is a table lamp designed for indoor use. It is made of aluminum and has dimensions of D140*H1300mm. The lamp has a battery capacity of 4400mAH and can be charged in 6-8 hours, providing up to 6 hours of working time. The lamp also features touch dimming levels, allowing you to adjust the brightness from 10% to 100%.

Technical Data

• Model: VT-7544
• Lumens: Not specified
• Beam Angle: Not specified
• Unit Color: Not specified
• Cable Length: Not specified
• Input Voltage: Not specified
• Adapter Output: Not included
• Material: Aluminum
• Battery Capacity: 4400mAH
• Charging Time: 6-8 hours
• Working Time: 6 hours
• Touch Dimming Level: 10% to 100%

Product Usage Instructions

To use the VT-7544 table lamp, follow these steps:

1. Place the lamp on a flat and stable surface.
2. Charge the lamp using a compatible adapter (not included) for 6-8 hours until fully charged.
3. To turn on the lamp, touch and hold the power button located on the lamp base until the light turns on.
4. To adjust the brightness, touch and hold the power button until the desired brightness level is reached. The lamp features touch dimming levels that range from 10% to 100%.
5. To turn off the lamp, touch and hold the power button until the light turns off.
6. When not in use, turn off the lamp and unplug it from the powersource.

TECHNICAL DATA

INTRODUCTION

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future refer- ence. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The company gives no warranty against damage to any surface due to incorrect removal and installation of the
product. This product is warranted for manufacturing defects only.

WARNING!

1. Please make sure to turn off the power before starting the installation
2. The light source of this luminaire is not replaceable;
   when the light source reaches its end of life the whole luminaire shall be replaced.
   This marking indicates that this product should not be disposed of with other household wastes.

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

OPERATION CAUTIONS

1. Please do not put the lamp on the high-temperature surfaces, and do not use it in flammable or humid environment, to avoid the breakdown, short circuit etc.
2. The adapter must be under the specialized range.
3. Please ensure to place the lamp on a steady base only.



OPERATION GUIDE

1. Tap on the button at the top of lamp to switch on/off the lamp
2. For Dimming function – Make sure the light is ON, tap on the touch button and hold for the light to increase/decrease the brightness. When turning on the lamp next time, the light brightness level will be the same as the last setting.

COLOR LED INDICATOR

1. RED COLOR INDICATOR – Charging is in progress.
2. GREEN COLOR INDICATOR – The battery is full charge

MAINTENANCE

1. Please clean the lamp once in every two months to keep it smooth and bright.
2. Use cleaning cloth and water to clean the dust
3. For filthy marks, please use cleaning cloth and soapsuds.
   1. Please do not clean the lamp by high-volatility and high-corrosive liquid which can lead to discolorina or damaging the lamp.



IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
