Bsi Pull-out Base Unit Instruction Manual

Bsi Pull-out Base Unit Instruction Manual

150 Pull-Out Base Unit Assembly

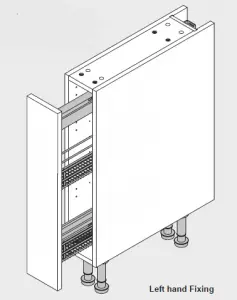

right hand fixingleft hand fixing

TH Note: If fitting a “True Handleless” kitchen, some components will differ to those shown in this instruction and will also be packaged separately. Please refer to your True Handleless guide to Receiving for further details on the different components and difference in installation.

Components

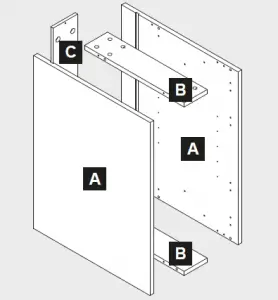

components

Important Information – True Handleless Kitchens Installers: See Note Above TH

Caution: Some pieces of hardware could be hazardous to small children. Keep all these items out of reach and do not leave children unattended in the assembly area. Please read these instructions carefully before proceeding. Refer to the Guide to Receiving and Installing your Kitchen booklet for further information. Note: Due to variation in wall conditions no screws are supplied for fixing the units to the wall. If in doubt consult an expert. Assemble the unit on a clean solid work surface. In the interest of continuing improvements we reserve the right to amend or adjust the specifications without prior notice. Errors and omissions excepted. This unit is fitted with a wirework system. The wirework is supplied separately. These instructions advise when to fit parts of the wirework system. Follow the instructions supplied with the wirework for wirework assembly. Every effort has been made to ensure that this product leaves the factory in perfect condition. In the unlikely event that an item is damaged or incorrect, please contact the customer services department.

Note – Fitting Handles: (1) Decide where you are going to position each handle to maintain symmetry around your kitchen. (2) Measure the handle centres and mark off each door/drawer position. (3) Drill through the door/drawer using a fine drill (<2.5mm), then drill back from the rear face using a 4.5mm drill. (4) Attach with the fixings provided with your handle.

Ref. No.ItemQuantity
150101wood screw 1501014
150202screw 1502024
150201screw 15020116
150199screw 1501992
154082screw 1540828
154085screw 1540048
154004screw 1540858
150308screw 1503082
150309screw 1503092
154047bar support2
151500item 1515002
151999item 1519994
152401machine 1519994
152418tube 1519994
152402bracket 1519992
Note: These are supplied with the wirework.
wood screw 15mm6
screw 13mm8
Tools Required
drillDrill
crosshead screwdriver
Medium Crosshead Screwdriver
flathead screwdriver
Large Flathead Screwdriver
spirit levelSpirit Level
G-ClampG-Clamp (pair)
hammerHammer
tape measureTape Measure
BradawlBradawl

1 2 Assembly Instructions

Note: These instructions show a right hand fixing. Mirror for a left hand fixing. It is advisable to fit the wirework runners at this point. See wirework instructions for further details.

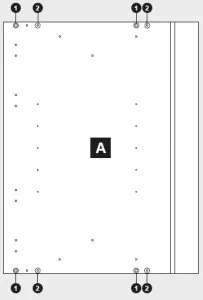

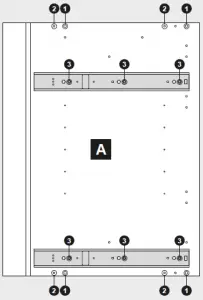

assembly instructionassembly instruction A

TH Modification required at this stage, see True Handle-less guide for further details.

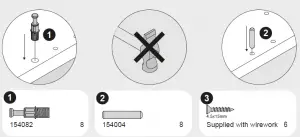

handleless guide

4

TH Modification required at this stage, see True Handleless guide for further details.

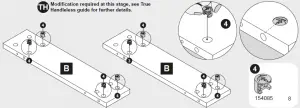

handleless details

5–6

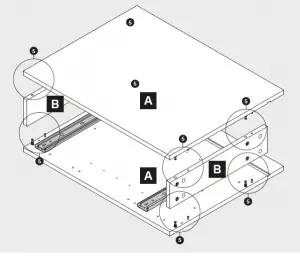

install screwscrew 5screw 6tighten
Do Not Over Tighten Start Locked

7–9

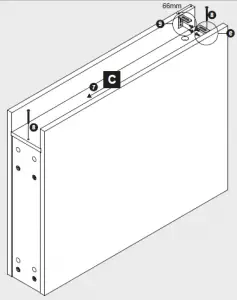

bracket install

installing screw

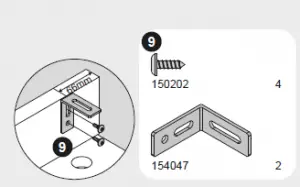

support screw

10-11

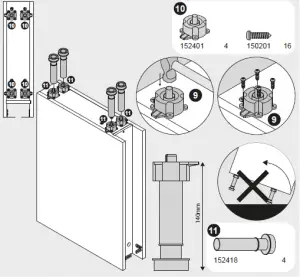

installing 152418

12

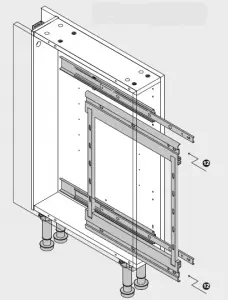

wire work instruction

Note: It is advisable to fit the frame to the runners at this point. See wirework instructions for further details.

13-14 Installation Instructions

screw instruction

drill instructiondrill screw  screw use

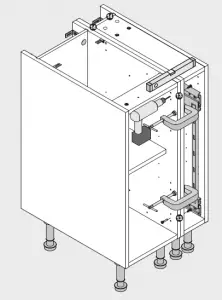

installation instruction

15-16

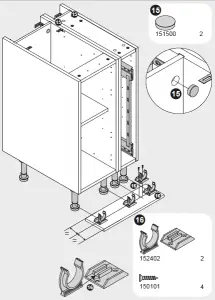

part installation

17-19

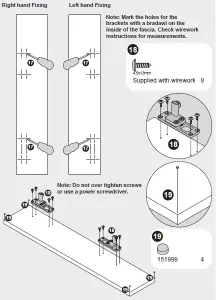

wirework instruction

20

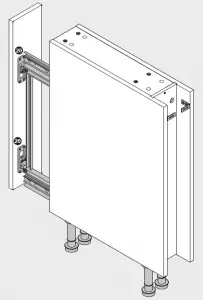

check wirework instruction
