iiyama LogoINSTRUCTION MANUAL_1.1
MD-WM6080iiyama MDWM6080 Monitors

Contents hide
1 Compatible with VESA
2 Mounting back plate
3 Documents / Resources

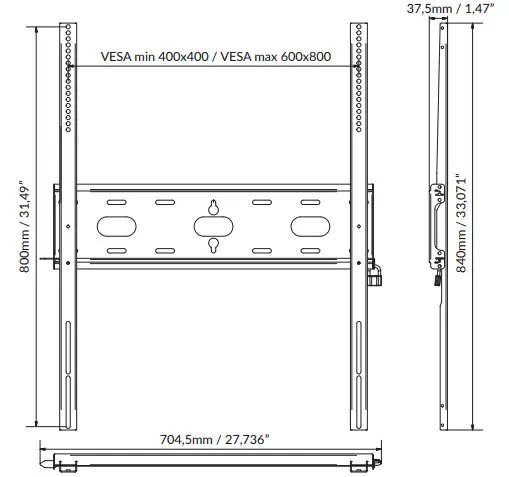

Compatible with VESA

400×400, 600×400, 600×800
maximum weight of a screen

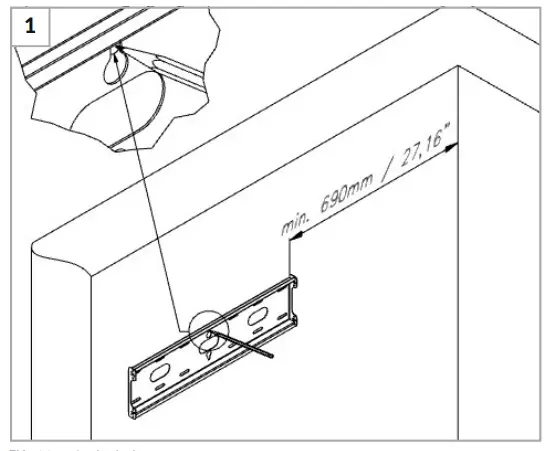

iiyama MDWM6080 Monitors - back plate

Mounting back plate

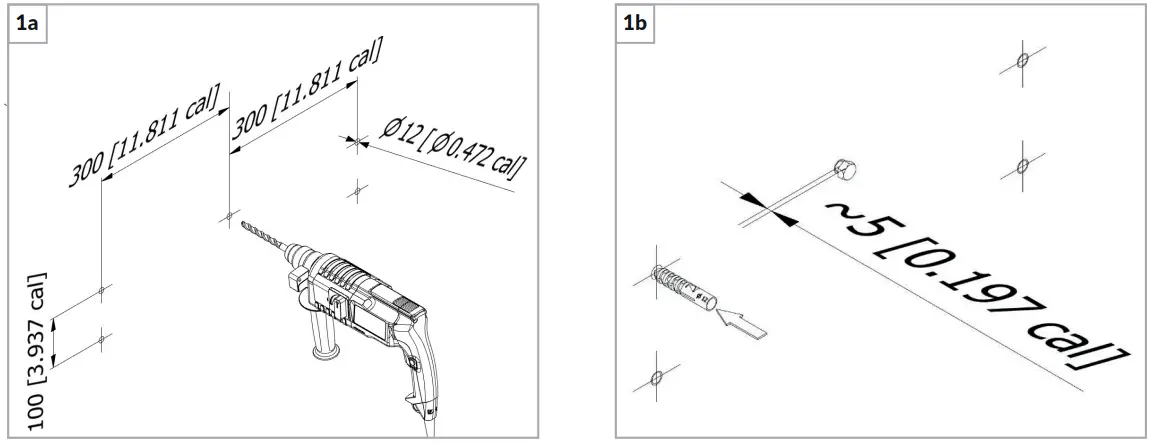

iiyama MDWM6080 Monitors - back plate 1

It is recommended to screw in only one central screw, leaving approx. 5mm of clearance between the screw head and the wall.

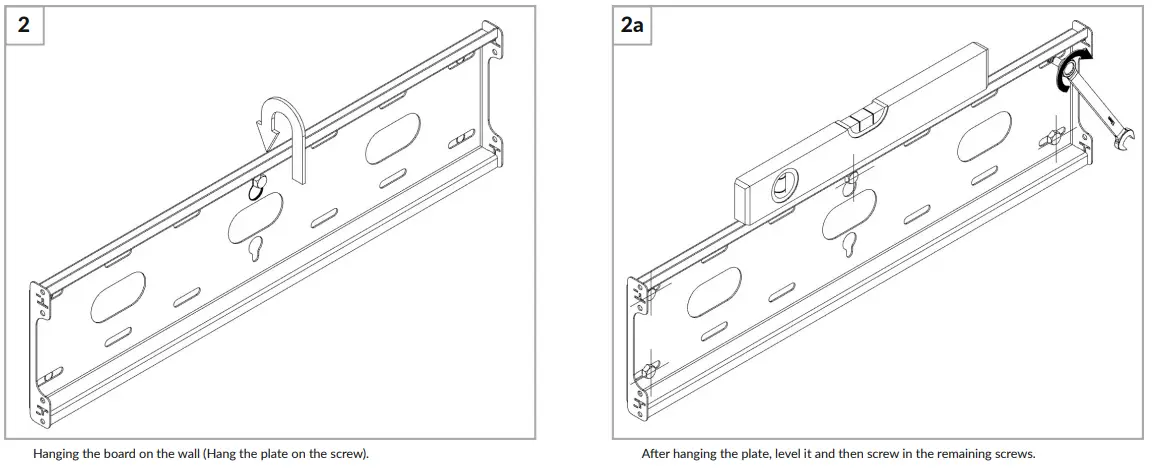

iiyama MDWM6080 Monitors - back plate 2.

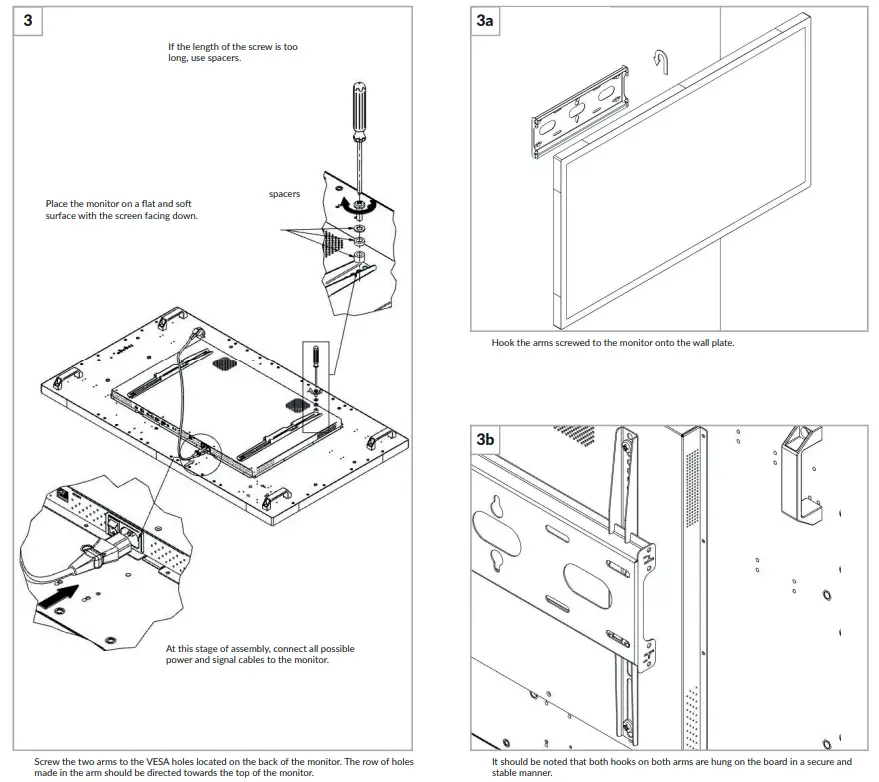

iiyama MDWM6080 Monitors - back plate 3

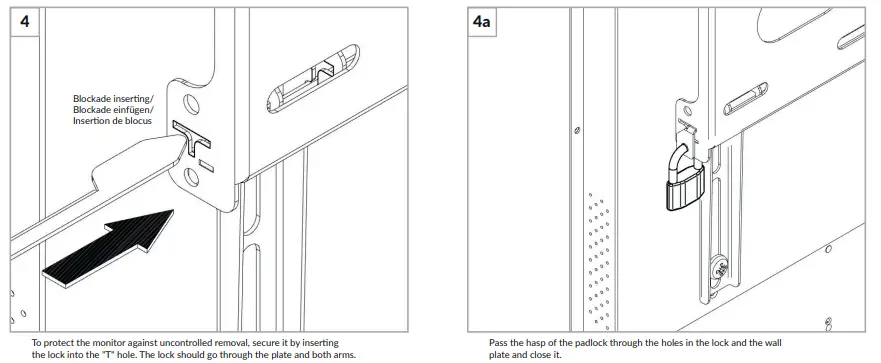

iiyama MDWM6080 Monitors - back plate 4

iiyama Logo

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
