Canon Pixma TS3322 Printer User Manual

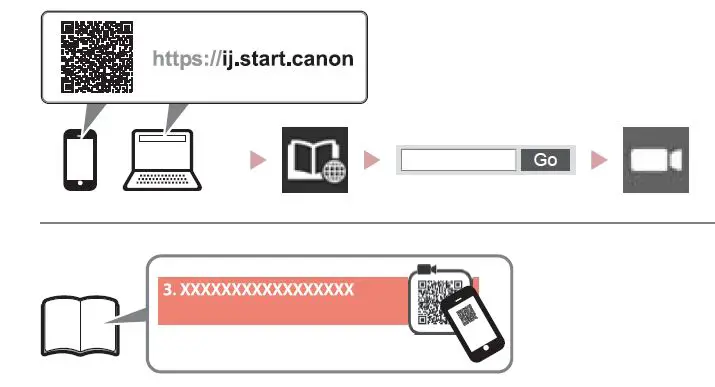

Detailed instructions and videos are available on the Canon website.

Setup a Computer

Setup a Smartphone

Read Safety and Important Information (addendum) first.

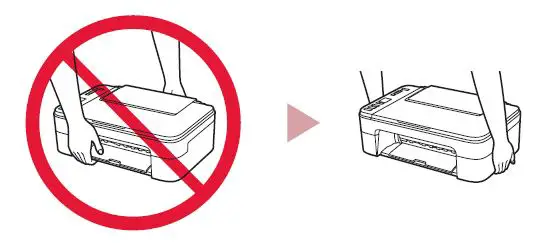

Holding the Printer

Instructional Videos

Checking Included Items

• FINE cartridges
• Power cord
• Setup CD-ROM for Windows
• Safety and Important Information
• Getting Started (this manual)

Removing Packing Materials

1. Remove and dispose of any packing materials and orange tape from the printer’s exterior.

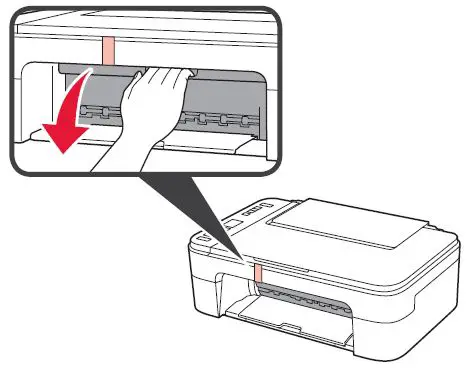

2. Open the cover.

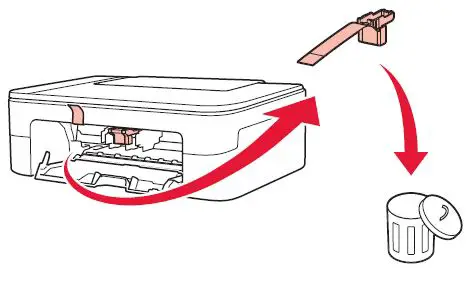

3. Remove and dispose of the orange tape and protective material inside.

Turning on the Printer

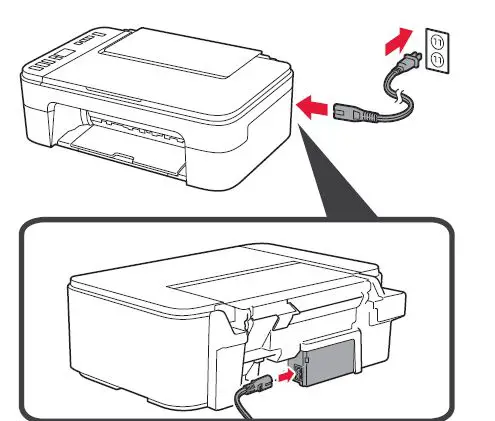

1. Connect the power cord At this time, do not connect any other cables.

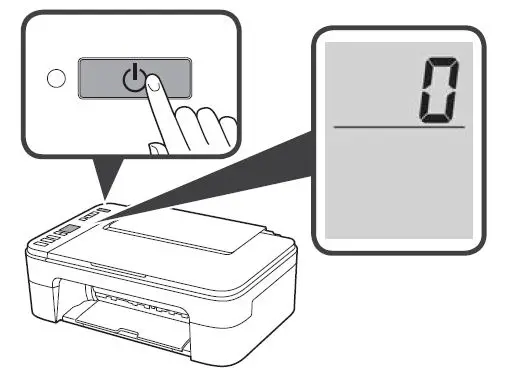

2. Press the ON button If E > 0 > 9 appears on the screen, press the ON button to turn off the printer, and then redo from step 2 of “2. Removing Packing Materials

Installing the FINE Cartridges

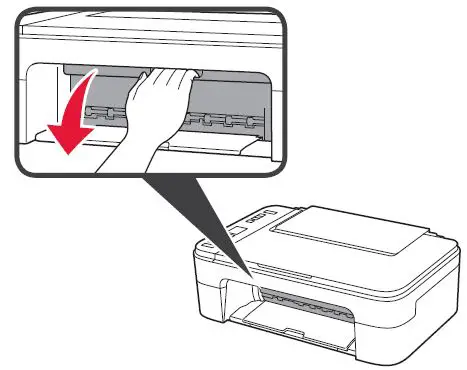

1. Open the cover.

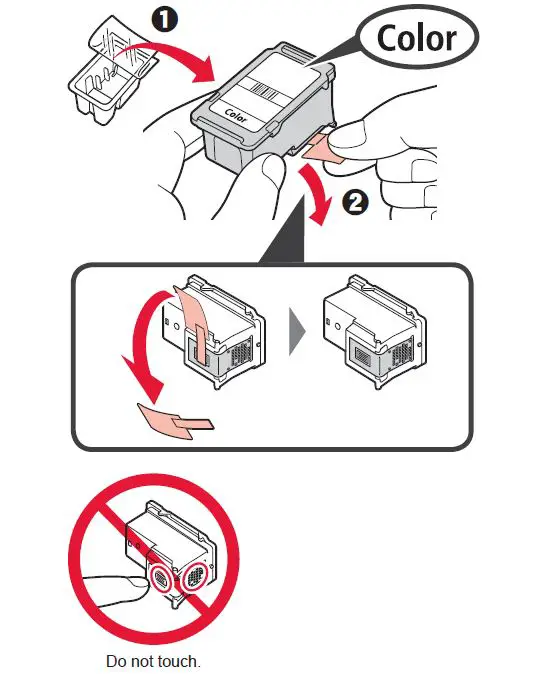

2. Remove the Color FINE cartridge from the container.  Remove the protective tape Be careful of ink on the protective tape.

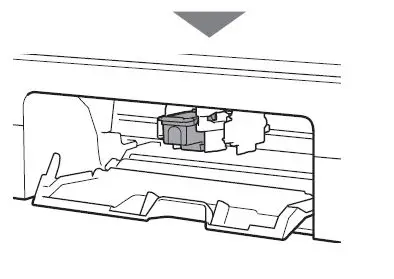

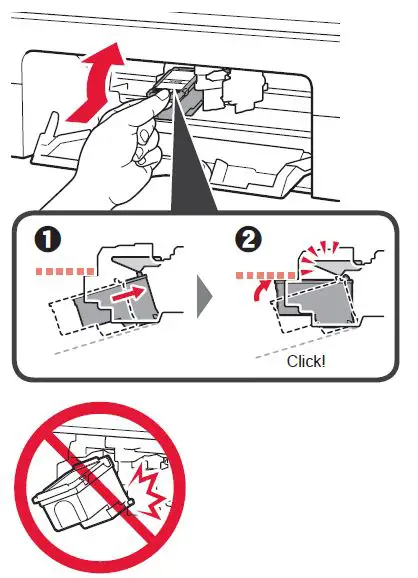

3. Insert the Color FINE cartridge into the FINE cartridge holder on the left-hand side at a slight upward angle.  Push the FINE cartridge in and up firmly until it snaps into place. Confirm that the FINE cartridge is straight and level.

Do not bump it against the surrounding parts.

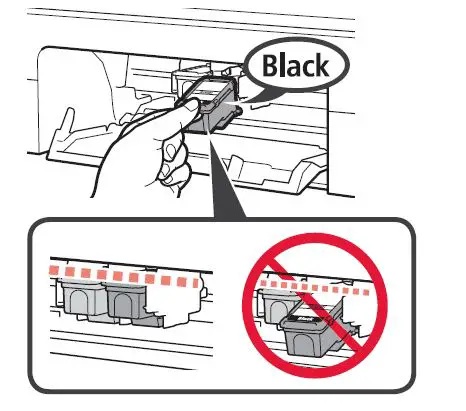

Repeat steps 2 to 3 to install the Black FINE cartridge on the right-hand side.

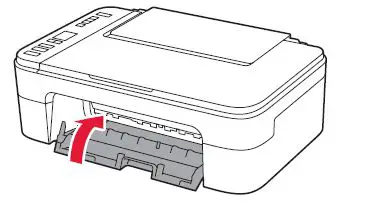

Close the cover If E > 0 > 4 appears on the screen, return to step 3 of “4. Installing the FINE Cartridges” and confirm that the Color and Black FINE cartridges are installed correctly.

Loading Paper

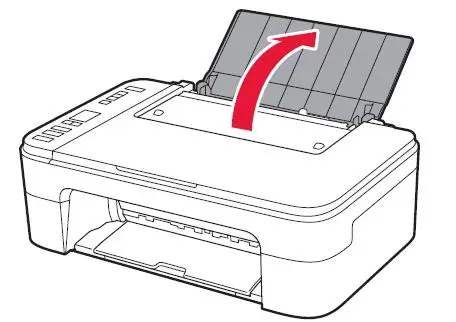

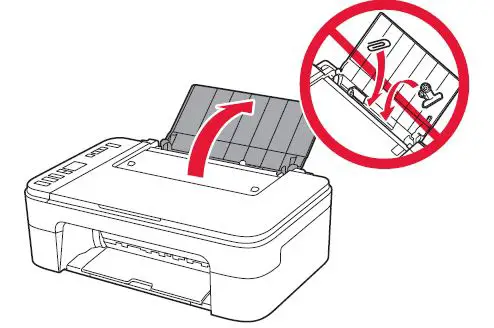

1. Open the paper support

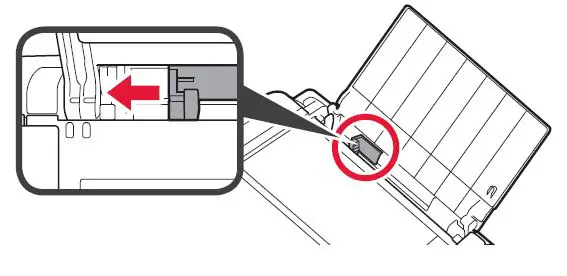

2. Slide the paper guide to the left.

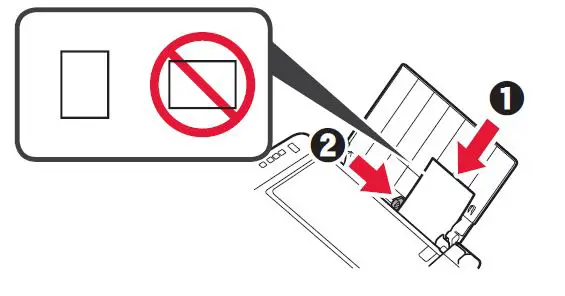

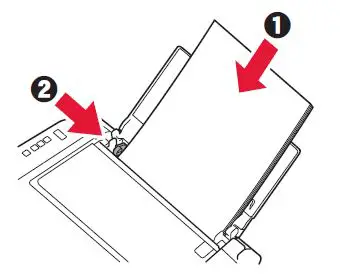

3. Load Letter or A4-sized plain paper against the right edge with the print side facing up. Slide the paper guide to align it with the side of the paper stack

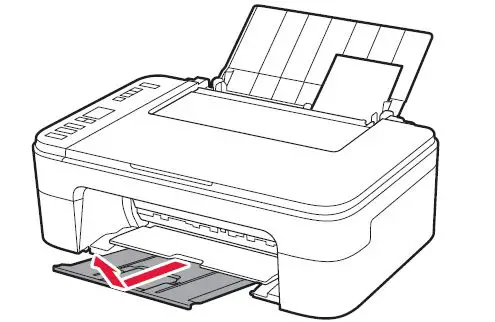

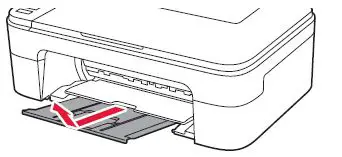

4. Pull out the paper output tray.

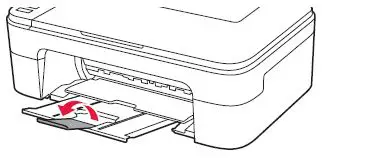

5. Open the output tray extension

Preparing for Connection

1. Confirm that the screen appears as shown below.

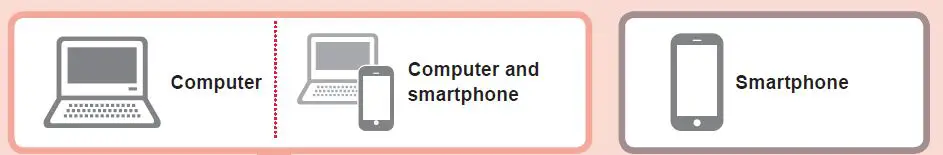

What device are you connecting?

To use your printer without connecting to any other devices. “7-c”

Connecting to a Computer
If you are using multiple computers, perform these steps on each computer.

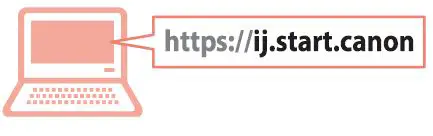

1. Access the Canon website from a computer.
2. Select Set Up.
3. Enter your printer’s model name and click Go.
4. Click Start.
5. Click If you have already prepared your printer, go to Connect.
6. Click Download.
7. Run the downloaded file.

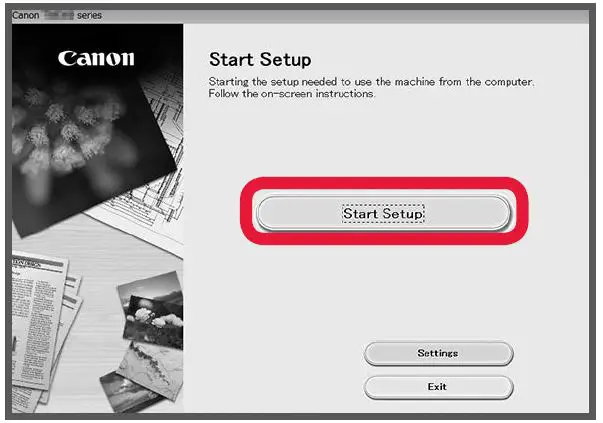

8. Click Start Setup
9. Follow the on-screen instructions.
   • These operations may take some time.
   • To connect to a smartphone as well, see “7-b. Connecting to a Smartphone” on page 5.

Note
The following steps are for Windows (except Windows 10 in S mode) and macOS users. For other operating systems, continue setup by following the on-screen instructions instead.

Using the Setup CD-ROM for Windows
Double-click EasySetup.exe on the CD-ROM, and then continue from step 3. If you do not have an internet connection, open the win folder in the CD-ROM and double-click SETUP.exe. This will install the printer driver.

Connecting to a Smartphone
If you are using multiple smartphones, perform these steps on each smartphone.

Prepare the following before starting.

• Enable the Wi-Fi setting on your smartphone.
• Connect your smartphone to the wireless router (if you have a wireless router). Refer to your smartphone and wireless router manuals for more details.

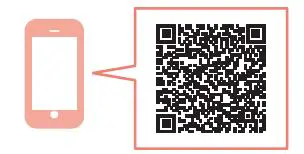

  1. Install the “Canon PRINT Inkjet/ SELPHY” app on your smartphone.  Scan the QR code shown on the right to access the Canon website, and then download the app.

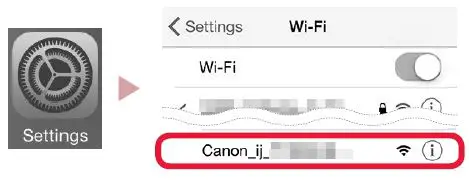

  2. Open your smartphone’s Wi-Fi settings. Tap the network name (SSID) that starts with  If “Canon_ij_” does not appear, proceed to step 3.
     (Example of iOS screen)
  3. Open the installed app.
  4. Follow the on-screen instructions in the app to add your printer

Once you have added your printer, you can print from your smartphone. To print photos, see “Loading Photo Paper” on page 6.

No Device Connected

1. Press the Stop button.
2. Confirm that the screen appears as shown below.

Loading Photo Paper

1. Open the paper support.
2. Slide the paper guide to the left.
3. Load several sheets of photo paper against the right edge with the print side facing up.  Slide the paper guide to align it with the side of the paper stack.

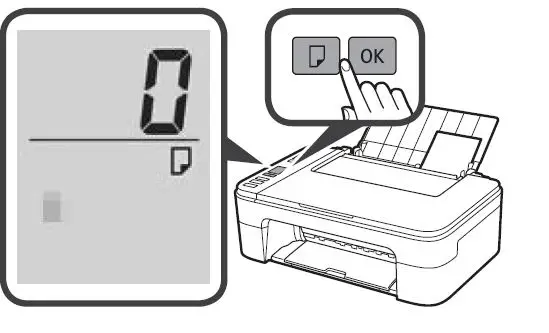

4. Press the Paper Select button, select a paper size, and then press the OK button.
5. Pull out the paper output tray.
6. Open the output tray extension.

If Print Results Are Unsatisfactory

Perform Print Head Alignment if straight lines are crooked or colors are inconsistent, or print results are otherwise not what you expected. For details, click Maintenance on the Online Manual and refer to If Printing Is Faint or Uneven > Aligning the Print Head. Refer to the back cover of this manual for how to open the Online Manual.

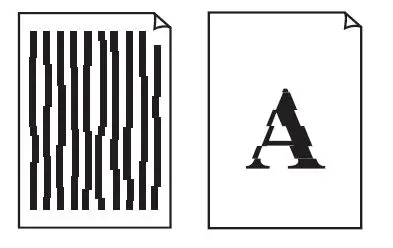

• Lines Are Misaligned
• Uneven or Streaked Colors
