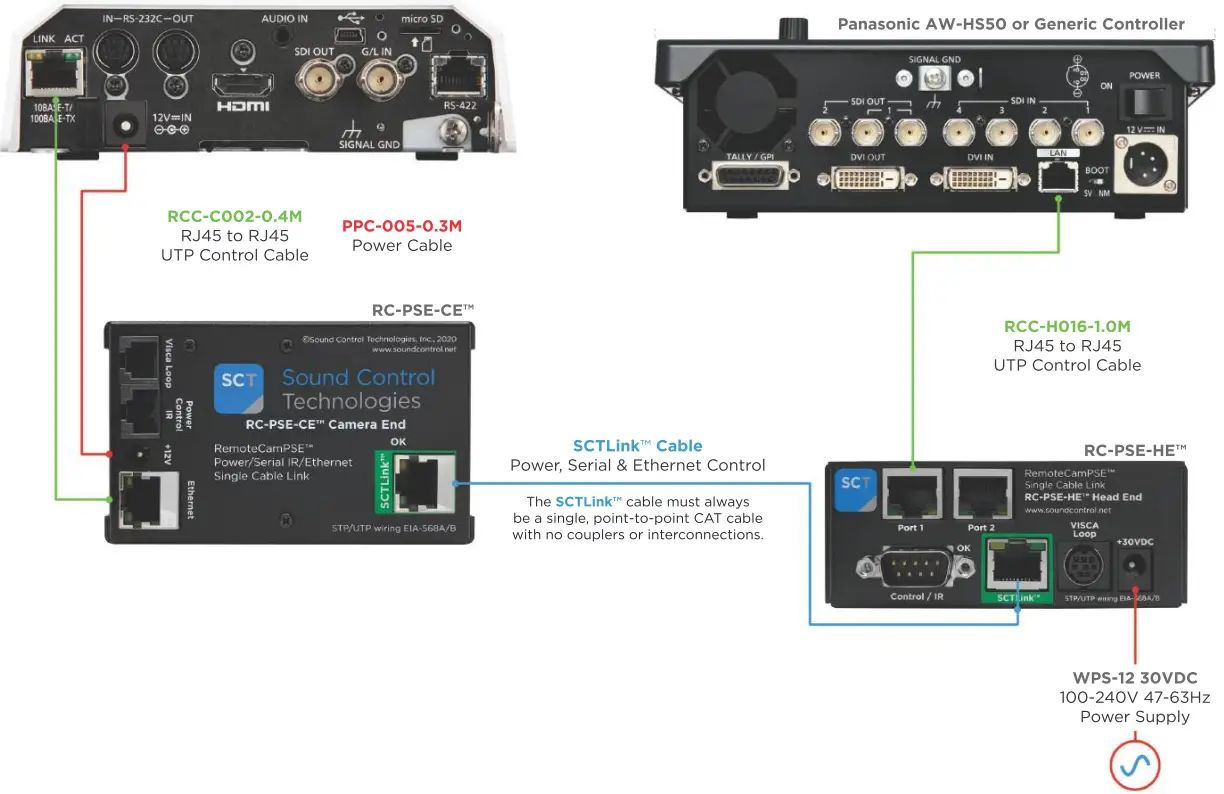

SCT Panasonic RC-PSE-P40 Generic Controller
Panasonic Models: AW-HE40, AW-HE42, AW-HE60, AW-HE130, AW-UE70 (shown) & AW-UE100
Warning
- Do not connect Visca Loop (out from camera) cable to the last camera in a daisy chain.
- This will terminate control on all cameras.
SCTLink™ Cable Specs

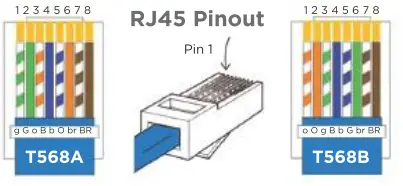

- Integrator-Supplied CAT5e/CAT6 STP/UTP Cable T568A or T568B (10m-100m min/max Length.

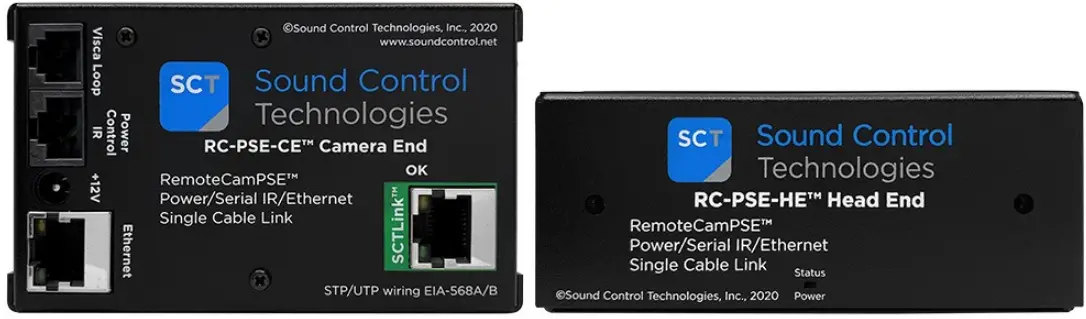

Module Dimensions
- RC-PSE-CE™: H: 0.875” (22mm) x W: 2.5” (63mm) x D: 3.6875” (93mm)
- RC-PSE-HE™: H: 1.5” (38mm) x W: 3.75” (95mm) x D: 3.625” (92mm)
