Oneplus W301gb Smartwatch User Guide

Let’s get started

User Guide
Read this manual carefully before you start and keep it properly for reference

OnePlus Watch

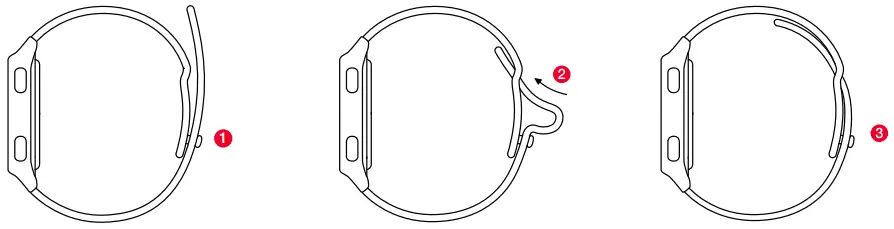

Power keyWearing guide

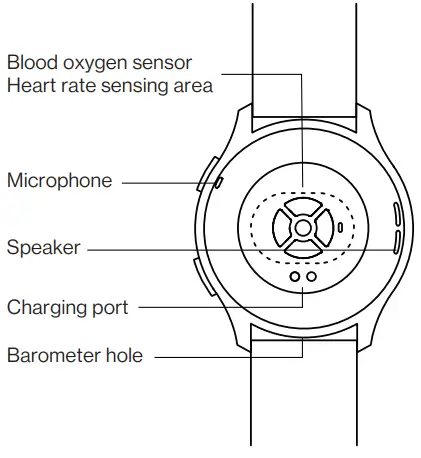

Adjust the strap buckle to fit your wrist before fastening. Product overview

1.  To ensure accurate heart rate measurement, properly wear the watch on your wrist and avoid the wrist bones.
2. The watch is made of quality materials, and you can wear it assuredly. If you feel uncomfortable when wearing the watch, stop wearing it and consult a doctor.

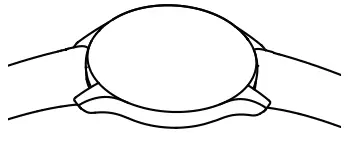

Charging and power-on
Charging: Align the charging port on the watch with the metal contact of the charging base and fit them properly until a charging indicator is displayed on the watch screen.
When the watch prompts a low battery level, charge it in a timely manner.

1.  Watch warp quick charging: When the battery temperature is between 20°C and 40°C and the adapter has a rated output of 5 V/1 A or larger, the watch enters the quick charging mode.
2.  Before charging, keep the charging port clean and dry to avoid metal contact corrosion or other risks due to residual sweat.

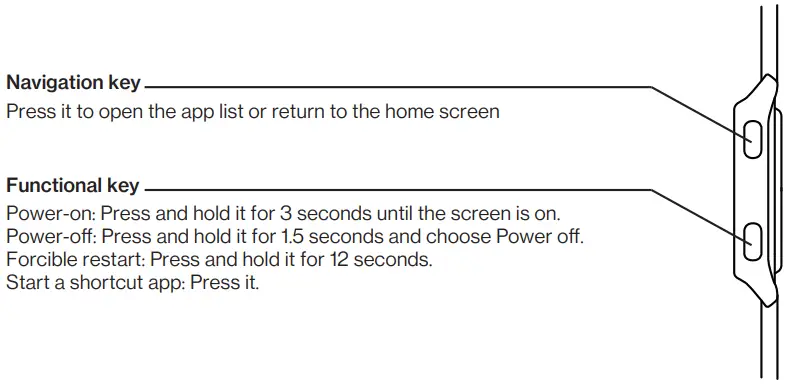

Keys and touch control

1.  If you fail to power on the watch by pressing and holding the function key for 3 seconds, charge the watch and try again.
2. To set shortcut apps, go to Settings > Function Key.

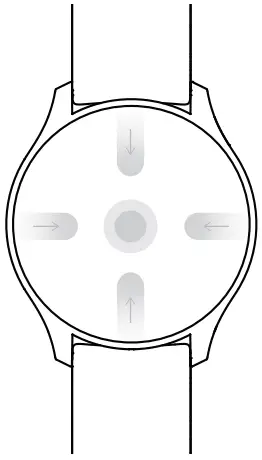

Slide down the home screen:
Display the control center.
Slide up the home screen:
Display the notification center.
Slide left the home screen:
View the heart rate curve, weather, and other information.
Slide right to the functional screen:
Return to the previous screen.
Tap and hold the screen:
Change a screen style.

Phone Connection

Use the OnePlus Health app to connect to the watch. After a successful connection, you can check the connection status, manage screens, and view health information in
the app.
If you do not install the OnePlus Health app on your phone, download and install the app from Play Store.
Pairing and Connection:

1. Power on the watch and select a language, then the watch will show the pairing code.
2.  Start the OnePlus Health app, register an account or log in with your account.
3. In the app, choose to Manage > Add device, and complete the connection as instructed.

• Before pairing, ensure that the battery level of the watch is higher than 20% to prevent a pairing failure due to insufficient power.
• During pairing and connection, ensure that Bluetooth is enabled on the phone, and the watch is within the Bluetooth coverage area of the phone.

Bluetooth Data Transmission
When the watch is connected to the phone, the watch will synchronize data such as the weather, notifications, and sports and health data to the phone.
After the connection is disconnected or Bluetooth is disabled, the data will no longer be synchronized to the phone.

7011AA001572
