WITHOUT COMPROMISE
LHX HIGHBAY ZONES 1 2 21 22
PRODUCT INFORMATION

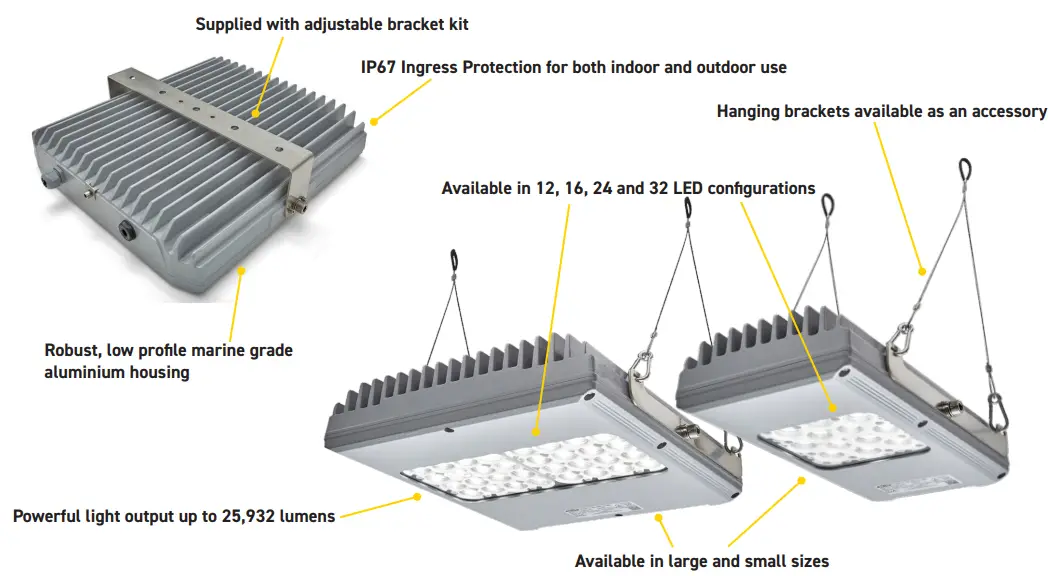

The LHX Installed LED Highbay range is ideal for use in very high and large hazardous work areas. ATEX, IECEx and UKCA certified to Zones 1 and 21, these high powered, ceiling mounted lamps have a lumen output of up to 25,932 lumens and are IP67 rated making them perfect for both indoor and outdoor use. 4 versions available, in two sizes, LHX1 (small) and LHX2 (large) and 12/16 or 24/32 LED configurations.
FEATURES & BENEFITS
LIGHT OUTPUT
Options for light output from 6,483 lumens to 25,932 – allowing you to choose according to your specific light level requirements Available in beam angles 32°, 45°, 62° and 102° – allow the light to be directed where needed 5000K white light for bright, crisp lighting that’s ideal for general work area illumination
CERTIFICATIONS/SPECIFICATIONS
ATEX, IECEx and UKCA certified for gas Zone 1 and Dust Zone 21 T4 temperature class An IP67 rating means the LHX Floodlite is suitable for both indoor and outdoor use With all models having a lower ambient limit of – 50°C and high temperature versions up to +65°C being available, the LHX range is ideal for even the most extreme environments
FEATURES
Simple design ensures quick and easy installation 4 versions available; in 2 sizes – Small (LHX1) and Large (LHX2) – and 12/16 or 24/32 LED arrays Available as 110V and 230V versions A robust and durable aluminium body with strengthened glass ensure long life and resistance to damage Ultra long life LEDs, configured to give 100,000+ hours life 5 year warranty IES files available upon request
TECHNICAL INFORMATION

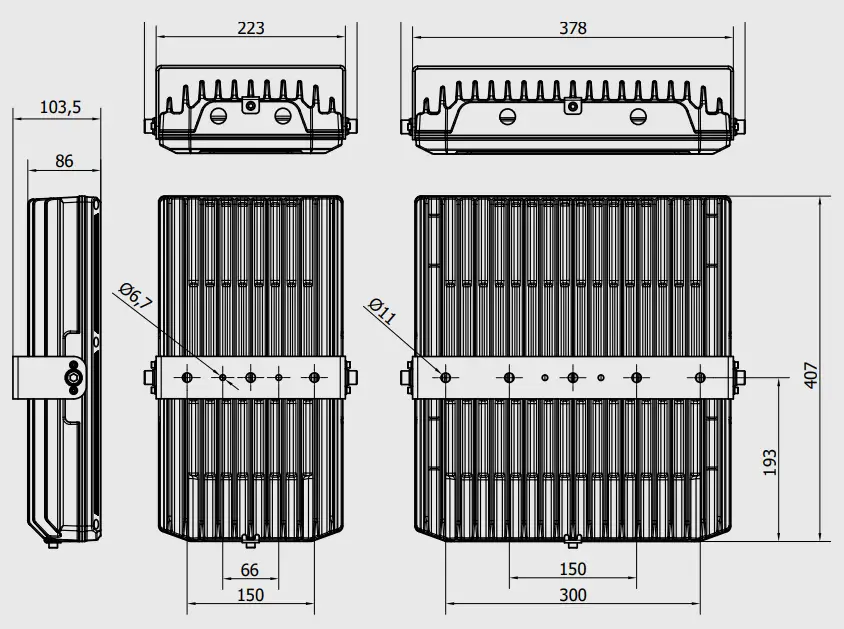

PRODUCT DIMENSIONS

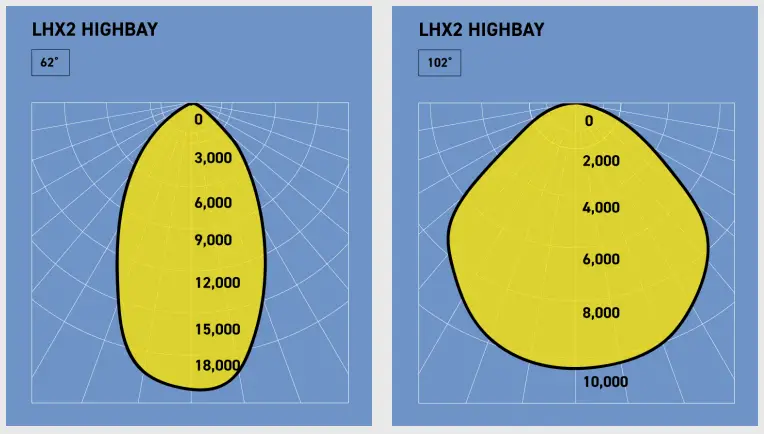

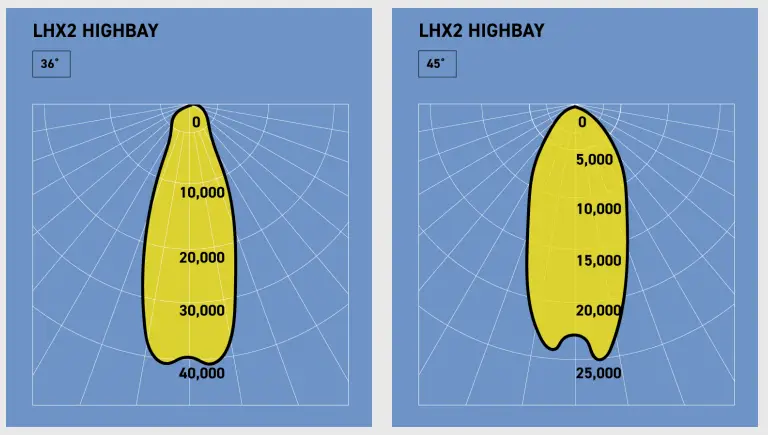

LIGHT OUTPUT DIAGRAM
 |  |
LHX HIGHBAY TECHNICAL TABLE
| LHX HIGHBAY | ||||||||
| PRODUCT REFERENCE | LHX2S -32-50 | LHX2S -32-55 | LHX2S -24-50 | LHX2S -24-60 | LHX1S -16-45 | LHX1S -16-55 | LHX1S -12-55 | LHX1S -12-65 |
| Code | II 2 G D Ex eb mb IIC T4 Gb Ex tb IIIC T110 °C Db | |||||||
| Certification | ExVeritas 19 ATEX 0586X / IECEx EXV 19.0079X / ExVeritas 21 UKEX 0939X | |||||||
| Input Voltage Range | 180-277V AC | 88-140V AC; 180-277V AC | 180-277V AC | 88-140V AC; 180-277V AC | 180-277V AC | 88-140V AC; 180-277V AC | 180-277V AC | 88-140V AC; 180-277V AC |
| Input Power | 180W | 120W | 135W | 90W | 90W | 60W | 67.5W | 45W |
| Frequency | 50 – 60 Hz | |||||||
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.90 | >0.90 |
| Enclosure Size | Large | Small | ||||||
| Lumen Output (Max)* | 25,932 | 17,288 | 19,449 | 12,996 | 12,996 | 8,644 | 9,724 | 6,483 |
| LEDs | 32 LED | 32 LED | 24 LED | 24 LED | 16 LED | 16 LED | 12 LED | 12 LED |
| Beam Angles | Narrow (36°), Medium (45°), Wide (62°), Ultra Wide (102°) | |||||||
| Ingress Protection | IP67 | |||||||
| Gas Temp. Class | T4 | |||||||
| Dust Surface Temp. | 110°C | |||||||
| Lower Temp. Limit | -50°C | |||||||
| Upper Temp. Limit | 50°C | 55°C | 50°C | 60°C | 45°C | 55°C | 55°C | 65°C |
*Lumen output figures stated are for 230V AC
All information has been gathered under laboratory conditions, the user must regard the values given as approximate. Changes may be made to the above specification without notification, details are available on request. E&OE.
Wolf Safety Lamp Company
Saxon Road Works, Sheffield S8 0YA, UK
T: +44 (0) 114 255 1051
E: [email protected]
www.wolfsafety.com
SL113 DF576 ISSUE 1
