allen roth KPN4001AS-01 1-Light 13.625-in Black Canopy
ALLEN + ROTH and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved.
Thank you for purchasing this allen + roth product. We’ve created these easy-to-follow instructions to ensure you spend your time enjoying the product instead of putting it together. But, if you need more information than what is provided here, please visit Lowes.com, search the item number and refer to the Guides & Documents tab on the product’s page.
If the item is no longer for sale, or if you have any questions or problems, please call our customer service department at 866-439-9800, 8 a.m. – 8 p.m.,EST, Monday – Sunday. You could also contact us at [email protected].

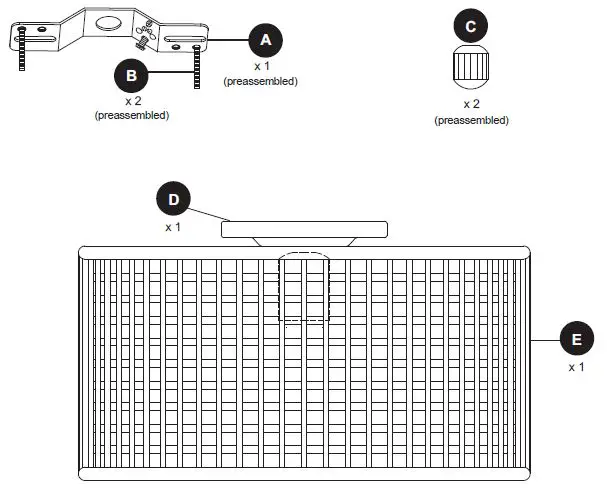

PACKAGE CONTENTS
HARDWARE CONTENTS
INSTALLATION OVERVIEW
Turn off the power and remove existing fixture.

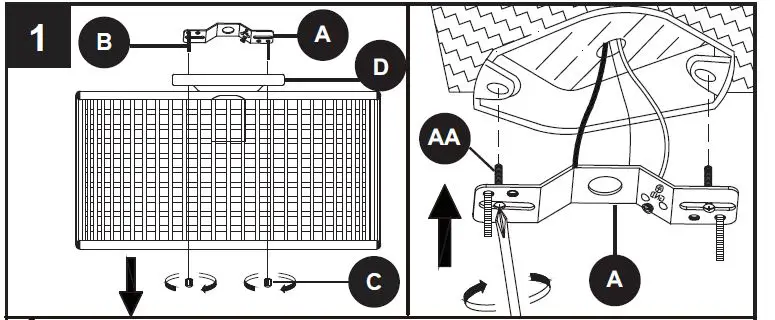

Unscrew the cap nuts C from mounting screws B. Separate the mounting strip A from canopy D. Attach mounting strip A to outlet box (not included) using outlet box screws AA.
Temporarily place D through B to determine amount of adjustment necessary for B.

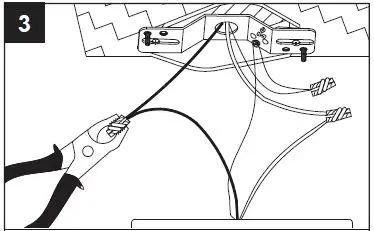

Feed wires. Twist stripped wire ends together with pliers (not included), black to black, white to white, and ground/bare to ground/bare.

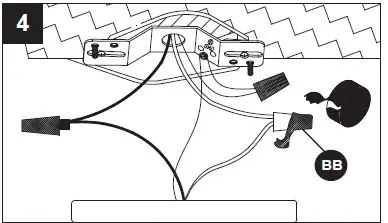

Attach BB to connections with electrical tape (not included).

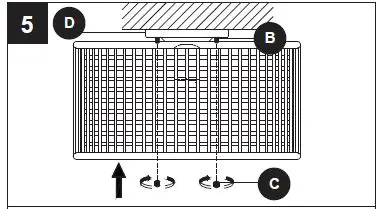

Place canopy D onto mounting screws B and secure with cap nuts C.

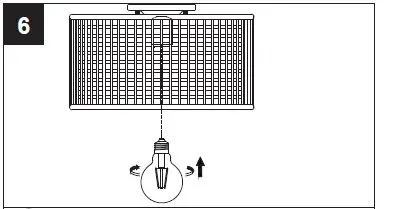

Install light bulb (not included). Use 60-watt max. standard-base incandescent bulb or CFL/LED equivalent.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
TOOLS REQUIRED (NOT INCLUDED)
FEELING CONFIDENT? START YOUR NEXT PROJECT
- Visit lowes.com for more information.
Printed in China
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
- Some metal parts in the fixture may have sharp edges.To prevent cuts and scrapes, wear gloves when handling the parts
- Account for small parts and destroy packing material, as these may be hazardous to children.
- Use flashlight or alternate light source to light work area during installation.
- Assistance may be required to support fixture during installation.
CAUTION
- Workable for dimming circuits when using appropriate light bulbs with dimmable function.-
TROUBLESHOOTING
| PROBLEM | POSSIBLE CAUSE | CORRECTIVE ACTION |
| Bulb will not light. Une ampoule ne s’allume pas. | 1. Bulb is burned out. 2. Faulty wire connection. | 1. Replace light bulb. 2. Check wiring.. |
CARE AND MAINTENANCE
- Shut off main power before cleaning light with damp cloth or window cleaner. Do not use abrasive cleansers.
WARRANTY
- The manufacturer warrants all of its lighting fixtures against defects in materials and workmanship for one (1) year limited from the date of purchase.
