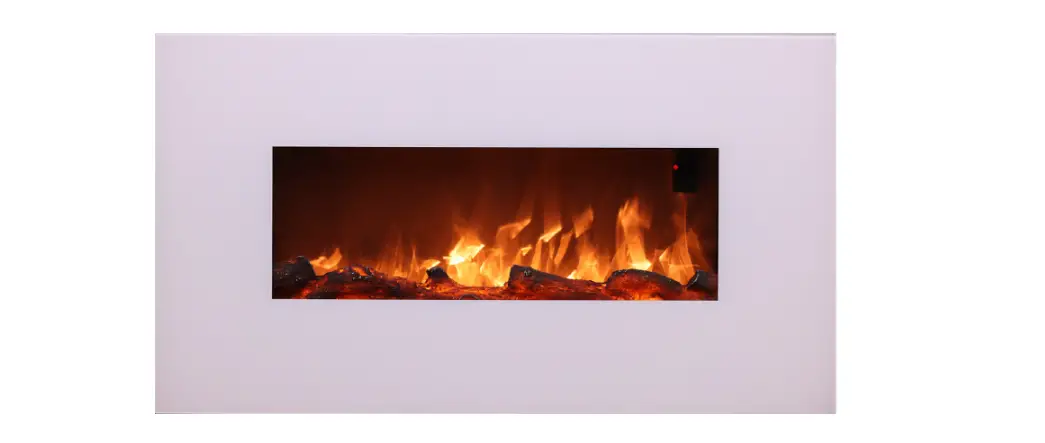

Sined Caminetto-parete-bianco Wall-mounted Electric Fireplaces User Manual

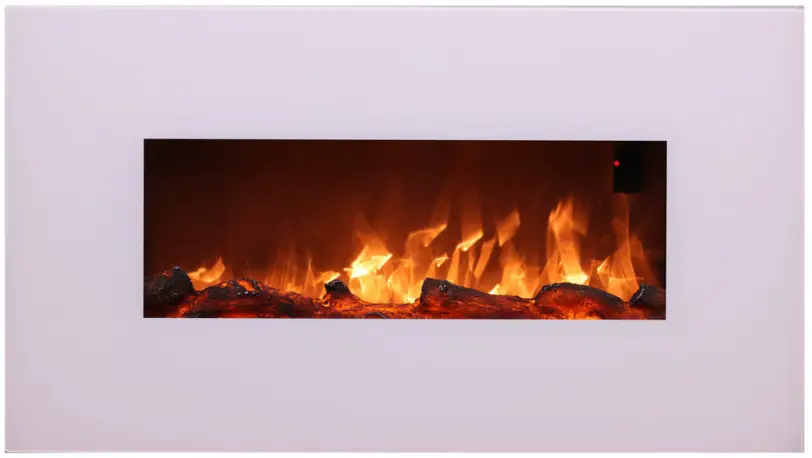

SINED CAMINETTO-PARETE-BIANCO Wall-Mounted Electric Fireplaces User Manual

IMPORTANT: It is important to read these instructions carefully before using the appliance for the first time. Keep the instructions safe so that you can refer to them later if necessary.

Safety Instructions

This appliance is intended to be used in household and similar applications  such as:

• staff kitchen areas in shops, offices and other working environments,
• farm houses,
• by clients in hotels, motels and other residential type environment,-
• bed and breakfast type environment
• areas for communal use in blocks or flats or in launderettes

WARNING:

1. In avoid to overheating, do not cover the fireplace.
2. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool..
3. Do not use this heater if it has been dropped.
4. Do not use if there are visible signs of damage to the heater. The heater must not be used if the glass panels are damaged.
5. Use this heater on a horizontal and stable surface, or fix it to the wall, as
   applicable.
6. Do not use this heater in small rooms when they are occupied by persons not capable leaving the room on their own, unless constant supervision is provided.
7. Extreme caution is necessary when children are near the fireplace and
   whenever the fireplace is left operating and unattended.
8. Always unplug fireplace when not in use.
9. Do not operate the fireplace with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner, return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
10. Do not use outdoors. It’s only suitable for indoor use.
11. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tipped over.
12. To disconnect fireplace, turn controls to off, then remove plug from outlet.
13. Do not inset or allow foreign objects to enter any ventilation or exhaust
    opening as this may cause an electric shock or fire, or damage the fireplace.
14. To prevent a possible fire, do not block air intakes or exhaust in any manner.
    Do not use on soft surfaces, like a bed, where openings may become blocked.
15. It has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, or flammable liquids are used or stored.
16. Use this fireplace only as describes in this manual. Any other use not
    recommended by the manufacturer may cause fire, electric shock, or injury to persons.
17. DANGER-HIGH Temperatures may be generated under certain abnormal conditions. Do not partially or fully cover or obstruct the front of the heater.
18. Do not use this heater with a programmer, timer, independent remote-control system, or any other device that automatically turns on the heater, because if the heater is covered or incorrectly positioned, there is a risk of fire.
19. Do not use the Electric fireplace for any other purposes than those described in this instruction manual.
20. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
21. Children should be supervised to ensure that they do not play with the appliance.
22. Do not use this appliance outdoors.
23. Always unplug the Electric fireplace from the power supply when not in use and before cleaning.
24. To protect against the risk of electric shock, do not immerse the appliance in water or in any other liquids.
25. Components should only be serviced by an approved electro technician.
26. “If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.”

Cleaning the exterior of the appliance

Before cleaning the appliance, disconnect it from the socket and leave to cool.
Do not use cleaning or polishing products.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

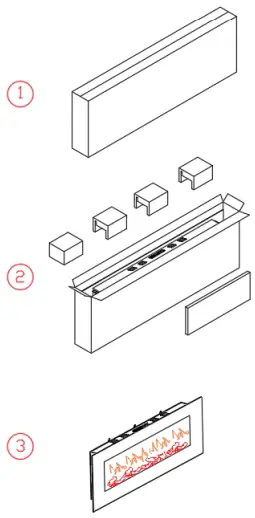

Unpacking Operation

The product must be handled with care to avoid breaking the glass, we recommend placing the fireplace on a carpet during assembly and not directly on the floor

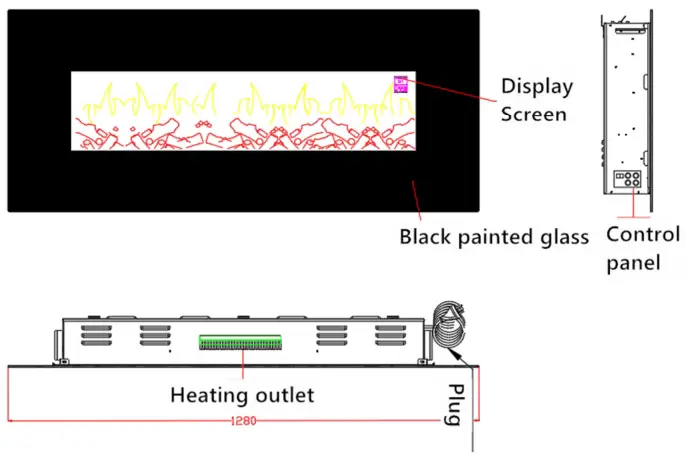

Shape and dimensions (mm)

Installation Instructions

Check the position of the dowel holes in the wall to which the hearth is to be fixed, it is the responsibility of the installer to use dowels suitable for the type of wall and the weight of the hearth if necessary use dowels other than those supplied.

Note: The supporting wall must be flat, complete and solid. The power cable must be plugged into an earthed socket.

Anterior functional area

Attention: this fireplace model is designed to be hung on a wall, it is not a built-in model!

If you require a model to be embedded in a wall or cabinet we have  specially designed and tested models available

Safety tip: To avoid fire, do not place anything within 100 mm above the upper hot air outlet grille

Configuration Information

This product has been tested in a special electrical room according to national standards. If you need help during use, please contact us in time.

Manual button operation

Symbol	Name	Description
	On-off	Turn on/off the machine
	Temper	Adjust temperature 19-30℃
	Timer	Timing: 30min-1h-2h-3h-4h-5h-6h-7h-8h- 30min
	Flame	1-6 levels flame

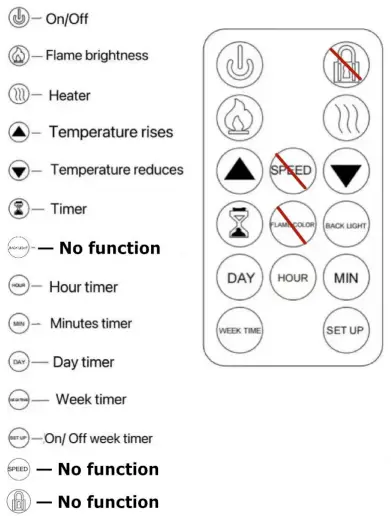

Remote Control Functions

Attention: Remote control buttons with crossed out symbols \ are not active in these models

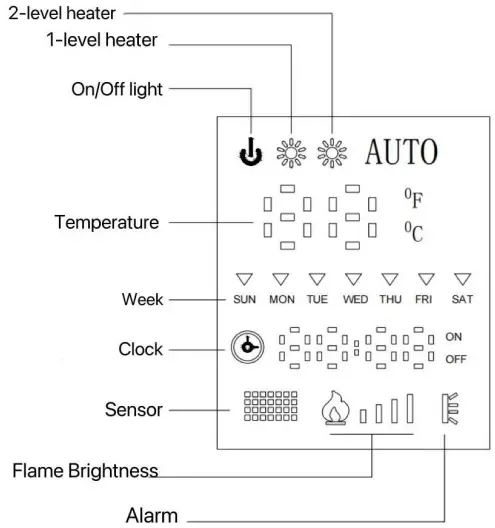

Digital control screen in the fireplace

Remote Control Operation

On/Off
Press this button to turn on with F1 on screen. Press this button to turn off with nothing on screen.

This button no function
Adjust flame brightness

Default F1. F1-F2-F3-F4-F5-F6-F1. The number corresponds to flame brightness.

Heater (Be off by default)

1. ”LL” 1-level heater with one icon
2. ”HH” 2-level heater with two icons

Temperature rises

The default startup temperature is 19℃. Short press to rise one degree.
Temperature cycle: 19-30℃(66-68℉). Long press for 5 seconds to convert temperature units. C(F) can be turned off for heating.

Temperature reduces

Short press to reduce 1 degree. Rising to a certain temperature, it will turn off the heating when it rises by 1 degree. Reducing to a certain temperature, it will turn on the heating when it reduces by 2 degrees.

Timer
It’s disabled by default. Short pressing will adjust the timer range from
30Min-1H-2H-3H-4H-5H-6H-7H-8H-30Min. The symbol light is on by default.

This button no function
Day timer

There is a timing function. When turning on the fireplace, the timer icon light will be on. The clock will show 00:00. The week icon light will be on and show SUN.

When the timer is needed after turning on, press “DAY” button on remote control. Each time you press the button, the week icon light will be on from left to right to set the time to the current date.

Hour timer
Each time you press the “HOUR” button, the time is increased by one hour.
Set the time to the current hour, hour timer scope is: 00-23.

Minutes timer

Each time you press the “MIN” button, the time is increased by one minute. Set the time to the current minutes, minutes timer scope is: 00-59.
When it is not unplugged or disconnected, the on-off time will have memory function, which will not be reset. If unusual timer id discovered, the batteries powering the mainboard may be dead. Please replace the batteries quickly. (Battery Model: CR1220-3V), (Each time you press the button, the buzzer will make a short sound.)

Week timer
It has a week timing switch function.

1. First press “WEEK TIME” button, the week icon will turn the current time to SUN(Sunday) and flash. The icon of clock and ON will flash at the same time.
2. Set the startup time of the day. Press “HOUR” button to set starting up hour, press “MIN” button to set starting up minutes. (Each time you press the button, the number will increase 1.) Then press “SET UP”  button to confirm. ON light will be off and OFF light will be on.
3. Set the off time of the day, the process is the same with setting the startup time. After setting for one day, press “WEEK TIME” again to set for another day.
4. If you don’t operate the week timer during the week display flashes for ten seconds, the clock on the digital screen will be always on. The light of ON/OFF will be off. (Each time you short press the button, the buzzer will make a short sound.)

On/Off week timer
Press the button to turn on/off the week timer function.

Alarm

1. Electric fireplace has window opening detection function. When it is in heating state and detects a temperature drop of 3 degrees within 5
   minutes, it will turn of heating function automatically. Buzzer will make a long sound three times. The alarm icon light will flash to remind the user that the window has been opened.
2. After the alarm is on, press the heater or temperature button to clear alarm reminder.

This button has No function

Troubleshooting

Caution
Please cut off the power before the maintenance of the appliance.
Workers with maintenance qualification are required to avoid accidents and personal injury.

Final Interpretation
The final interpretation right is of our company. Please know if the product appearance and structure are changed, there is no need to inform the user.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe, recycling.

Support

Production: Suzhou Yueyu Thermal Energy Technology Co.
Indirizzo della fabbrica: No. 6 Xinghai Road, Liuhe, Taicang, Taicang
City, Città di Suzhou, provincia di Jiangsu, Cina

Made in China
Imported into Italy by M.P.C. srl Via Tortona 20144 Milano Italia Tel +39
02 21117815 e-mail [email protected] sito web www.sinedtechnology.com

The SINED trademark and the SINED logo are registered by Sined Ventas Online S.L.U. EUTM 01819637
