Evikontroll E7879 Modbus Driver Owner's Manual

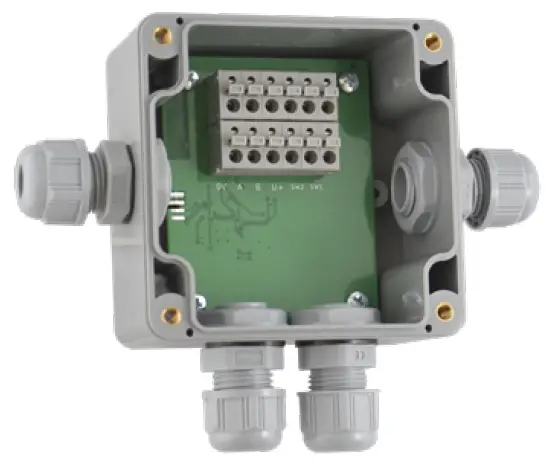

EVIKONTROLL E7879 Modbus Driver

FEATURES

• Simple installation
• Control of GND for beacons
• Suitable for most industrial beacons
• Independent sounder & beacon control
• Double terminals for convenient installation

SPECIFICATIONS

• Supply voltage: 24 VDC
• Power consumption: Max 2 W
• Protection class: IP65
• Weight: 200 g
• Enclosure: ABS
• Certifications: CE
• Cabling: 2 x 0,75 mm2 , shielded 2 x 2 x 0,75 mm2 , shielded

SCHEME

• SW1: Light
• SW2: Sounder
• A: RS485 A
• B: RS485 B
• 0V: GND
• +U: +24 VDC
