Ismacontrolli Sfar-s-6ti Modbus I-o Module Instruction Manual (+ PDF)

iSMACONTROLLI SFAR-S-6TI Modbus I-O Module

Contents hide

1 SPECIFICATION

2 TOP PANEL

3 TEMPERATURE INPUTS

4 COMMUNICATION POWER SUPPLY

5 POWER SUPPLY

6 WARNING

7 TERMINALS OF THE DEVICE

8 INSTALLATION GUIDELINE

9 Documents / Resources

9.1 References

10 Related Posts

SPECIFICATION

Power supply	Voltage	10-38 V DC; 10-28 V AC
	Power consumption	2,4 W @ 24 V DC 3 V A @ 24 V AC
Temperature inputs	6x Resistive or thermocouple configurable, resolution 0,1°C
Digital outputs	2xTransistor output max 55 V DC, max 500 mA
Galvanic isolation	Max 1500 Vrms
Interface	RS485, up to 128 devices on the bus
Baudrate	From 2400 to 115200 bps
Ingress protection	IP40 – for indoor installation
Temperature	Operating -10°C – +50°C; Storage -40°C – +85°C
Relative humidity	5 to 95% RH (without condensation)
Connectors	Max 2.5 mm2
Dimension	119,1 mm x 101 mm x 22,6 mm
Mounting	DIN rail mounting (DIN EN 50022)
Housing material	Plastic, self-extinguishing PC/ABS

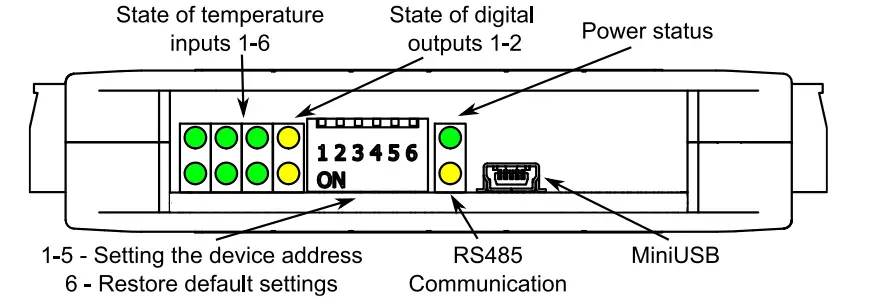

TOP PANEL

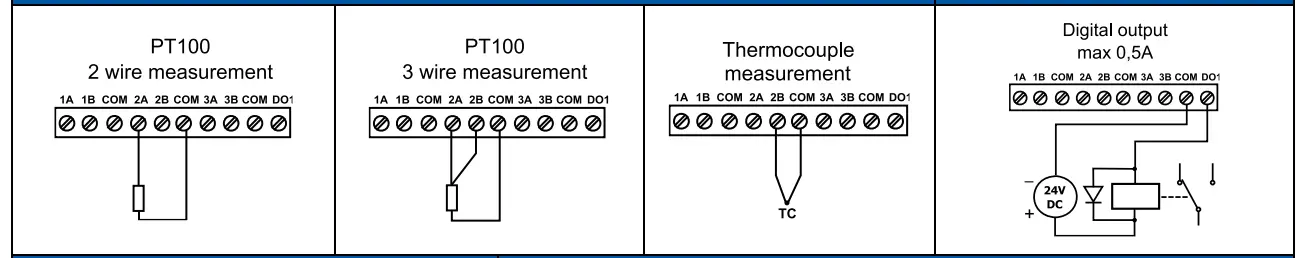

TEMPERATURE INPUTS

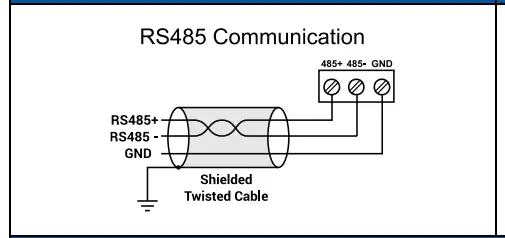

COMMUNICATION POWER SUPPLY

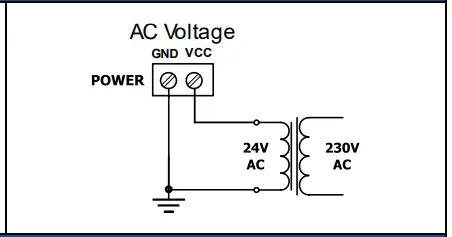

POWER SUPPLY

WARNING

Note, an incorrect wiring of this product can damage it and lead to other hazards. Make sure the product has been correctly wired before turning the power ON.
Before wiring, or removing/mounting the product, be sure to turn the power OFF. Failure to do so might cause electric shock.
Do not touch electrically charged parts such as the power terminals. Doing so might cause electric shock.
Do not disassemble the product. Doing so might cause electric shock or faulty operation.
Use the product within the operating ranges recommended in the specification (temperature, humidity, voltage, shock, mounting direction, atmosphere etc.). Failure to do so might cause fire or faulty operation.
Firmly tighten the wires to the terminal. Insufficient tightening of the wires to the terminal might cause fire.

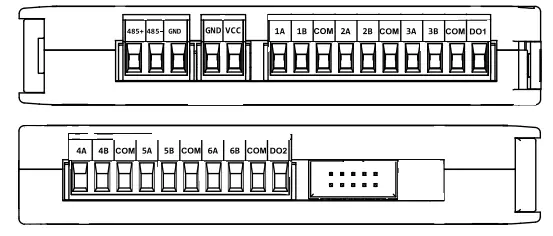

TERMINALS OF THE DEVICE

	Modbus		Dec		Hex	Register Name	Access	Description
	30001		0		0x00	Version/Type	Read	Version and Type of the device
	30002		1		0x01	Switches	Read	Switches state
	40003		2		0x02	Baud rate	Read & Write	RS485 baud rate
	40004		3		0x03	Stop Bits & Data Bits	Read & Write	No of Stop bits & Data Bits
	40005		4		0x04	Parity	Read & Write	Parity bit
	40006		5		0x05	Response Delay	Read & Write	Response delay in ms
	40007		6		0x06	Modbus Mode	Read & Write	Modbus Mode (ASCII or RTU)
	40010		9		0x09	Analog filtering	Read & Write	Configuration analog filtering
	40033		32		0x20	Received packets LSR (Least Significant Reg.)	Read & Write	No. of received packets
	40034		33		0x21	Received packets MSR (Most Significant Reg.)	Read & Write
	40035		34		0x22	Incorrect packets LSR	Read & Write	No of received packets with error
	40036		35		0x23	Incorrect packets MSR	Read & Write
	40037		36		0x24	Sent packets LSR	Read & Write	No of sent packets
	40038		37		0x25	Sent packets MSR	Read & Write
	30051		50		0x32	Inputs	Read	Connected sensors Bit in high state → sensor is connected
	40052		51		0x33	Outputs	Read & Write	Alarms state bit 6 and 7 alarm outputs
	30053		52		0x34	Temperature 1	Read	Temperature or measured analog in mV·10 for voltage to 2048 mV in mV·100 for voltage to 256 mV in °C·10 for temperature in Ω for resistance
	30054		53		0x35	Temperature 2	Read
	30055		54		0x36	Temperature 3	Read
	30056		55		0x37	Temperature 4	Read
	30057		56		0x38	Temperature 5	Read
	30058		57		0x39	Temperature 6	Read
	30059		58		0x3A	Alarm temperature 1	Read	Alarm temperature for alarm output 1
	30060		59		0x3B	Alarm temperature 2	Read	Alarm temperature for alarm output 2
	30061		60		0x3C	Junction temperature	Read	Module junction temperature
	30062		61		0x3D	Measurement current	Read	Measurement current
	40063		62		0x3E	MAX alarm level 1	Read & Write	If the temperature exceeds this value the corresponding alarm flag is set
	40064		63		0x3F	MAX alarm level 2	Read & Write
	40065		64		0x40	MAX alarm level 3	Read & Write
	40066		65		0x41	MAX alarm level 4	Read & Write
	40067		66		0x42	MAX alarm level 5	Read & Write
40068		67		0x43		MAX alarm level 6	Read & Write
40069		68		0x44		MIN alarm level 1	Read & Write	If the temperature is below this value corresponding alarm flag is set
40070		69		0x45		MIN alarm level 2	Read & Write
40071		70		0x46		MIN alarm level 3	Read & Write
40072		71		0x47		MIN alarm level 4	Read & Write
40073		72		0x48		MIN alarm level 5	Read & Write
40074		73		0x49		MIN alarm level 6	Read & Write
40075		74		0x4A		Alarm settings 1	Read & Write	Alarm settings 0 – alarm due to the current temperature 1 – Remember the value of the alarm, until reset by the master via Modbus
40076		75		0x4B		Alarm settings 2	Read & Write
40077		76		0x4C		Alarm settings 3	Read & Write
40078		77		0x4D		Alarm settings 4	Read & Write
40079		78		0x4E		Alarm settings 5	Read & Write
40080		79		0x4F		Alarm settings 6	Read & Write
40081		80		0x50		Constant junction	Read & Write	Value of junction temperature
40082		81		0x51		Junction temperature	Read & Write	Junction temperature offset
40083		82		0x52		Input 1 settings	Read & Write	Analog input mode: 0 – input disabled 1 – voltage to 2048 mV 2 – voltage to 256 mV 3 – J thermocouple 4 – K thermocouple 5 – T thermocouple 6 – N thermocouple 7 – S thermocouple
40084		83		0x53		Input 2 settings	Read & Write
40085		84		0x54		Input 3 settings	Read & Write

40086		85		0x55		Input 4 settings	Read & Write
40087		86		0x56		Input 5 settings	Read & Write
40088		87		0x57		Input 6 settings	Read & Write
40089		88		0x58		Output 1 settings	Read & Write	Alarm output settings 0 – output is set by PLC +1 – temperature from input 1 +2 – temperature from input 2 +4 – temperature from input 3 +8 – temperature from input 4 +16 – temperature from input 5 +32 – temperature from input 6 +256 – Output is set if value is greater than Alarm Value (register 40091 or 40092) („cooling”) +512 – Output is set if value is less than Alarm Value ( register 40091 or 40092) („heating”) +1024 – The lowest value from selected inputs +2048 – The greatest value from selected inputs (if not select either of the two above options than is used average value of selected inputs)
40090		89		0x59		Output 2 settings	Read & Write
40091		90		0x5A		Alarm Value 1	Read & Write	Alarm value for outputs
40092		91		0x5B		Alarm Value 2	Read & Write
40093		92		0x5C		Alarm hysteresis 1	Read & Write	The hysteresis value for alarm outputs
40094		93		0x5D		Alarm hysteresis 2	Read & Write
40095		94		0x5E		Input resistance 1	Read & Write	Lead wire resistance for each input
40096		95		0x5F		Input resistance 2	Read & Write
40097		96		0x60		Input resistance 3	Read & Write
40098		97		0x61		Input resistance 4	Read & Write
40099		98		0x62		Input resistance 5	Read & Write
40100		99		0x63		Input resistance 6	Read & Write

INSTALLATION GUIDELINE

Please read the instruction before use or operating the device. In case of any questions after reading this document, please contact the iSMA CONTROLLI Support Team
([email protected]).

Before wiring or removing/mounting the product, make sure to turn the power off. Failure to do so might cause an electric shock.
Improper wiring of the product can damage it and lead to other hazards. Make sure that the product has been correctly wired before turning the power on.
Do not touch electrically charged parts such as power terminals. Doing so might cause an electric shock.
Do not disassemble the product. Doing so might cause an electric shock or faulty operation
Use the product only within the operating ranges recommended in the specification (temperature, humidity, voltage, shock, mounting direction, atmosphere, etc.). Failure to do so might cause a fire or faulty operation.
Avoid installing the product in close proximity to high-power electrical devices and cables, inductive loads, and switching devices. Proximity of such objects may cause an uncontrolled interference, resulting in an instable operation of the product.
Proper arrangement of the power and signal cabling affects the operation of the entire control system. Avoid laying the power and signal wiring in parallel cable trays. It can cause interferences in monitored and control signals.
It is recommended to power controllers/modules with AC/DC power suppliers. They provide better and more stable insulation for devices compared to AC/AC transformer systems, which transmit disturbances and transient phenomena like surges and bursts to devices. They also isolate products from inductive phenomena from other transformers and loads.
Power supply systems for the product should be protected by external devices limiting overvoltage and effects of lightning discharges.
Avoid powering the product and its controlled/monitored devices, especially high power and inductive loads, from a single power source. Powering devices from a single power source causes a risk of introducing disturbances from the loads to the control devices.
If an AC/AC transformer is used to supply control devices, it is strongly recommended to use a maximum 100 VA Class 2 transformer to avoid unwanted inductive effects, which are dangerous for devices.
Long monitoring and control lines may cause loops in connection with the shared power supply, causing disturbances in the operation of devices, including external communication. It is recommended to use galvanic separators.
To protect signal and communication lines against external electromagnetic interferences, use properly grounded shielded cables and ferrite beads.
Switching the digital output relays of large (exceeding specification) inductive loads can cause interference pulses to the electronics installed inside the product. Therefore, it is recommended to use external relays/contactors, etc. to switch such loads. The use of controllers with triac outputs also limits similar overvoltage phenomena.
Many cases of disturbances and overvoltage in control systems are generated by switched, inductive loads supplied by alternating mains voltage (AC 120/230 V). If they do not have appropriate built-in noise reduction circuits, it is recommended to use external circuits such as snubbers, varistors, or protection diodes to limit these effects.

Electrical installation of this product must be done in accordance with national wiring codes and conform to local regulations.

iSMA CONTROLLI S.p.A. – Via Carlo Levi 52, 16010 Sant’Olcese (GE) – Italy | [email protected]
www.ismacontrolli.com
Installation Guideline| 1
st Issue rev. 1 | 05/2022
