HALCYON R701 Mini Fixed Round Ultra Shallow
INSTALLATION INSTRUCTIONS

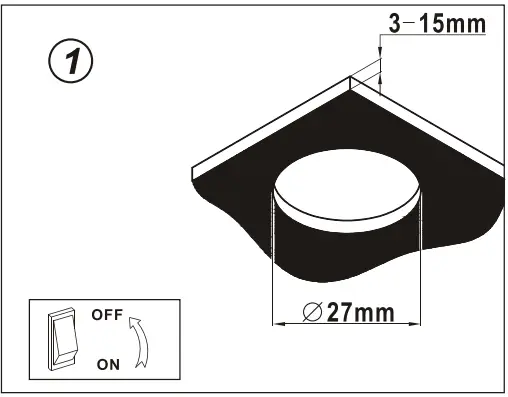

DIMENSION
RISK OF FIRE Required clearance from structural members and building elements
- Side Clearance to building element (eg timber, joist or Batten) (SCB): Omm
- Height Clearance to building element (eg timber, joist or Batten) (HCB): Omm
Recessed Luminaire Classification:
IC building insulation that Can safely be continuously exposed to 900 C allowed to abut and cover the luminaire.
For indoor use only.
