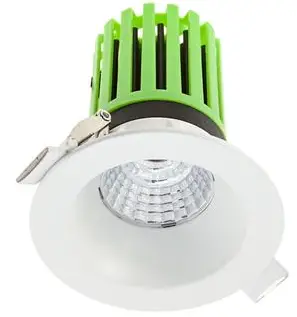

R708 Mini Fixed Round Ultra Shallow Light
Instruction Manual
R708 Mini Fixed Round Ultra Shallow Light
Driver Sold Separately

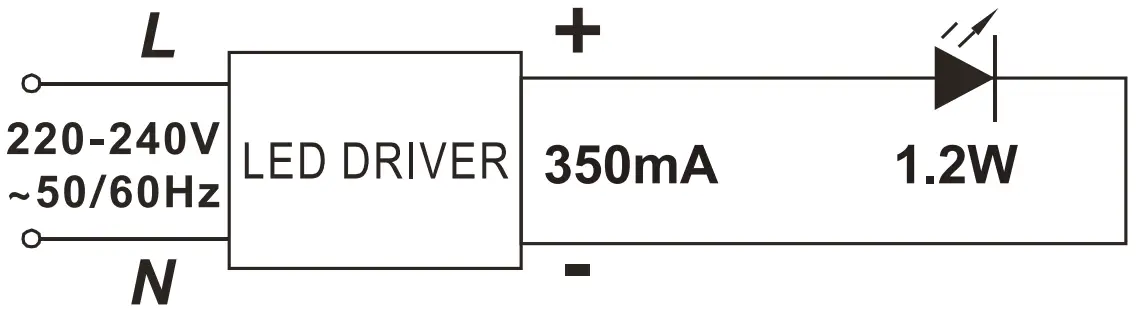

Constant Current – Wire in series Do not connect luminaire/s to driver if driver is live. Inrush current from live driver will cause instant failure of all connected luminaires. Do not switch secondary side.
Recommended Drivers
| Non-Dimmable Driver Options | Description | Number of fittings |
| DRMACC350 4W | Mini 1-4W | 1-3x R708 |
| DRMACC350 12W | Mini 4-12W | 4-9x R708 |
| DRACC350 6W | Standard 3-6W | 3-4x R708 |
| DRACC350 12W | Standard 1-12W | 1-9x R708 |
| DRACC350 20W | Standard 1-20W | 1-16x R708 |
| Dimmable Driver Options | Description | Number of fittings |
| DRDMACC350 4W | Mini 2-4W | 2-3x R708 |
| DRDMACC350 12W | Mini 6-12W | 6-9x R708 |
| DRDACC350 37W | 20-37W | 17-30x R708 |
| Under Insulation Dimmable Driver Options | Description | Number of fittings |
| DXDUACC350 9W | 4.5-9W | 4-7x R708 |
| DXDUACC350 12W | 6-12W | 6-9x R708 |
| DXDUACC350 20W | 10-20W | 9-16x R708 |
| DXDUACC350 28W | 14-28W | 12-23x R708 |
This luminaire must be installed by a qualified Registered Electrician to prevent damage to the luminaire and maintain electrical safety.
Installation Directions
- Switch off mains power supply
- Connect Driver to mains voltage cable (L, N)

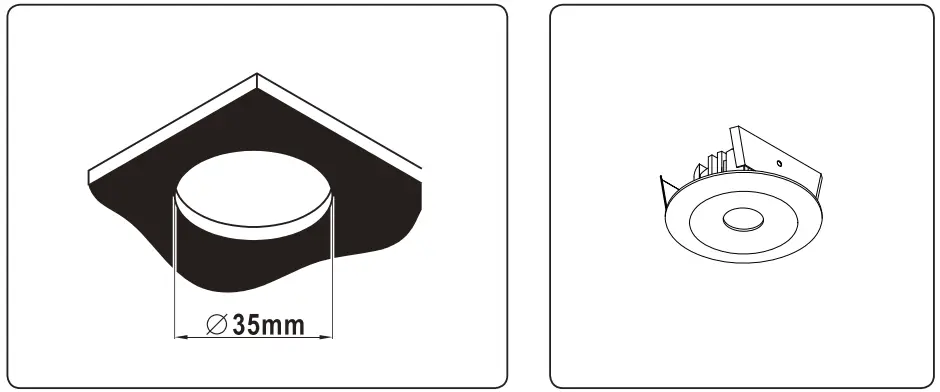

- Carefully install downlight into pre-cut 35mm hole.
- Turn on mains power and switch on lighting circuit.
Approved Clearances
Note: 0mm required but 25mm always recommended for optimum product lifespan through effective heat dissipation.
Example 1: 0mm Approved Height Clearance
Building element abutting rear, insulation abutting sides of fitting.
Example 2: 0mm Approved Side Clearance
Building element abutting side of fitting, insulation abutting and covering fitting.
Driver should be installed above insulation unless using an Under Insulation Driver (UID).
| Manufacturer / Supplier | Halcyon Lighting Ltd |
| Product Code | R708 |
| Product Type | LED Recessed Luminaire |
| Secondary Voltage | 350mA Constant Current DC |
| Wattage | 1.2W |
| Ingress Protection Rating | IP20 |
Classification
IC — building insulation that can safely be continuously exposed to 90°C allowed to abut and cover the luminaire.
In the vicinity of the recessed luminaire, use an insulation product that:
(a) Maintains its dimensions and structural integrity when exposed to a temperature of 90°C; and
(b) Withstands a 30-second needle flame test carried out in accordance with AS/NZS 60695.11.5 with the flame applied to all surfaces of the sample.
Rear of fitting may abut structural members and building elements.
Do not Install through or directly into joist, beam, rafter or ceiling batten.
| Side Clearance from heatsink to building element (e.g. timber, joist or batten) | SCB: 0mm |
| Height Clearance from heatsink to building element (e.g. timber, joist or batten) | HCB: Omm |
| Minimum insulation clearance to building element | MIC: 0mm |
Recessed luminaires and their associated equipment may pose a risk of fire or damage to property if not installed and maintained correctly. Halcyon recommends a clearance of 25mm to building elements for optimum lifespan.
Halcyon IC rated luminaires are completely safe to install in sarked timber ceiling linings.
Halcyon accepts no responsibility if the timber used is not treated correctly and dries out, crack or warps over time due to the constant low heat from the aforementioned “IC Rated” LED recessed lighting.
This data sheet contains information necessary to ensure compliance with the New Zealand Electrical Code of Practice for Installation and Maintenance of Recessed Luminaires and Associated Equipment AS/NZS 60598.2.2:2001
Cutting of holes prior to receiving goods is entirely at the risk of the installer.
