Lowrance Elite FS 7 Fish Finder with Active Imaging
Introduction

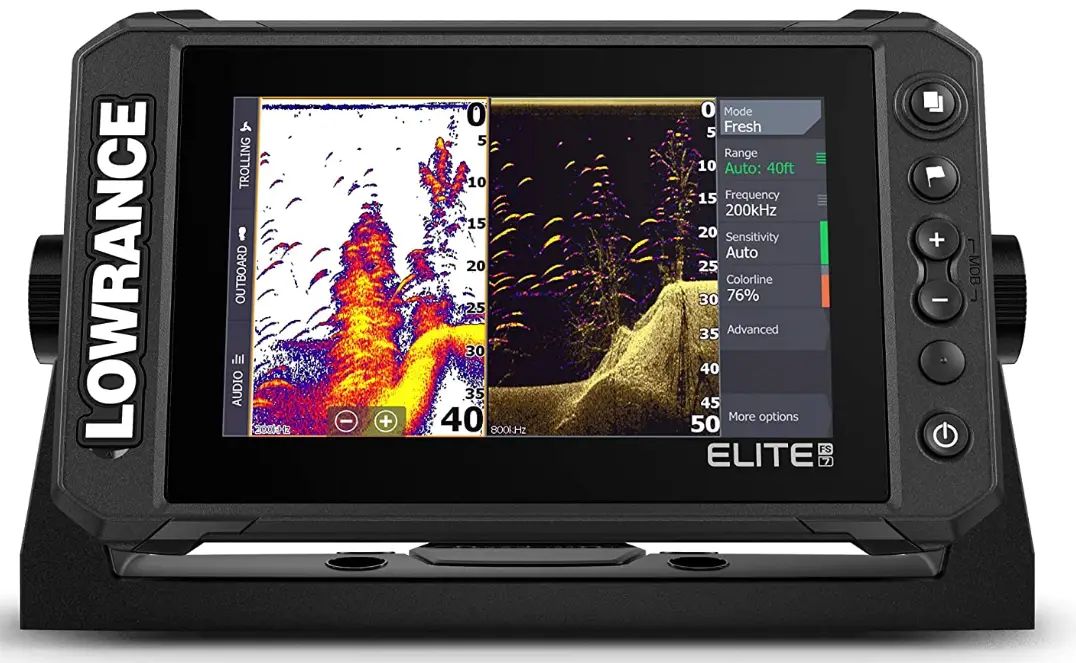

With the bundled Active Imaging 3-in-1 sonar, which includes CHIRP, SideScan, and DownScan with FishReveal, you can see structure and cover with a new level of fine detail. With support for ActiveTarget Live Sonar, you can view high-resolution photographs of fish swimming around structure and reacted to your bait – as it happened. With integrated Wi-Fi, NMEA 2000, and Ethernet connectivity, you may create the entire Elite Fishing System and add Halo Dome Radar and Outboard Pilot or share sonar, charting, waypoints, and other user data between displays. The multi-touch, high-resolution 7-inch screen is simple to install and use. With high-resolution 1-foot contours for 8,900 U.S. lakes, you will have better success on the water, from seeing important fishing spots like ledges, drop-offs, and ditches to precisely navigating to fish-holding zones.
TECHNICAL SPECIFICATION
| 7” | 9” | |
| Environmental | ||
| Operating temperature range | -15°C to +55°C (5°F to 131°F) | |
| Storage temperature | -20°C to +60°C (4°F to 140°F) | |
| Waterproof rating | IPX6 and IPX7 | |
| Electrical | ||
| Supply voltage | 12 V DC (10 – 17 V DC min – max) | |
| Fuse rating | 3 A | |
| Power consumption (maximum) | 28 W (2 A at 13.8 V DC) | |
| Display | ||
| Resolution | 800 x 480 pixels | |
| Viewing angles in degrees | 50° top, 60° bottom 70° left and right | |
| Brightness | > 1200 nits | |
| Touch screen | Multitouch | |
| Physical | ||
| Weight (display only) | 0.9 kg (1.9 lbs.) | 1.2 kg (2.7 lbs.) |
| Compass Safe Distance | 0.5 m (1.6 ft.) | |
| Interface/Connectivity | ||
| NMEA 2000® | 1 port (Micro-C connector) | |
| Data card reader | 1x slot (microSD, SDXC) | |
| Ethernet | 1 port
(5-pin Ethernet connector, 100Base-T) | |
| Sonar | 1 port
(9-pin connector) | |
| Wi-Fi Internal | 802.11b/g/n | |
| Bluetooth® | 4.0 with support for Bluetooth® Classic | |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS | |
PARTS INCLUDED

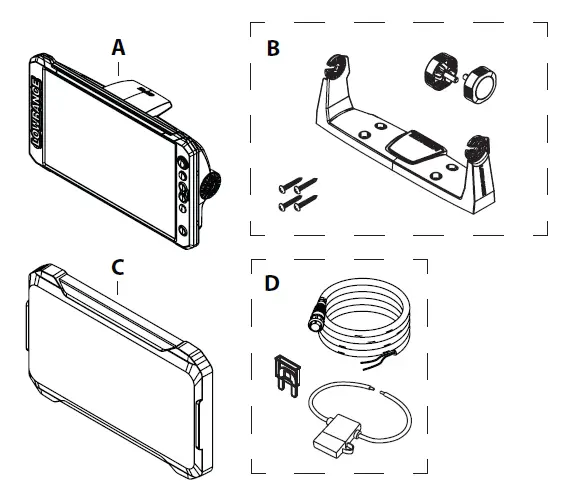

- Elite FS™ unit
- Gimbal bracket kit
- Sun cover
- Power cable kit
COMPLIANCE STATEMENTS
DECLARATIONS
The relevant declarations of conformity are available at: www.lowrance.com
EUROPE
Navico declare under our sole responsibility that the product conforms with the requirements of:
- CE under RED 2014/53/EU
UNITED STATES OF AMERICA
Navico declare under our sole responsibility that the product conforms with the requirements of:
- Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation ! Warning: The user is cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that of the receiver is connected
- Consult the dealer or an experienced technician for help
ISED CANADA
This device complies with ISED (Innovation, Science and Economic Development) Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
AUSTRALIA AND NEW ZEALAND
Navico declare under our sole responsibility that the product conforms with the requirements of:
- level 2 devices of the Radiocommunications (Electromagnetic Compatibility) standard 2017
- radiocommunications (Short Range Devices) Standards
TRADEMARKS
®Reg. U.S. Pat. & Tm. Off, and ™ common law marks. Visit www.navico.com/intellectual-property to review the global trademark rights and accreditations for Navico Holding AS and other entities.
WIRING

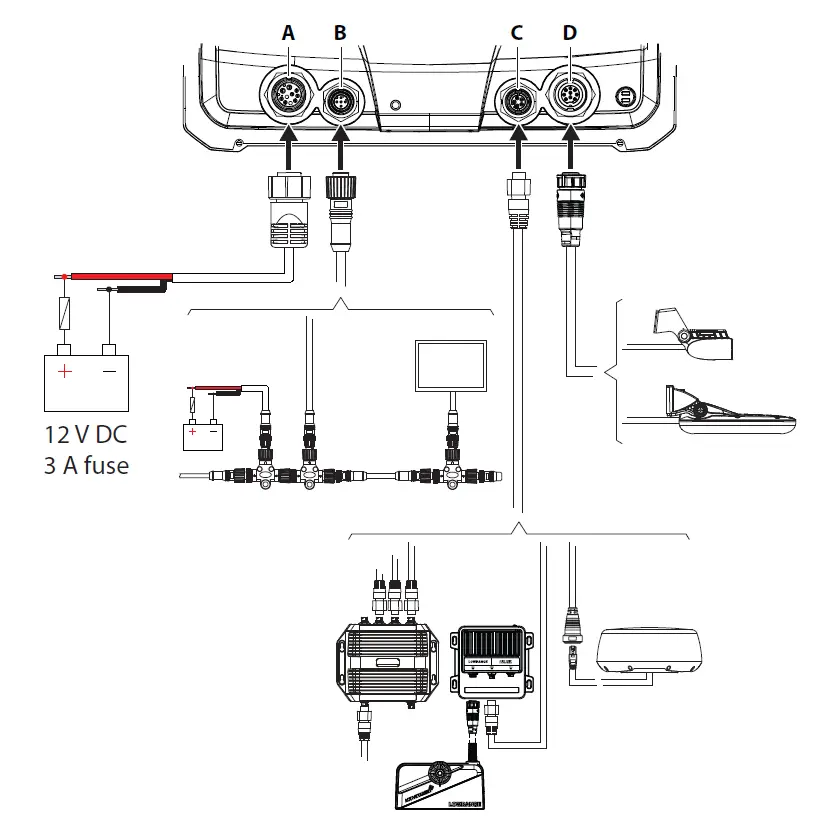

NOTE: The illustration shows connection examples. Accessories and additional devices are sold separately.
- Power, 10 pin-connector
- NMEA 2000®, Micro-C connector
- Ethernet, 5-pin connector
- Sonar, 9-pin connector
POWER (A)
The unit is designed to be powered by 12 V DC. It is protected against reverse polarity, under voltage and over voltage (for a limited duration). A fuse or circuit breaker shall be fitted to the positive supply.
| Wire color | Purpose |
| Red | + 12 V |
| Black | DC negative |
NMEA 2000® (B)
The NMEA 2000® data port allows receiving and sharing of a multitude of data from various sources.
ETHERNET (C)
Ethernet is used to interconnect high bandwidth devices such as radar, sonar modules, and other displays.
Connection of network devices can be made directly to the Ethernet port, or via a network expansion device.
SONAR (D)
NOTE: A 7-pin transducer cable can be connected to a 9-pin port using a 7-pin to 9-pin adapter cable.
However, if the transducer has a paddle wheel speed sensor, the water-speed data will not be displayed on the unit.
SUPPORTS
Sonar / CHIRP Sonar DownScan SideScan
ActiveImaging™/ActiveImaging™ 3-in-1/TotalScan®/ StructureScan®
LIVESIGHT™ VIA PSI-1
NOTE: ActiveTarget™ transducers are supported via its external module connected to the Ethernet network.

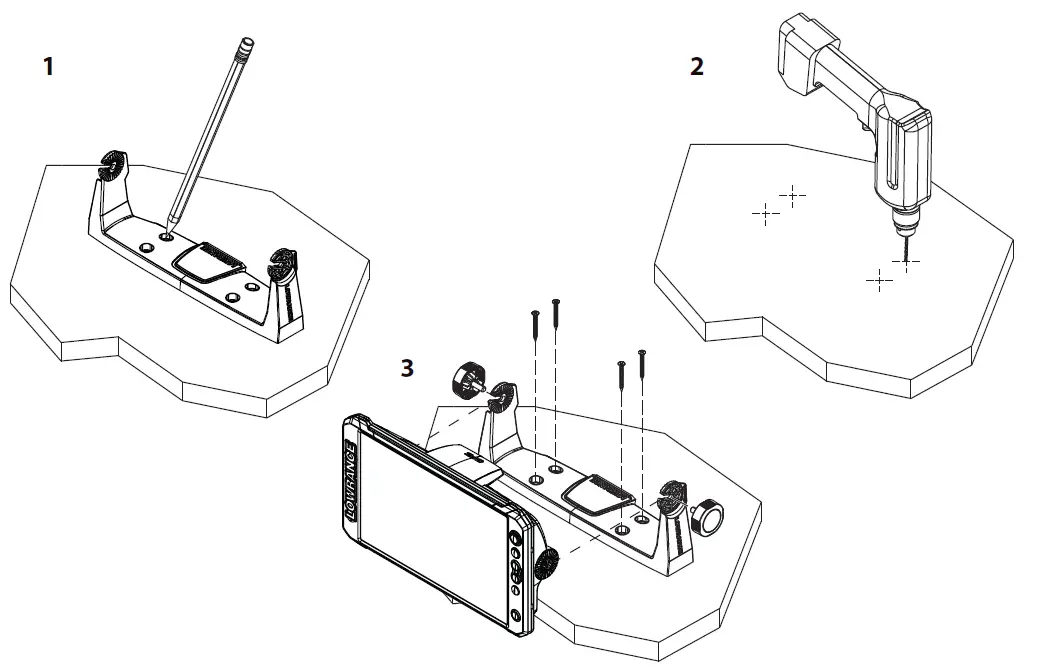

GIMBAL BRACKET MOUNTING
DIMENSIONAL DRAWINGS
FAQs
No.
roughly 9×9.
Local sporting goods stores. Or Navionics.
The one I ordered came with transducer.
This is all you would need for the 3-in-1 Active Imaging transducer to work with the unit. This would let you view down and side view for structure, plus medium/high Chirp for sonar.
No sun visor but it does come with a screen cover while not being used.
I don’t see why it wouldn’t work for ice fishing.
Yes it does.
Elite FS unit
Active Imaging 3-in-1 transducer
Suncover
Mounting bracket
Powercord
Documentation
Yes, up the depth it is rated for.
A small 12v battery jell cell works well. Just make sure you install an inline fuse on the positive side
the 3n1 Transducer can be mounted on a trolling motor, but it will need an adapter bracket. Do a search for a trolling motor bracket for the brand and model of your trolling motor. Russell Marine Products is an excellent source.
I use mine in salt water. I always look at the connectors before plugging them in, at the first sign of corrosion I spray it with CRC QD electronic cleaner and spray before putting it away for the season.
Mine came with 3-1 transducer.
Yes it does.
