integratech RF RGBW Wall Mounted Controller Instruction Manual

Important: Read All Instructions Prior to Installation

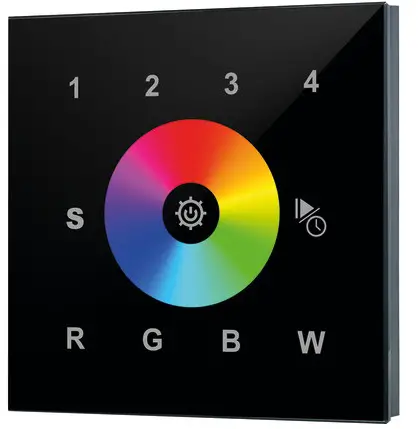

Function introduction

Front Side

Back side

Product Data

•  Control 1 zone of receiver
• RGBW color controller
• Compatible with all universal series RF receivers
• 1 receiver can be paired by max 8 different remote controls.
• Waterproof grade: IP20

Safety & Warnings

• This device contains a button lithium battery that shall be stored and disposed properly.
• DO NOT expose the device to moisture

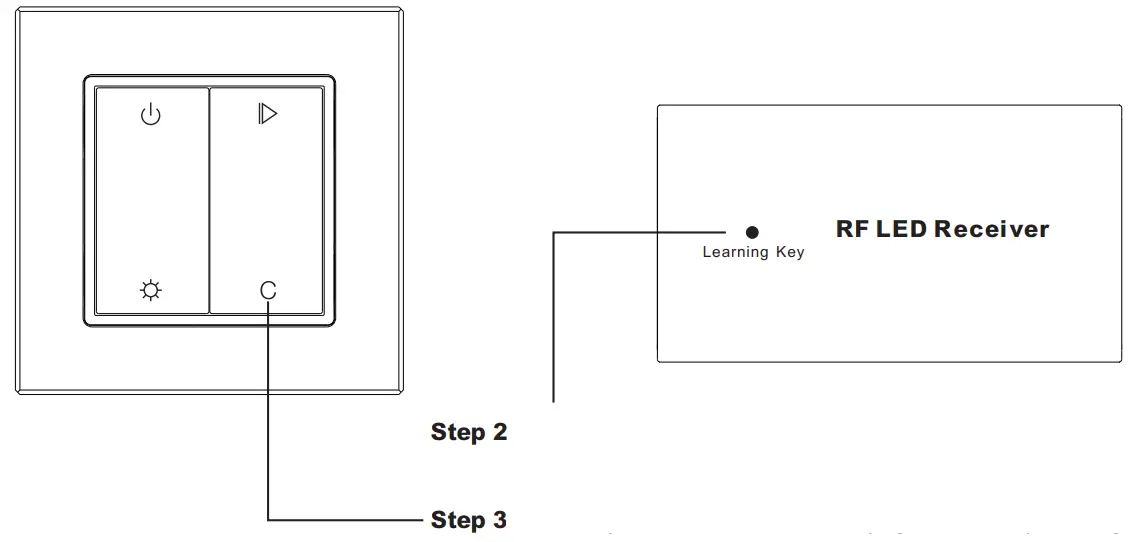

Pair with RF receiver

• Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the instruction of RF receiver that you would like to pair with.
• Step 2:Click the “Learning Key” button on RF receiver or re-power on the receiver three times continuously to set it into pairing status.
• Step 3:Click any button on the remote(e.g. button ),LED lights connected with the RF receiver flicker once means the receiver is paired with the remote successfully.

  Note: one receiver can be paired with max 8 remote controls.

Installation

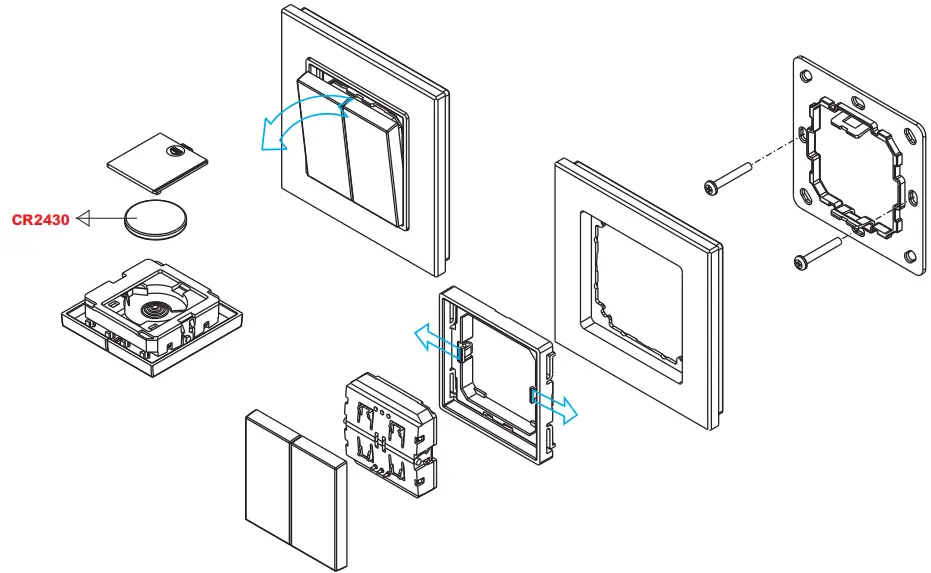

The key part of this controller is a universal, extremely rotary standard switch element that can be integrated in numerous frames by different manufactures as below list.

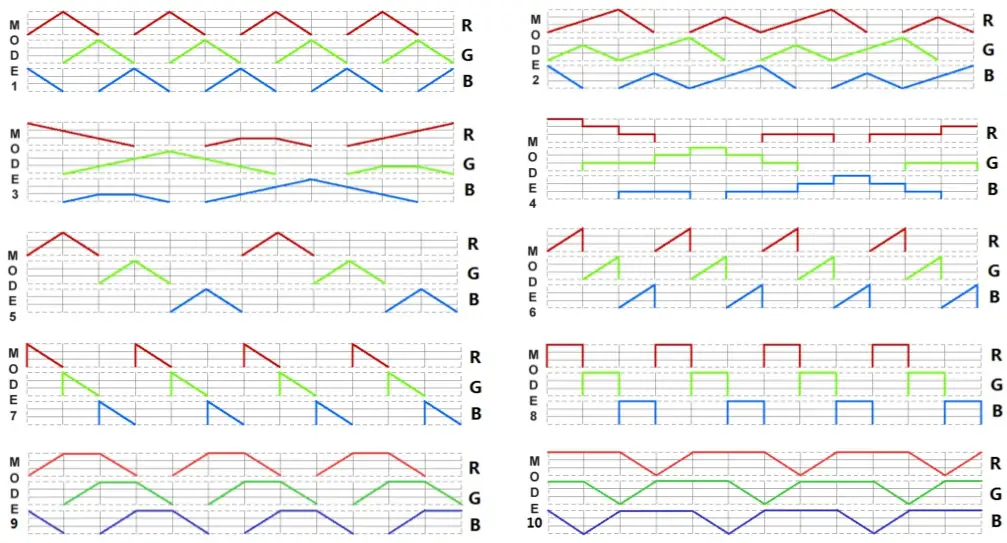

Built-in 10 color changing modes are as follows:

• Mode 1: Any two colors of RGB mix fade-in & fade-out
• Mode 2: RGB three colors mix fade-in & fade-out
• Mode 3: RGB three colors mix fade-out & fade-in
• Mode 4: RGB flash
• Mode 5: RGB three colors fade-in & fade-out successively

• Mode 6: RGB three colors fade-in successively
• Mode 7: RGB three colors fade-out successivel
• Mode 8: RGB three colors jump changing successively
• Mode 9: R&B two colors mix fade (R in B out), then G fade-in, then R&B mix fade (R out B in), then G fade-out
• Mode 10: B fade-out, then G&B mix fade (G out B in), then R&G mix fade (R out G in), then R fade-in.
