DATASHEET

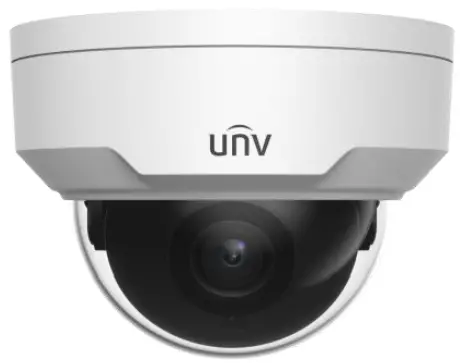

3MP HD IR Fixed Dome Network Camera
IPC323LB-SF28(40)K-G
Key Features
- High quality image with 3MP, 1/2.7″CMOS sensor
- 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Support 9:16 Corridor Mode
- Smart IR, up to 30m (98ft) IR distance
- Supports 128 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
- 3-Axis
Specifications
| IPC323LB-SF28K-G | IPC323LB-SF40K-G | |||||
| Camera | ||||||
| Sensor | 1/2.7″, 3.0 megapixel, progressive scan, CMOS | |||||
| Minimum Illumination | Colour: 0.01Lux ( F2.0, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Adjustment angle | Pan: 3° to 360°, Tilt: 0° to 68°, Rotate: 3° to 360° | |||||
| S/N | >52dB | |||||
| Lens | ||||||
| Lens Type | 2.8mm and 4.0mm @2.0, Fixed-focal | |||||
| Lens Mount | M12 | |||||
| Angle of View (H) | 112.9° | 91.2° | ||||
| Angle of View (V) | 59.1° | 47.9° | ||||
| Angle of View (O) | 121.2° | 95.9° | ||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 42 | 16.8 | 8.4 | 4.2 | ||
| 4.0 | 60 | 24 | 12 | 6 | ||
| Illuminator | ||||||
| IR Range | Up to 30m (98ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream: 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||
| Video Bit Rate | 128 Kbps~6144 kbps | |||||
| U-code | Supported | |||||
| 9:16 Corridor Mode | Supported | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Supported | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Storage | |
| Edge Storage | Micro SD, up to 128GB |
| Network Storage | ANR,NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |
| Interface | |
| Network | 10/100M Base-TX Ethernet |
| Certifications | |
| EMC | FCC: FCC Part 15 |
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 5.0W | |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) |
| Weight | 0.36kg (0.79lb) |
| Material | Metal + plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | N/A |
| IngressProtection | Ingression protection: IP67 Vandal resistant: IK10 |
Dimensions

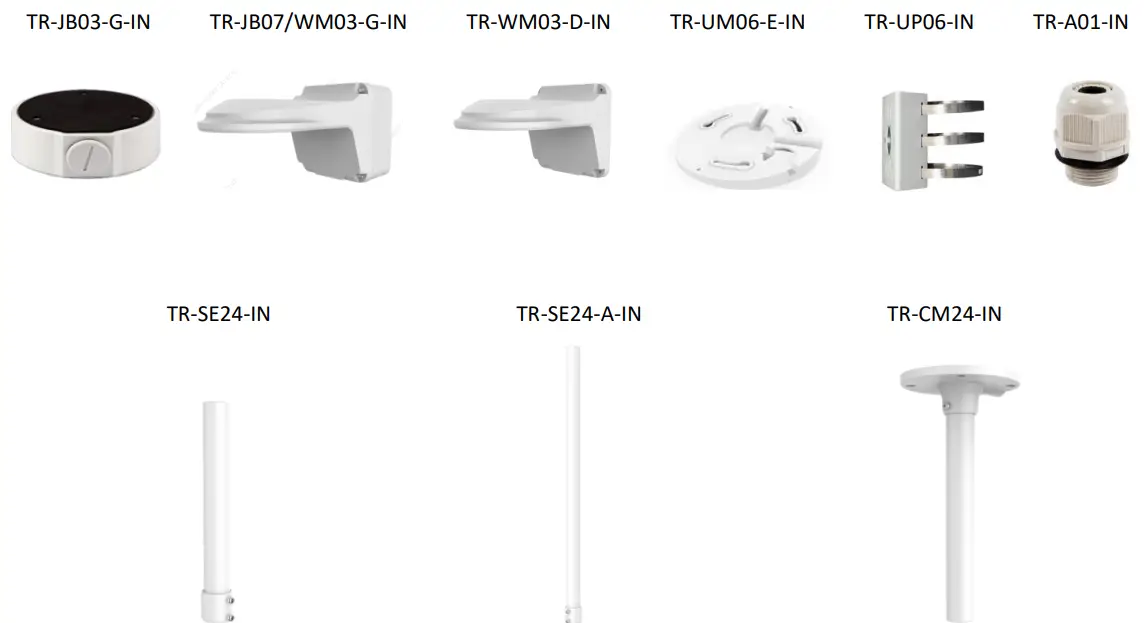

Accessories
| Junction Mount | Pole Mount |
| TR-JB03-G-IN | TR-JB07/WM03-G-IN |
 |  |
| TR-UM06-E-IN | TR-JB07/WM03-G-IN+TR-UP06-IN |
 |  |
| TR-CM24-IN+TR-JB03-G-IN | |
 |
Zhejiang Uniview Technologies Co., Ltd.
Building No.10, Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051)
Email: [email protected]; [email protected]
http://www.uniview.com
© 2020 Zhejiang Uniview Technologies Co., Ltd. All rights reserved.
*Product specifications and availability are subject to change without notice.
