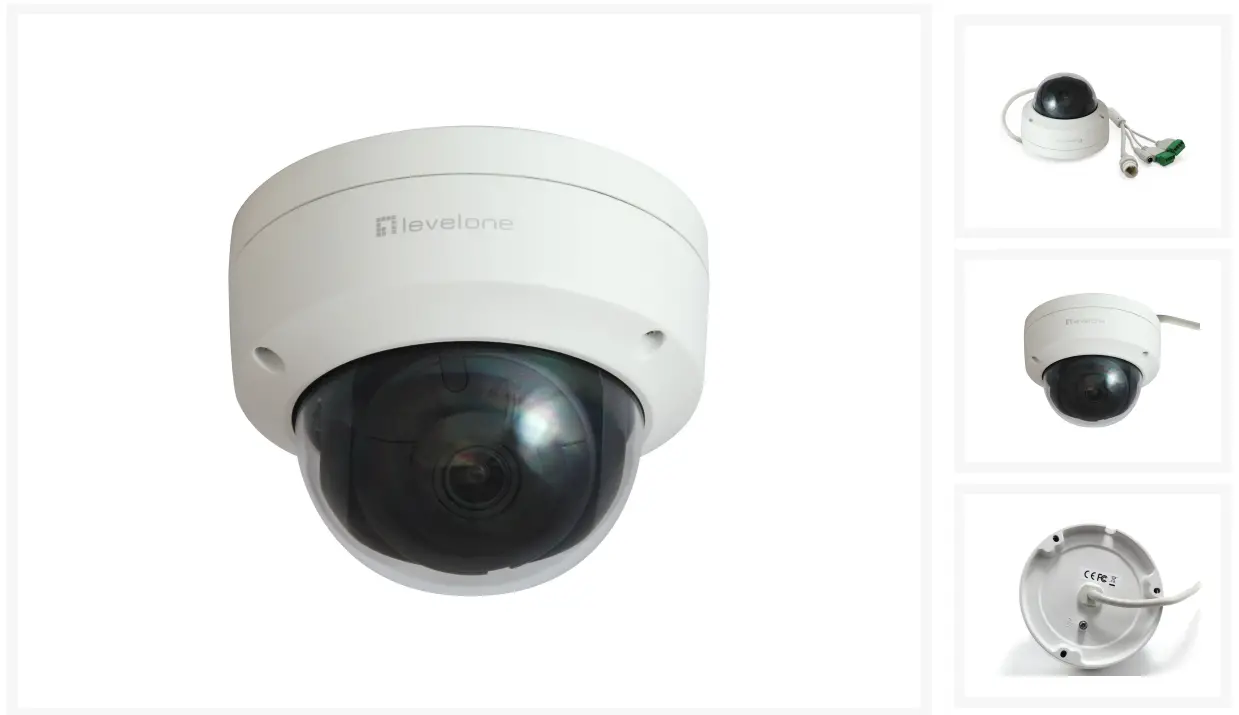

FCS-3096 GEMINI Fixed Dome IP
Camera, 8-MP, H.265
Product Images
Short Description
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Free surveillance and CMS (Central Management System) software packages with a 64-channel license
- Dual power support: 12V DC/PoE (IEEE 802.3af)
- 8-Megapixel high-definition resolution
- Video compression: H.264, H.265
- Weatherproof IP67-rated housing
- Vandal-proof IK10-rated housing
Description
The LevelOne FCS-3096 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome-mounted casing, which is rated at IP67 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust, and humidity. The FCS-3096 offers an 8Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
Additional Information
| Approval and compliance | CF/FCCIP67, IK10 |
| Max. operating temperature (°C) | 60 |
| Max. storage temperature (°C) | 95 |
| Min. operating temperature (°C) | -30 |
| Supported browsers | IE browser above 9 |
| The angle of view (°) | 79 |
| Audio format | G.711/G.722.1/G.726/MP2L2 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2) |
| Image sensor | 1/2.5″ Progressive Scan CMOS |
| Indicators | Power |
| IR cut filter | Yes |
| IR Range | Up to 30 meter |
| Lens | Fixed-focal, f=4mm,F2.0 |
| Resolution | 50Hz: 20 fps (3840 * 2160), 25 fps (2560 * 1920, 2560 * 1440, 1920 * 1080, 1280 * 720) 60Hz: 20 fps (3840 * 2160), 30 fps (2560 * 1920, 2560 * 1440, 1920 * 1080, 1280 * 720) |
| Shutter time | 1/3 ~ 1/10,000 sec |
| Storage capacity | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Standards | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Video format | H.265, H.264,MJPEG(stream 2) |
| General Features | rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser.3D DNR, WDR 120dB |
| Product weight (kg) | 0,5 |
| Product breadth (mm) | 82,4 |
| Product depth (mm) | 111 |
| Product height (mm) | 111 |
| Color | White |
| EAN | 4.01587E+12 |
| Model number | FCS-3096 |
| Package contents | FCS-3096 Screw Kit Quick Installation Guide Resource CD (User Manual, Utility, QIG) |
| Terminal block | DI/DO |
| Camera Type | Dome |
| Resistance | Weatherproof, Vandalproof |
| Zoom Type | Fixed |
| 2-way Audio | Yes |
| DI/DO | Yes |
| IR LEDs for night vision | Yes |
| PoE Supported | Yes |
| Max. Resolution | 8 Megapixels |
| IP Camera series | GEMINI |
| Power Consumption | 6.2-9W |
