INSTALLATION GUIDE
MOONLIGHT SHAVING CABINET
IMPORTANT CONDITIONS
Please inspect thoroughly before installation to ensure that the product has not been damaged and is the correct item to be installed.
No claims for damage or incorrect items will be recognized after installation.
The device is for indoor use only.
This item/light must be installed in accordance with current AS/NZS wiring rules.
This device contains no serviceable parts.
If the supply cord is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a potential hazards.
CONDITIONS:
1. Items must be installed by a licensed tradesperson only,
2. The installation of the product is in accordance with the instructions provided.
LED MIRRORED SHAVING CABINET INSTALLATION
Notes: This device contains no serviceable parts. If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a potential hazard.
- Check Products for any Damage. Do not install if any damage is found.

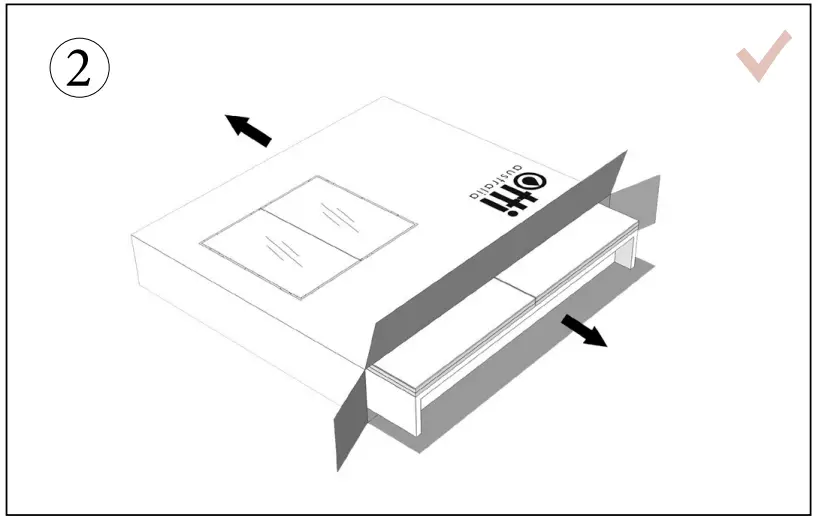

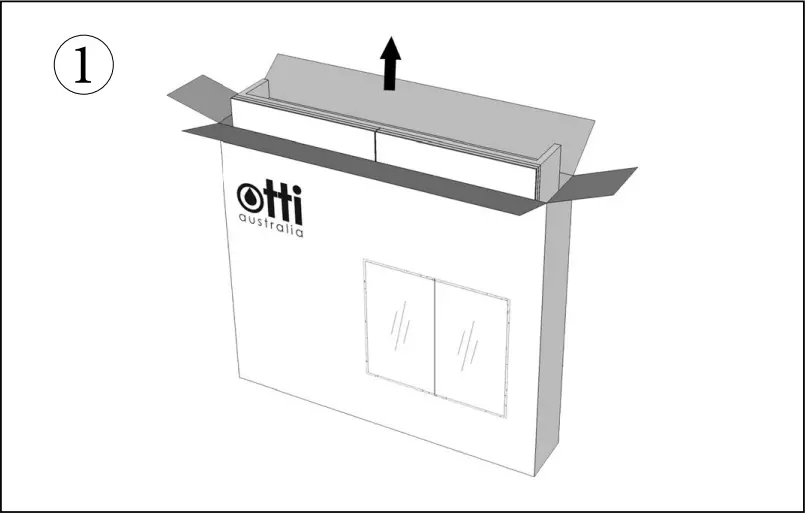

- Lay the cabinet flat and remove carefully from packaging.
- Remove all parts from the packaging, check and prepare all parts for installation.

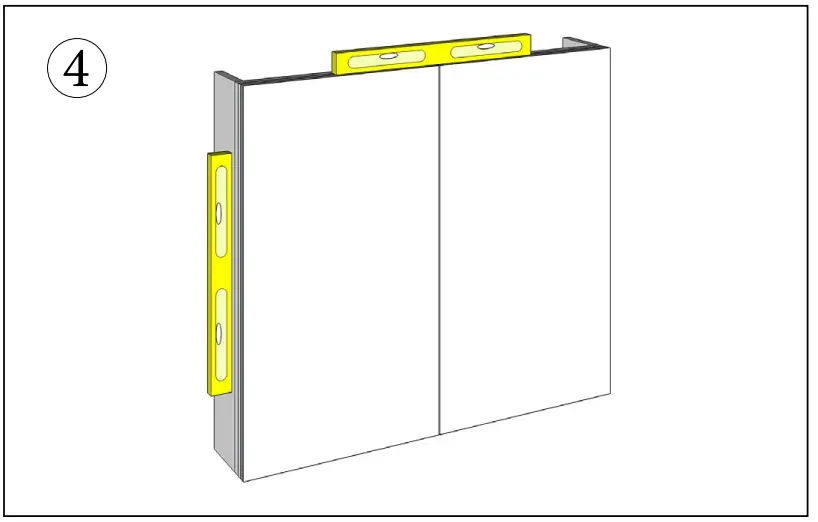

- Ensure the cabinet is level when storing and preparing for installation. Please note DO NOT allow cabinet corners to be placed on a hard surface to avoid chipping or cracking of mirror corners. Remove all parts from the packaging, check and prepare all parts for installation.
Notes: This device contains no serviceable parts. If the supply cord is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid potential hazards.

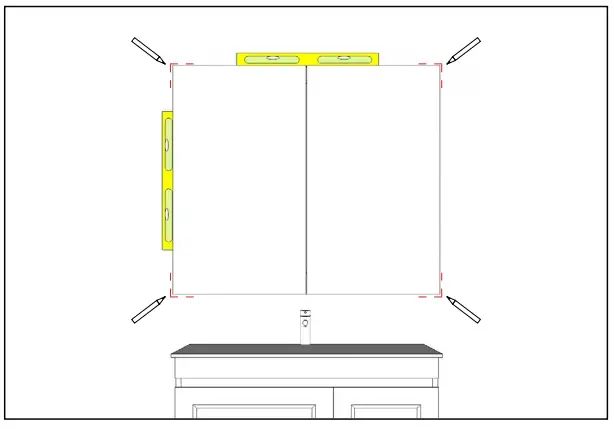

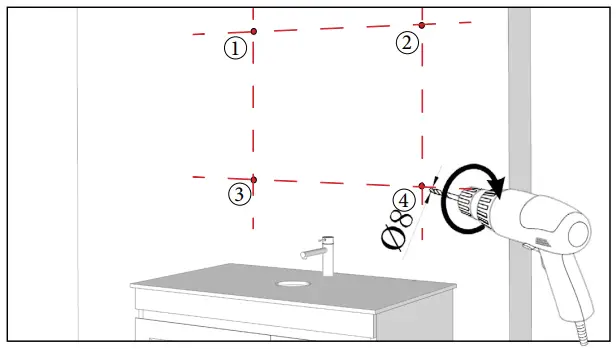

5. Mark out cabinet corners in the location you would like the mirror to be placed at and ensure it is level.

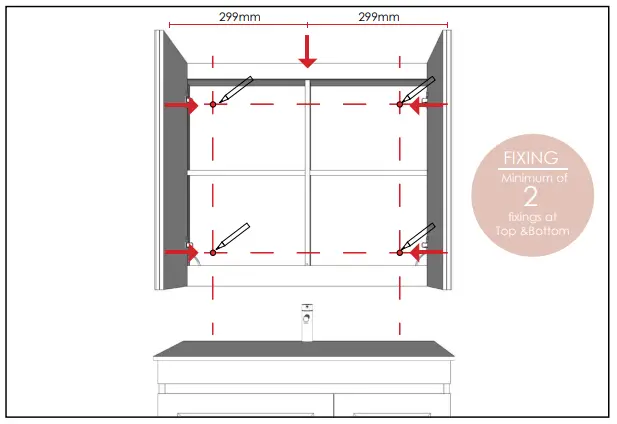

6. Mount cabinet to the wall and mark out locations of drill holes that are pre-drilled, on the wall. Then remove the cabinet from wall.
 |  |
6. Drill holes for mounting screws provided, ensure these are drilled into supporting wall (through masonry, brick wall, or noggins to support the cabinet load).

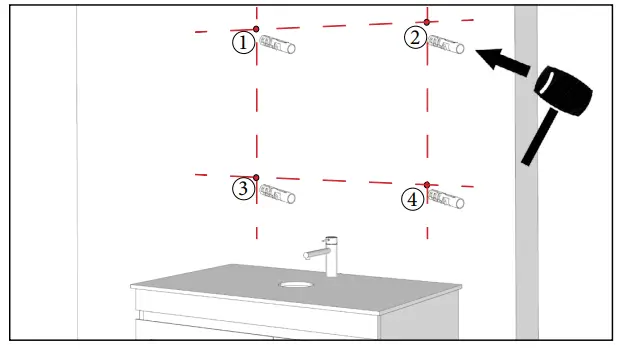

7. Hammer in plugs into the drill holes.
 |  |

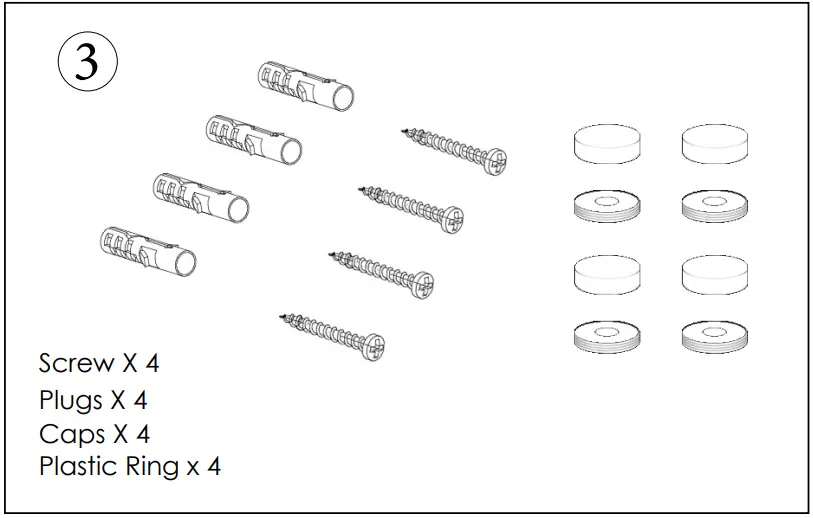

8. Assemble screws, rings, and parts for mounting.

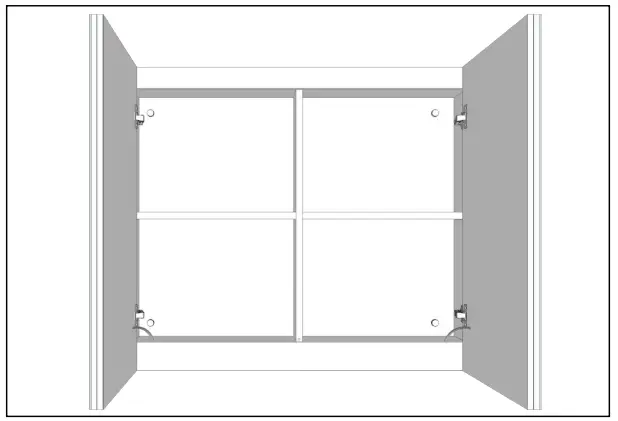

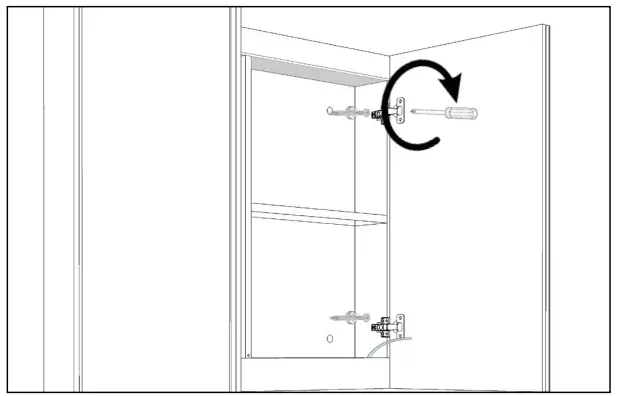

9. Mount the cabinet to the wall and install all skews and rings. Ensure all fixing points are secure and tightly screwed in.
 |  |

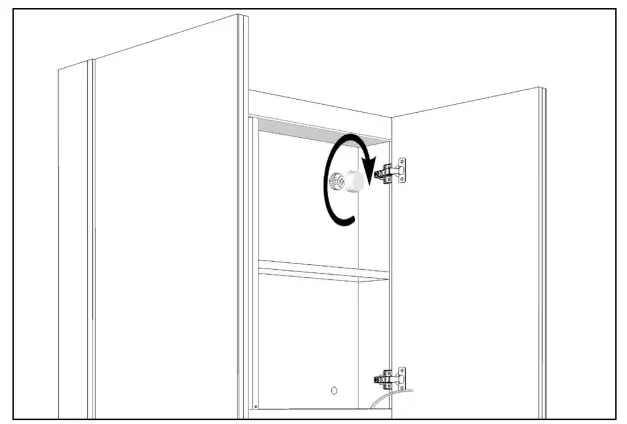

10. Add caps to conceal screws.
11. Now that cabinet is installed, prepare an electrical connection for the LED component.
 |  |

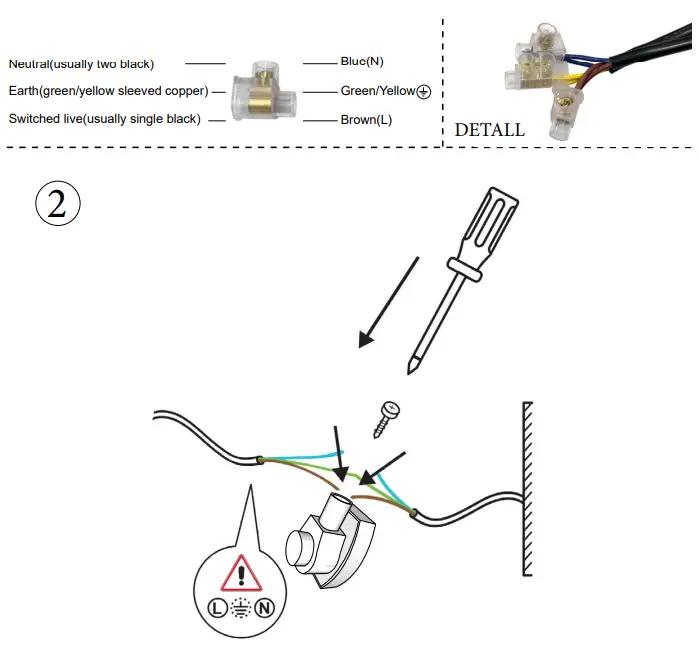

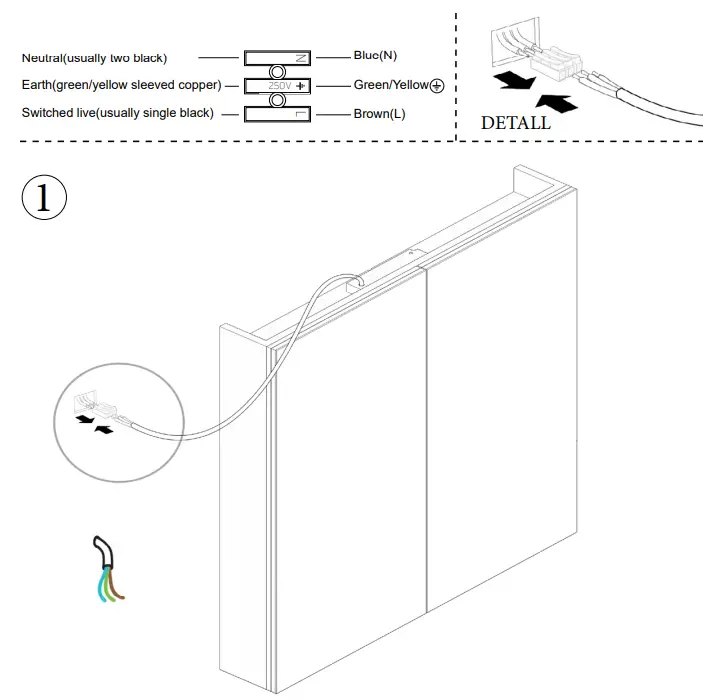

12. Connect your hardwire wall power source to the LED shaving cabinet using the connector housing provided.
13. Electricians can supply and use alternative connection housing components also for a superior connection.
 |  |
ONLY to be installed by a licensed electrician.
The device is for indoor use only.
This light must be installed in accordance with current AS/NZS wiring rules.
This device contains no serviceable parts.
If the supply cord is damaged it must be replaced by the manufacturer.
