IKEA URSHULT LED Cabinet Lighting - logoURSHULT
Installation Guide

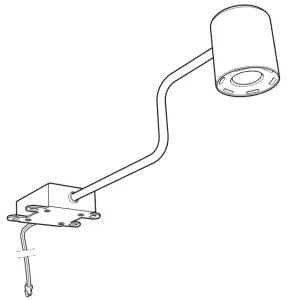

IKEA URSHULT LED Cabinet Lighting

IKEA URSHULT LED Cabinet Lighting - warningIMPORTANT SAFETY INSTRUCTIONS
For indoor use only.
Regularly check the cord, the transformer, and all other parts for damage. If any part is damaged the product should not be used.
Important information! Keep these instructions for future use.

The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person.

ONLY USE A SAFETY TRANSFORMER WITH A SELV OUTPUT AS A SUPPLY FOR THE PRODUCT.

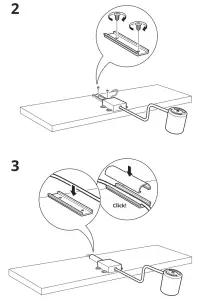

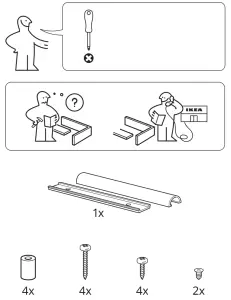

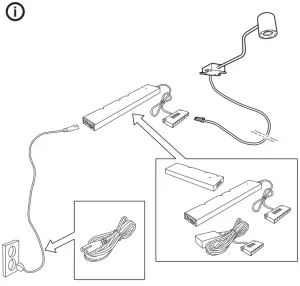

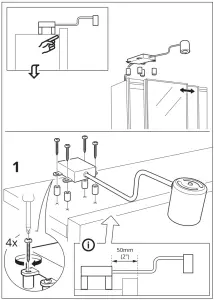

IKEA URSHULT LED Cabinet Lighting - figure 213IKEA URSHULT LED Cabinet Lighting - figure 2IKEA URSHULT LED Cabinet Lighting - figure 3IKEA URSHULT LED Cabinet Lighting - figure 4IKEA URSHULT LED Cabinet Lighting - figure 5LED driver and power supply cord are sold separately.
IKEA URSHULT LED Cabinet Lighting - figure 6

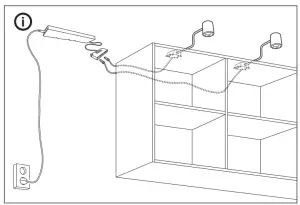

IKEA URSHULT LED Cabinet Lighting - figure 7

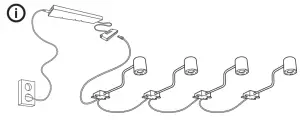

IKEA URSHULT LED Cabinet Lighting - figure 8
Max 4 units.

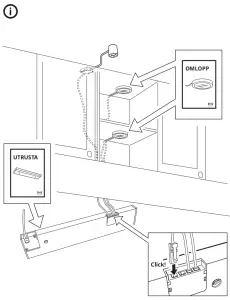

IKEA URSHULT LED Cabinet Lighting - figure 9
