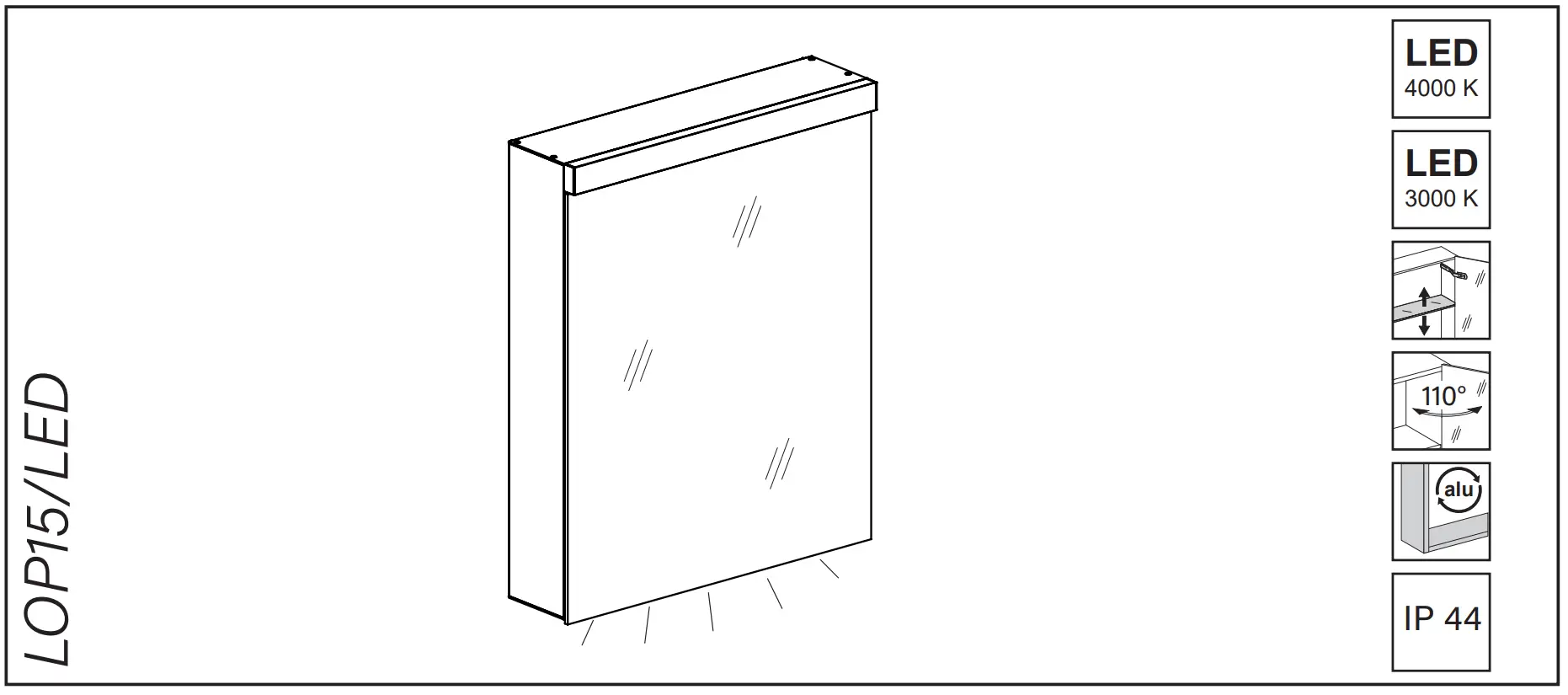

SCHNEIDER LOW Line Plus 15 LED Mirror Cabinets
Symbols
 | Electric installation work may only be carried out by approved specialists according to the local regulations. Liability will only be accepted by us when our products are installed by qualified engineers. The light sources incorporated in this product should only be replaced by the manufacturer, or by another similarly well-qualified person. |

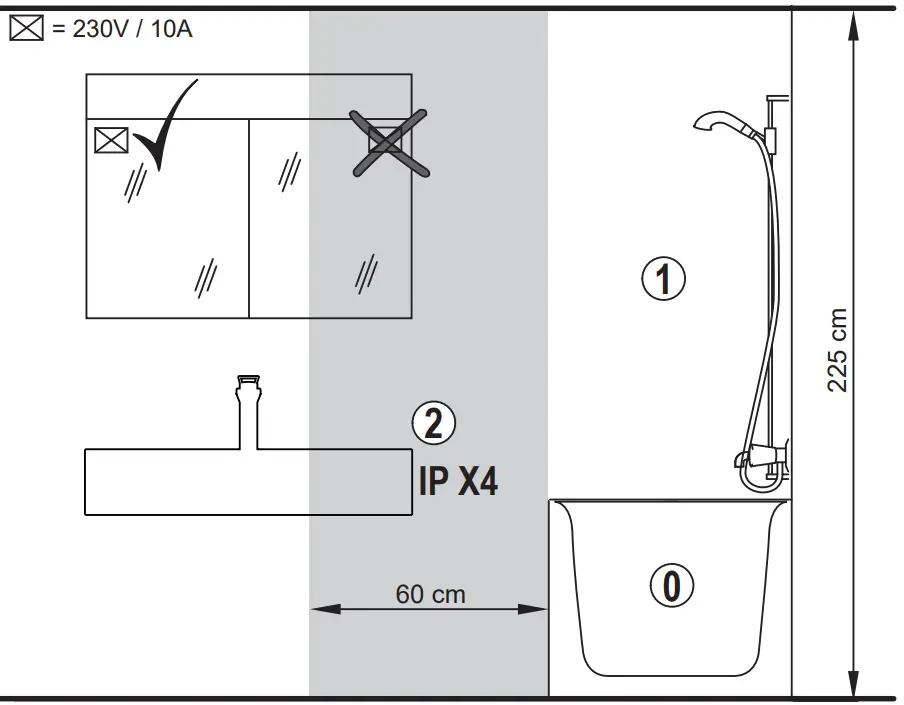

 | Rooms with bath or shower have to be protected with residual-current-operated protective device (RCD) FI (RCD) I ∆ n = 30mA. Volume 2 min. protection IP X4. Volume 2 no socket admitted. |
The product is controlled after current guidelines.
The product must be disposed of separately from normal household waste.
Indoor installation only

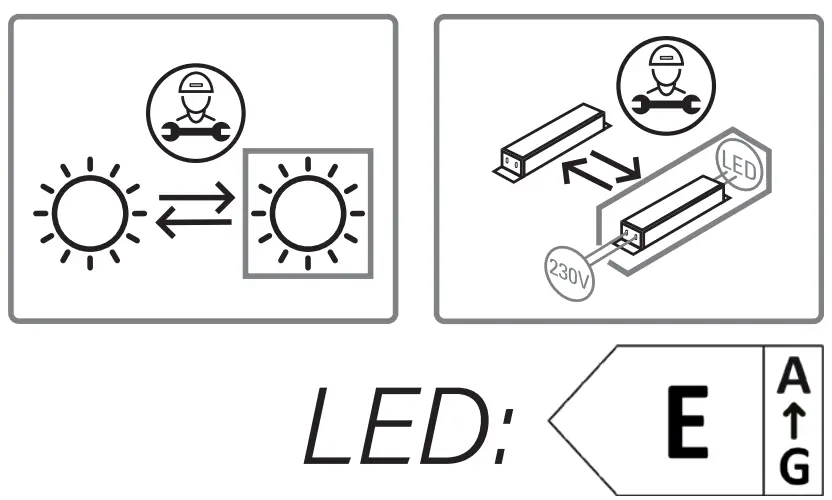

The light sources and electronic components are replaceable by a qualified person in accordance with Article 4 of EU Regulation 2019/2020.
Scope of delivery
| Scope of delivery | 50, 60, 70, 80, 90, 100, 120/2 cm | 100/3, 120/3, 150/3 cm |
| Mirror cabinet | 1 | 1 |
| Glass shelf | 2 | 4 |
| Suspension rail | 1 | 1 |
| Set of screws | 1 | 1 |

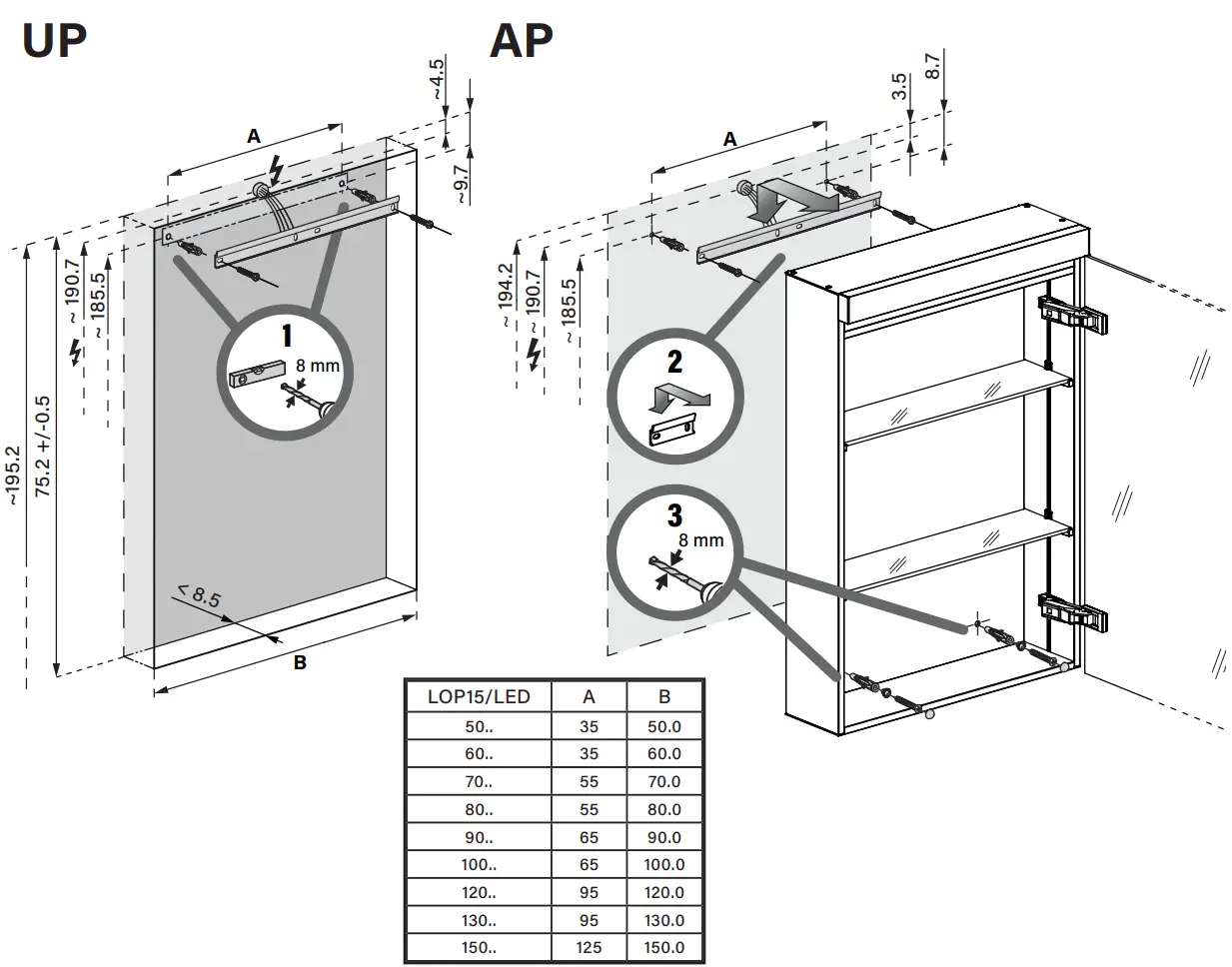

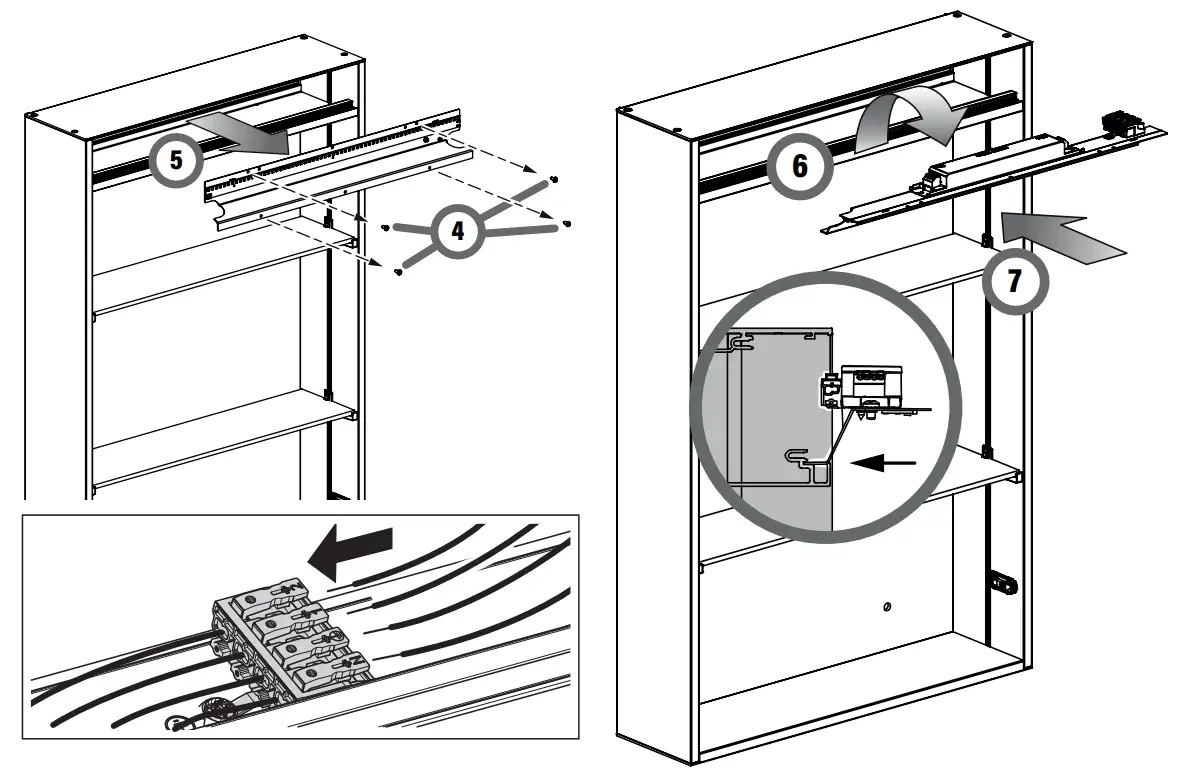

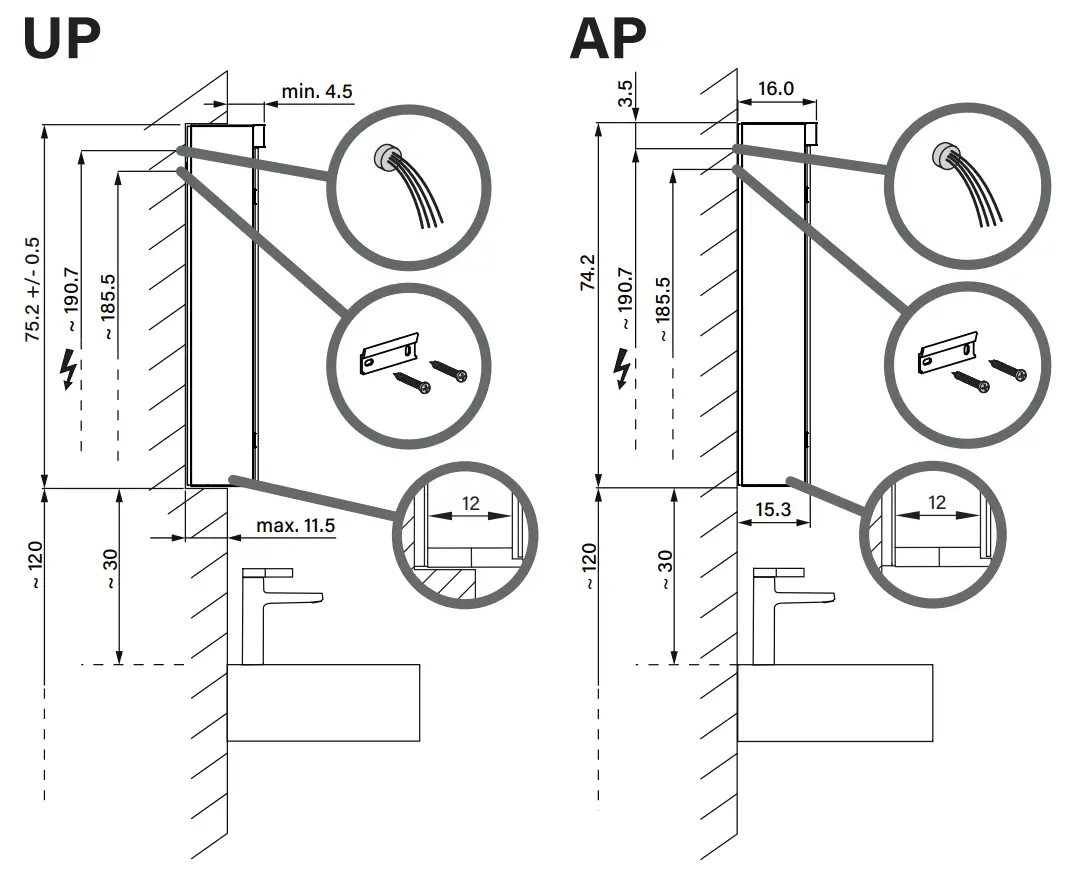

Assembling instructions
|

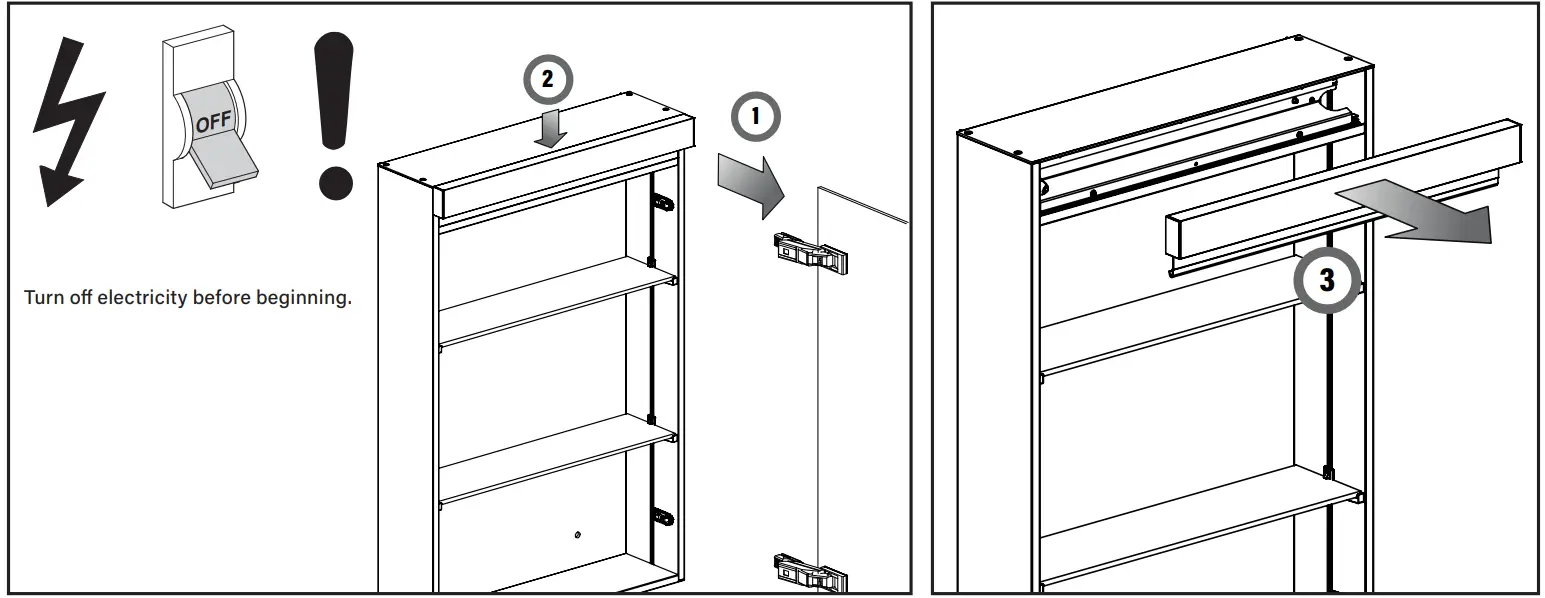

Remove mirror doors before installation. |

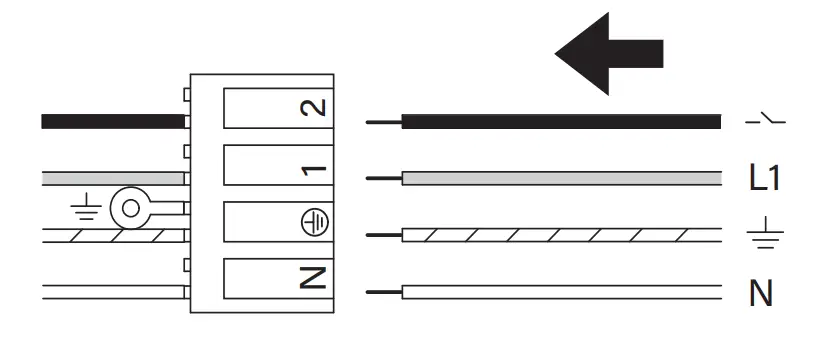

Wiring

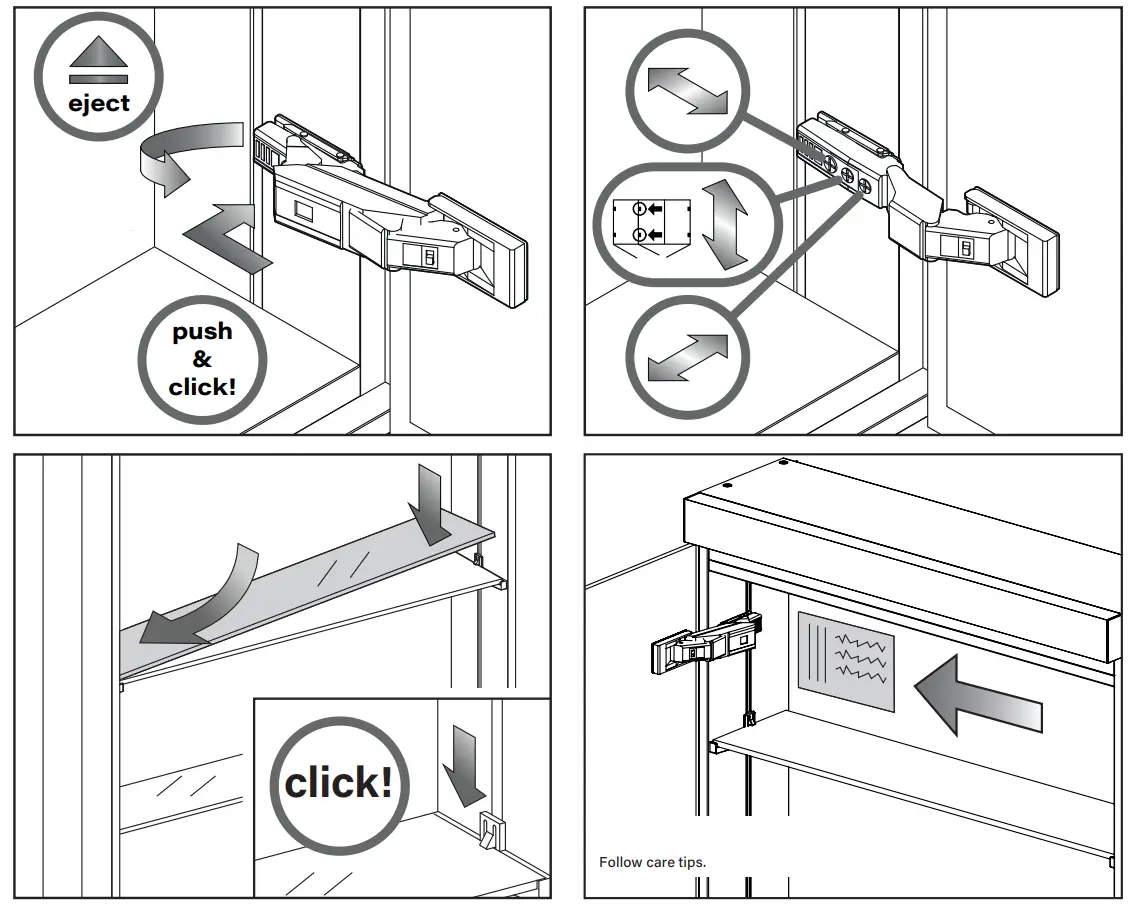

Adjustments
Alterations are reserved
CH-8890 Flums
www.wschneider.com
Schneider mirrors – the high-quality Swiss brand
