PYLE Wireless BT Boom Box Speaker System PBMSPG180

Contents hide

1 WARNING

2 Control Board Functions

3 Control Board Functions

4 Troubleshooting and Warning

5 PBMSPG180

5.1 Features

5.2 Wireless BT Connectivity

5.3 What’s in the Box

5.4 Technical Specs

6 Documents / Resources

6.1 References

7 Related Posts

WARNING

1. DO NOT place objects on top of the device, as objects may scratch the device.

2. DO NOT expose the device to dirty or dusty environments.

3. DO NOT insert any foreign objects into the device.

4. DO NOT expose the device to strong magnetic or electrical field.

5. DO NOT use the device in the rain

6. Please check with your Local Authority or retailer for proper disposal of electronic products.

7. DO NOT disassemble the device. Only a certified service technician should perform repair.

8. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

Illegal operation may cause personal injury, which could be fatal and may cause damage to property.

Control Board Functions

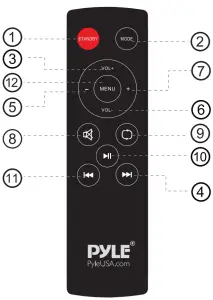

REMOTE CONTROL

UNIT STANDBY MODE
CHOOSE SIGNAL INPUT
INCREASE MUSIC VOLUME
NEXT SONG/CHANNEL
DECREASE MENU VOLUME
DECREASE MUSIC VOLUME
INCREASE MENU VOLUME
MUTE 9. REPEAT
PLAY/PAUSE KEY
PREVIOUS SONG/CHANNEL
MENU

H: Music “treble” volume adjustment
d: Music “bass” volume adjustment
N1: Microphone volume adjustment
EC: Microphone echo volume adjustment
N2: Guitar volume adjustment
LED: LED turn on/off
OP: Microphone priority turn on/off
U: Music master volume

TWS FUNCTIONS
For increase sound effect, our unit provides TWS function as follows:
Step-1: Turn ON BT mode on your device and PBMSPG180.
Step-2: Press and hold one of control board/remote control ” ” button more than 3’S, and you will see ” – 5“, on display, unit will start to connect the other unit automatically, then connect wireless BT on unit, now you can enjoy stereo sound, and adjusting one unit volume will affect the other unit.

Remark:

After connection, press and hold again one of control board/remote control ” ” button more than 3’S, you will hear “didi“, unit’s TWS dis-connection.
TWS connection’s distance is about 32.8 in. without obstacle.

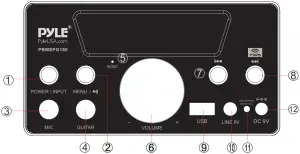

Control Board Functions

Press and hold to power ON/OFF, short press to choose input signal AUX/BT, when USB is inserted to play MP3, USB will be priority.
Press and hold to STOP/PLAY on USB/BT mode, short press function as follows:
H: Music “treble” volume adjustment
d: Music “bass” volume adjustment
N1: Microphone volume adjustment
EC: Microphone echo volume adjustment
N2: Guitar volume adjustment
LED: LED turn on/off
OP: Microphone priority turn on/off
U: Music master volume
6.5MM microphone input jack
6.5MM guitar input jack
Reset button when unit crash
Master volume for music and adjust number 2 function
Last song on USB/BT mode
Short press for next song on USB/BT mode, press and hold for TWS function
USB input jack
3.5MM aux input jack
Charge and full charge LED indicator
DC charge input jack

Troubleshooting and Warning

Fault	Possible Cause	Solution
No sound	No input sound source Volume is too low	Use a better music signal Adjust volume
Distortion of sound	Volume too high Speaker may be damaged	Turn down the volume Repair or replace it
Karaoke does not work	Microphone plug is not fully inserted. Microphone switch is not on Microphone volume knob is at the lowest position Wireless microphone has low battery	Plug microphone properly into the socket 2. Turn on microphone switch Adjust microphone volume properly 4. Replace battery
MP3 does not play	The song format in the U disc is incorrect Improper operation has caused a process disorder USB disc is disconnected	Transform song format into Mp3 format Reboot the machine Insert USB disc properly

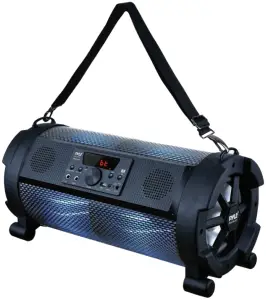

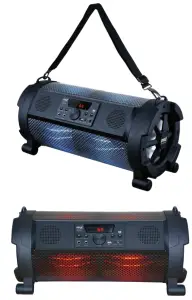

PBMSPG180

Wireless BT Boom Box Speaker System Wireless & Portable Stereo Speaker with Built-in LED Lights, TWS & Included Wired Microphone (500 Watt)

Features

True Wireless Stereo System
High-Powered Speaker System
Wireless & Portable BoomBox Stereo
Wireless BT Music Streaming Ability
Includes Wired Microphone for Karaoke Fun
Multi-Color Flashing LED Lights
Built-in LED Lights for Stunning Visuals
Digital LCD Display
Built-in Rechargeable Battery
Aux (3.5mm) Input
MP3 Digital Audio File Support
Connect & Stream Audio from External Devices
USB Flash Drive Memory Reader
(2) 1/4” Input Jacks (for Microphone, Guitar, Instrument)
2.1 Channel Digital Amplifier Design
Full Range Stereo Sound Reproduction
Ported Enclosure for Extended Bass Response
Perfect for the Backyard or Park Visits – Instant Party Anytime, Anywhere!

Wireless BT Connectivity

Built-in Wireless BT Music Streaming
Simple & Hassle-Free Pairing
Works with All of Today’s Latest Devices
(iPhone, Android, Smartphones, iPad, Tablets, etc.
Wireless BT Version: 5.0
Wireless BT Network Name: `PYLEUSA’
Wireless Range: Up to 32’+ ft.

What’s in the Box

Speaker System
Wired Microphone
Remote Control
Power Adapter
Carrying Strap

Technical Specs

Rated Power: 500 Watts MAX
Sound System: 6.5” Subwoofers + 2.5” Mid-Range Speakers x2
Selectable LED Light Modes: On/Off
Frequency Response: 55-20KHz
Input Sensitivity: 300mV
Digital Media File Compatibility: MP3, WMA (USB 2.0)
Maximum USB Flash Drive Support: Up to 32GB
Housing Construction Material: Engineered PP + Iron Net
Built-in Rechargeable Battery: Li-ion 2500mAh, 7.4V
Battery Operated Remote Control: Requires (2) x `AAA’ (Not Included)
Power Supply: 120/240V (9V Power Adapter)
Dimensions (L x W x H): 18.9” x 8.66” x 9.65” -inches
