User Manual

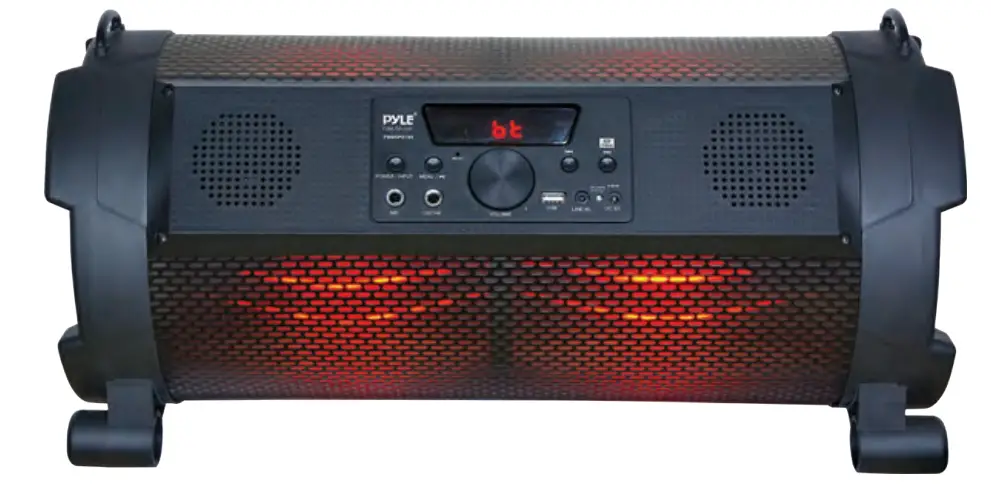

PBMSPG180
Wireless BT Boom Box Speaker System
Wireless & Portable Stereo Speaker with Built-in LED Lights, TWS & Included Wired Microphone (500 Watt)
WARNING
 | 1. DO NOT place objects on top of the device, as objects may scratch the device. |  | 5. DO NOT use the device in the rain |
 | 2. DO NOT expose the device to dirty or dusty environments |  | 6. Please check with your Local Authority or retailer for proper disposal of electronic products. |
 | 3. DO NOT insert any foreign objects into the device. |  | 7. DO NOT disassemble the device. Only a certified service technician should perform the repair. |
 | 4. DO NOT expose the device to a strong magnetic or electrical field. |  | 8. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result. |
Illegal operations may cause personal injury, which could be fatal and may cause damage to property.
Control Board Functions
REMOTE CONTROL
| 1. UNIT STANDBY MODE | 7. INCREASE MENU VOLUME |
| 2. CHOOSE SIGNAL INPUT | 8. MUTE |
| 3. INCREASE MUSIC VOLUME | 9. REPEAT |
| 4. NEXT SONG/CHANNEL | 10. PLAY/PAUSE KEY |
| 5. DECREASE MENU VOLUME | 11. PREVIOUS SONG/CHANNEL |
| 6. DECREASE MUSIC VOLUME | 12. MENU |
H: Music “treble” volume adjustment
d: Music “bass” volume adjustment
N1: Microphone volume adjustment
EC: Microphone echo volume adjustment
N2: Guitar volume adjustment
LED: LED turn on/of
OP: Microphone priority turn on/of
U: Music master volume
TWS FUNCTIONS
To increase the sound effect, our unit provides TWS function as follows:
Step-1: Turn ON BT mode on your device and PBMSPG180.
Step-2: Press and hold one of the control board/remote control “
” buttons more than 3’S, and you will see ”
”, on display, unit will start to connect the other unit automatically, then connect wireless BT on unit, now you can enjoy stereo sound, and adjusting one unit volume will affect the other unit.
Remark:
- After connection, press and hold again one of the control board/remote control “
” buttons more than 3’S, you will hear “didi”, unit’s TWS dis-connection. - TWS connection’s distance is about 32.8 in. without obstacle.
Control Board Functions
- Press and hold to power ON/OFF, short press to choose input signal AUX/BT,
when USB is inserted to play MP3, USB will be priority. - Press and hold to STOP/PLAY on USB/BT mode, short press function as follows:
H: Music “treble” volume adjustment
d: Music “bass” volume adjustment
N1: Microphone volume adjustment
EC: Microphone echo volume adjustment
N2: Guitar volume adjustment
LED: LED turn on/off
OP: Microphone priority turn on/off
U: Music master volume - 6.5MM microphone input jack
- 6.5MM guitar input jack
- Reset button when unit crash
- Master volume for music and adjust number 2 function
- Last song on USB/BT mode
- Short press for next song on USB/BT mode, press and hold for TWS function
- USB input jack
- 3.5MM aux input jack
- Charge and full charge LED indicator
- DC charge input jack
Troubleshooting and Warning
| Fault | Possible Cause | Solution |
| No sound | 1.No input sound source 2. Volume is too low | 1. Use a better music signal 2. Adjust the volume |
| Distortion of sound | 1. Volume too high 2. Speaker may be damaged | 1. Turn down the volume 2. Repair or replace it |
| Karaoke does not work | 1. Microphone plug is not fully inserted. 2. Microphone switch is not on 3. Microphone volume knob is at the lowest position 4. Wireless microphone has low battery | 1. Plug microphone properly into the socket 2. Turn on the microphone switch 3. Adjust microphone volume properly 4. Replace the battery |
| MP3 does not play | 1. The song format in the U disc is incorrect 2. Improper operation has caused a processing disorder 3. USB disc is disconnected | 1. Transform song format into Mp3 format 2. Reboot the machine 3. Insert USB disc properly |

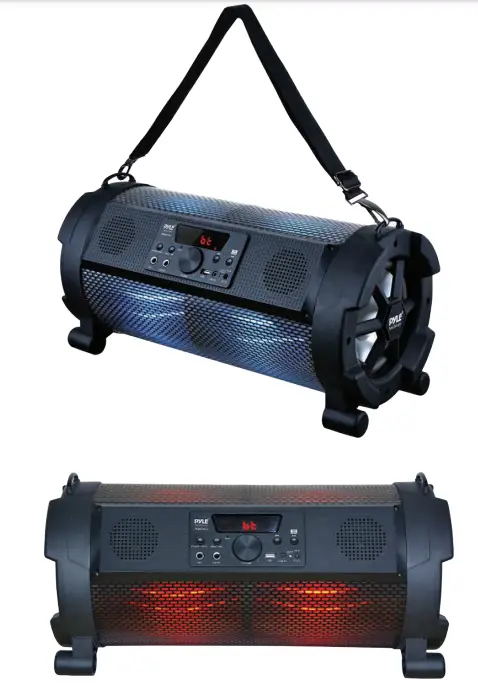

PBMSPG180
Wireless BT Boom Box Speaker System
Wireless & Portable Stereo Speaker with Built-in LED Lights, TWS & Included Wired Microphone (500 Watt)
Features:
| • True Wireless Stereo System • High-Powered Speaker System • Wireless & Portable BoomBox Stereo • Wireless BT Music Streaming Ability • Includes Wired Microphone for Karaoke Fun • Multi-Color Flashing LED Lights • Built-in LED Lights for Stunning Visuals • Digital LCD Display • Built-in Rechargeable Battery • Aux (3.5mm) Input | • MP3 Digital Audio File Support • Connect & Stream Audio from External Devices • USB Flash Drive Memory Reader • (2) 1/4’’ Input Jacks (for Microphone, Guitar, Instrument) • 2.1 Channel Digital Amplier Design • Full Range Stereo Sound Reproduction • Ported Enclosure for Extended Bass Response • Integrated Extending Carry Handle & Rolling Wheels • Perfect for the Backyard or Park Visits – Instant Party Anytime, Anywhere |
Wireless BT Connectivity:
- Built-in Wireless BT Music Streaming
- Simple & Hassle-Free Pairing
- Works with All of Today’s Latest Devices (iPhone, Android, Smartphones, iPad, Tablets, etc.
- Wireless BT Version: 5.0
- Wireless BT Network Name: ‘PYLEUSA’
- Wireless Range: Up to 32’+ ft.
What’s in the Box:
- Speaker System
- Wired Microphone
- Remote Control
- Power Adapter
- Carrying Strap
Technical Specs:
- Rated Power: 500 Watts MAX
- Sound System: 6.5” Subwoofers + 2.5’’ Mid-Range Speakers x2
- Selectable LED Light Modes: On/O
- Frequency Response: 55-20KHz
- Input Sensitivity: 300mV
- Digital Media File Compatibility: MP3, WMA (USB 2.0)
- Maximum USB Flash Drive Support: Up to 32GB
- Housing Construction Material: Engineered PP + Iron Net
- Built-in Rechargeable Battery: Li-ion 2500mAh, 7.4V
- Battery Operated Remote Control: Requires (2) x ‘AAA’ (Not Included)
- Power Supply: 120/240V (9V Power Adapter)
- Dimensions (L x W x H): 18.9’’ x 8.66’’ x 9.65’’ -inches
WARNING
This product can expose you to a chemical or group of chemicals, which may include ”Lead and lead compounds” which are known in the stat of California to cause cancer, birth defects, or other reproductive harm. F more info, go to https://www.p65warnings.ca.gov/.
