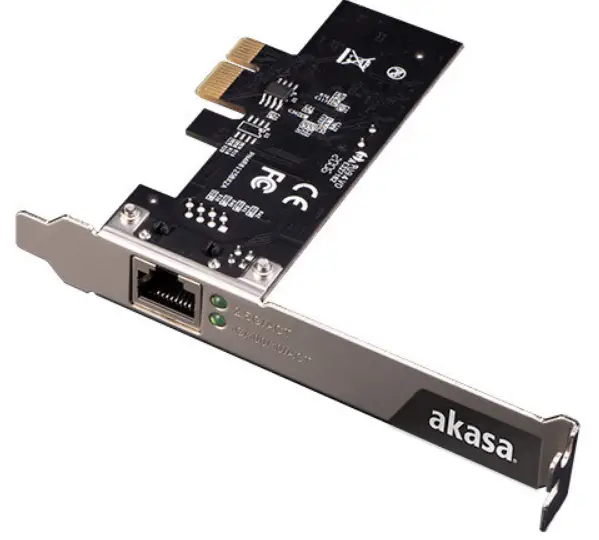

akasa AK-PCCE25-01 2.5 Gigabit PCIe Network Card User Manual

Contents

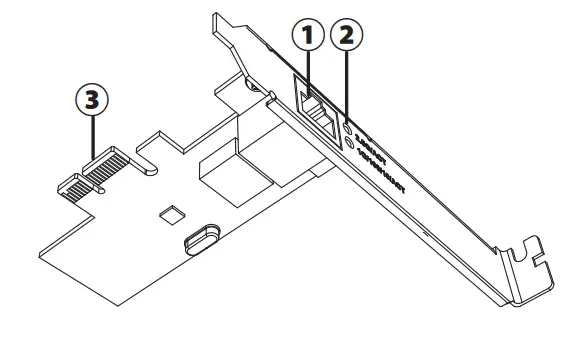

Card Layout

1. RJ45 Ethernet
   Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps
2. LED Indicators
   2.5G Link/Activity & 10/100/1000M Link/Activity
3. PCIe bus connector
   PCI Express x1,x4, x8 and x16 slots

Features

• Easily add or upgrade desktop or server networking up to 2.5Gbps/ 2500Mbps with a PCI Express (PCIe) network card
• Single 2500/1000/100/10 Mbps compatible RJ45 Ethernet port
• PCIe Gen2 interface can be easily inserted into PCIe x1, x4, x8 and x16 slots
• Supports 2.5Gbps network speeds on CAT5e cabling and CAT6a
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• LEDs indicates Gigabit detection and Link/Activity
• Includes optional low-profile bracket

Specifications

• Ports: RJ45
• Interface : PCI Express Gen2
• Data Rates: 10Mbps, 100Mbps, 1Gbps, 2.5Gbps
• Wide OS compatibility : Windows 7/8.x/10, Linux 4.x or later

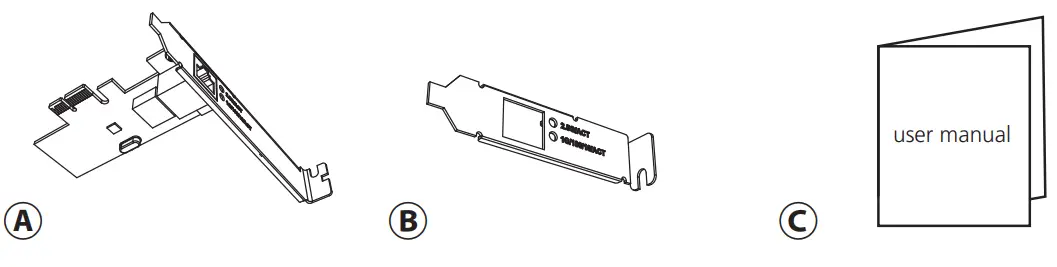

• Contents: 2.5G Network card, Low profile bracket, User manual

Installation

Driver Installation

1. Login URL http://www.akasa.com.tw
2. Search AK-PCCE25-01, download driver
3. Under Driver(s), download the Driver for your operating system.
4. Follow the on-screen instructions to finish installing the Driver.

Verification of Driver Installation

Verify Driver Installation (Windows)
To verify the driver are installed correctly, go to Device Manager.
The “Realtek PCIe 2.5GbE Family Controller” should appear under the “Network Adapters”.

Verify Driver Installation (Linux)

Run lsmod | grep r8XX from the command line.
Verify that the Driver is present in the command line

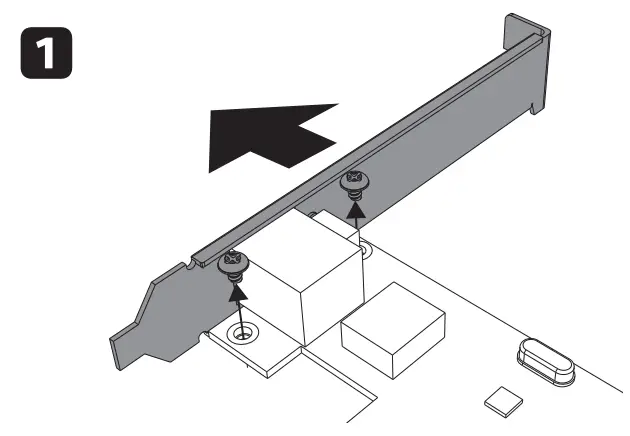

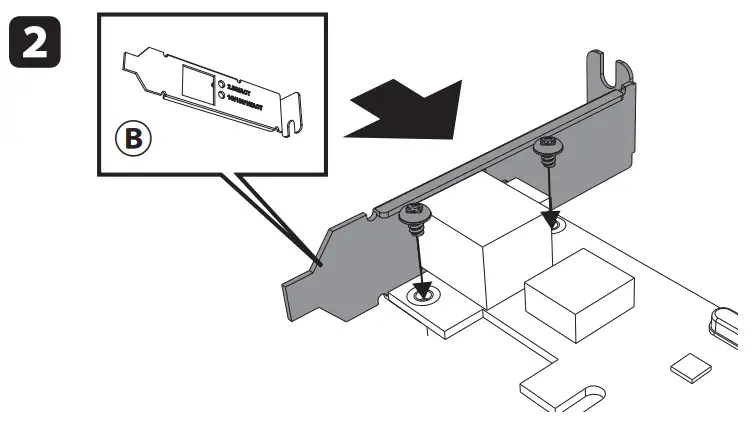

Change to low profile bracket
