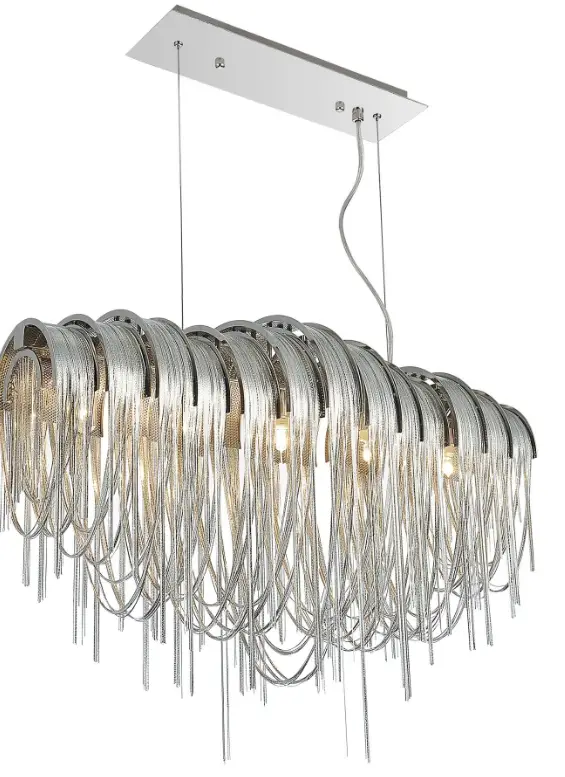

CWI Lighting 5637P32C Shirley 8 Light 32-inch Chrome Down Chandelier Ceiling Light
Assembly Instruction
- Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, Wire strippers, electrical tape, and safety glasses.
- Light Source: (8) G9 MAX 40W (Not Include).
- Estimated Assembly Time: 10-20 minutes
- Preparation: Identify and inspect all parts before beginning installation. Check the package content list and diagrams below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement parts.
Warnings and Cautions
- Turn off electricity at the circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
- These instructions are provided for your safety. It is very important you read them completely before installing the fixture.
- We strongly recommend that a licensed, professional electrician perform the installation.
- Disconnect the fixture from the power source before replacing the bulbs. Make sure bulbs are given sufficient time to cool before removal.

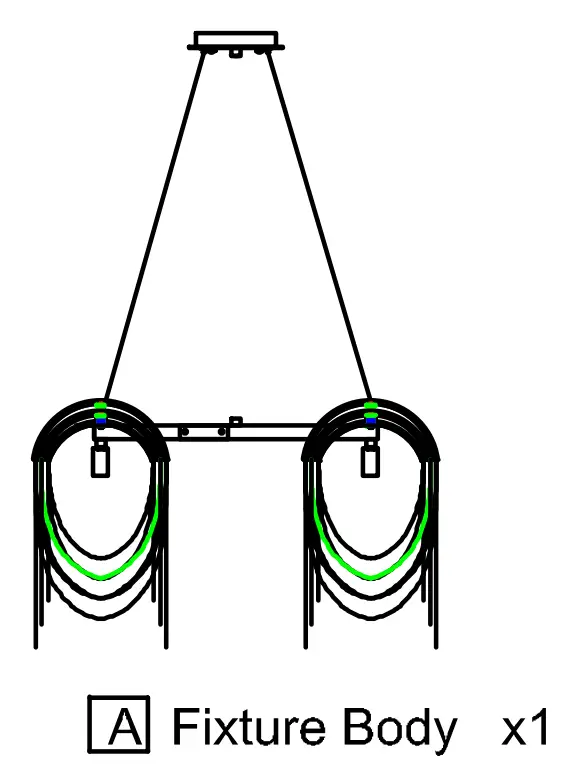

Package Contents
Hardware Contents
- PART DESCRIPTION QUANTITY
- BB Wire nut 2pcs CC 2pcs Screw
- BB Wire nut 2pcs CC 2pcs Screw

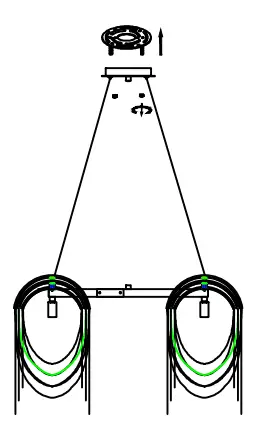

- STEP 1-Release Crossbar from Ceiling Canopy.

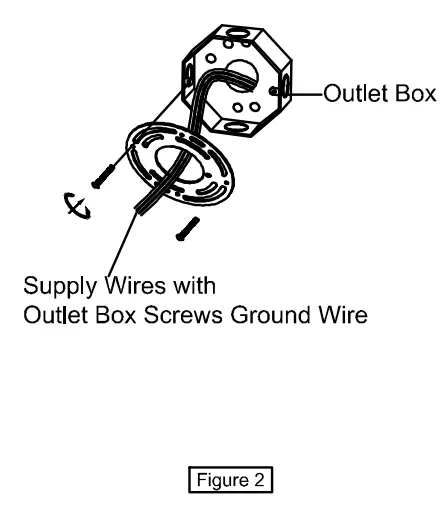

STEP 2 – Attach Crossbar to Outlet Box.
- A.Pass the supply wires through the Crossbar (EE). Attach the Crossbar (EE) to the Outet Box (CC) with the head of the Green Ground Screw facing you. Secure it with Outlet Box Screws (not included). Tighten until snug.

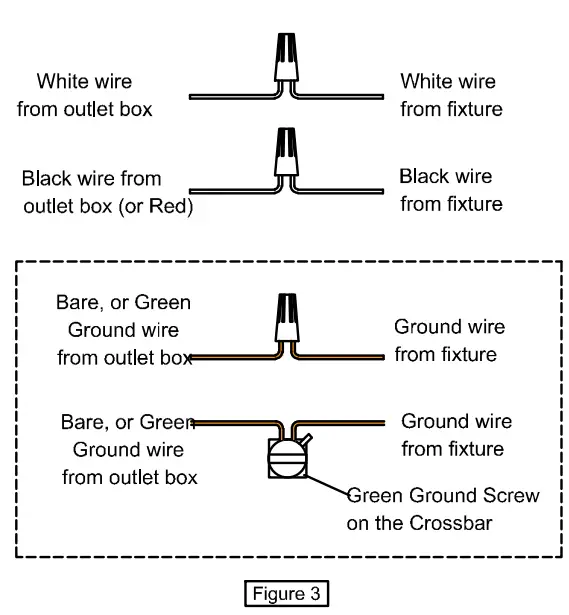

STEP 3 – Wire Connections
- A. Use standard wire connectors (not included) to make all wire connections. Twist connectors until wires are tightly joined together. Wrap each connection with approved electrical tape and carefully stuff all the connected wires into the Outlet Box.

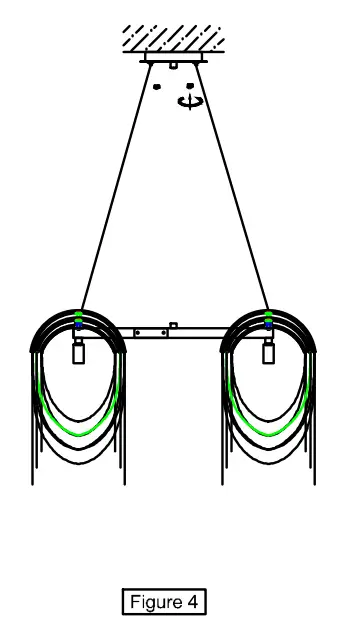

STEP 4- Install Ceiling Canopy to Ceiling

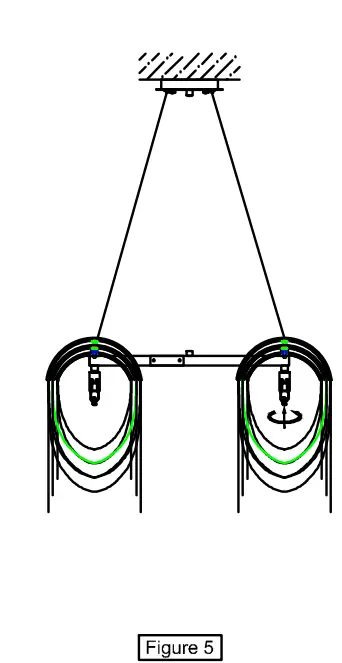

- STEP 5- Install Bulb.
