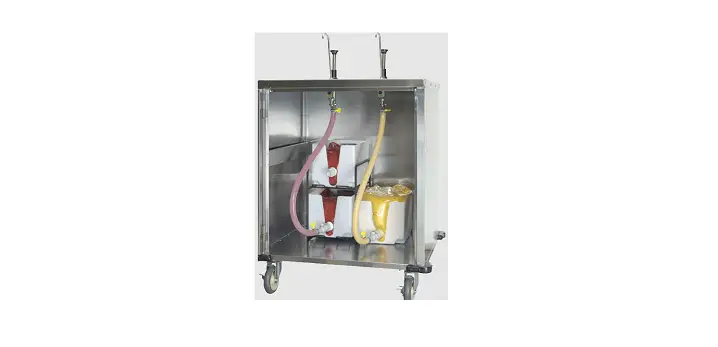

85783 Remote Dispensing System
Product Information
The Remote Dispensing System is a manually operated system
designed for high-volume dispensing. It eliminates the need for a
CO2 driven dispenser, making it highly convenient. The system
includes various parts such as a pump, single or twin pouch
systems, evacuation plates, mounting bracket, hose assembly,
turn-key clamps, coupling, dispensing cap, adapters, brush, torsion
spring, and pouch support.
The system can be used with pouches up to 3 gallons that have
either a 16mm fitment or a 38mm connector.
It is important to note that the pump is not acceptable for
dispensing potentially hazardous foods according to NSF
International.
Product Usage Instructions
Quick Start
- Install the countertop bracket, ensuring that the hole is
offset to leave space for the pump and hose below. - Insert the pump into the bracket.
- Attach the hose to the pump. Trim the hose if its length is
excessive.
Preparing Pouch(es)
Place the condiment pouch on a flat surface with the pouch
connector or fitment facing upward. If the pouch has a 38mm
external connector, remove the film in the pouch fitment. If the
pouch has a 16mm internal fitment, push the pump down through the
film in the pouch fitment until the top surface of the pouch
fitment touches the adapter rim.
Placing Pouch(es) and Support(s)
- Place the pouch(es) into the pouch support(s). For best
evacuation of condiment, locate the dispensing cap in the front
slot directed downward. - Place the support(s) beneath the counter. If using the twin
pouch system, use the provided wire rack for pouch supports.
Connecting and Priming the Pump
- Connect the hose to the pouch by snapping the hose end onto the
dispensing cap. - Prime the pump by repeatedly pressing the pump knob until
condiment is drawn up from the pouch and hose below.
Switching Pouches
- When a condiment pouch becomes empty, disconnect the hose from
the empty pouch by pressing the button on the side of the hose
coupling to release. - Snap the hose coupling onto the dispensing cap of the new
pouch. Follow the instructions on page 4 for preparing the new
pouch.
Disassembly
- To disconnect the hose from the pump, turn the hose clamp
turn-key counter-clockwise to loosen the hose.
Remote Dispensing System
Remote Pump with 36″ Hose SINGLE POUCH SYSTEM 85783 Remote Pump with 36″ Hose TWIN POUCH SYSTEM 85784
Use with pouches up to 3 gallons with either 16mm fitment or 38mm connector.
Thank You
for purchasing our Remote Dispensing System. This manually operated system simplifies high-volume dispensing, eliminating the hassle of a CO2 driven dispenser. HIGH VOLUME–HIGHLY CONVENIENT
REMOTE SYSTEM PARTS
PUMP 85951
SINGLE POUCH SYSTEM 85783
EVACUATION PLATE 07814
MOUNTING BRACKET 85791
HOSE ASSEMBLY 85758
36″ HOSE 85255
TURN-KEY CLAMPS (2) 85877 COUPLING 85753 DISPENSING CAP 85754
16MM ADAPTER 85264
52″ BRUSH 85206
Page 2
TORSION SPRING 07813
POUCH SUPPORT 07811
TWIN POUCH SYSTEM 85784
(2) EVACUATION PLATES 07814
(2) TORSION SPRINGS 07813
(2) POUCH SUPPORTS 07811
WIREWISE RACK 88643
Twin system includes (2) DISPENSING CAPS 85754 & (2) 16MM ADAPTERS 85264
MOUNTING BRACKET DETAILS
MOUNTING BRACKET 85791 Side View
Assembled View
Tighten or Loosen Thumb Screw to Lock or Release Lever
LATCH ASSEMBLY PLATE 85787
THUMB SCREW, 10-32 X 3/4 86691
LRPOUEOLLSELEAHNSEERSCEPURTMEOWP
#10 PUSHNUT 86676
COTTERLESS HINGE PIN 81105
TORSION SPRING 85395
LEVER ASSEMBLY 85789
SAFETY
According to food and safety regulations, most foods must be stored and/or served at certain temperatures or they could become hazardous. Check with local food and safety regulators for specific guidelines.
Be aware of the product you are serving and the temperature the product is required to maintain. Server Products, Inc. cannot be responsible for the serving of potentially hazardous product.
IMPORTANT Clean, rinse, sanitize, and dry parts daily or regularly to comply with local sanitization requirements.
NSF International lists this pump as: “Not acceptable for dispensing potentially hazardous foods.”
Page 3
QUICK START
YOU WILL NEED: · A qualified person to install the countertop bracket · Screwdriver, (4) screws, router and/or saw equipment
1 INSTALL THE COUNTERTOP BRACKET
· Choose a location with easy access and convenient height for pump.
· Allow room for slack in hose during set-up, pouch replacement and take-down.
· Use cutout template included to mark, cut and drill holes.
· Secure the bracket with four screws.
IMPORTANT TIP: Do not locate countertop hole directly above pouch support(s). Offset the hole to leave space for pump and hose below.
2 INSERT THE PUMP INTO BRACKET
Always clean pump first. Refer to separate instructions for the pump. · Insert pin on rear of bracket into hole on
rear of lid. · Pull the under-counter lever forward to allow
front pin of bracket into front hole of lid. · Release lever to secure front bracket pin. · Tighten thumbscrew to lock lever.
3 ATTACH HOSE TO PUMP
· Slide hose onto valve connector at bottom end of pump.
· Rotate hose clamp turn-key clockwise to secure hose.
TIP: Hose may be trimmed if length is excessive.
Page 4
4 PREPARE POUCH(ES)
Place condiment pouch on flat surface with pouch connector or fitment facing upward.
If pouch has
38MM EXTERNAL CONNECTOR
· Remove pouch cap. · Screw dispensing cap onto connector.
If pouch has
16MM INTERNAL FITMENT
· Screw dispensing cap onto adapter. · Position adapter directly
over center of pouch fitment. · Press adapter down to pierce
through film in pouch fitment.
Pump is fully engaged when top surface of pouch fitment touches adapter rim.
5 PLACE POUCH(ES)
INTO POUCH SUPPORT(S)
Locate dispensing cap in front slot directed downward for best evacuation of condiment.
6 PLACE SUPPORT(S)
BENEATH COUNTER
Twin pouch system includes wire rack for pouch supports.
7 CONNECT HOSE TO POUCH
Snap hose end onto dispensing cap.
8 PRIME PUMP Repeatedly press pump knob until condiment is drawn up from pouch and hose below.
Page 5
SWITCHING POUCHES
WHEN A CONDIMENT POUCH BECOMES EMPTY…
1
DISCONNECT HOSE FROM EMPTY POUCH
Press button on side of hose coupling to release.
2
SNAP HOSE COUPLING ONTO DISPENSING CAP ON NEW POUCH
See page 5 for how to prepare pouch(es).
DID YOU KNOW? The hose coupler and dispensing cap prevent leaks when hose is disconnected.
Page 6
DISASSEMBLY
1 DISCONNECT HOSE FROM PUMP Turn hose clamp turn-key counter-clockwise to loosen the hose.
2
DISCONNECT HOSE FROM POUCH
Press button on side of hose coupling to release.
3 REMOVE PART(S) FROM POUCH
Unscrew dispensing cap from pouch. IF USED: Remove adapter from 16mm pouch fitment.
IMPORTANT: Only throw away empty pouch. Keep any dispensing cap and adapter fitment.
4
REMOVE PUMP FROM COUNTER BRACKET
· Loosen thumbscrew on bracket.
· Pull lever under counter to release front hole of lid from front pin of bracket.
· Lift pump free from pin in back of bracket.
Page 7
CLEANING
Refer to separate instruction manual for pump cleaning.
1 CLEAN
After disassembling, thoroughly clean all washable parts with soap and hot water.
2 RINSE fully with clear water.
3 SANITIZE
all parts according to local sanitization requirements. All parts in contact with food must be sanitized.
4 AIR DRY all parts fully.
YES!
Use dishwashing soap and hot water.
Use supplied brush to clean inside hose.
· External surfaces may be wiped clean with a clean damp cloth.
· Glass and surface cleaners approved for use in food contact areas may be used.
· Do not use abrasive, caustic or ammonia based cleansers.
· Do not use metal scrapers or cleaning pads that could scratch surfaces.
SERVER PRODUCTS LIMITED WARRANTY
This Server product is backed by a two-year limited warranty against defects in materials and workmanship. See Server-Products.com for details.
NEED HELP?
Server Products Inc.
3601 Pleasant Hill Road Richfield, WI 53076 USA
Chat with us!
[email protected] 262.628.5600 | 800.558.8722
GENERAL SERVICE,
REPAIR OR RETURNS
Before sending any item to Server Products for service, repair, or return, contact Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Service is extremely prompt. Typically, units are repaired and ship out within 48 hours.
Merchandise being returned for credit must be in new and unused condition and not more than 90 days old and will be subject to a 20% restocking charge.
Please be prepared with your Model, P/N and Series located on the lid or base of the unit.
Example:
MODEL XXXX P/N #####
SERIES ##X ##X
Page 8
Manual EM_01898_RevD 042022
CUTOUT TeMPLATe
Full Scale 1:1
3.000 C-C TYP MOUNTING HOLE PATTERN
.31
3.500 C-C REF (EXISTING HOLES) 3.000 C-C REF (NEW PATTERN)
5.625 C-C REF (NEW PATTERN) 4.000 C-C REF (EXISTING HOLES)
5.625 C-C TYP
6.00
ACCESS END 2.50
