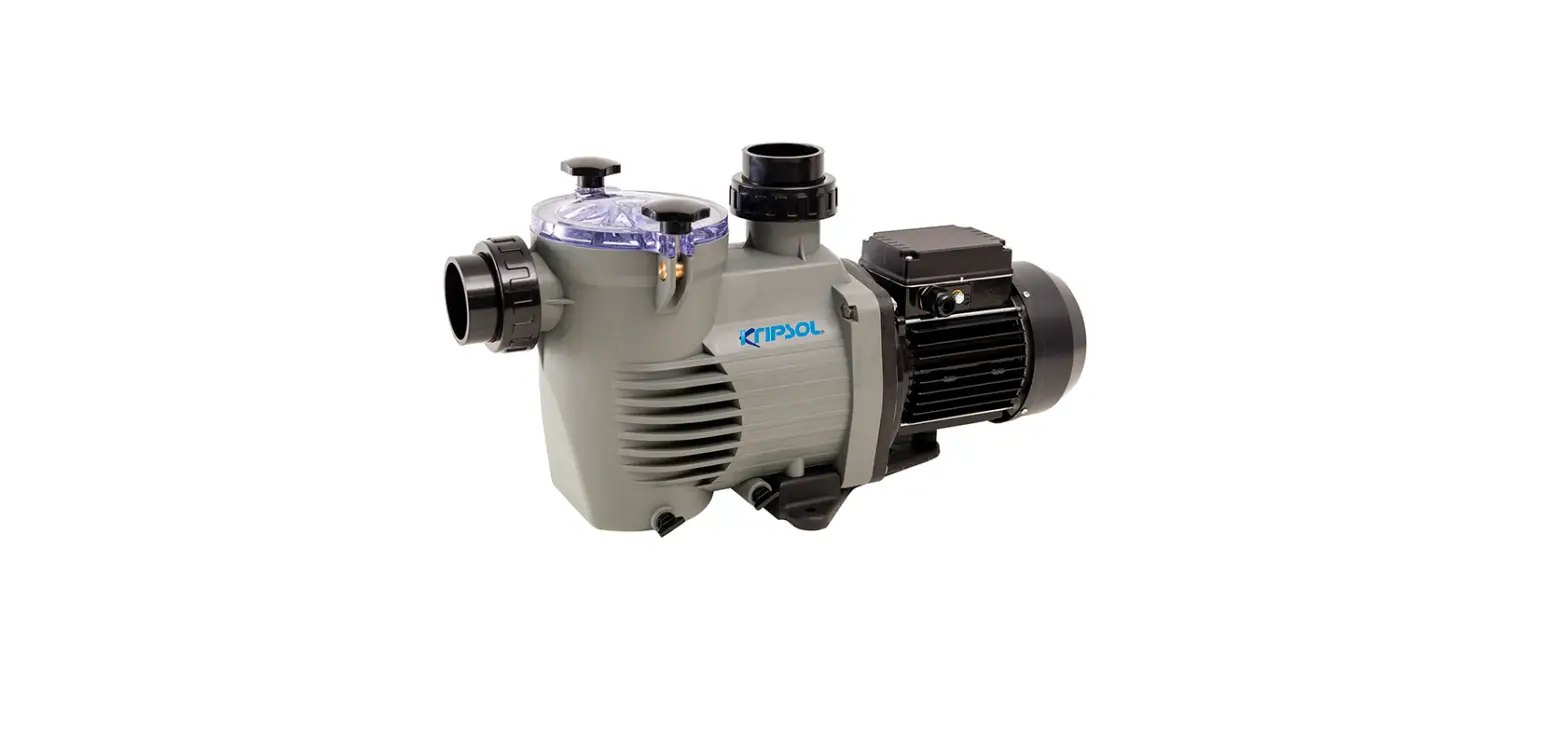

Kripsol Vs 150 Swimming Pool Pumps Instructions

VS 150 Swimming Pool Pumps

Product Information

• Product Name: KSE VS 150
• Product Type: Pumps & Electrical Cabinets
• Features:
  • Variable speed: high efficiency for each application, optimized
    consumption
  • 5 programs, 3 preselected speeds
  • Super-silent operation
  • Visibility of the internal prefilter, easy access
  • Double drain, easy opening (no tools required)
  • Permanent magnet motor
• Usage: Suitable for residential pools up to 126 m3
• Prefilter size: 3.5L
• Code: KSE VS 150
• Input Power (P1): 1104W
• Output Power (P2): 1250W
• Amps (A): 5.9A
• Flow Rate: 605 m3/h (at 10m water column pressure)
• Weight: 15kg
• Packaging Dimensions: 300mm x 255mm x 650mm

Product Usage Instructions

1. Ensure that the pump is turned off and disconnected from the
   power source before installation or maintenance.
2. Choose the appropriate union fitting (50mm or 63mm diameter)
   and connect it to the existing installation.
3. Place the KSE VS 150 pump in a suitable location near the
   pool.
4. Connect the union fitting of the pump to the existing
   installation.
5. Make sure the pump is securely connected and all connections
   are tight.
6. Fill the prefilter with water to prime the pump.
7. Turn on the power supply and set the desired speed or program
   using the control panel.
8. Monitor the pump’s operation and adjust settings as
   needed.
9. To access the internal prefilter or perform maintenance, ensure
   that the pump is turned off and disconnected from the power source.
   Open the double drain without using any tools.

Note: Single Speed models can be easily replaced with a VS
(Variable Speed) equivalent without the need for retrofitting or
modifying hydraulic connections. The maximum water temperature and
pressure, as well as other connection types, can be obtained by
contacting the manufacturer.

KRIPSOL®®

PUMPS & ELECTRICAL CABINETS

FILTERS

WHITE GOODS AND LIGHTS

KSE VS 150

THE ORIGINAL REVISITED

CLASSIC

LINE
YEARS OF WARRANTY

Union fittings provided, 50 and 63 mm diameter, to fit in any existing installation

d Variable speed: high efficiency for each application, optimised consumption
d 5 programs, 3 preselected speeds
d Super-silent operation
d Visibility of the internal prefilter, easy access
d Impeller and diffuser made of Noryl®, very hard-wearing and corrosion-resistant
d Double drain, easy opening (no tools required)
d Permanent magnet motor
d Usage: for residential pools up to 126 m3
d Prefilter size: 3.5L

Code

Ref.

010904101520

KSE VS 150

P1 Input power – P2 Output power

Hp P2 (W) P1 (W) Amps (A) A (mm)

Flow rate (m3/h)*

1.50 1104 1250

5.9

* 10 m water column pressure

605

21

M.O.Q. :1

Weight (kg) 15

Pack. (mm) 300 x 255 x 650

qty/pallet 25

Single Speed models can be
easily replaced with a VS equivalent.
(No need to retrofit or modify hydraulic connections).

Max. water temp. / Max. pressure Connection (DIN slip included, for others please ask) Mechanical seal
Motor specifications
Housing/impeller/strainer/lid
*All bodies have a 2” thread, possibility of having AINSI connection

Technical Specifications

50ºC / 2,5 bar Ø 50 – 1 ½” and Ø 63 – 2″ AISI 316, suitable for salt water Class F, IP55, 50 Hz 2.850 rpm PP + F.G/Noryl®/PP/SAN®

Water column pressure (m)

CLEANERS

HEATING

SANITIZATION

POOL SURROUNDING EQUIPMENT

PVC ACCESSORIES

CONDITIONS OF SALE/SPARE PARTS

Water flow rate (m3/h)
