UTILITY POOL COVER PUMP
MODEL #SPCP02

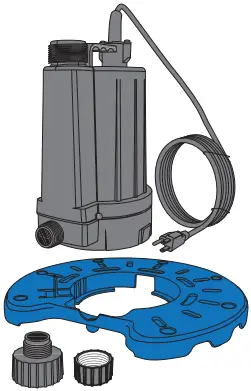

| CONTENTS | QUANTITY |
| Pump | 1 |
| Base | 1 |
| Garden Hose Adaptor | 1 |
| Cap | 1 |
QUICK START GUIDE. SEE INSTRUCTION MANUAL FOR COMPLETE DETAILS.
WARNING:
FOR YOUR PROTECTION, ALWAYS DISCONNECT PUMP FROM POWER SOURCE BEFORE HANDLING.

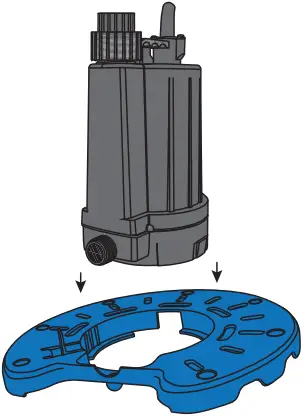

1. Install the snap-on strainer by lining up the pump base to match the strainer. Push down gently until it latches.

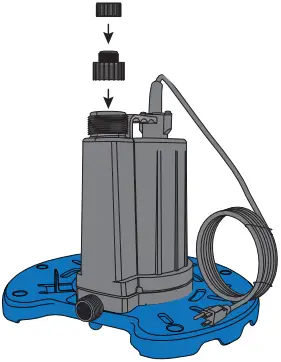

2. Attach garden hose adapter to the top pump discharge. DO NOT OVER-TIGHTEN THE HOSE ADAPTER. Finger tight plus 1/4 to 1/2 turn should be sufficient.
Ensure cap is installed on top discharge.

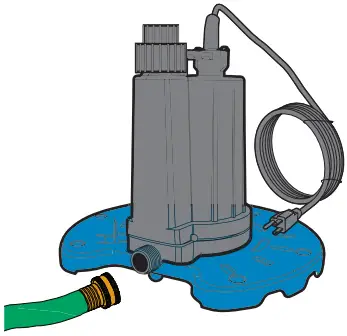

3. If using garden hose (not included), thread the female end of the garden hose into the male end of the garden hose adapter.
For best performance, unwind the hose before starting the pump.

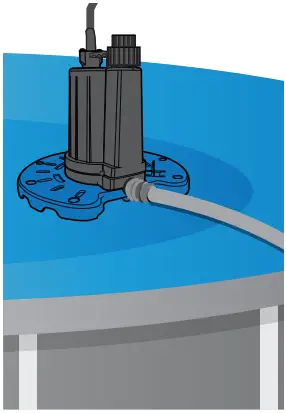

4. Place pump in an upright position on the pool cover where water will collect. Do not suspend pump by the discharge hose or power cord.
Be sure pump is not sitting in mud, sand, or debris.

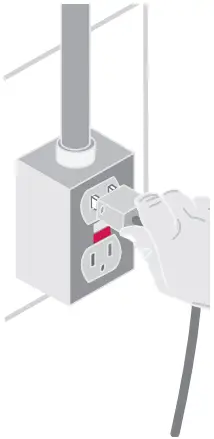

5. Plug the pump into a properly grounded, ground fault circuit interruptor (GFCI) 115 V outlet. For safety, the pump should always be electrically grounded to a suitable electrical ground, such as a grounded water pipe, properly grounded metallic raceway, or ground wire system.
For best performance, use discharge hose of 50 ft. or less. If the discharge runs up hill, or is extra long, use larger diameter discharge hose or rigid pipe.
NOTE: Large diameter, short discharge hoses or pipe will provide better water flow rates than small diameter, long discharge hoses or pipe.
Toll Free Help Line: 1-800-742-5044, 7:30 a.m. – 5:00 p.m., EST, Monday – Friday.
SW1695 A
