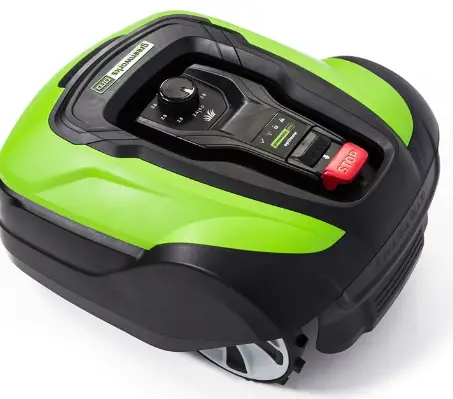

greenworks 2529902 Pro Robotic Lawn Mower
GENERAL BREAKDOWN

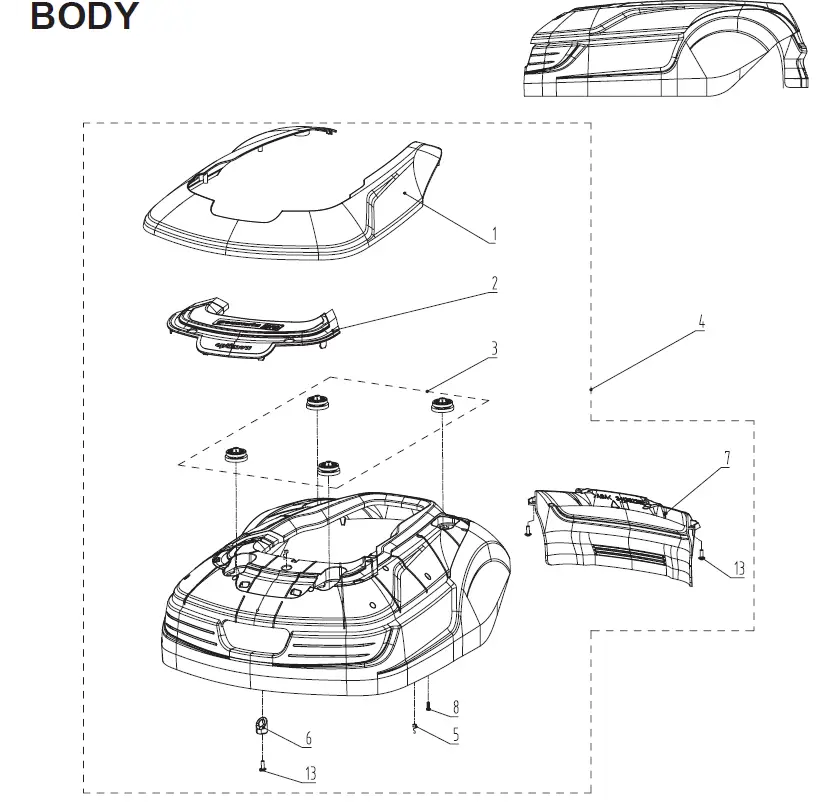

BODY
| ITEM NO. | PART NO. | DESCRIPTION |
| 1 | R0202342-00 | Body decor. (Greenworks Pro) |
| R0202343-00 | Body decor. (Greenworks Commercial) | |
| 2 | R0202344-00 | Body logo (GP) |
| R0202345-00 | Body logo (GC) | |
| 3 | R0202346-00 | Cap snaplock assembly |
| 4 | R0202347-00 | Body assembly (GP) |
| R0202348-00 | Body assembly (GC) | |
| 5 | R0202349-00 | Magnet assembly |
| 6 | R0202350-00 | Body rubber stop assembly |
| 7 | R0202351-00 | Body rear assembly |
| 8 | R0202352-00 | Screw ST4.2*12 – F assembly (10PCS) |

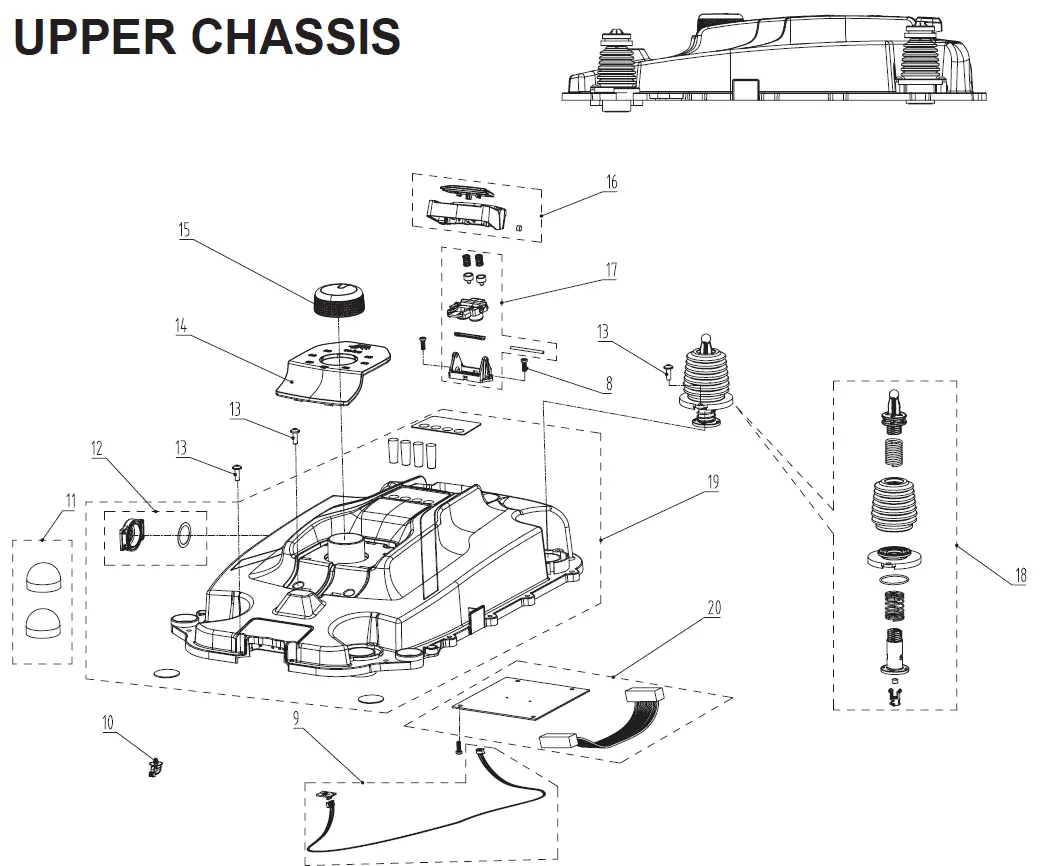

UPPER CHASSIS
| ITEM NO. | PART NO. | DESCRIPTION |
| 9 | R0202353-00 | Collision sensor board assembly |
| 10 | R0202354-00 | Tie assembly (10PCS) |
| 11 | R0202355-00 | Rubber cap assembly |
| 12 | R0202356-00 | Air filter assembly |
| 13 | R0202357-00 | Screw ST5*15 – F assembly (10PCS) |
| 14 | R0202358-00 | Height scale cover assembly |
| 15 | R0202359-00 | Height adjustment knob assembly |
| 16 | R0202360-00 | Start / Stop button assembly |
| 17 | R0202361-00 | Inner Start / Stop button assembly |
| 18 | R0202362-00 | Suspension assembly |
| 19 | R0202363-00 | Chassis upper assembly (GP) |
| R0202364-00 | Chassis upper assembly (GC) | |
| 20 | R0202365-00 | Communication board assembly |

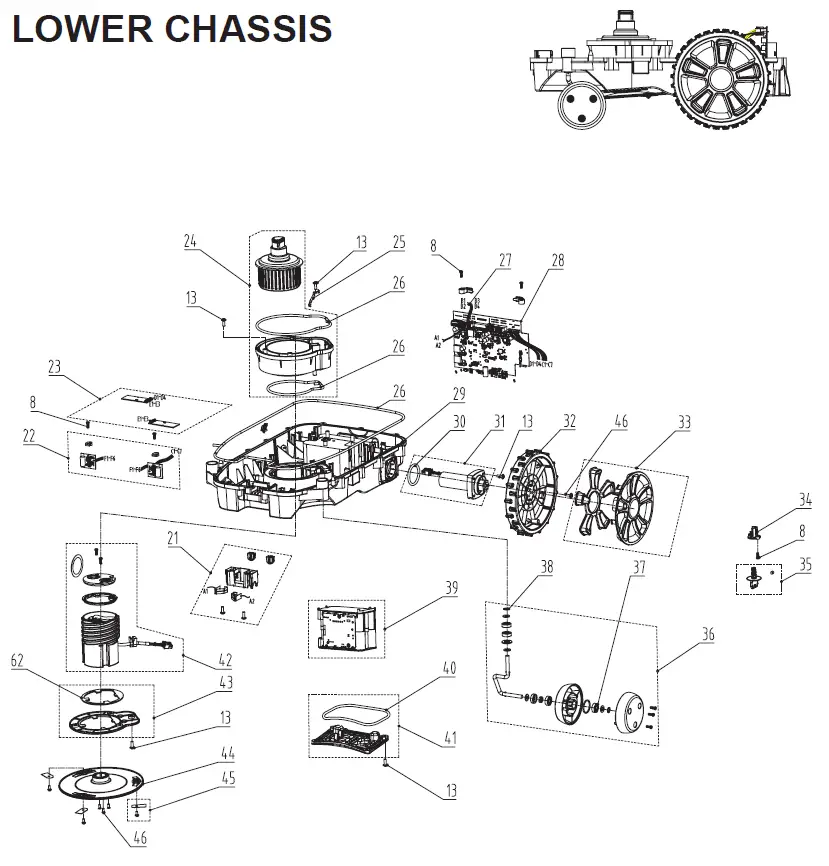

LOWER CHASSIS
| ITEM NO. | PART NO. | DESCRIPTION |
| 21 | R0202366-00 | Charging connector assembly |
| 22 | R0202367-00 | Loop sensor assembly |
| 23 | R0202368-00 | Lift sensor assembly |
| 24 | R0202369-00 | Height adjustment nut assembly |
| 25 | R0202370-00 | Height adjustment locker assembly |
| 26 | R0202371-00 | Sealing strip assembly |
| 27 | R0202372-00 | Battery extension cable assembly |
| 28 | R0202373-00 | Main board assembly |
| 29 | R0202374-00 | Chassis lower assembly |
| 30 | R0202375-00 | O-ring assembly |
| 31 | R0202376-00 | Wheel motor assembly |
| 32 | R0202377-00 | Drive wheel assembly |
| 33 | R0202378-00 | Drive wheel side assembly |
| 34 | R0202379-00 | Disabling device holder assembly |
| 35 | R0202380-00 | Disabling device assembly |
| 36 | R0202381-00 | Support wheel assembly |
| 37 | R0202382-00 | Ball bearing assembly (4PCS) |
| 38 | R0202383-00 | Starlock washer assembly (10PCS) |
| 39 | R0202707-00 | Battery assembly 24V 4Ah |
| 40 | R0202386-00 | Battery sealing strip assembly |
| 41 | R0202712-00 | Battery cover assembly (4Ah battery) |
| 42 | R0202388-00 | Cutting motor assembly |
| 43 | R0202389-00 | Height adjustment felt cover |
| 44 | R0202390-00 | Blade disc assembly |
| 45 | R0202391-00 | Blade assembly |
| 2957202 | Blade assembly | |
| 46 | R0202392-00 | Screw PWT4X11 assembly (10PCS) |

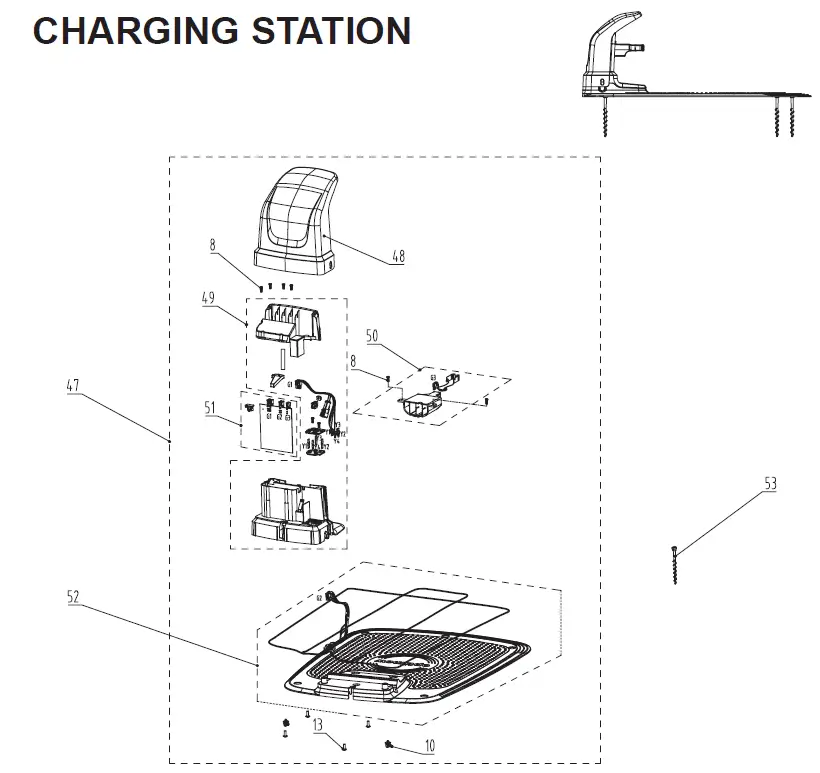

CHARGING STATION
| ITEM NO. | PART NO. | DESCRIPTION |
| 47 | R0202393-00 | Charging station assembly |
| 48 | R0202394-00 | CS Hood assembly |
| 49 | R0202395-00 | CS Tower assembly |
| 50 | R0202396-00 | CS Nozzle wiring assembly |
| 51 | R0202397-00 | CS Board assembly |
| 52 | R0202398-00 | CS Plate assembly |
| 53 | R0202399-00 | Charging station screw assembly |

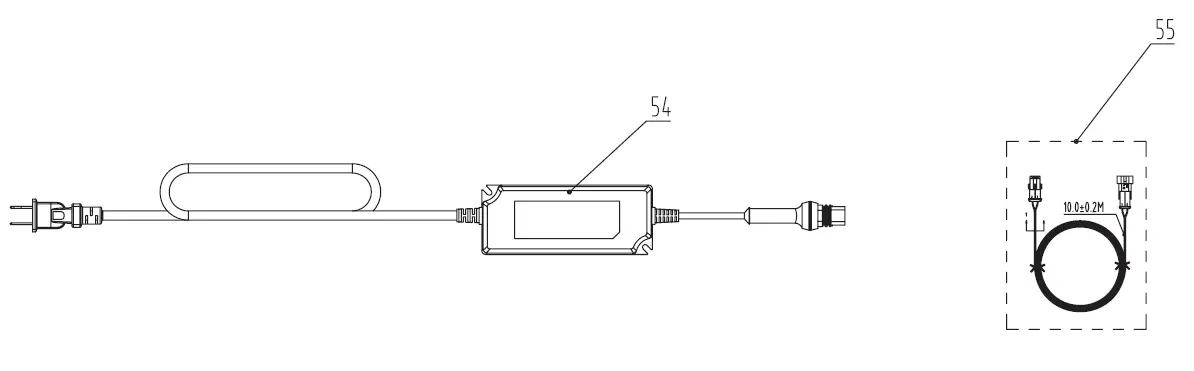

CHARGING ACCESSORIES
| ITEM NO. | PART NO. | DESCRIPTION |
| 54 | R0202418-00 | Power supply unit (US) 2.4A |
| R0202693-00 | Power supply unit (US) 1.3A | |
| 55 | R0202400-00 | Lower voltage cable, 10m |

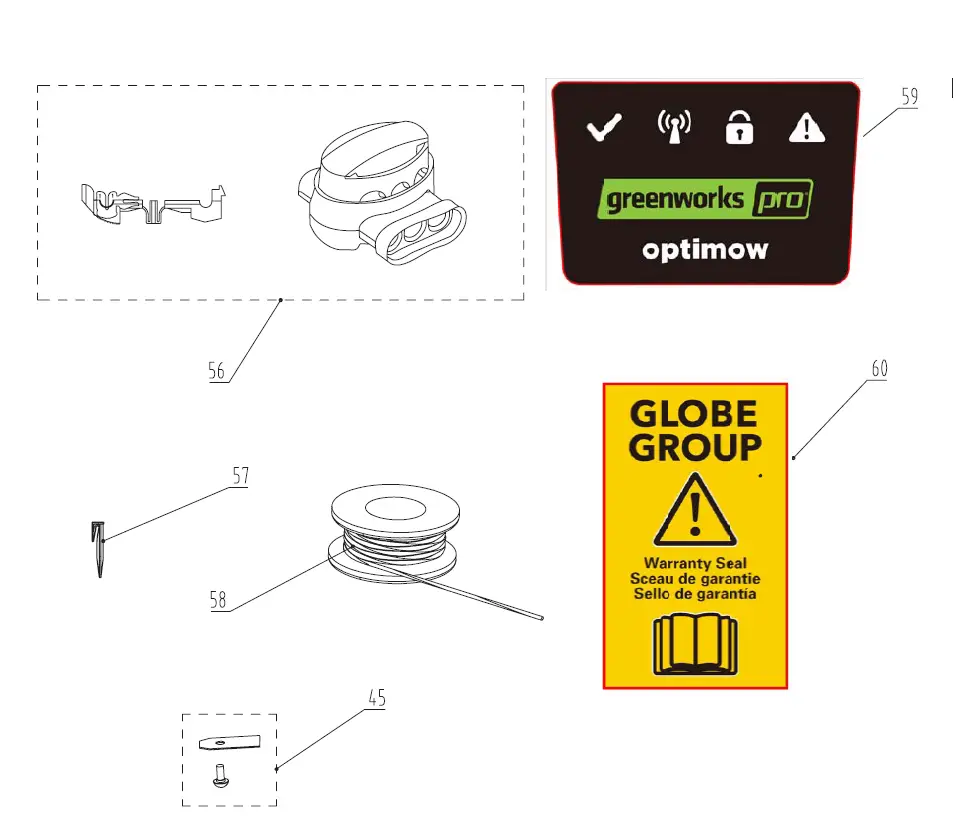

INSTALLATION ACCESSORIES
| ITEM NO. | PART NO. | DESCRIPTION |
| 56 | R0202401-00 | Robotic connector kit |
| 57 | R0202402-00 | Robotic wire pegs |
| 2968302 | Robotic wire pegs | |
| 58 | R0202403-00 | Robotic loopwire (100m) |
| 2968202 | Robotic loopwire (100m) | |
| 59 | R0202404-00 | Overlay (GP) |
| R0202405-00 | Overlay (GC) | |
| 60 | R0202406-00 | Dealer warranty seal sticker assembly (10PCS) |

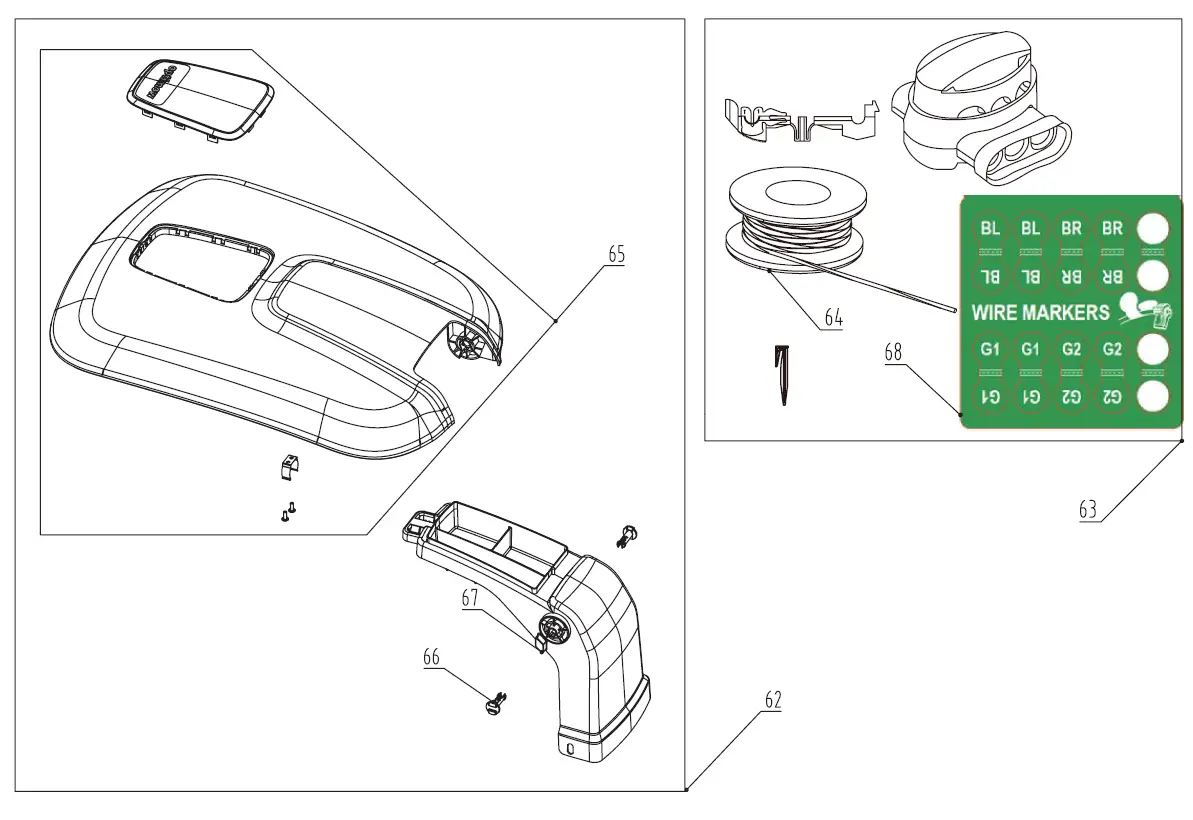

ACCESSORIES
| ITEM NO. | PART NO. | DESCRIPTION |
| 61 | R0202407-00 | Height adjustment felt sealing |
| 62 | 2961802 | Greenworks Commercial optimow garage |
| 63 | 2957402 | GW Optimow boundary repair kit |
| 2956102 | GC RLM1 Optimow 33 installation kit | |
| 2956202 | GC RLM1 Optimow 66 installation kit | |
| 64 | 2957302 | GW Optimow replacement 500m bulk boundary wire spool |
| 65 | R0202511-00 | Roof assembly |
| 66 | R0202512-00 | Lock pin |
| 67 | R0202513-00 | Support base |
| 68 | R0202541-00 | Wire markers label (10PCS)
|
