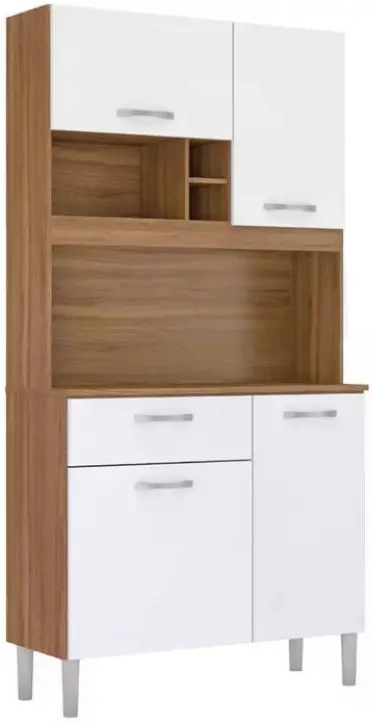

Demobile 91401 Kitchen Kit 4 Doors 1 Drawer Amendola White
Warnings
- Read the manual instructions carefully before starting to assemble the furniture.
- The assembly must be done on a clean and flat surface, we advise putting the product packaging on the floor, so as not to damage it during the assembly.
- The screws must be tightened periodically.
- Avoid hitting and contacting sharp objects.

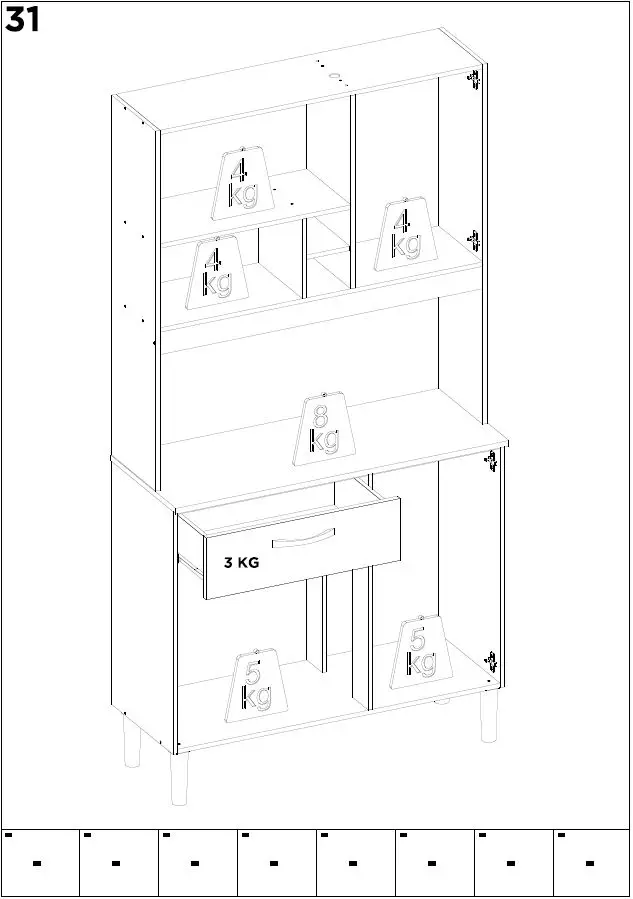

- The payload informed refers to the objects distributed all over the piece contact area.
- Cleaning and conservation
- Clean the product just with a soft, cleaned, and dry cloth.
- Do not use abrasive or chemical products.
Warranty
- The manufacturer is only responsible for product parts.
- The incorrect assembling will make you lose the guarantee and assistance, in this way the product must be assembled by a qualified professional.
- It is not covered by the warranty problems caused by inappropriate use of the product or product exposure even in bad weather, such as infiltrations, pest infestation in general, the appearance of mold, and others, caused by the installation environment.
Technical Assistance: Damaged pieces! Ask about the stores you bought it from.

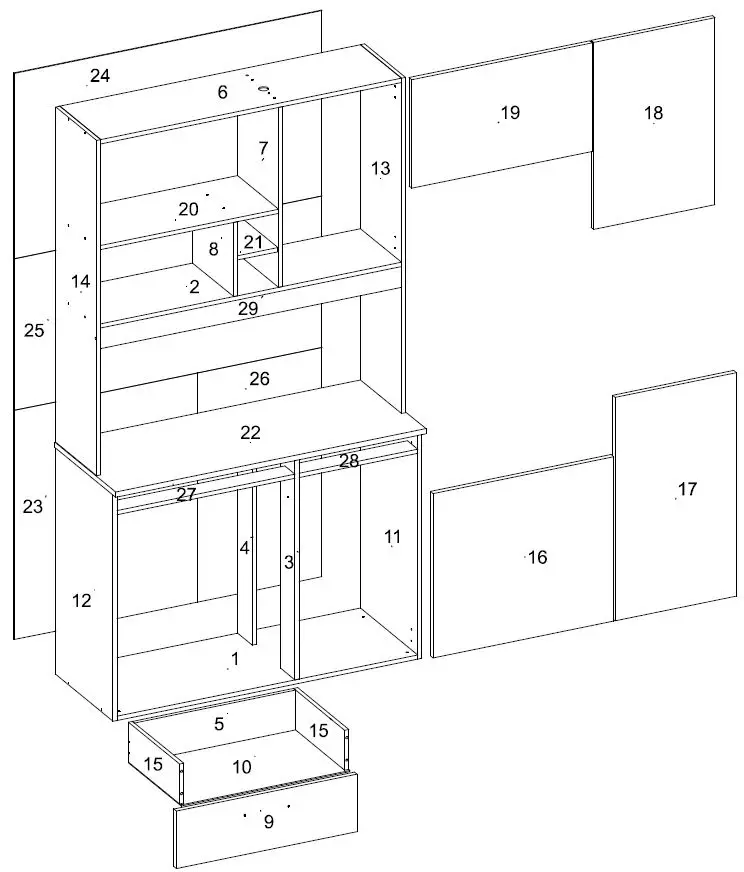

Parts Discription
| BRANCO GRAFITO I: | DESCRIPTION OF PARTS | DATA ATUALIZACAO: | 14/03/2022 | DIMENSIONS/QUANTITY | |||||||||||||
| SEO. | CODIGO | REF_01 | REF_02 | REF_03 | REF_04 | REF_05 | REF_06 | REF_07 | DESCRICAO | DESCRIPTION_EN | DESCRIPCION_ES | DIMENSOES_MM | QT□ | ||||
| 03264 | 138 | 157 | – | – | – | – | – | BASE | BASE | BASE | 819 X 335 X 12 | 1 | |||||
| 2 | 03265 | 136 | 158 | – | – | – | – | – | BASE INTERMEDIARIA | BASE | BASE | 879X240X 12 | 1 | ||||
| 05129 | 138 | 157 | – | – | – | – | – | BATENTE FRONTAL | FRONT SUPPORT | SOPORTE FRONTAL | 638X85X12 | 1 | |||||
| 4 | 05130 | 138 | 157 | – | – | – | – | – | BATENTE TRASEIRO | BACK SUPPORT | SOPORTE TRASERO | 638X85X12 | 1 | ||||
| 06203 | 138 | 157 | – | – | – | – | – | CONTRA FUNDO | DRAWER BACK | CONTRA FONDO | 471X114X12 | 1 | |||||
| 6 | 07195 | 138 | 157 | – | – | – | – | – | CHAPEU | TOP PANEL | TAPA SUPERIOR DEL ROPERO | 879X240X 12 | 1 | ||||
| 08452 | 136 | 158 | – | – | – | – | – | DIVISAO SUPERIOR ESQUERDA | LEFT DIVISION | RIGHT DIVIDE | 515X240X12 | 1 | |||||
| 08453 | 136 | 158 | – | – | – | – | – | DIVISAO DO NICHO | LEFT DIVISION | RIGHT DIVIDE | 240X212X12 | 1 | |||||
| 09255 | 153 | 163 | – | – | – | – | – | FRENTE DE GAVETA | DRAWER FRONT | FRENTE DEL CAJON | 528X 165 X 15 | 1 | |||||
| 10 | 10179 | 138 | 157 | – | – | – | – | – | FUNDO GAVETA | DRAWER BASE | FONDO DEL CAJON | 493 X 308 X 3 | 1 | ||||
| 11 | 11608 | 136 | 158 | – | – | – | – | – | LATERAL INFERIOR DIREITA | RIGHT SIDE PANEL | LATERAL DERECHA | 650X335X12 | 1 | ||||
| 12 | 11609 | 136 | 158 | – | – | – | – | – | LATERAL INFERIOR ESQUERDA | LEFT SIDE PANEL | LATERAL IZQUIERDA | 650X335X12 | 1 | ||||
| 13 | 11610 | 136 | 158 | – | – | – | – | – | LATERAL SUPERIOR DIREITA | RIGHT SIDE PANEL | LATERAL DERECHA | 960 X 240 X 12 | 1 | ||||
| 14 | 11611 | 136 | 158 | – | – | – | – | – | LATERAL SUPERIOR ESQUERDA | LEFT SIDE PANEL | LATERAL IZQUIERDA | 960 X 240 X 12 | 1 | ||||
| 15 | 12052 | 138 | 157 | – | – | – | – | – | LATERAL DE GAVETA | DRAWER SIDE | LATERAL DEL CAJON | 300X114X12 | 1 | ||||
| 16 | 14418 | 153 | 163 | – | – | – | – | – | PORTA INFERIOR MENOR | DOOR | PUERTA | 528X471X15 | 1 | ||||
| 11 | 14419 | 153 | 163 | – | – | – | – | – | PORTA INFERIOR | DOOR | PUERTA | 640X355X15 | 1 | ||||
| 18 | 14420 | 153 | 163 | – | – | – | – | – | PORTA SUPERIOR | DOOR | PUERTA | 535X355X15 | 1 | ||||
| 19 | 14421 | 153 | 163 | – | – | – | – | – | PORTA | DOOR | PUERTA | 528 X 311 X 15 | 1 | ||||
| 20 | 15212 | 138 | 157 | – | – | – | – | – | PRATELEIRA | SHELF | ESTANTERIA | 520 X 240 X 12 | 1 | ||||
| 21 | 15273 | 136 | 158 | – | – | – | – | – | PRATELEIRA MOVEL | SHELF | ESTANTERIA | 235 X 120X 12 | 1 | ||||
| 22 | 19338 | 136 | 158 | – | – | – | – | – | TAMPO | TOP | TAPA | 901 X 355 X 15 | 1 | ||||
| 23 | 20612 | 138 | 157 | – | – | – | – | – | TRASEIRO | BACK PANEL | TRASERO | 656 X 536 X 3 | 1 | ||||
| 24 | 20613 | 138 | 157 | – | – | – | – | – | TRASEIRO SUPERIOR | BACK PANEL | TRASERO | 899 X 531 X 3 | 1 | ||||
| 25 | 20614 | 138 | 157 | – | – | – | – | – | TRASEIRO CENTRAL | BACK PANEL | TRASERO | 899 X 434 X 3 | 1 | ||||
| 26 | 20615 | 138 | 157 | – | – | – | – | – | TRASEIRO MENOR | BACK PANEL | TRASERO | 656 X 363 X 3 | 1 | ||||
| 21 | 28144 | 138 | 157 | – | – | – | – | – | TRAVESSA DO TAMPO MAIOR | DRAWER’S SECURITY SUPPORT | TRAVESA DE CAJON | 520 X 60 X 12 | 1 | ||||
| 28 | 28145 | 138 | 157 | – | – | – | – | – | TRAVESSA DOTAMPO MENOR | DRAWER’S SECURITY SUPPORT | TRAVESA DE CAJON | 347X60X12 | 1 | ||||
| 29 | 28146 | 136 | 158 | – | – | – | – | – | TRAVESSA FRONTAL | FRONT CRANKCASE | TRAVESA FRONTAL | 819 X 60 X 12 | 1 | ||||

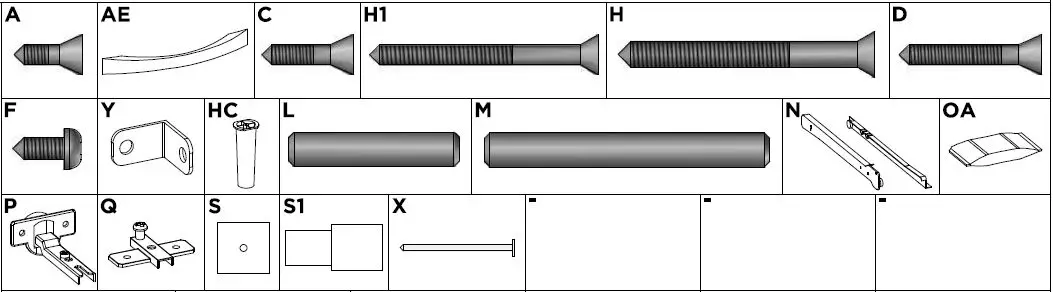

LIST OF ACCESSORIES
| LIST OF ACCESSORIES | |||||
| SEQ. | CODIGO. | DESCRl AO | DESCRIPTION_EN | DESCRIPCION_ES | QTD. |
| 01446 | KIT DE ACESSORIOS | KIT OF ACCESSORIES | KIT DE ACCESORIOS | 1 | |
| A | 9905002 | PARAFUSO 3.5 X 12 MM CHATA PHILIPS | PHILIPS FLAT HEAD SCREW | TORNILLO CHATA PHILIPS | 28 |
| AE | 9904021 | PUXADOR ALPHA F 128 MM PRATA | HANDLE | TIRADOR | 5 |
| C | 9905004 | PARAFUSO 3.5 X 16 MM CHATA PHILIPS | PHILIPS FLAT HEAD SCREW | TORNILLO CHATA PHILIPS | 7 |
| D | 9905018 | PARAFUSO 3.5 X 25 MM CHATA PHILIPS | PHILIPS FLAT HEAD SCREW | TORNILLO CHATA PHILIPS | 19 |
| F | 9905007 | PARAFUSO 4 X 12 MM PANELA PHILIPS | PANHEAD SCREW | TORNILHO CABEZERA DE OLHA | 32 |
| H | 9905015 | PARAFUSO 4.5 X 45 MM CHATA PHILIPS | PHILIPS FLAT HEAD SCREW | TORNILLO CHATA PHILIPS | 4 |
| H1 | 9905035 | PARAFUSO 3.5 X 40 MM CHATA PHILIPS | PHILIPS FLAT HEAD SCREW | TORNILLO CHATA PHILIPS | 32 |
| HC | 9918010 | PE REDONDO 142 MM CINZA | PLASTIC FOOT | PATA DE PLASTICO | 4 |
| L | 9920011 | CAVILHAS 6 X 30 MM | WOODEN PEG | CLAVIJA DE MADERA | 34 |
| M | 9920012 | CAVILHAS 6 X 50 MM | WOODEN PEG | CLAVIJA DE MADERA | 4 |
| N | 9913009 | CORR EDICA 300 MM METAL LIGHT | METAL SLIDE | RIEL METALICO | 1 |
| OA | 9912006 | SACHET DE COLA 10 GRAMAS | GLUE | COLA | |
| p | 9920020 | DOBRADICA ALTA 26 MM ESTAMPADA | HINGE | BISAGRA | 8 |
| Q | 9920005 | CALCO DOBRADICA 5 MM | CHOCK | CALCE | 8 |
| s | 9920026 | FIXADOR DE FUN DO 10 X 10 MM | BOOTOM FASTENER | FIJADOR DE FON DO | 15 |
| S1 | 9920040 | SUPORTE PRATELEIRA 6 X 8 | SHELF SUPPORT | SOPORTE DE ESTANTERIA | 4 |
| X | 9906002 | PREGO 9X9 MM | NAIL | CLAVO | 65 |
| y | 9920006 | CANTONEIRA METALICA 16 MM | METAL ANGLE BRACKET | ESQUINERAS METALICAS | 11 |

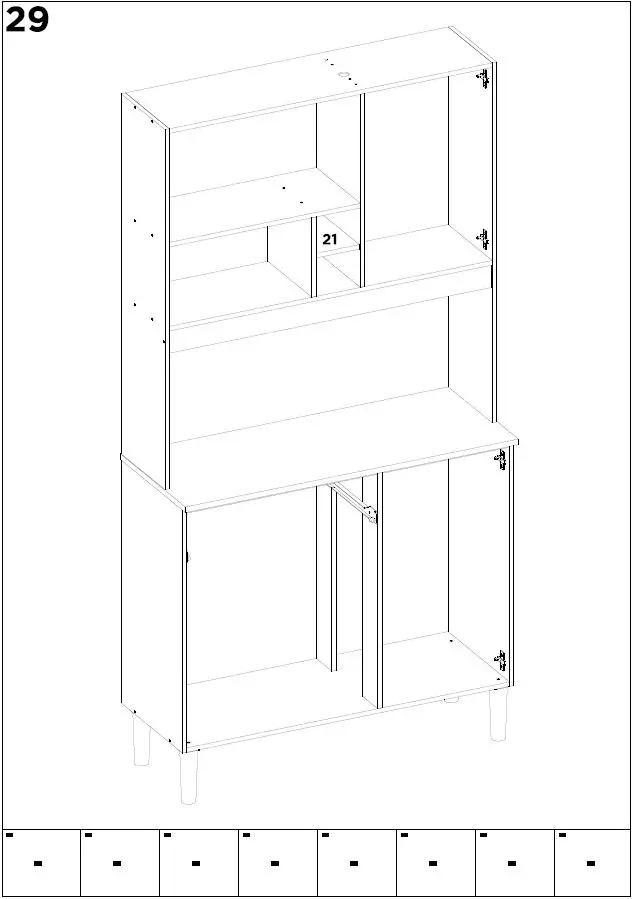

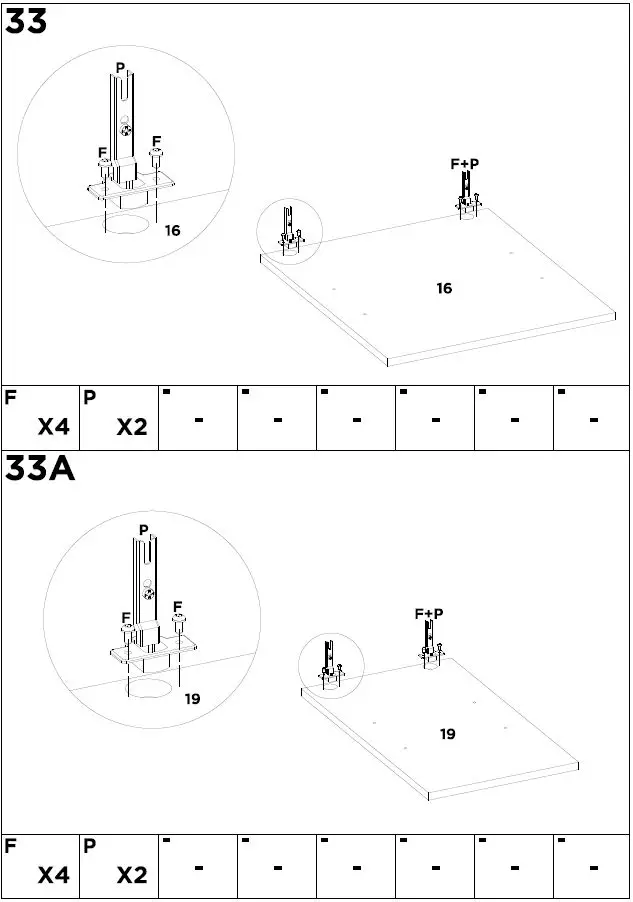

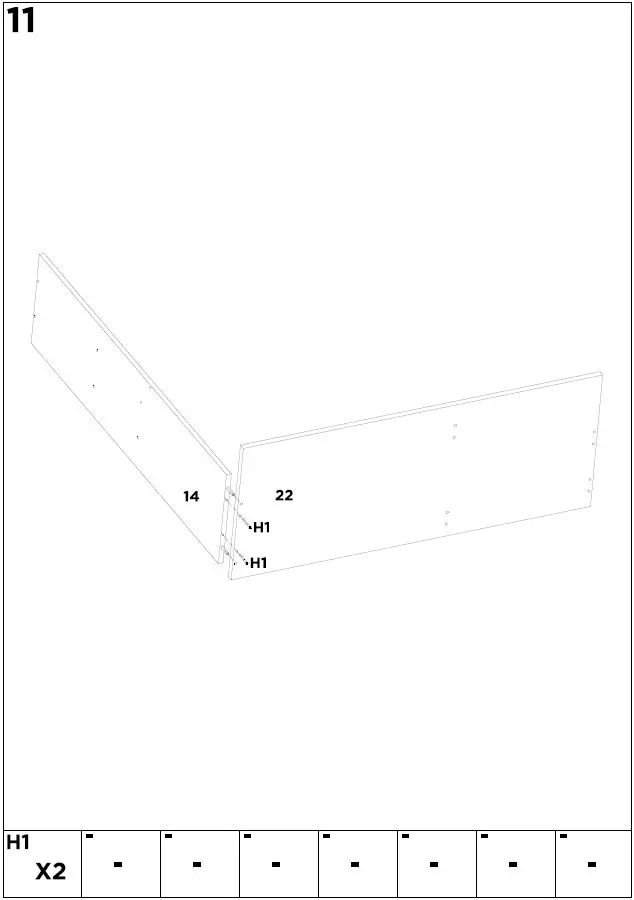

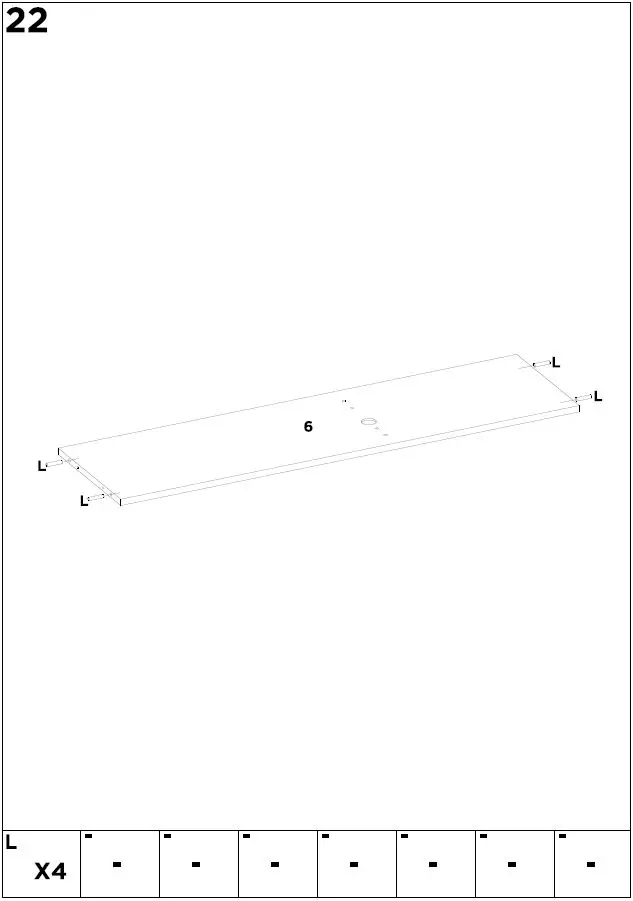

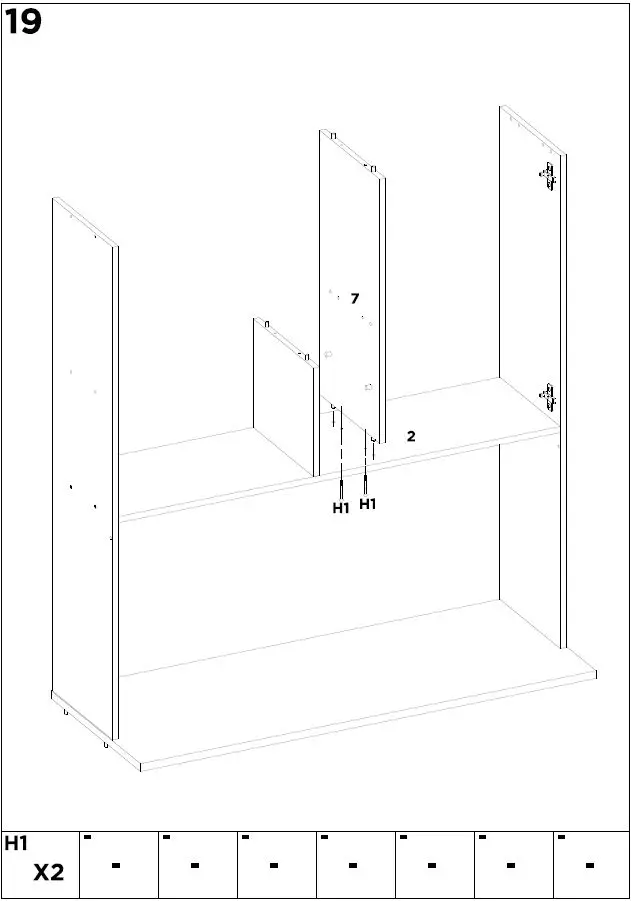

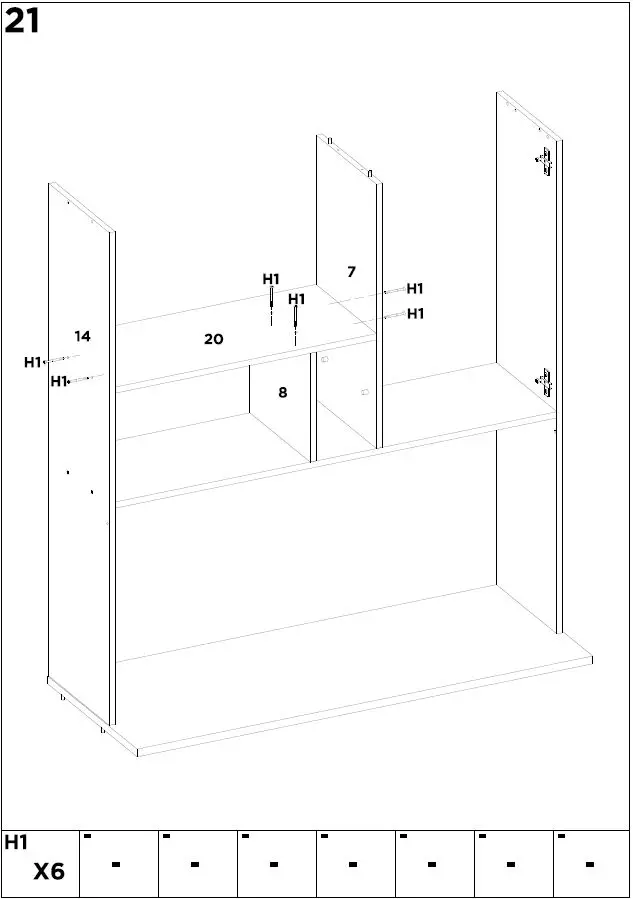

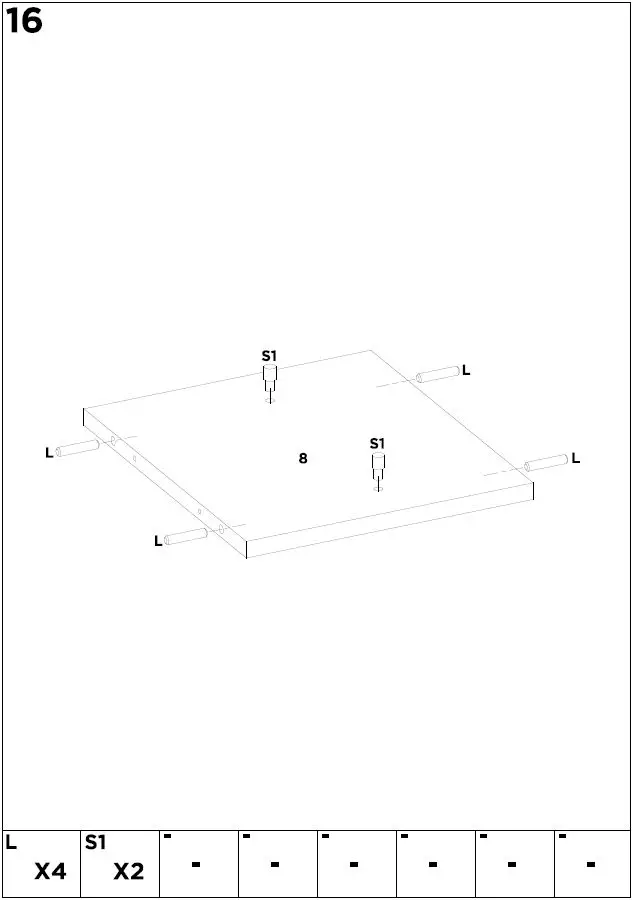

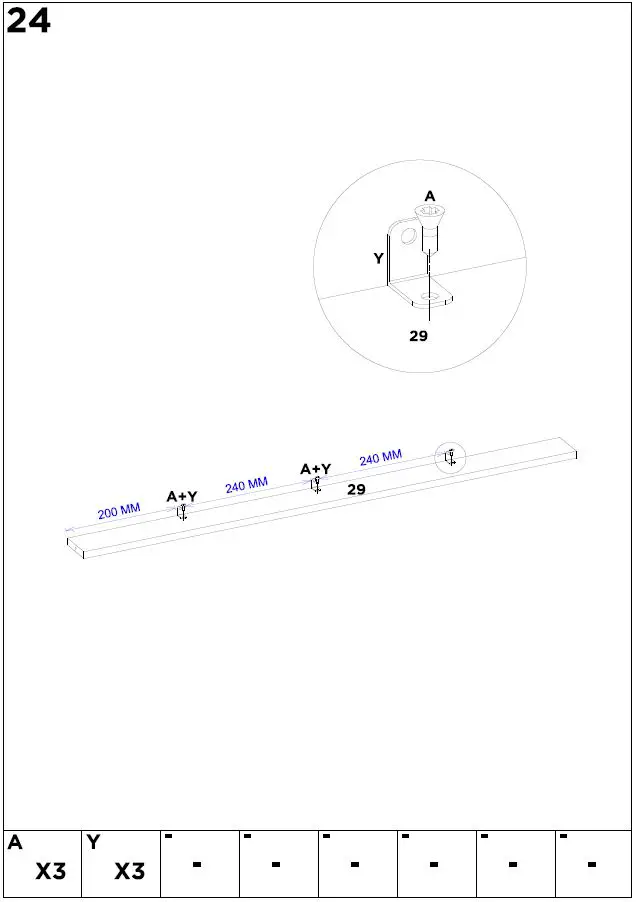

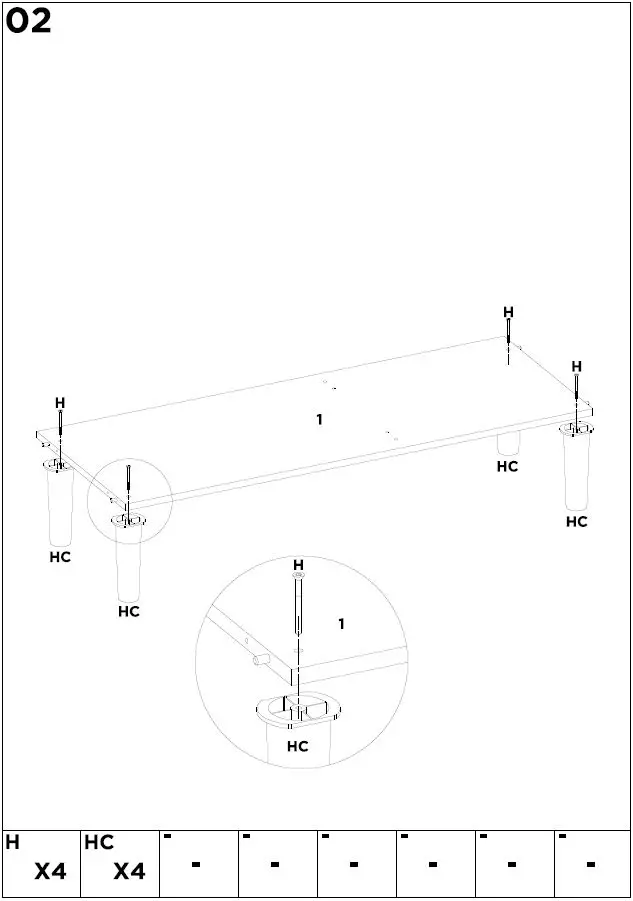

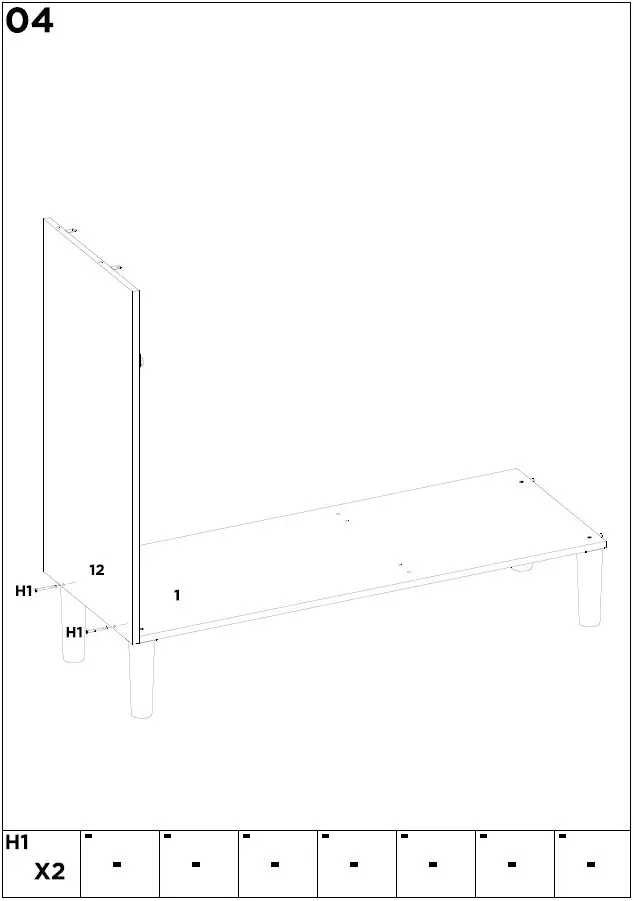

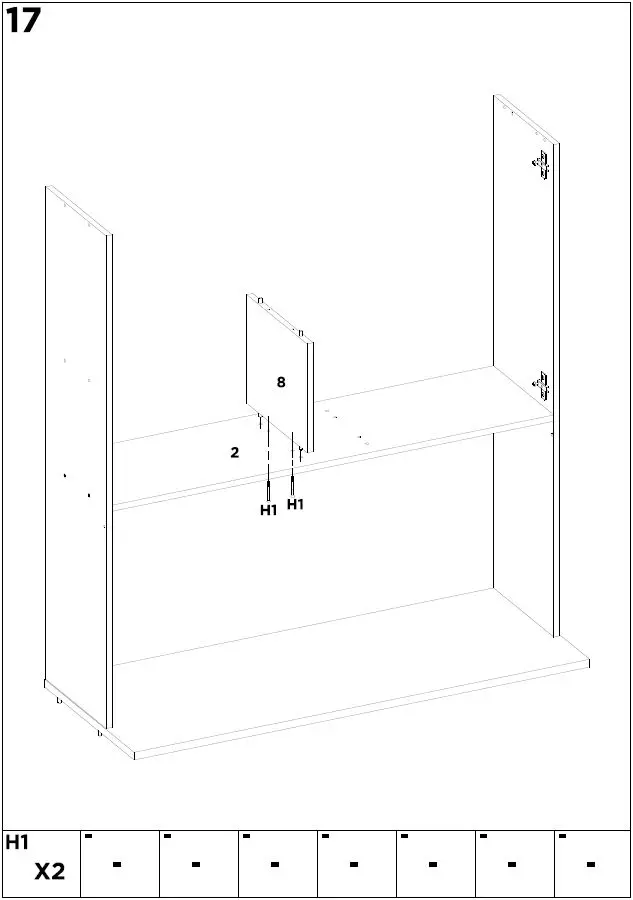

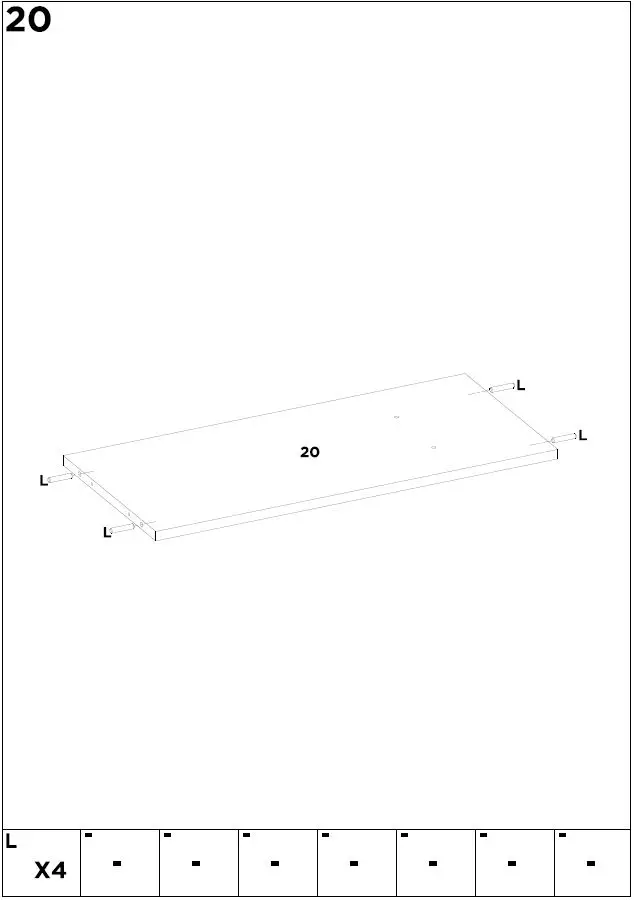

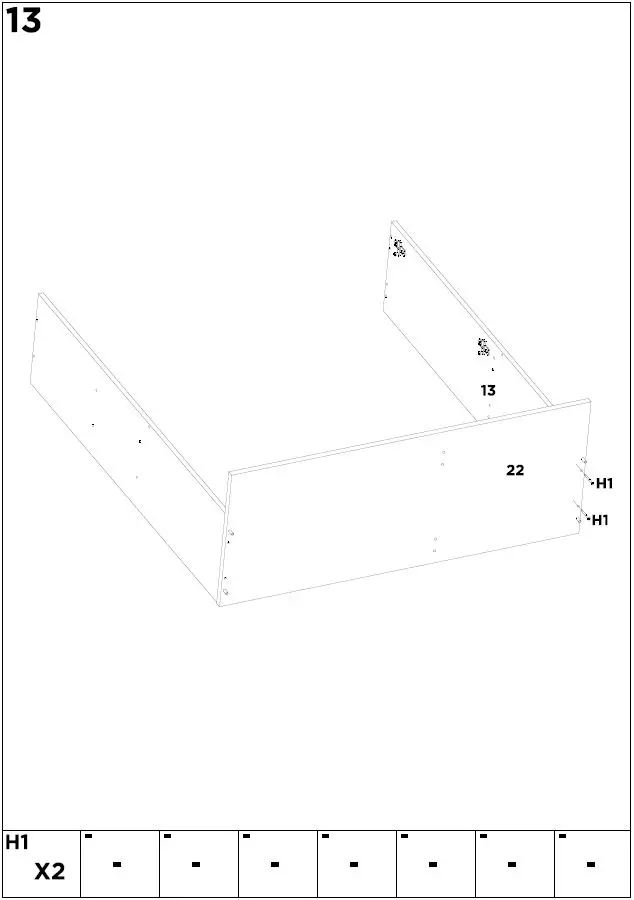

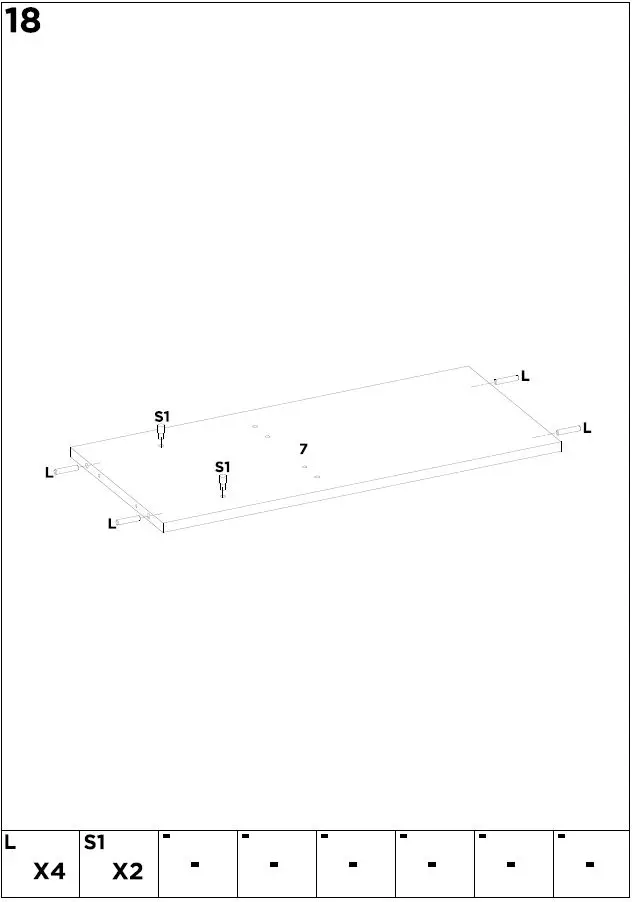

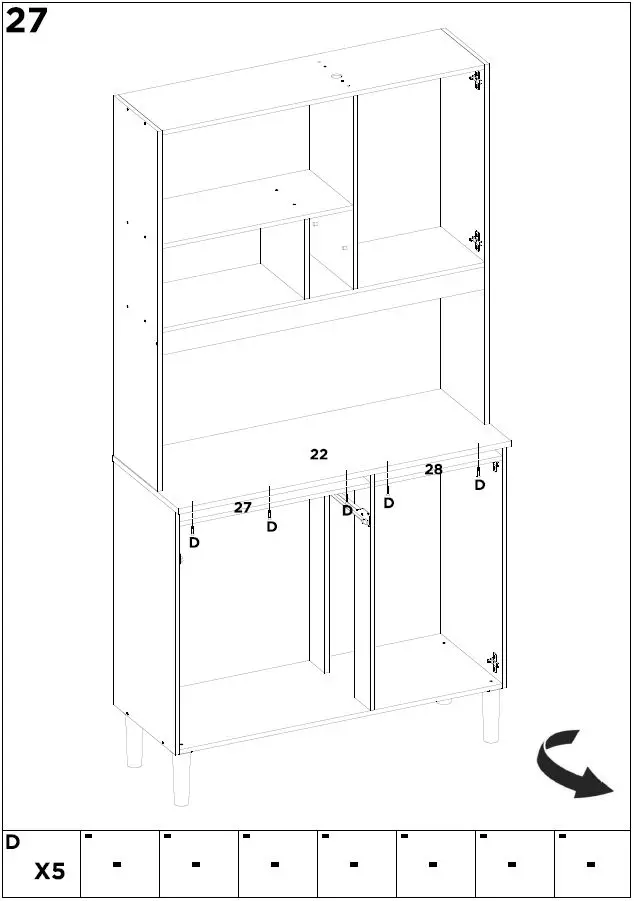

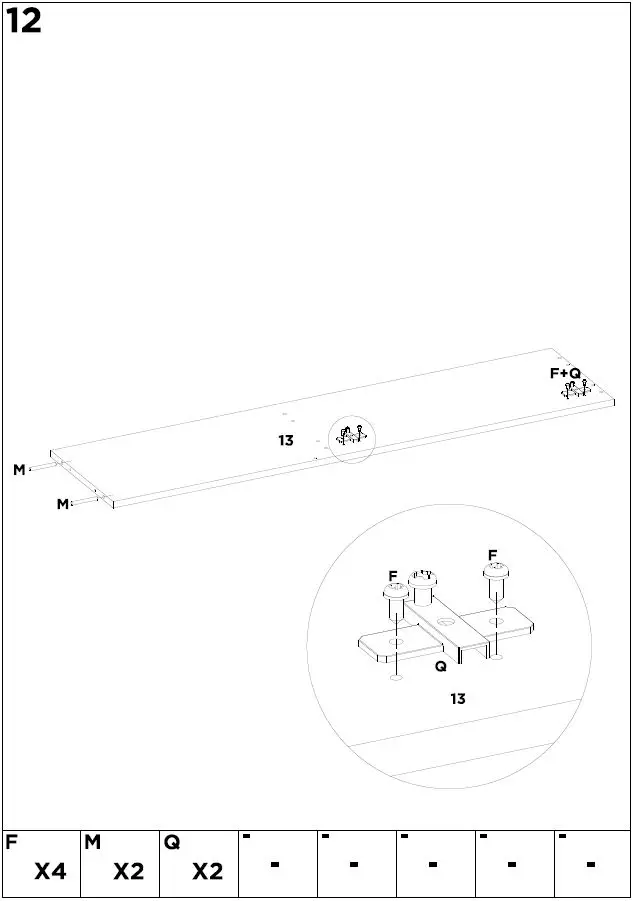

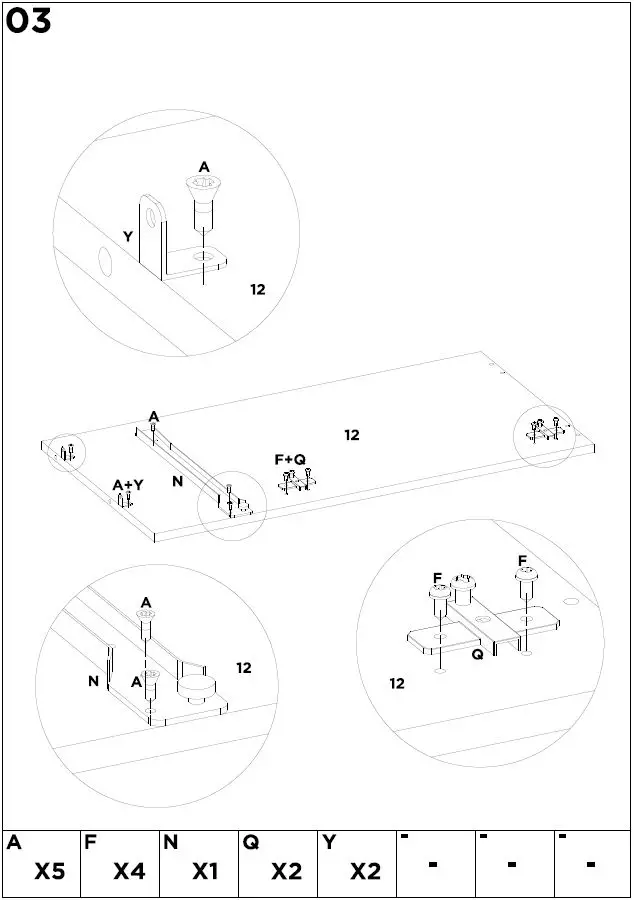

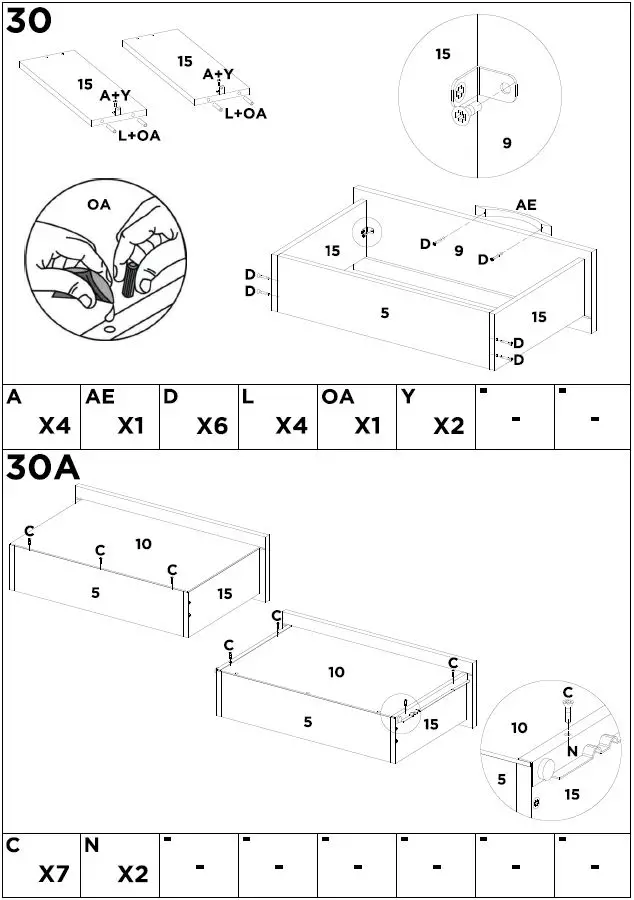

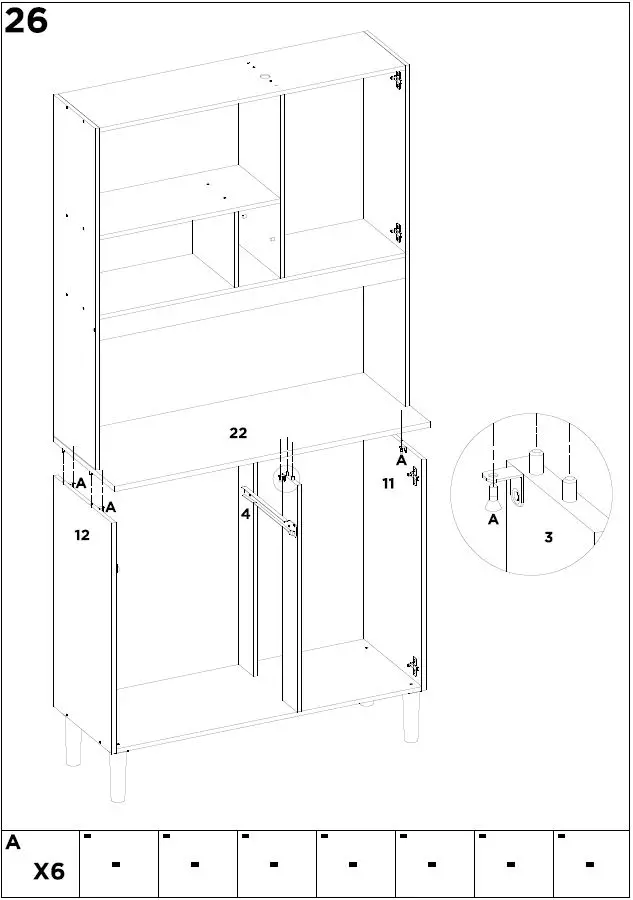

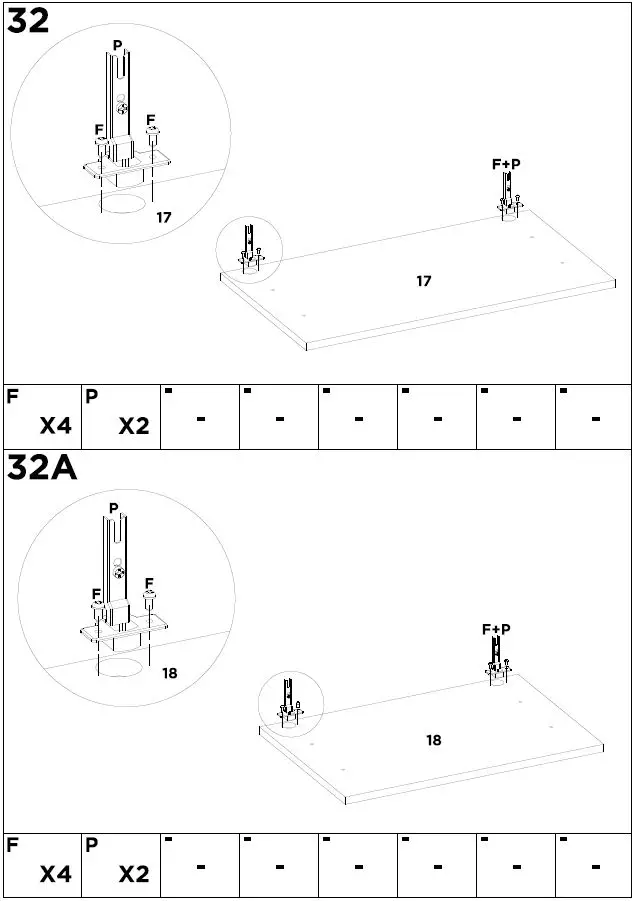

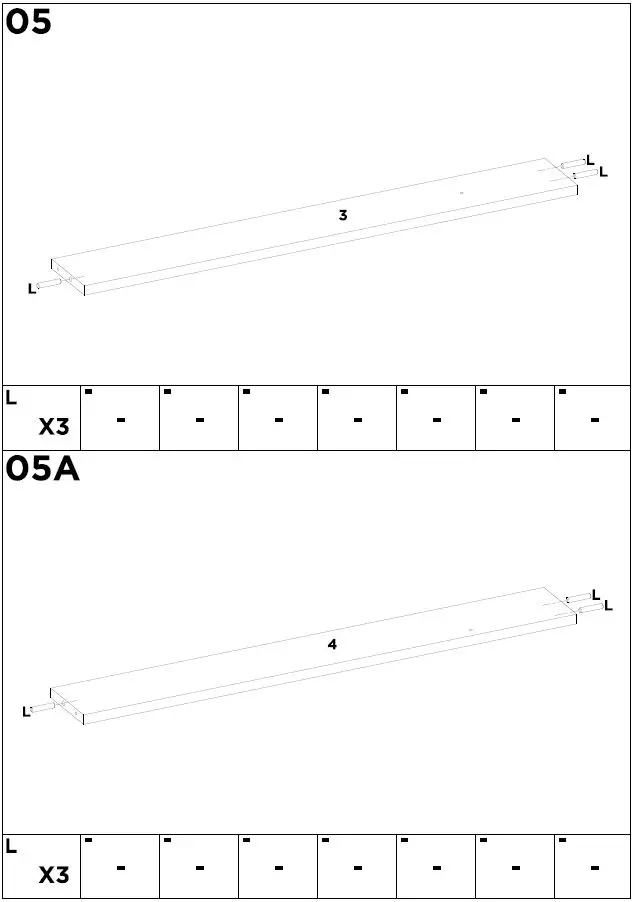

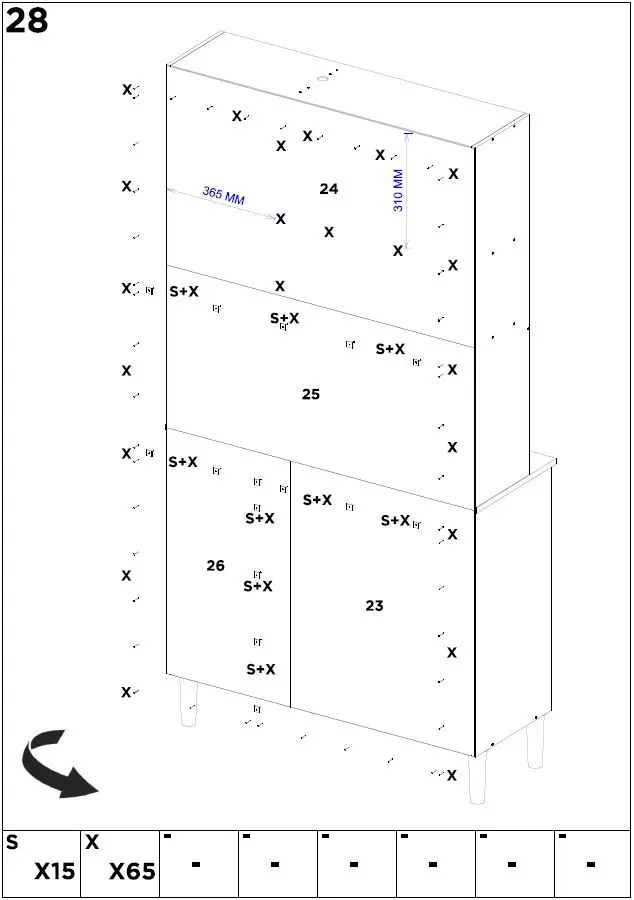

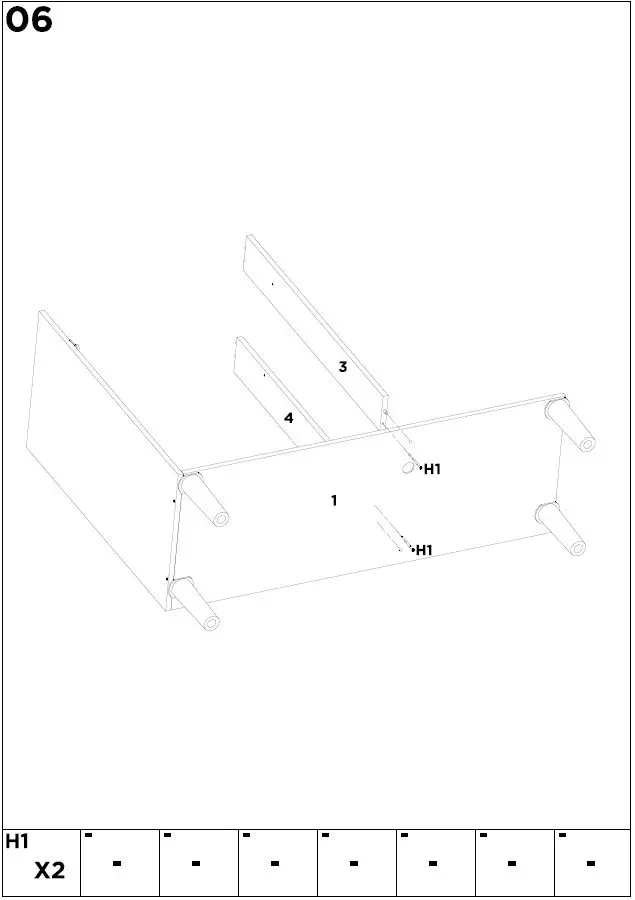

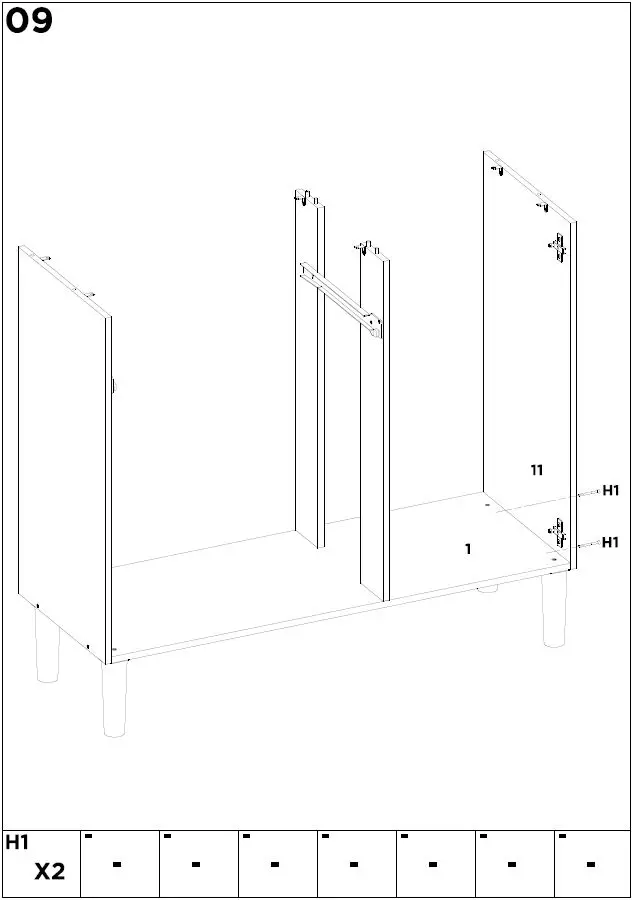

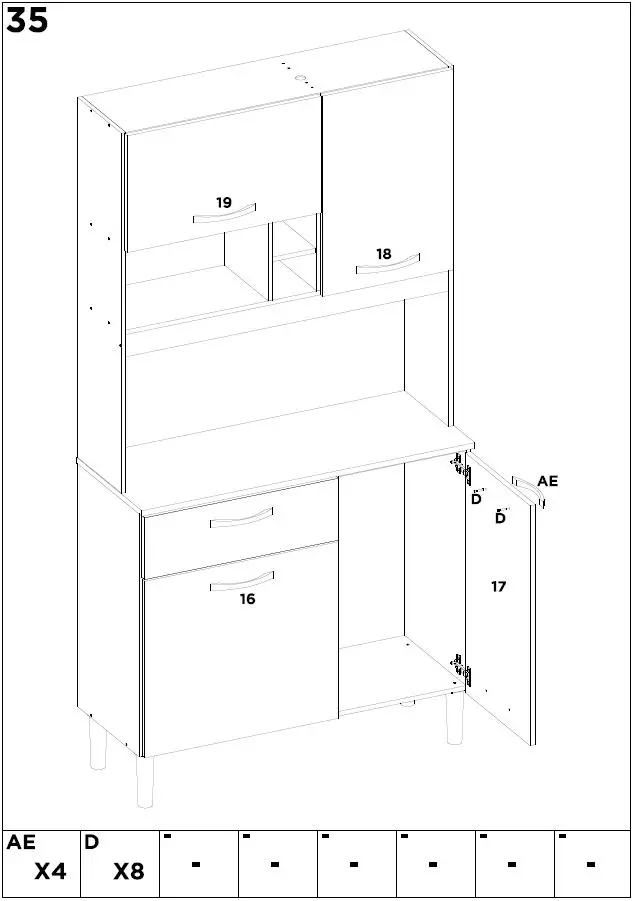

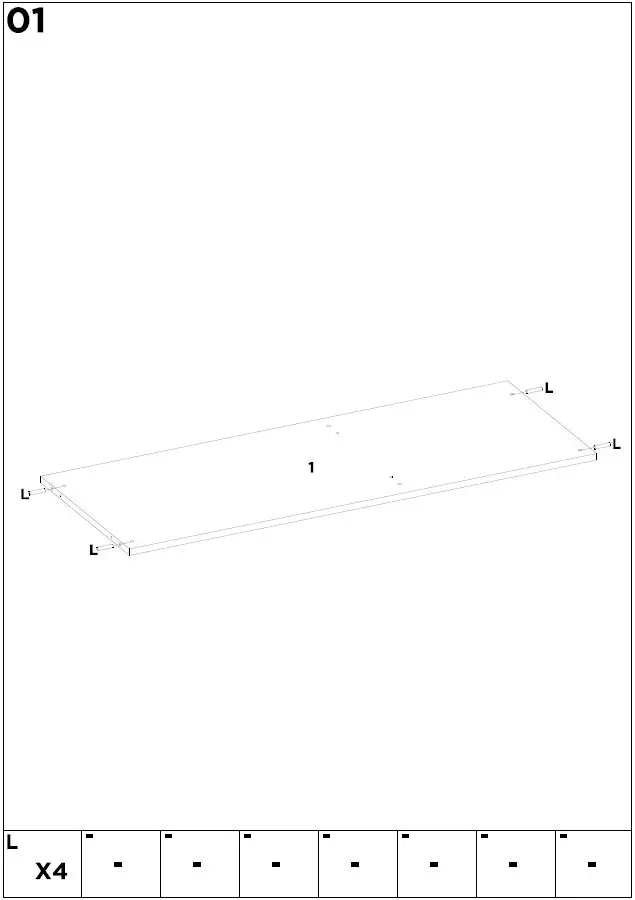

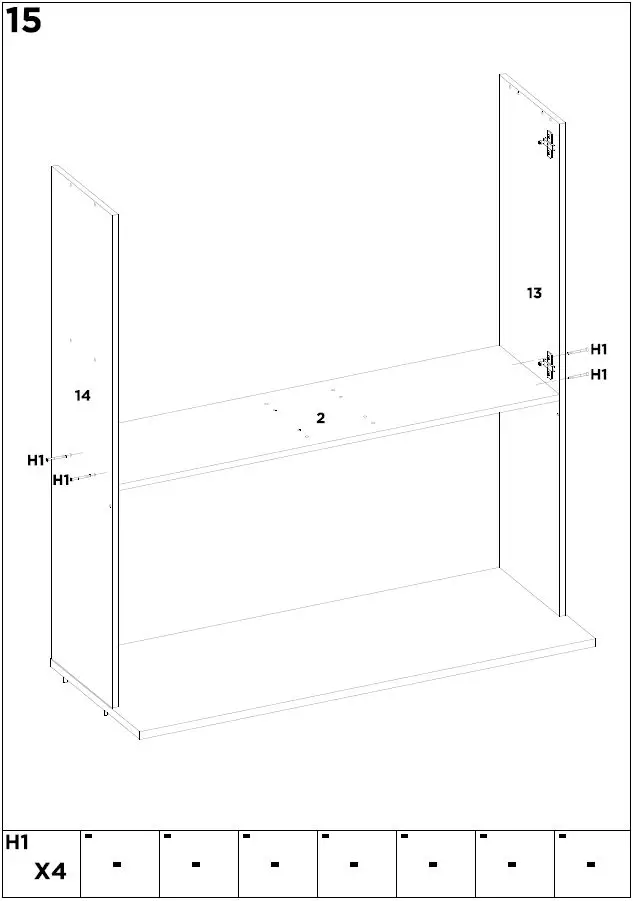

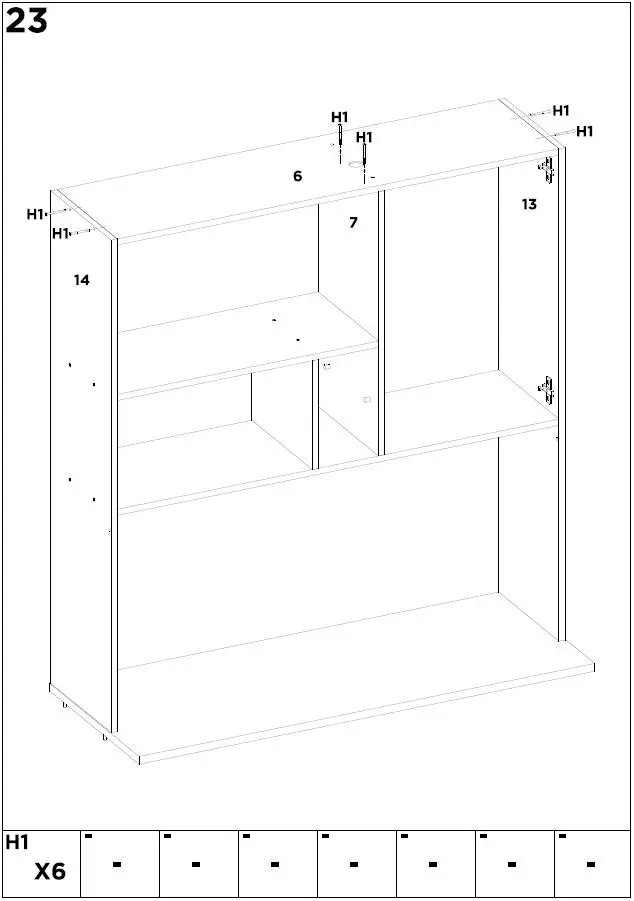

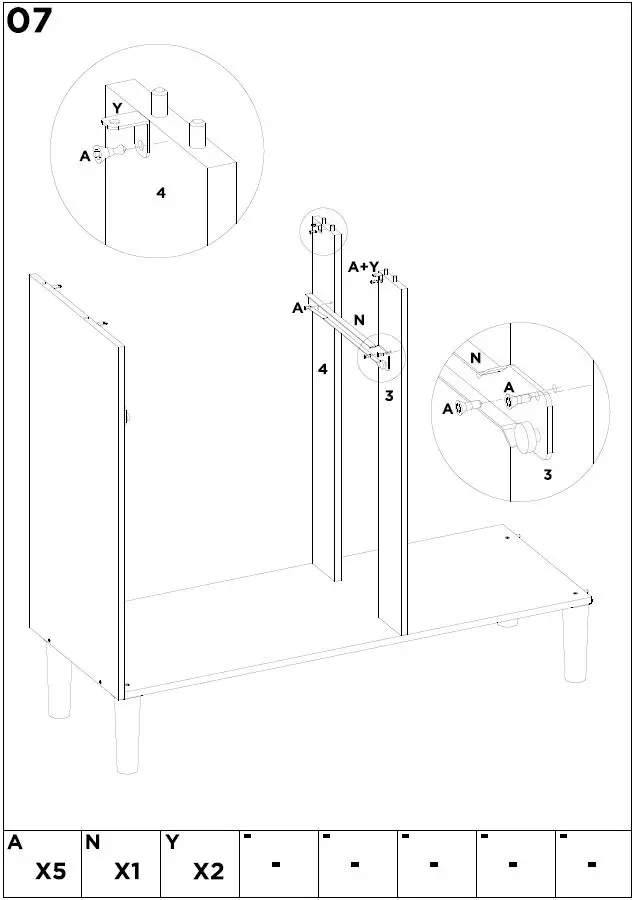

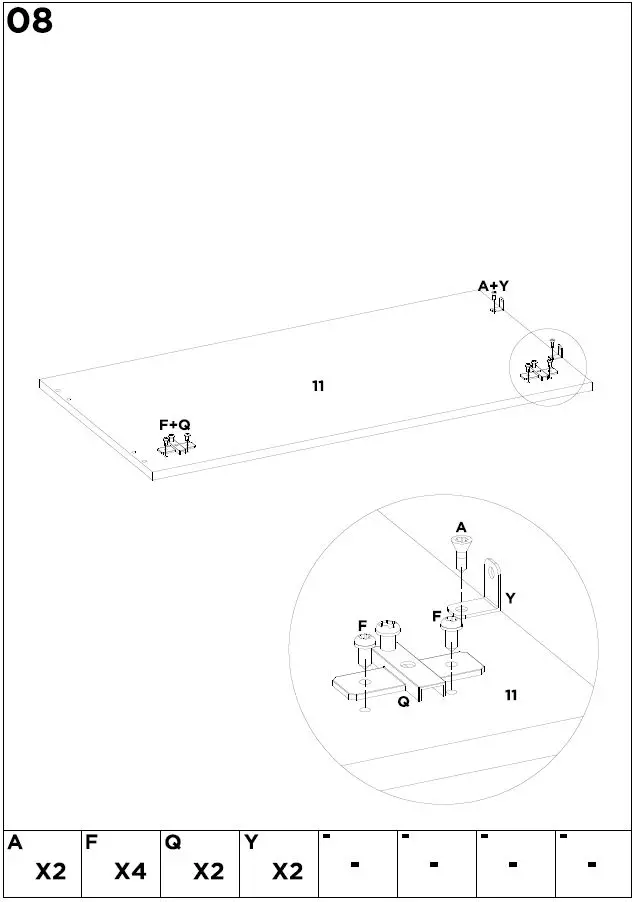

Installations

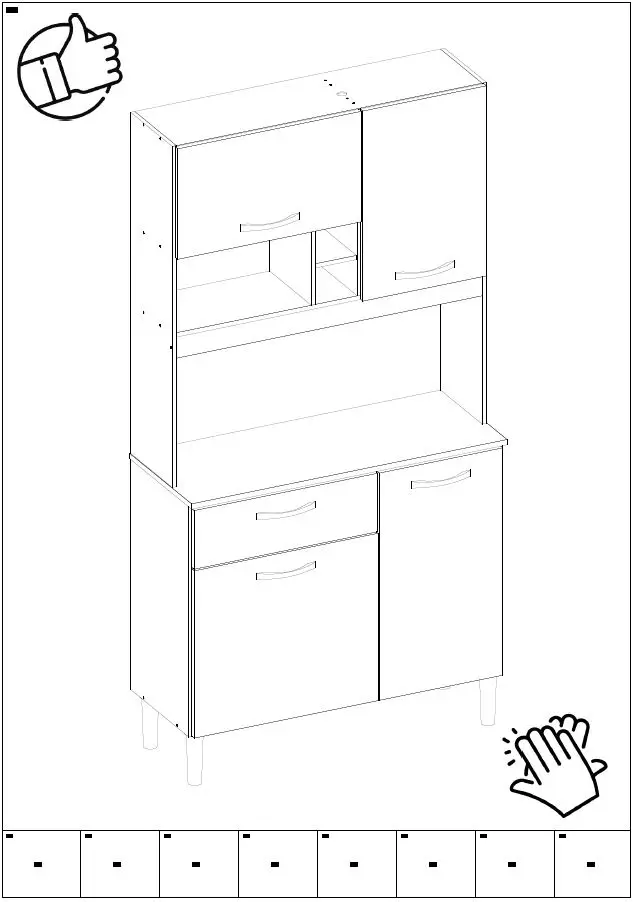

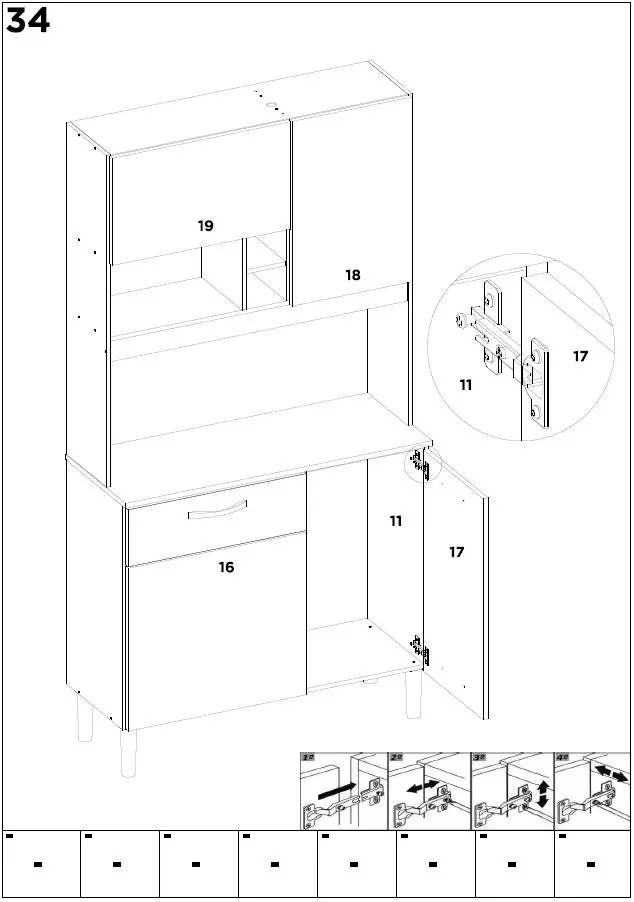

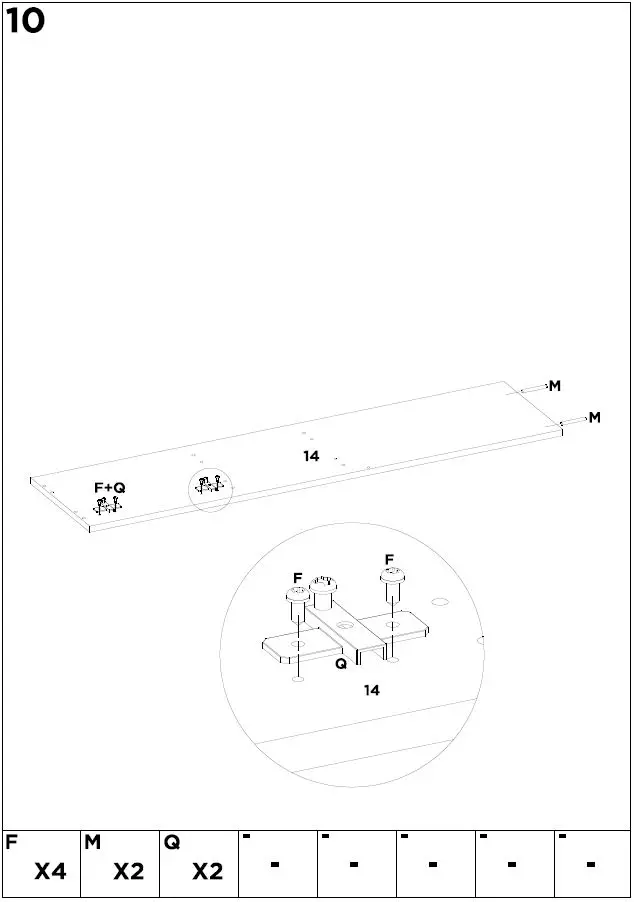

Installation Completed
COMPLETE MANUAL
